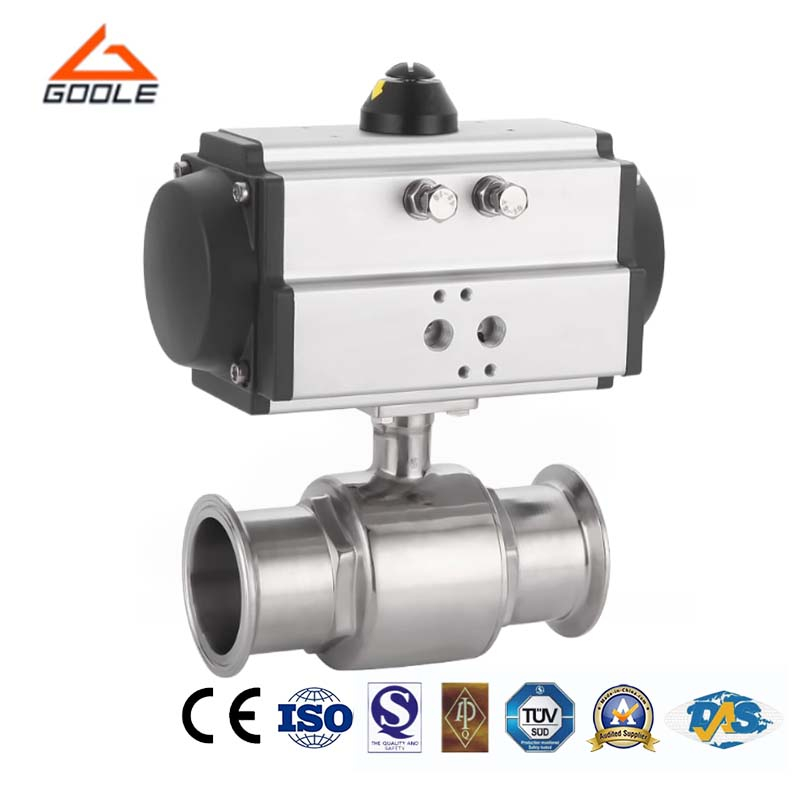

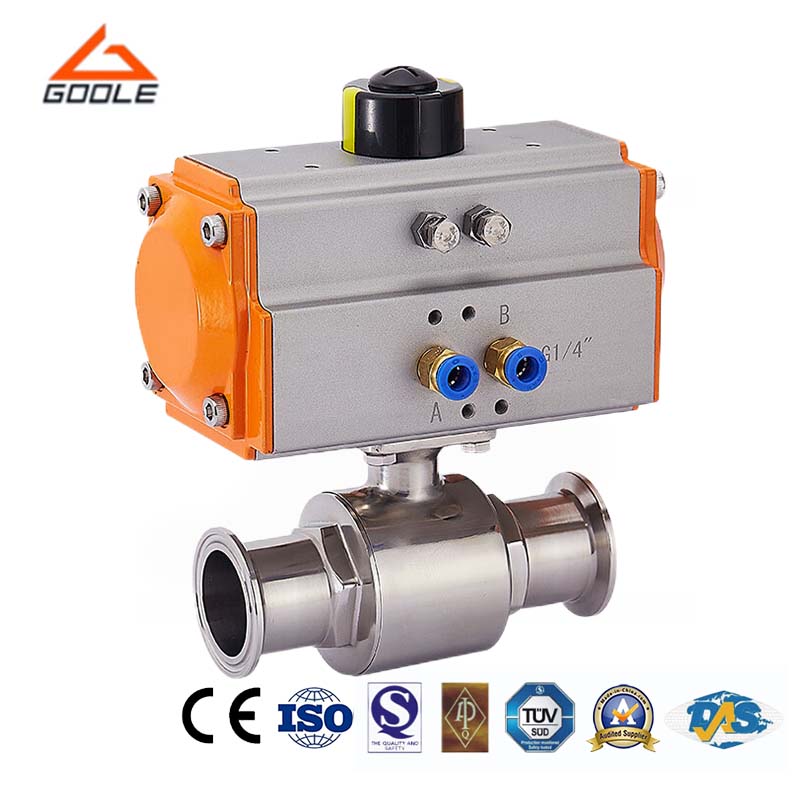

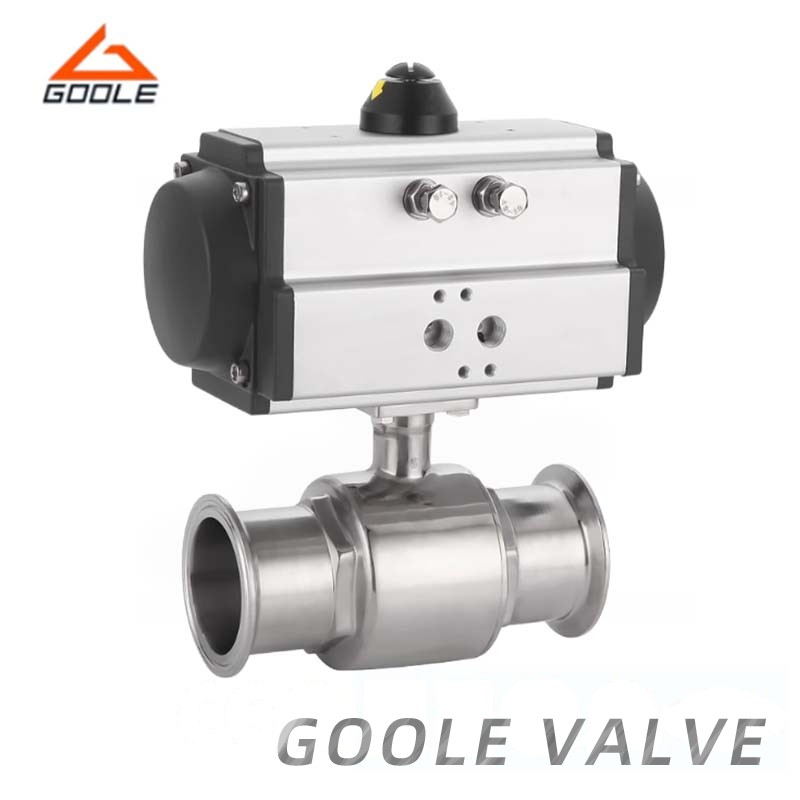

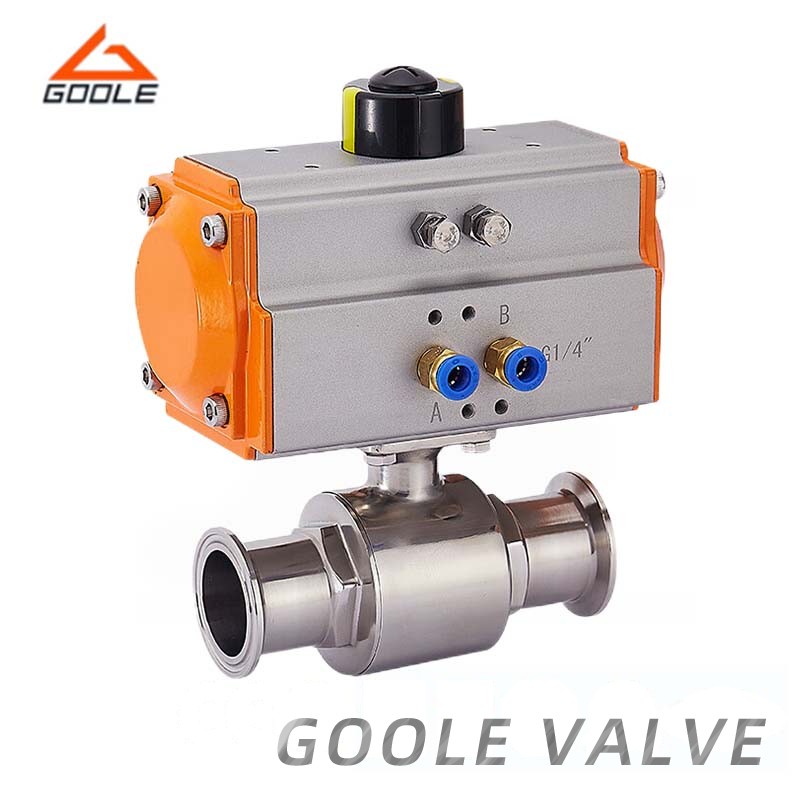

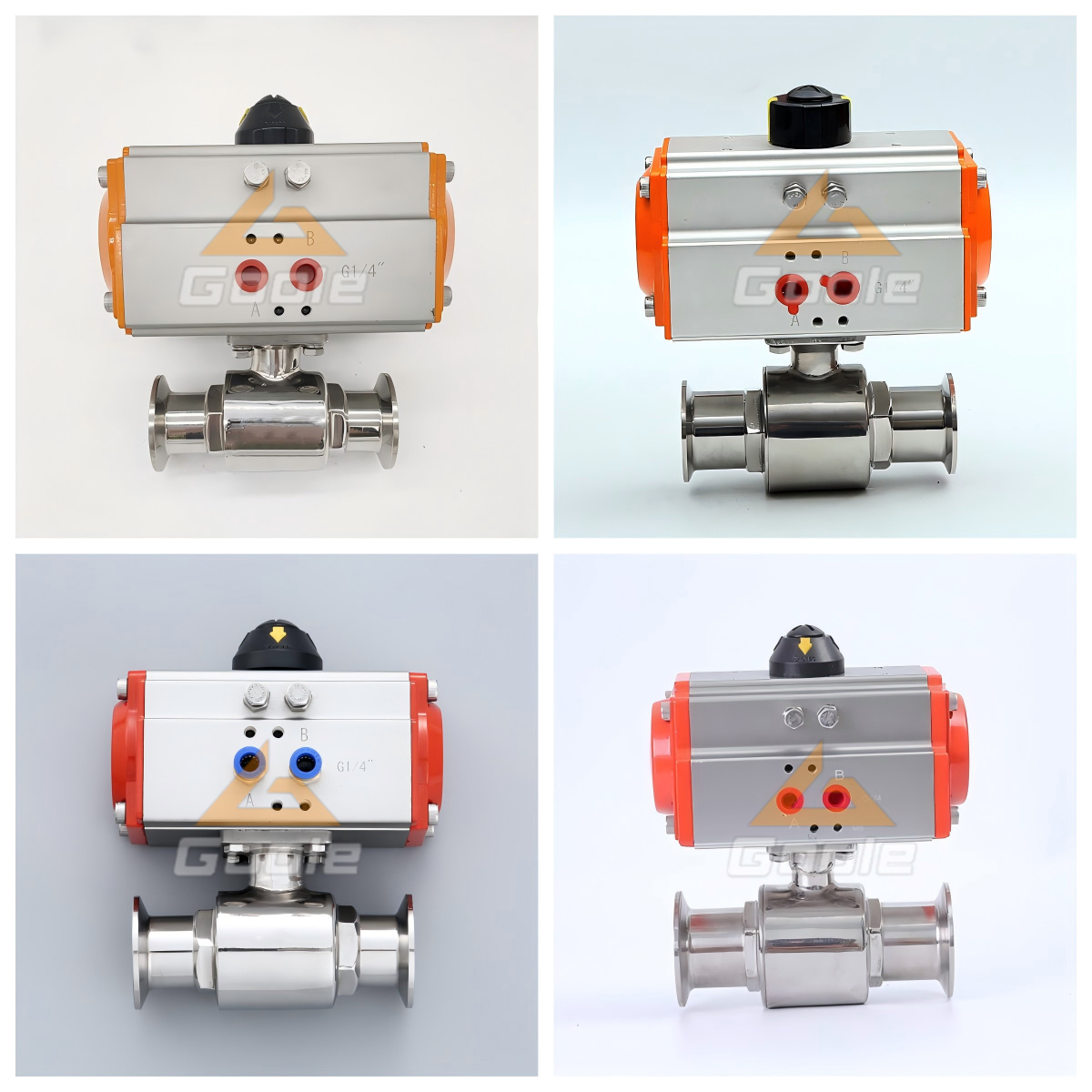

The pneumatic sanitary ball valve adopts a top installation structure, reducing the number of connecting bolts on the valve body under high pressure and large diameter conditions, thereby improving the reliability of the valve and effectively resisting the interference of system weight on the normal operation of the valve. In addition, pneumatic sanitary ball valves also have the advantages of easy cleaning and maintenance. The smooth design of their inner surface effectively avoids medium residue and meets the strict hygiene requirements of industries such as food and pharmaceuticals.
● Unique Design: Its innovative upper installation structure design significantly improves the stability and durability of the valve, especially in high-pressure and large-diameter applications. This design effectively reduces the number of connecting bolts, thereby greatly reducing the risk of leakage caused by bolt loosening or damage.
● Easy to Slean: The smooth inner surface design of the valve not only facilitates cleaning and effectively prevents medium residue and contamination issues, but also reduces maintenance costs and extends service life, making it particularly suitable for industries such as food and pharmaceuticals that require high hygiene standards.
| NO. | PART NAME. | MATERIAL | QTY. |
| 1 | BODY | CF8M | 1 |
| 2 | BONNET | CF8M | 1 |
| 3 | BALL | SS316 | 1 |
| 4 | SEAT | PTFE/RPTFE | 2 |
| 5 | GASKET | PTFE | 2 |
| 6 | STEAM SEAL | PTFE/RPTFE | 1 |
| 7 | STEM | SS316 | 1 |
| 8 | PACKING | PTFE | 1 |
| 9 | PACKING GLAND | SS304 | 1 |
| 10 | BELLEVILE WASHER | SS301 | 2 |
| 11 | SPRING WASHER | SS301 | 1 |
| 12 | PIN NUT | SS304 | 2 |
| 13 | HANDLE SLEEVE | SS304 | 1 |
| 14 | SPRING WASHER | SS301 | 1 |
| 15 | HANDLE | SS304 | 1 |
| 16 | STOP PIN | SS304 | 1 |
| 17 | NUT | SS304 | 1 |
| 18 | LOCKING DEVICE | SS304 | 1 |
Dimension List.
| NPS | d | E | d1 | d2 | F | G | H | H1 | H2 | L | W | ISO5211(K/1) |
| 1/4" | 11.5 | 139 | 6 | 6 | 9 | 1/4"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 3/8" | 12.5 | 139 | 6 | 6 | 9 | 3/8"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 1/2" | 15 | 139 | 6 | 6 | 9 | 1/2"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 16 | F03/F04 |
| 3/4" | 20 | 139 | 6 | 6 | 9 | 3/4"NPT/BSP | 46.15 | 7.1 | 80.15 | 74.6 | 17 | F03/F04 |
| 1" | 25 | 165 | 6 | 7 | 11 | 1"NPT/BSP | 56.6 | 10.9 | 95.4 | 88.5 | 21 | F04/F05 |
| 1-1/4" | 32 | 165 | 6 | 7 | 11 | 1-1/4"NPT/BSP | 61.0 | 10.9 | 99.8 | 102 | 22 | F04/F05 |
| 1-1/2" | 38 | 215 | 7 | 9 | 14 | 1-1/2"NPT/BSP | 77.5 | 13.9 | 126.3 | 110 | 22.5 | F05/F07 |
| 2" | 49 | 215 | 7 | 9 | 14 | 2"NPT/BSP | 85.2 | 139.9 | 134 | 125 | 24 | F05/F07 |
| 2-1/2" | 65 | 263 | 10 | 12 | 17 | 2-1/2"NPT/BSP | 108.7 | 16.8 | 166.7 | 160.6 | 31 | F07/F10 |
| 3" | 80 | 263 | 10 | 12 | 17 | 3"NPT/BSP | 117.4 | 18.1 | 175.4 | 178 | 34 | F07/F10 |
Pressure Test.
| Test Item | Shell Test | Sealing Test | Back Seal Test | Air Test | |||||
| Medium | Water | Air | |||||||
| Unit | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
| Test Pressure | 150 | 3.1 | 450 | 2.2 | 315 | 2.2 | 315 | 0.5-0.7 | 60-100 |
| 300 | 7.8 | 1125 | 5.6 | 815 | 5.6 | 815 | |||
| 400 | 10.3 | 1500 | 7.6 | 1100 | 7.6 | 1100 | |||
| 600 | 15.3 | 2225 | 11.2 | 1630 | 11.2 | 1630 | |||
| 900 | 23.1 | 3350 | 16.8 | 2440 | 16.8 | 2440 | |||
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The working principle of pneumatic sanitary ball valve relies on the precise fit between the ball and the valve seat. Pneumatic actuators rotate the sphere through air pressure, and the sphere and valve seat are made of special materials to ensure sealing and smooth operation. When opened, the sphere rotates 90 degrees and the channel is completely open; When closed, the ball tightly adheres to the valve seat to prevent leakage. The valve is also equipped with a positioning device to ensure precise operation, improve stability and reliability.
The unique installation structure reduces the number of connecting bolts, improves the reliability of the valve, and ensures its stable operation under high pressure and large diameter conditions. The design considers the convenience of cleaning and maintenance, with a smooth inner surface to avoid residual media and meet high hygiene standards in industries such as food and pharmaceuticals. We focus on the durability and performance optimization of our products, ensuring that each pneumatic sanitary ball valve can stably and reliably support our customers' production processes.
