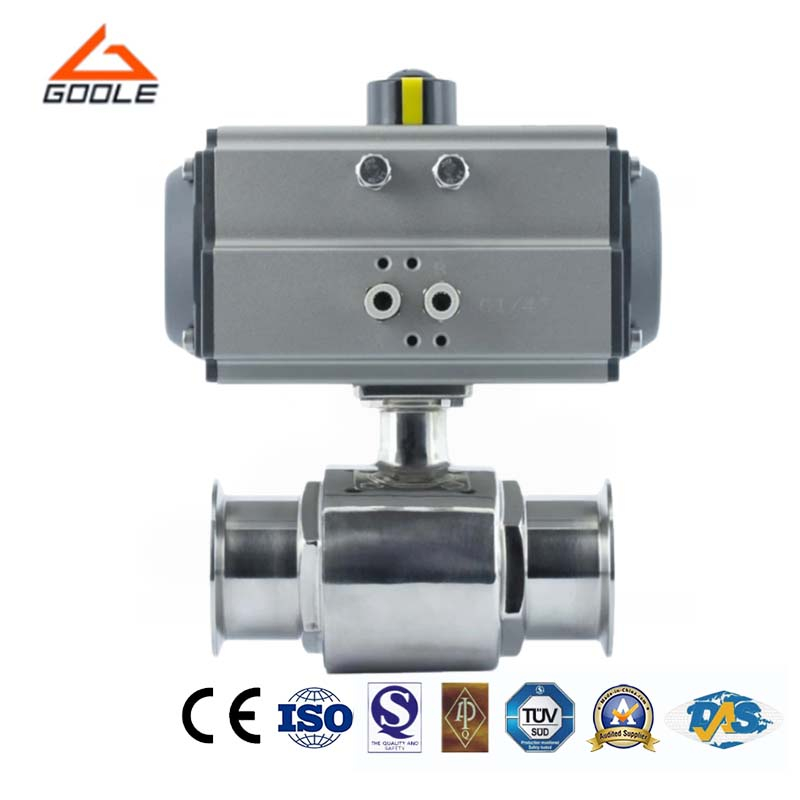

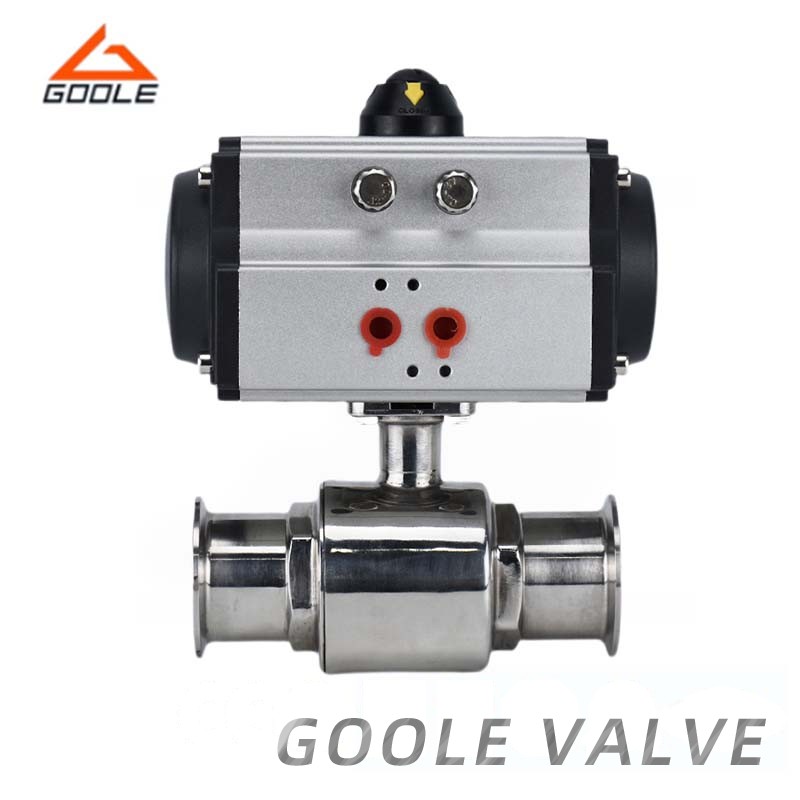

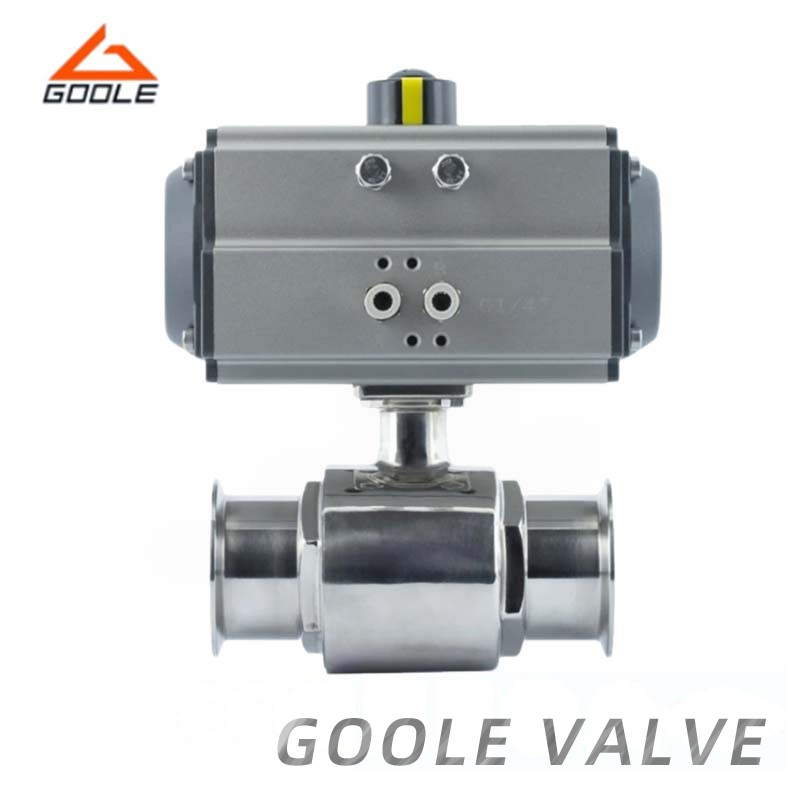

Pneumatic sanitary ball valves adopt an upper mounting structure, reducing the number of connecting bolts required for high-pressure and large-diameter conditions, thus enhancing valve reliability and overcoming the impact of system weight on normal valve operation. Pneumatic sanitary ball valves also feature easy cleaning and maintenance; their smooth inner surface design effectively prevents residual media, meeting high hygiene standards in food and pharmaceutical industries.
● Unique Design: Its unique upper mounting structure design greatly enhances the stability and durability of the valve, especially in high pressure and large diameter applications, this design significantly reduces the number of connecting bolts, thus reducing the risk of leakage caused by loose or damaged bolts.
● Easy to Slean: The smooth inner surface design of the valve is not only easy to clean, effectively avoid the problem of medium residue and pollution, but also reduce maintenance costs, prolong the service life, especially in line with the industry standards of food, pharmaceutical and other industries with high hygiene requirements.
| NO. | PART NAME. | MATERIAL | QTY. |
| 1 | BODY | CF8M | 1 |
| 2 | BONNET | CF8M | 1 |
| 3 | BALL | SS316 | 1 |
| 4 | SEAT | PTFE/RPTFE | 2 |
| 5 | GASKET | PTFE | 2 |
| 6 | STEAM SEAL | PTFE/RPTFE | 1 |
| 7 | STEM | SS316 | 1 |
| 8 | PACKING | PTFE | 1 |
| 9 | PACKING GLAND | SS304 | 1 |
| 10 | BELLEVILE WASHER | SS301 | 2 |
| 11 | SPRING WASHER | SS301 | 1 |
| 12 | PIN NUT | SS304 | 2 |
| 13 | HANDLE SLEEVE | SS304 | 1 |
| 14 | SPRING WASHER | SS301 | 1 |
| 15 | HANDLE | SS304 | 1 |
| 16 | STOP PIN | SS304 | 1 |
| 17 | NUT | SS304 | 1 |
| 18 | LOCKING DEVICE | SS304 | 1 |
Dimension List.
| NPS | d | E | d1 | d2 | F | G | H | H1 | H2 | L | W | ISO5211(K/1) |
| 1/4" | 11.5 | 139 | 6 | 6 | 9 | 1/4"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 3/8" | 12.5 | 139 | 6 | 6 | 9 | 3/8"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 1/2" | 15 | 139 | 6 | 6 | 9 | 1/2"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 16 | F03/F04 |
| 3/4" | 20 | 139 | 6 | 6 | 9 | 3/4"NPT/BSP | 46.15 | 7.1 | 80.15 | 74.6 | 17 | F03/F04 |
| 1" | 25 | 165 | 6 | 7 | 11 | 1"NPT/BSP | 56.6 | 10.9 | 95.4 | 88.5 | 21 | F04/F05 |
| 1-1/4" | 32 | 165 | 6 | 7 | 11 | 1-1/4"NPT/BSP | 61.0 | 10.9 | 99.8 | 102 | 22 | F04/F05 |
| 1-1/2" | 38 | 215 | 7 | 9 | 14 | 1-1/2"NPT/BSP | 77.5 | 13.9 | 126.3 | 110 | 22.5 | F05/F07 |
| 2" | 49 | 215 | 7 | 9 | 14 | 2"NPT/BSP | 85.2 | 139.9 | 134 | 125 | 24 | F05/F07 |
| 2-1/2" | 65 | 263 | 10 | 12 | 17 | 2-1/2"NPT/BSP | 108.7 | 16.8 | 166.7 | 160.6 | 31 | F07/F10 |
| 3" | 80 | 263 | 10 | 12 | 17 | 3"NPT/BSP | 117.4 | 18.1 | 175.4 | 178 | 34 | F07/F10 |
Pressure Test.
| Test Item | Shell Test | Sealing Test | Back Seal Test | Air Test | |||||
| Medium | Water | Air | |||||||
| Unit | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
| Test Pressure | 150 | 3.1 | 450 | 2.2 | 315 | 2.2 | 315 | 0.5-0.7 | 60-100 |
| 300 | 7.8 | 1125 | 5.6 | 815 | 5.6 | 815 | |||
| 400 | 10.3 | 1500 | 7.6 | 1100 | 7.6 | 1100 | |||
| 600 | 15.3 | 2225 | 11.2 | 1630 | 11.2 | 1630 | |||
| 900 | 23.1 | 3350 | 16.8 | 2440 | 16.8 | 2440 | |||
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The mechanical principle of pneumatic sanitary ball valves is primarily based on the precise design of the ball and seat assembly. When the pneumatic actuator receives a control signal, it drives the ball to rotate through air pressure. The ball and seat are made from special materials, ensuring a tight seal while allowing smooth opening and closing actions. In the open position, the ball rotates 90 degrees to ensure a fully unobstructed passage for free flow of the medium; in the closed position, the ball tightly adheres to the seat, effectively preventing any leakage of the medium. Additionally, pneumatic sanitary ball valves are equipped with limit and positioning devices to ensure the precise position of the ball during the opening and closing process, further enhancing the stability and reliability of the valve.
The unique mounting structure not only reduces the number of connecting bolts but also significantly enhances the overall reliability of the valve, ensuring stable operation under high pressure and large diameter conditions. The valve design fully considers the convenience of cleaning and maintenance; its smooth inner surface effectively prevents media residue, thus meeting the stringent hygiene standards required by the food and pharmaceutical industries. We also focus on the durability and performance optimization of the product, ensuring that each pneumatic sanitary globe valve provides stable and reliable support for customers' production processes.
