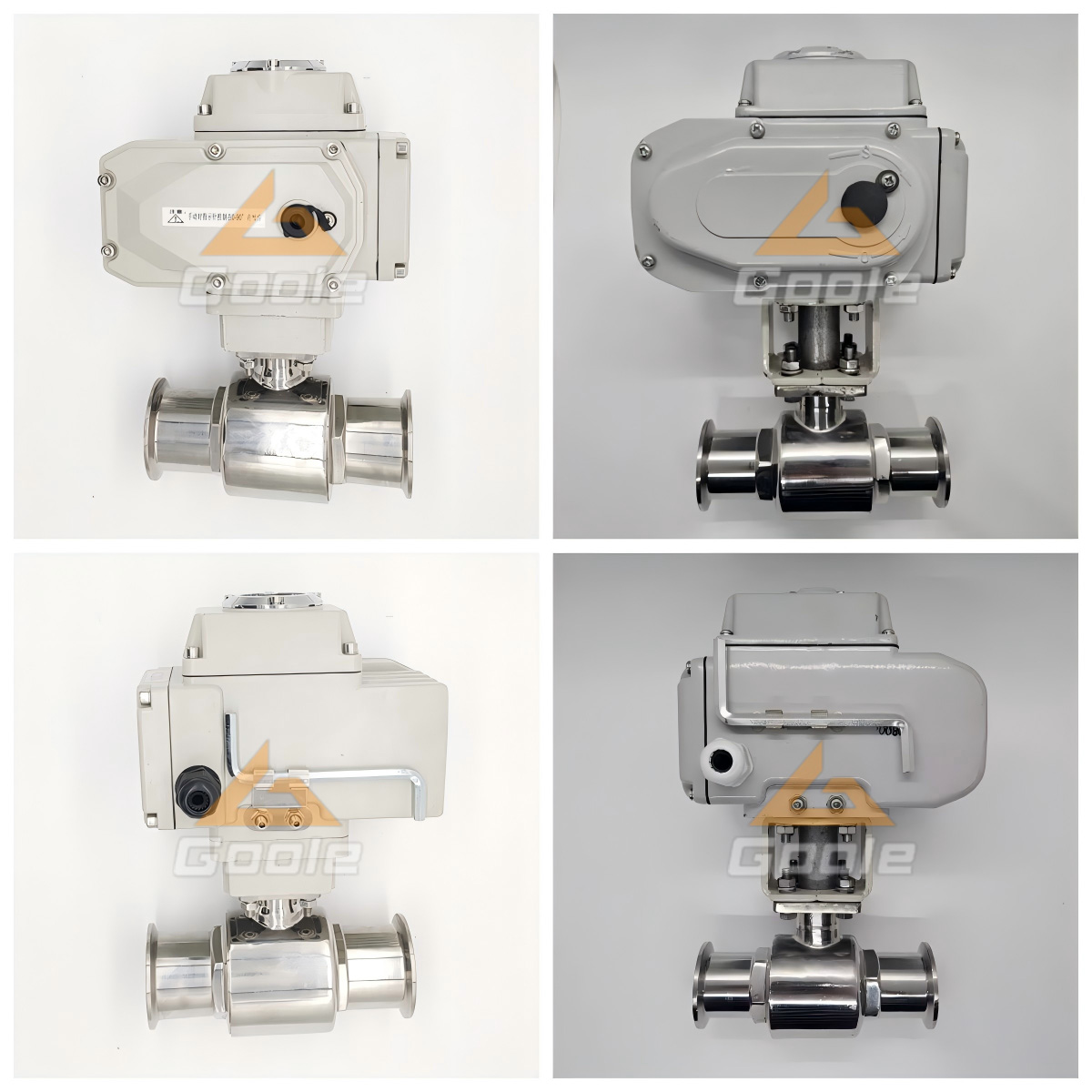

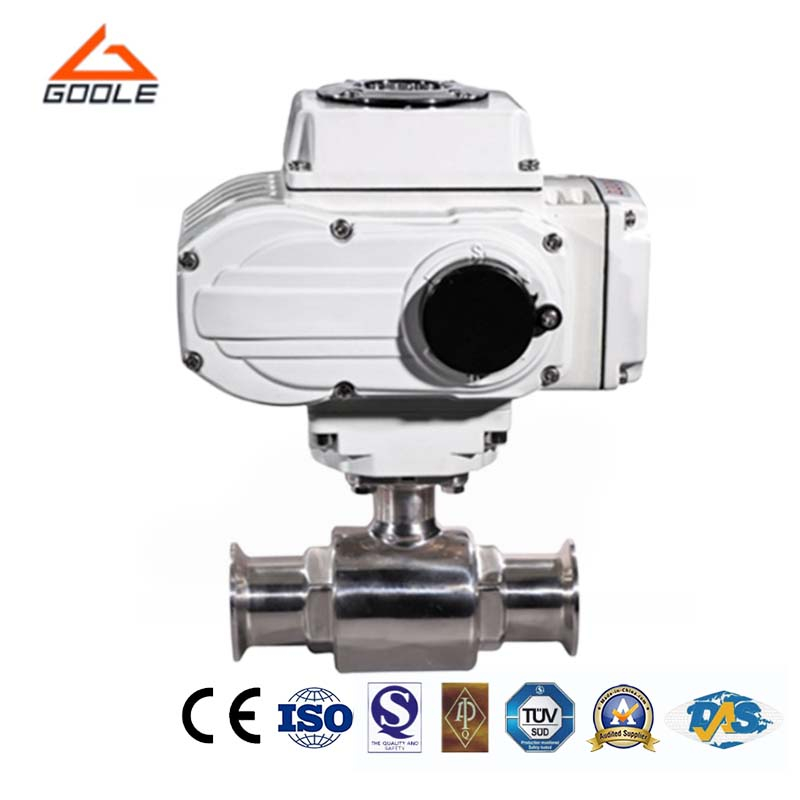

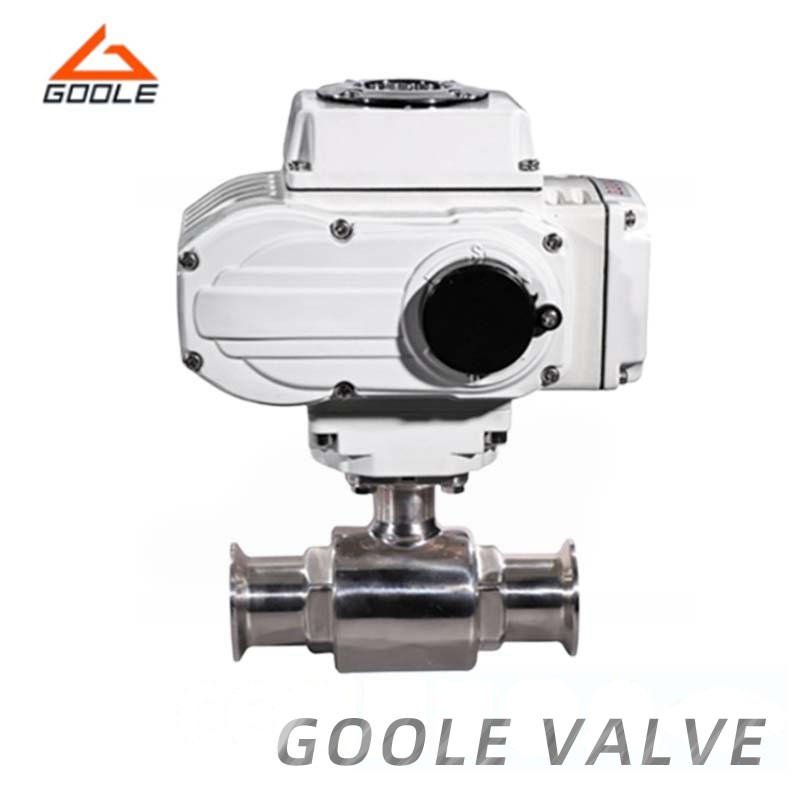

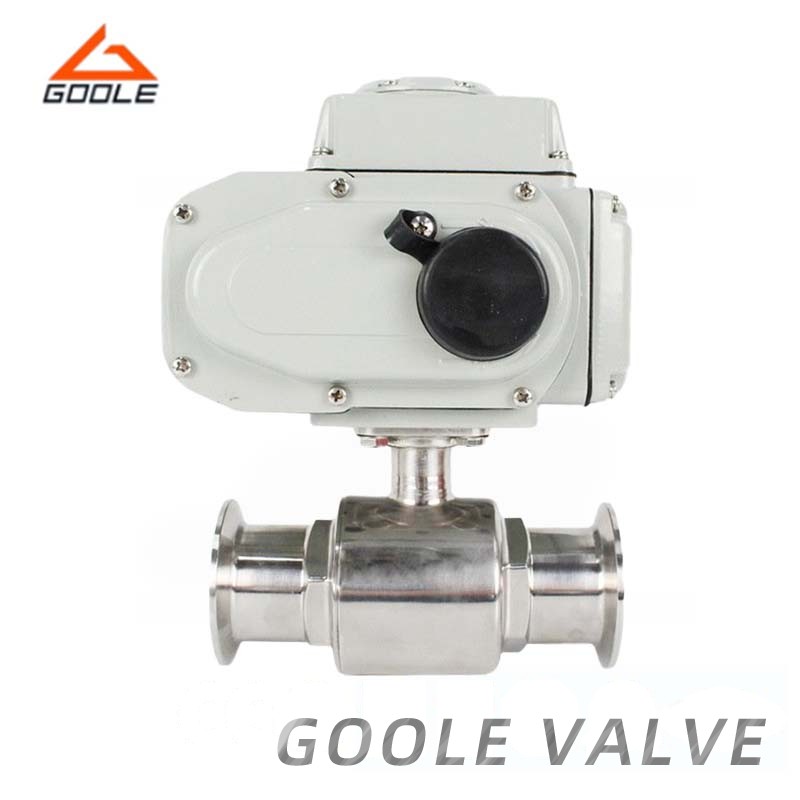

The electric sanitary ball valve adopts an upper installation structure, which reduces the force on the connecting bolts of the valve body under high-pressure and large-diameter conditions, enhancing the reliability of the valve and overcoming the impact of system weight on normal valve operation. The flow path design of the electric sanitary ball valve is smooth with no dead zones, effectively preventing media retention and contamination, ensuring the purity of the medium and the hygiene of the system. Its sealing performance is excellent, using high-performance elastic materials as seals to ensure tightness under harsh working conditions such as high pressure and high temperature, reducing the risk of leakage. In addition, the drive methods for the electric sanitary ball valve are flexible and diverse, allowing for selection based on actual needs, including electric or pneumatic drives, meeting the requirements of different applications.
● Unique Design: Its innovative top installation method significantly improves the stability and durability of the valve, especially suitable for high pressure and large diameter use environment. This structure greatly reduces the number of bolts used in connection, effectively reducing leakage problems caused by loose or damaged bolts.
● Easy to Slean: The smooth design inside the valve is not only convenient for cleaning, effectively preventing the residue and pollution of media, but also reduces maintenance costs and increases service life, especially meeting the industry standards of high hygiene requirements such as food and medicine.
| NO. | PART NAME. | MATERIAL | QTY. |
| 1 | BODY | CF8M | 1 |
| 2 | BONNET | CF8M | 1 |
| 3 | BALL | SS316 | 1 |
| 4 | SEAT | PTFE/RPTFE | 2 |
| 5 | GASKET | PTFE | 2 |
| 6 | STEAM SEAL | PTFE/RPTFE | 1 |
| 7 | STEM | SS316 | 1 |
| 8 | PACKING | PTFE | 1 |
| 9 | PACKING GLAND | SS304 | 1 |
| 10 | BELLEVILE WASHER | SS301 | 2 |
| 11 | SPRING WASHER | SS301 | 1 |
| 12 | PIN NUT | SS304 | 2 |
| 13 | HANDLE SLEEVE | SS304 | 1 |
| 14 | SPRING WASHER | SS301 | 1 |
| 15 | HANDLE | SS304 | 1 |
| 16 | STOP PIN | SS304 | 1 |
| 17 | NUT | SS304 | 1 |
| 18 | LOCKING DEVICE | SS304 | 1 |
Dimension List.
| NPS | d | E | d1 | d2 | F | G | H | H1 | H2 | L | W | ISO5211(K/1) |
| 1/4" | 11.5 | 139 | 6 | 6 | 9 | 1/4"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 3/8" | 12.5 | 139 | 6 | 6 | 9 | 3/8"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 1/2" | 15 | 139 | 6 | 6 | 9 | 1/2"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 16 | F03/F04 |
| 3/4" | 20 | 139 | 6 | 6 | 9 | 3/4"NPT/BSP | 46.15 | 7.1 | 80.15 | 74.6 | 17 | F03/F04 |
| 1" | 25 | 165 | 6 | 7 | 11 | 1"NPT/BSP | 56.6 | 10.9 | 95.4 | 88.5 | 21 | F04/F05 |
| 1-1/4" | 32 | 165 | 6 | 7 | 11 | 1-1/4"NPT/BSP | 61.0 | 10.9 | 99.8 | 102 | 22 | F04/F05 |
| 1-1/2" | 38 | 215 | 7 | 9 | 14 | 1-1/2"NPT/BSP | 77.5 | 13.9 | 126.3 | 110 | 22.5 | F05/F07 |
| 2" | 49 | 215 | 7 | 9 | 14 | 2"NPT/BSP | 85.2 | 139.9 | 134 | 125 | 24 | F05/F07 |
| 2-1/2" | 65 | 263 | 10 | 12 | 17 | 2-1/2"NPT/BSP | 108.7 | 16.8 | 166.7 | 160.6 | 31 | F07/F10 |
| 3" | 80 | 263 | 10 | 12 | 17 | 3"NPT/BSP | 117.4 | 18.1 | 175.4 | 178 | 34 | F07/F10 |
Pressure Test.
| Test Item | Shell Test | Sealing Test | Back Seal Test | Air Test | |||||
| Medium | Water | Air | |||||||
| Unit | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
| Test Pressure | 150 | 3.1 | 450 | 2.2 | 315 | 2.2 | 315 | 0.5-0.7 | 60-100 |
| 300 | 7.8 | 1125 | 5.6 | 815 | 5.6 | 815 | |||
| 400 | 10.3 | 1500 | 7.6 | 1100 | 7.6 | 1100 | |||
| 600 | 15.3 | 2225 | 11.2 | 1630 | 11.2 | 1630 | |||
| 900 | 23.1 | 3350 | 16.8 | 2440 | 16.8 | 2440 | |||
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The mechanical principle of electric sanitary ball valves is primarily based on the precise design of the ball and seat components. When the electric actuator receives a control signal, it drives the ball to rotate through pressure. The ball and seat are made from special materials to ensure a tight seal while allowing smooth opening and closing movements. In the open position, the rotating ball is at a 90-degree angle, ensuring unobstructed flow of the medium; in the closed position, the ball tightly adheres to the seat, effectively preventing medium leakage. Additionally, electric sanitary ball valves are equipped with limit and positioning devices to ensure precise positioning of the ball during the opening and closing process, further enhancing the stability and reliability of the valve.
The unique installation structure not only reduces the number of connecting bolts but also significantly enhances the overall reliability of the valve, ensuring stable operation under high pressure and large diameter conditions. The valve design fully considers ease of cleaning and maintenance; its smooth inner surface effectively prevents residual media, thus meeting the stringent hygiene standards of the food and pharmaceutical industries. Additionally, we focus on product durability and performance optimization, ensuring that each electric sanitary valve provides stable and reliable support for customers' production processes.
