Split body reduce bore trunnion mounted ball valve have two piece and three piece body structure.middle part is bolt connection, RPTFE seal insert into stainless steel ring with spring .keep good sealling...
| Quantity: | |
|---|---|

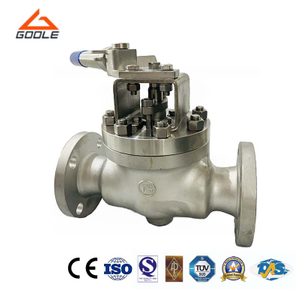

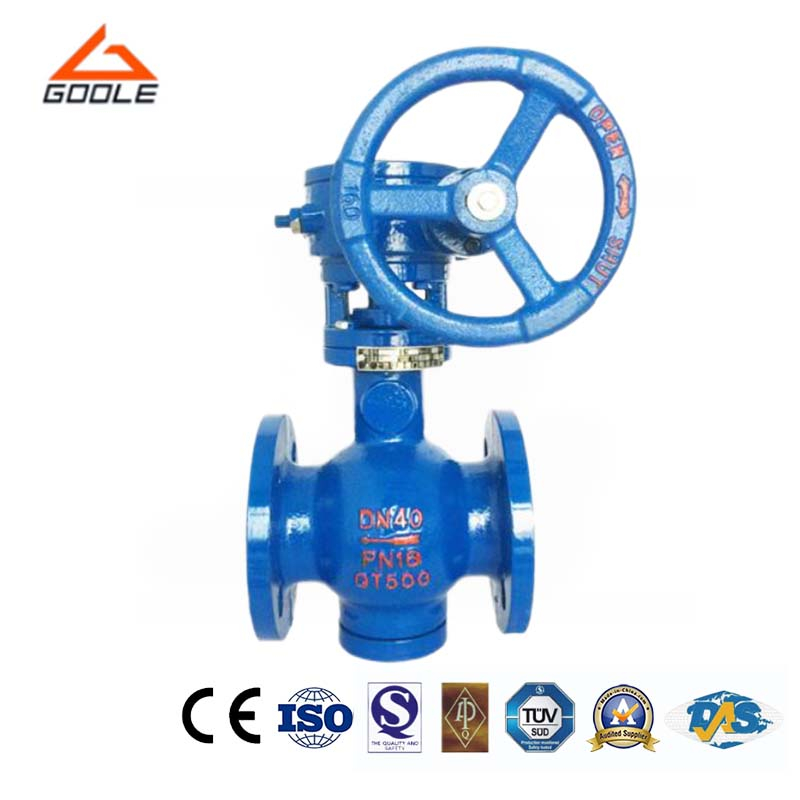

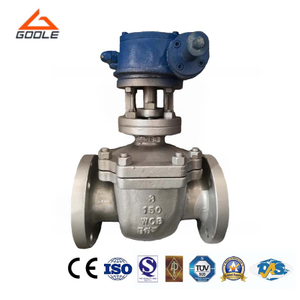

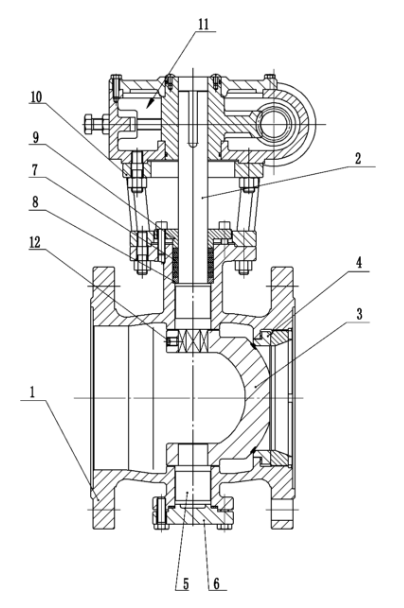

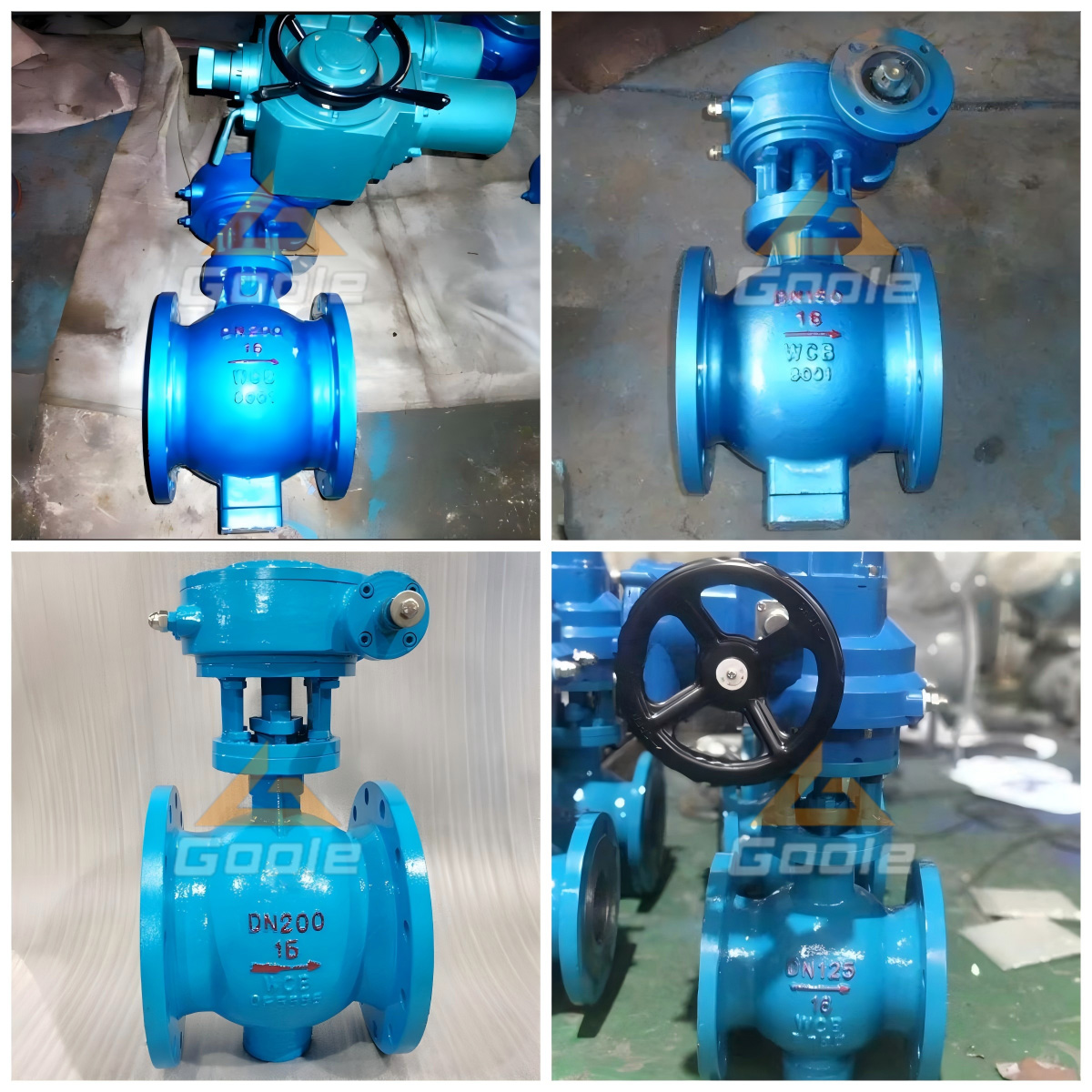

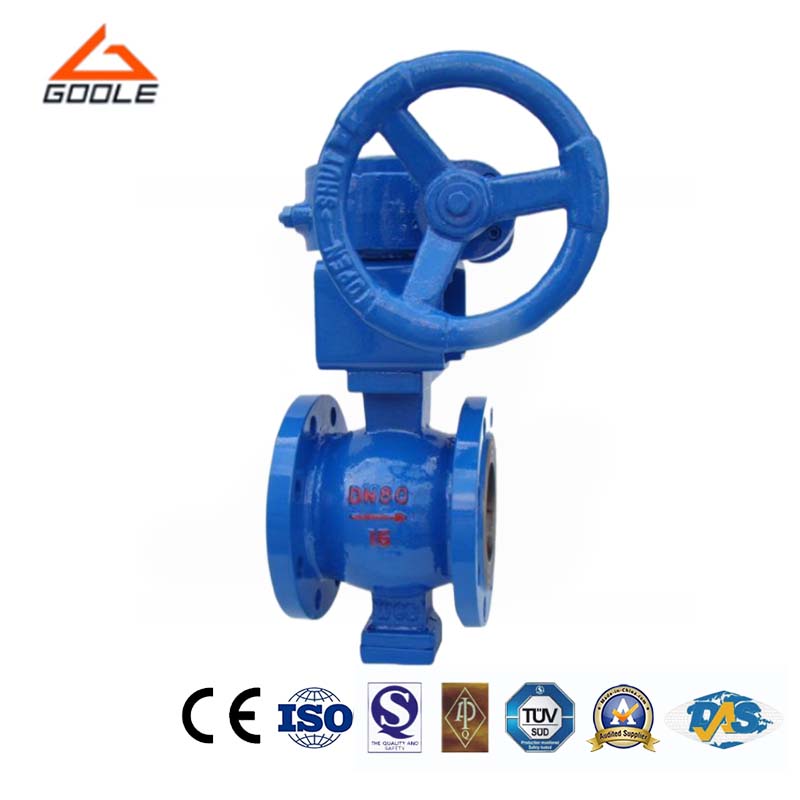

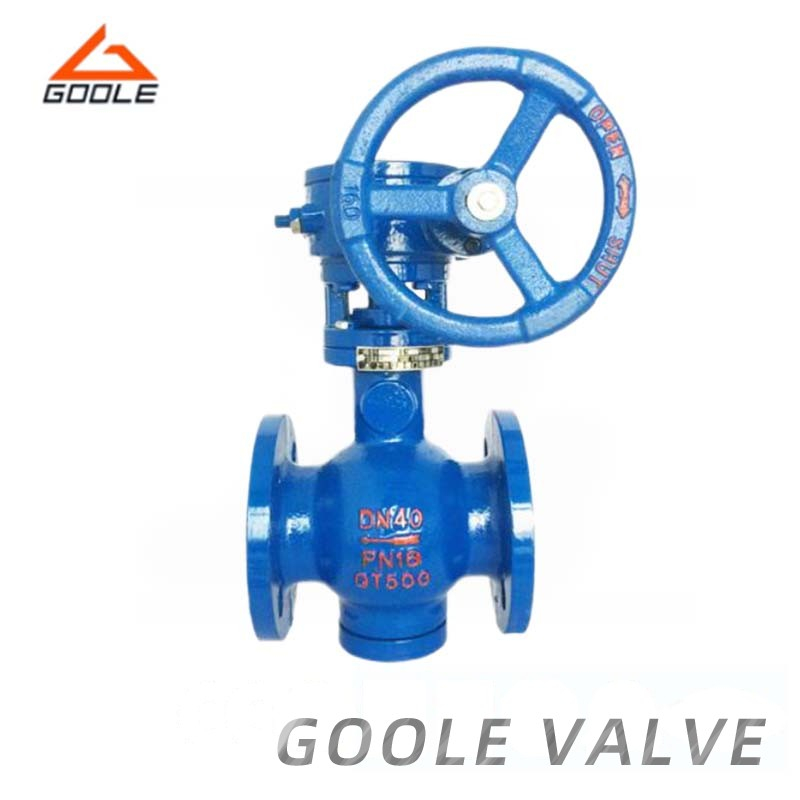

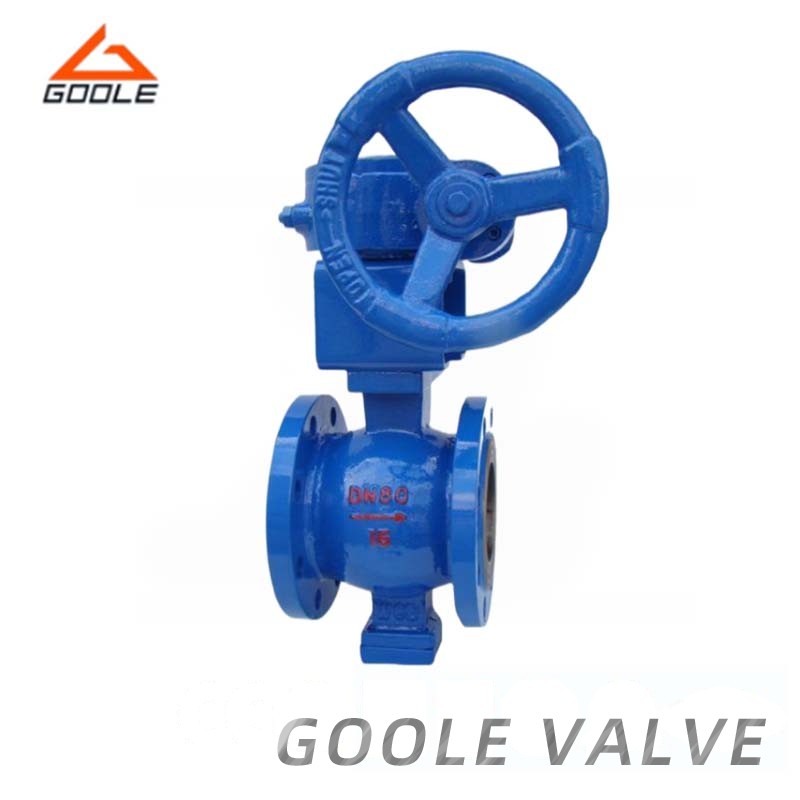

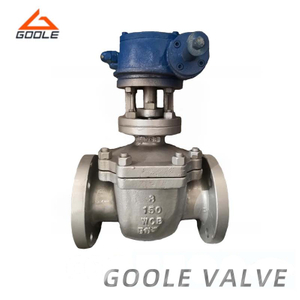

The top-mounted eccentric hemispherical valve uses an eccentric valve body, eccentric ball, and seat. As the valve stem rotates, it automatically aligns with the common path, ensuring a tighter closure and superior sealing performance. The ball is completely separated from the seat, eliminating wear issues associated with seal rings and addressing the problems of seat and spherical sealing in traditional ball valves. Non-metallic elastic materials are embedded in the metal seat, protecting the metal surface of the seat. This product is particularly suitable for media such as steel, aluminum, fibers, small solid particles, pulp, fly ash, and petroleum gases.
● Top Entry Structure: This design allows direct access to the internal components for online maintenance, inspection, or replacement without removing the valve from the system.
● Gear Operation: Simple 90 degree rotation enables fast and precise control response, making it an ideal choice for field adjustment.
● Eccentric Hemisphere: This feature allows flexible installation of actuators or transmissions without the need for additional brackets.
| Item | Part. Name | Material |
| 1 | Bonnet | PE |
| 2 | Extension pipe | st37 |
| 3 | Body | st37 |
| 4 | Flat washer | st37 |
| 5 | Butterfly Spring | 60Si2MnA |
| 6 | Ball seat | SS202 |
| 7 | O-ring | EPDM |
| 8 | Ball washer | PTFE+20%C |
| 9 | Ball | SS304 |
| 10 | Stem washer | PTFE+20%C |
| 11 | Stem sleeve | st37 |
| 12 | Stem | SS410 |
| 13 | Stem ring | PTFE+20%C |
| 14 | Stem O-ring | FPM |
| 15 | Sleeve | st37 |
| 16 | Positioning PIN | ASTM1035 |
| 17 | Handle | st37 |
| 18 | Washer | Q235A |
| 19 | Nut | Q235A |
| 20 | Handle cap | ABS |
| Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
| Strength (water) (MPa) | Enclose (Water) (MPa) | ||||
| Q340 H-16C | 1.6 | 2.4 | 1.76 | -40~200ºC | Water,Vapour,Oil |
| Q340 H-25C | 2.5 | 3.75 | 2.5 | ||
Q: What is the main advantage of a top-entry valve design?
A: The top-entry design allows for maintenance or part replacement without removing the valve from the pipeline—ideal for critical systems where downtime must be minimized.
Q: Is it compliant with any specific industry standards?
A: Yes, it follows API 6D/6A and ASME B16.10 design standards, including features like firesafe design, O-ring sealing, and DBB capability.
Our gear-operated forged steel material, and top-mounted ball valve design fully considers maintenance needs. The top-mounted structure and modular design facilitate maintenance, thereby reducing downtime during inspection or repair. This valve features double block and bleed (DBB), self-tilting seats, and fire integrity, ensuring reliable control and safety with each rotation. It is an ideal choice for teams that prioritize pipeline performance and practicality.
