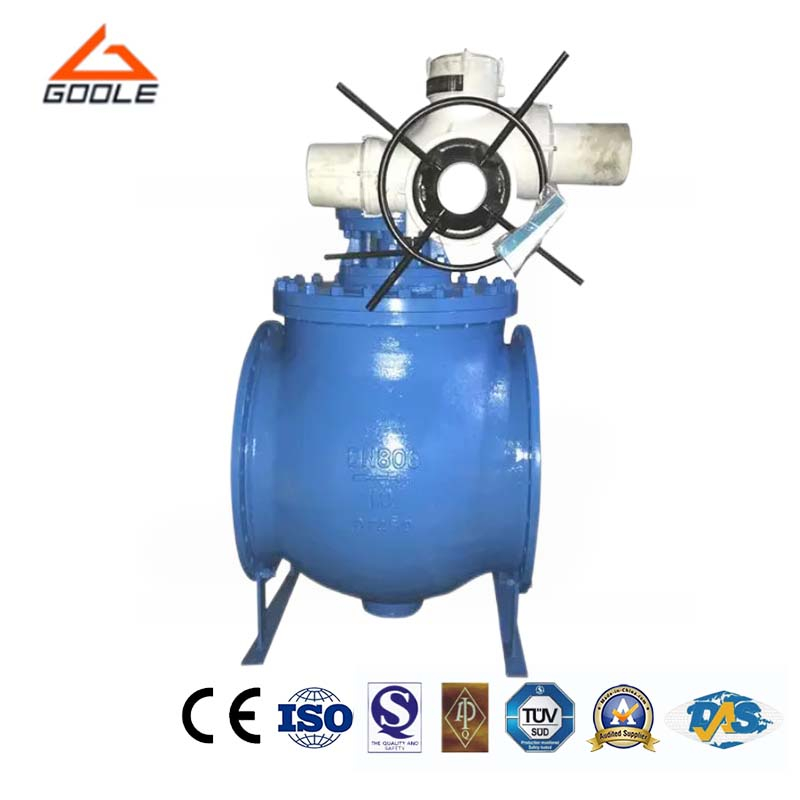

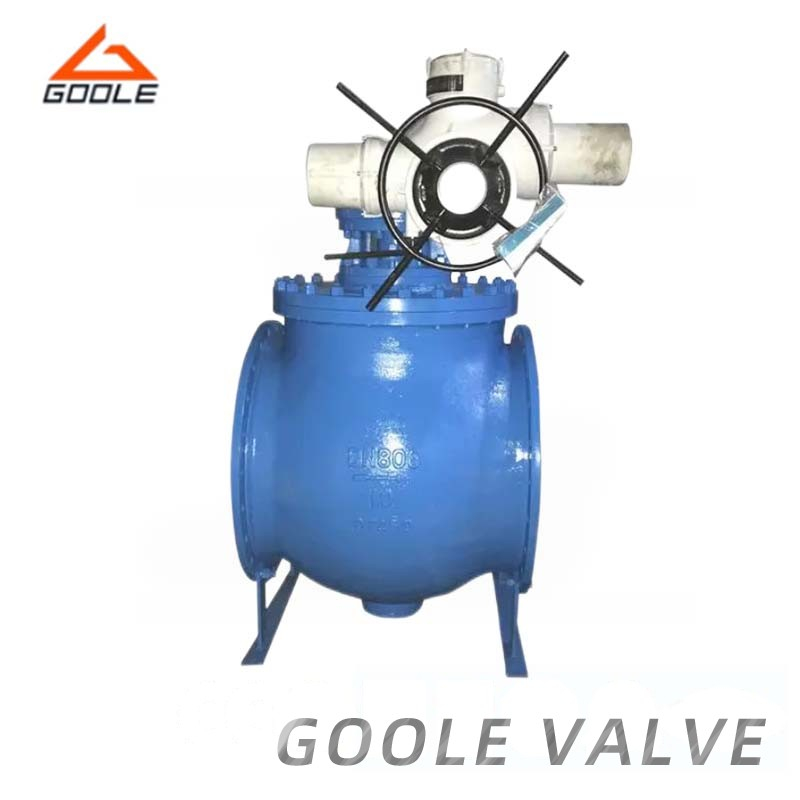

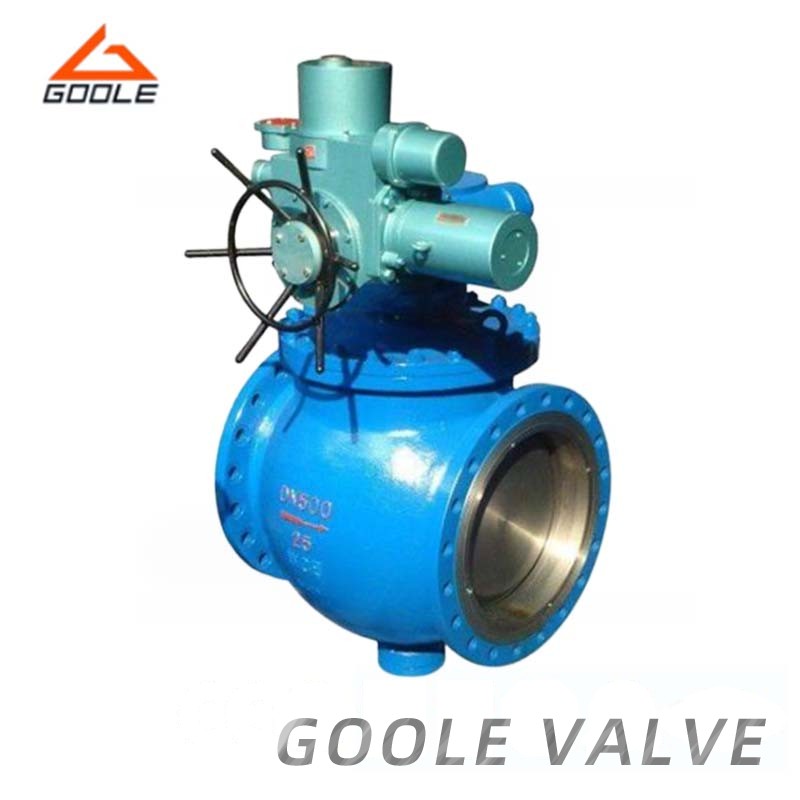

The top-entry gear-operated ball valve with flange connection design is manufactured specifically for seamless operation in high-pressure environments. This valve features a top-entry design that facilitates access to internal components, allowing maintenance and part replacement without removing the valve from the pipeline. This structure reduces downtime and ensures long-term efficient operation. The valve uses a gear operation mechanism, providing smooth and controlled operation even under harsh conditions.
● Top Entry Design: This feature enables simple maintenance and component replacement without removing the valve from the pipe, thus reducing downtime and improving maintainability.
● Gear Operating Mechanism: This mechanism ensures smooth, controlled operation with minimal torque and reliable performance even in high pressure environments.
● Fireproof and Self-Pressurized Seats: These seats are equipped with leak prevention features that protect the system when pressure builds up.
Part | Material |
Valve body | WCB,A105 |
Shaft | 420,410 |
Disc | Nitriding steel, wear-resistant steel |
Seat | Nitriding steel, wear-resistant steel |
Bearing | Aluminum - bronze |
Packing | PTFE,Flexible graphite |
Main Dimensions
PN(MPa) | DN(mm) | Size (mm) | |||||||||||
d1 | L | D | D1 | D2 | D6 | f | f2 | b | Z-φd | H1 | H2 | ||
1.6 | 25 | 25 | 150 | 115 | 85 | 65 | - | 2 | - | 14 | 44 | - | 75 |
32 | 32 | 165 | 135 | 100 | 78 | - | 2 | - | 16 | 48 | - | 105 | |
40 | 40 | 180 | 145 | 110 | 85 | - | 3 | - | 16 | 48 | - | 95 | |
50 | 50 | 200 | 160 | 125 | 100 | - | 3 | - | 16 | 48 | - | 107 | |
65 | 65 | 220 | 180 | 145 | 120 | - | 3 | - | 18 | 48 | - | 142 | |
80 | 80 | 250 | 195 | 160 | 135 | - | 3 | - | 20 | 88 | - | 152 | |
100 | 100 | 280 | 215 | 180 | 155 | - | 3 | - | 20 | 88 | - | 178 | |
125 | 125 | 320 | 245 | 210 | 185 | - | 3 | - | 22 | 88 | - | 252 | |
150 | 150 | 360 | 280 | 240 | 210 | - | 3 | - | 24 | 8-23 | - | 272 | |
200 | 200 | 400 | 335 | 295 | 265 | - | 3 | - | 26 | 12-23 | - | 342 | |
2.5 | 25 | 25 | 150 | 115 | 85 | 65 | - | 2 | - | 16 | 44 | - | 75 |
32 | 32 | 165 | 135 | 100 | 78 | - | 2 | - | 18 | 48 | - | 85 | |
40 | 40 | 180 | 145 | 110 | 85 | - | 3 | - | 18 | 48 | - | 95 | |
50 | 50 | 200 | 160 | 125 | 100 | - | 3 | - | 20 | 48 | - | 107 | |
65 | 65 | 220 | 180 | 145 | 120 | - | 3 | - | 22 | 88 | - | 142 | |
80 | 80 | 250 | 195 | 160 | 135 | - | 3 | - | 24 | 88 | - | 152 | |
100 | 100 | 280 | 230 | 190 | 160 | - | 3 | - | 28 | 8-23 | - | 178 | |
125 | 125 | 320 | 270 | 220 | 188 | - | 3 | - | 30 | 8-25 | - | 252 | |
150 | 150 | 360 | 300 | 250 | 218 | - | 3 | - | 34 | 8-25 | - | 272 | |
200 | 200 | 400 | 360 | 310 | 278 | - | 3 | - | 34 | 12-25 | - | 342 | |
4.0 | 25 | 25 | 150 | 115 | 85 | 65 | 58 | 2 | 4 | 16 | 44 | - | 75 |
32 | 32 | 180 | 135 | 100 | 78 | 66 | 2 | 4 | 18 | 48 | - | 107 | |
40 | 40 | 200 | 145 | 110 | 85 | 76 | 3 | 4 | 18 | 48 | - | 95 | |
50 | 50 | 220 | 160 | 125 | 100 | 88 | 3 | 4 | 20 | 48 | - | 107 | |
65 | 65 | 250 | 180 | 145 | 120 | 110 | 3 | 4 | 22 | 88 | - | 142 | |
80 | 80 | 280 | 195 | 160 | 135 | 121 | 3 | 4 | 22 | 88 | - | 152 | |
100 | 100 | 320 | 230 | 190 | 160 | 150 | 3 | 4.5 | 24 | 8-23 | - | 178 | |
125 | 125 | 400 | 270 | 220 | 188 | 176 | 3 | 4.5 | 28 | 8-25 | - | 252 | |
150 | 150 | 400 | 300 | 250 | 218 | 204 | 3 | 4.5 | 30 | 8-25 | - | 272 | |
200 | 200 | 502 | 375 | 320 | 282 | 260 | 3 | 4.5 | 38 | 12-30 | - | 342 |
PN(Mpa) | 0.6 | 1.0 | 1.6 | 2.5 | 4.0 |
DN(mm) | 40-600 | 40-600 | 40-600 | 40-600 | 40-600 |
Sealing test pressure(Mpa) | 0.66 | 1.1 | 1.76 | 2.75 | 4.4 |
Body test pressure(Mpa) | 0.9 | 1.5 | 2.4 | 3.75 | 6.0 |
Working temperature(ºC) | -29~300,-29~425,-29~540 | ||||
Medium | Liquids like seawater, sewage, acid and alkali or slurry, steam, gas, oil, mud, ash etc. | ||||
Operation | Handwheel, electric, pneumatic | ||||
Connection | Flanged, wafer | ||||
Installation | Vertical and horizontal |
Q:What is the advantage of the top-entry design?
The top-entry design allows for in-line servicing, meaning internal parts can be accessed and replaced without having to remove the valve from the pipeline, significantly reducing maintenance time.
Q:Is this valve suitable for high-demand or critical applications?
Yes, the valve features firesafe design, double block and bleed (DBB) functionality, and self-relieving seats, making it ideal for critical and high-demand applications.
Q:How does the gear-operated mechanism benefit this valve?
The gear-operated mechanism enables precise and easy control of fluid flow, making it suitable for high-pressure systems where consistent operation is essential.
The top-mounted gear-operated flanged ball valve is designed to be robust, easy to maintain, and ensures safe and reliable fluid control, making it an ideal choice for demanding pipeline systems. Its top-mounted structure simplifies maintenance, while the gear operation mechanism ensures smooth operation in high-pressure environments. We offer professional pre-sales consultation and after-sales service to ensure you choose the most suitable solution for your specific application. Our commitment to high-quality products and excellent customer service guarantees that every step from selection to operation will be satisfying.
