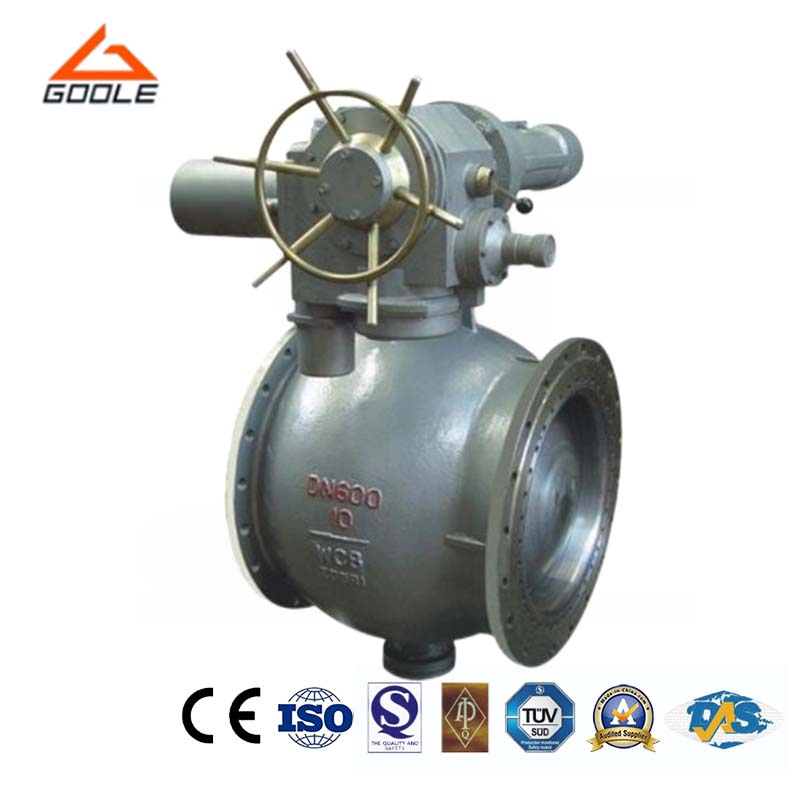

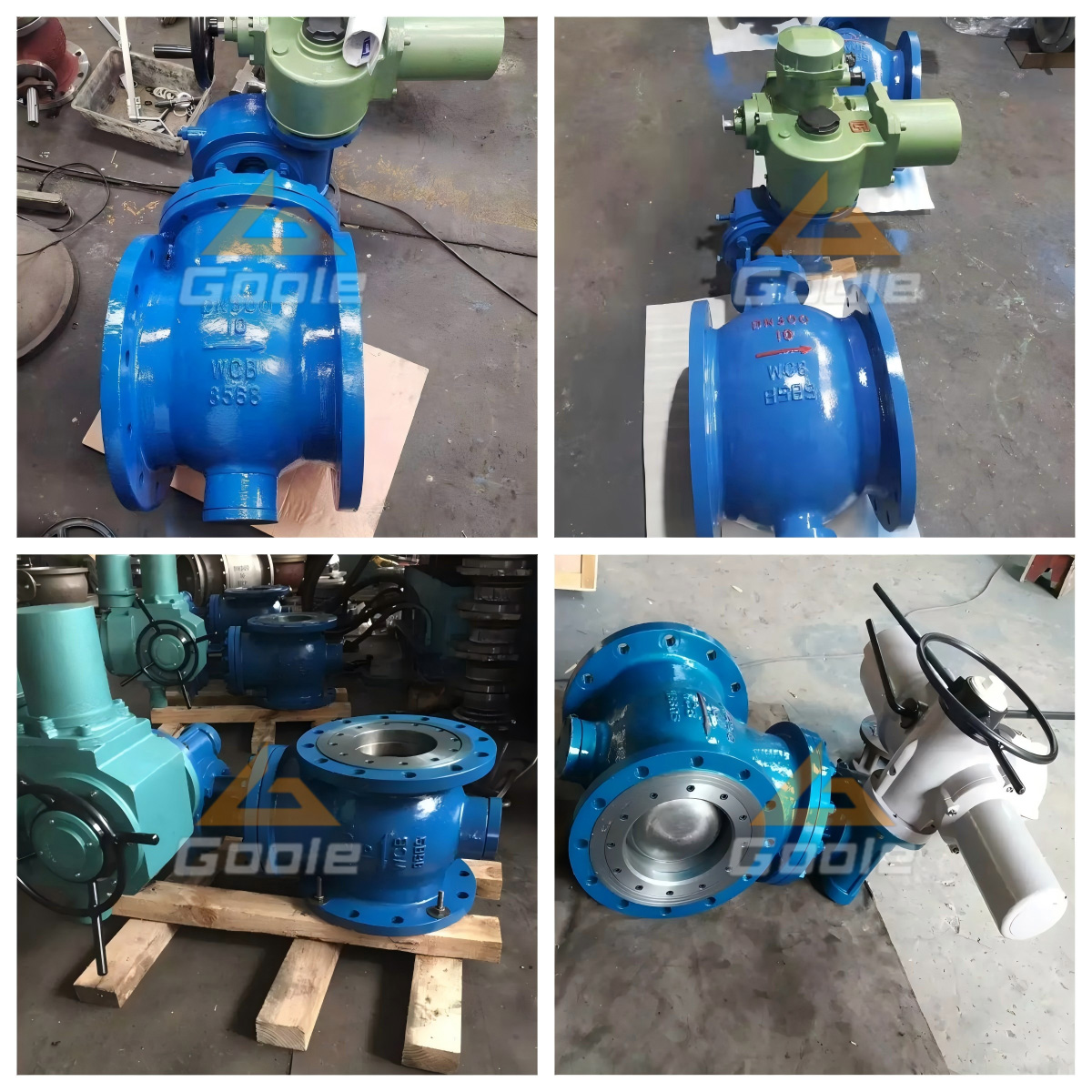

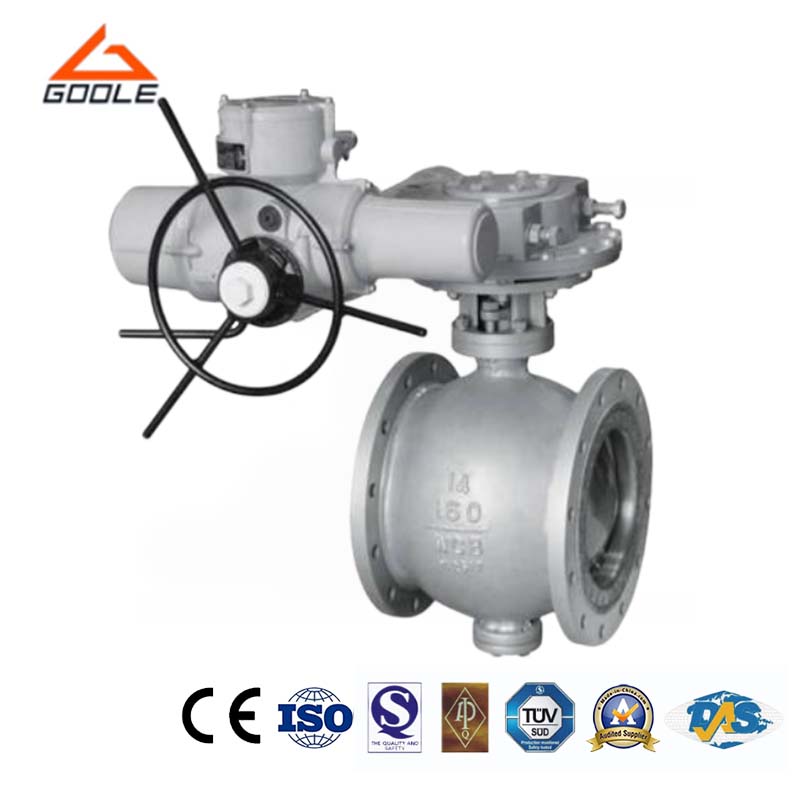

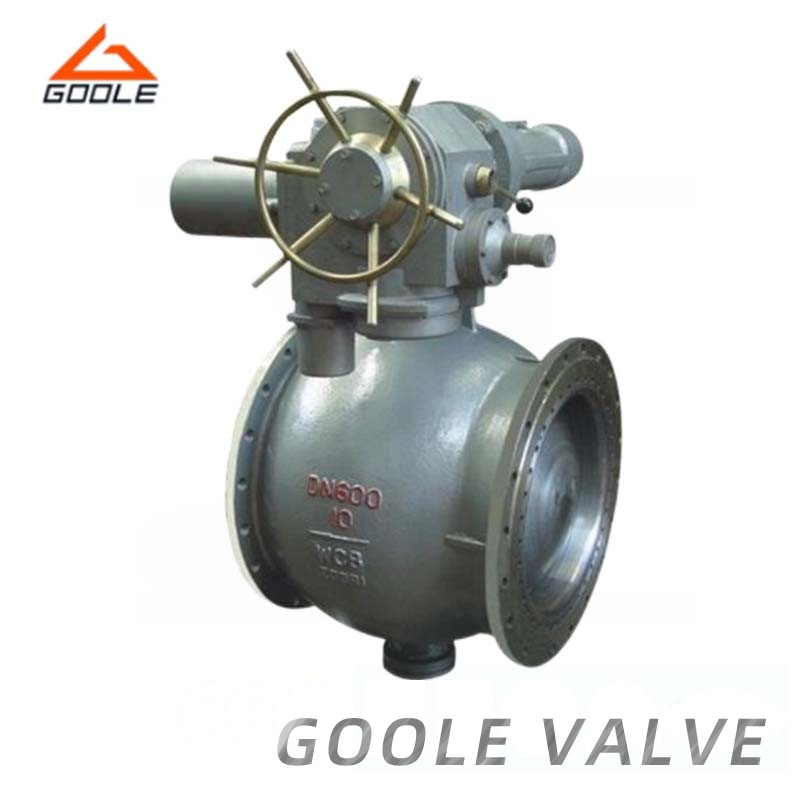

The top-mounted eccentric hemispherical valve is characterized by its eccentric body, eccentric ball, and seat. As the stem rotates, it aligns automatically with the common path, ensuring a tighter closure and superior sealing performance. The ball fully disengages from the seat, eliminating wear issues associated with seal rings and addressing common seat and spherical surface sealing problems found in traditional ball valves. Non-metallic elastic materials are embedded in the metal seat, protecting the metal surface. This product is particularly suitable for media such as steel, aluminum, fibers, small solid particles, pulp, fly ash, and petroleum gases.
● Top Entry Design: This setup allows for direct access to internal components for maintenance, inspection, or replacement, even while the system is running, thereby eliminating the need to remove valves from the system.
● Gear Operation: A simple 90-degree rotation ensures rapid and precise control response, making it an ideal option for field adjustments.
● Eccentric Hemisphere: This feature enables easy installation of the actuator or transmission without the need for additional brackets.
| Part | Material |
| Valve body | WCB,A105 |
| Shaft | 420,410 |
| Disc | Nitriding steel, wear-resistant steel |
| Seat | Nitriding steel, wear-resistant steel |
| Bearing | Aluminum - bronze |
| Packing | PTFE,Flexible graphite |
Main Dimensions
| PN(MPa) | DN(mm) | Size (mm) | |||||||||||
| d1 | L | D | D1 | D2 | D6 | f | f2 | b | Z-φd | H1 | H2 | ||
| 1.6 | 25 | 25 | 150 | 115 | 85 | 65 | - | 2 | - | 14 | 44 | - | 75 |
| 32 | 32 | 165 | 135 | 100 | 78 | - | 2 | - | 16 | 48 | - | 105 | |
| 40 | 40 | 180 | 145 | 110 | 85 | - | 3 | - | 16 | 48 | - | 95 | |
| 50 | 50 | 200 | 160 | 125 | 100 | - | 3 | - | 16 | 48 | - | 107 | |
| 65 | 65 | 220 | 180 | 145 | 120 | - | 3 | - | 18 | 48 | - | 142 | |
| 80 | 80 | 250 | 195 | 160 | 135 | - | 3 | - | 20 | 88 | - | 152 | |
| 100 | 100 | 280 | 215 | 180 | 155 | - | 3 | - | 20 | 88 | - | 178 | |
| 125 | 125 | 320 | 245 | 210 | 185 | - | 3 | - | 22 | 88 | - | 252 | |
| 150 | 150 | 360 | 280 | 240 | 210 | - | 3 | - | 24 | 8-23 | - | 272 | |
| 200 | 200 | 400 | 335 | 295 | 265 | - | 3 | - | 26 | 12-23 | - | 342 | |
| 2.5 | 25 | 25 | 150 | 115 | 85 | 65 | - | 2 | - | 16 | 44 | - | 75 |
| 32 | 32 | 165 | 135 | 100 | 78 | - | 2 | - | 18 | 48 | - | 85 | |
| 40 | 40 | 180 | 145 | 110 | 85 | - | 3 | - | 18 | 48 | - | 95 | |
| 50 | 50 | 200 | 160 | 125 | 100 | - | 3 | - | 20 | 48 | - | 107 | |
| 65 | 65 | 220 | 180 | 145 | 120 | - | 3 | - | 22 | 88 | - | 142 | |
| 80 | 80 | 250 | 195 | 160 | 135 | - | 3 | - | 24 | 88 | - | 152 | |
| 100 | 100 | 280 | 230 | 190 | 160 | - | 3 | - | 28 | 8-23 | - | 178 | |
| 125 | 125 | 320 | 270 | 220 | 188 | - | 3 | - | 30 | 8-25 | - | 252 | |
| 150 | 150 | 360 | 300 | 250 | 218 | - | 3 | - | 34 | 8-25 | - | 272 | |
| 200 | 200 | 400 | 360 | 310 | 278 | - | 3 | - | 34 | 12-25 | - | 342 | |
| 4.0 | 25 | 25 | 150 | 115 | 85 | 65 | 58 | 2 | 4 | 16 | 44 | - | 75 |
| 32 | 32 | 180 | 135 | 100 | 78 | 66 | 2 | 4 | 18 | 48 | - | 107 | |
| 40 | 40 | 200 | 145 | 110 | 85 | 76 | 3 | 4 | 18 | 48 | - | 95 | |
| 50 | 50 | 220 | 160 | 125 | 100 | 88 | 3 | 4 | 20 | 48 | - | 107 | |
| 65 | 65 | 250 | 180 | 145 | 120 | 110 | 3 | 4 | 22 | 88 | - | 142 | |
| 80 | 80 | 280 | 195 | 160 | 135 | 121 | 3 | 4 | 22 | 88 | - | 152 | |
| 100 | 100 | 320 | 230 | 190 | 160 | 150 | 3 | 4.5 | 24 | 8-23 | - | 178 | |
| 125 | 125 | 400 | 270 | 220 | 188 | 176 | 3 | 4.5 | 28 | 8-25 | - | 252 | |
| 150 | 150 | 400 | 300 | 250 | 218 | 204 | 3 | 4.5 | 30 | 8-25 | - | 272 | |
| 200 | 200 | 502 | 375 | 320 | 282 | 260 | 3 | 4.5 | 38 | 12-30 | - | 342 | |
| PN(Mpa) | 0.6 | 1.0 | 1.6 | 2.5 | 4.0 |
| DN(mm) | 40-600 | 40-600 | 40-600 | 40-600 | 40-600 |
| Sealing test pressure(Mpa) | 0.66 | 1.1 | 1.76 | 2.75 | 4.4 |
| Body test pressure(Mpa) | 0.9 | 1.5 | 2.4 | 3.75 | 6.0 |
| Working temperature(ºC) | -29~300,-29~425,-29~540 | ||||
| Medium | Liquids like seawater, sewage, acid and alkali or slurry, steam, gas, oil, mud, ash etc. | ||||
| Operation | Handwheel, electric, pneumatic | ||||
| Connection | Flanged, wafer | ||||
| Installation | Vertical and horizontal | ||||
Q: What is the main advantage of a top-entry valve design?
A: The top-entry design allows for maintenance or part replacement without removing the valve from the pipeline—ideal for critical systems where downtime must be minimized.
Q: Is it compliant with any specific industry standards?
A: Yes, it follows API 6D/6A and ASME B16.10 design standards, including features like firesafe design, O-ring sealing, and DBB capability.
Our gear-driven, forged steel construction, and top-mounted ball valve design fully meet maintenance requirements. The top-mounted structure and modular design facilitate maintenance, reducing downtime during inspections or repairs. This valve features double block and bleed (DBB), self-aligning seats, and fire integrity, ensuring reliable control and safe operation with each rotation. It is an ideal choice for teams that prioritize pipeline performance and practicality.
