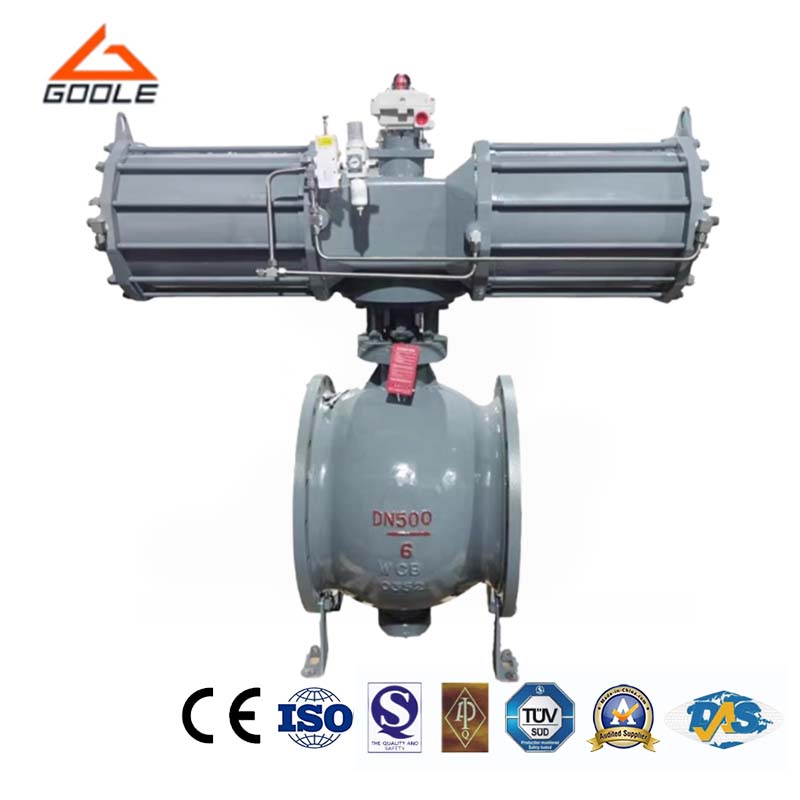

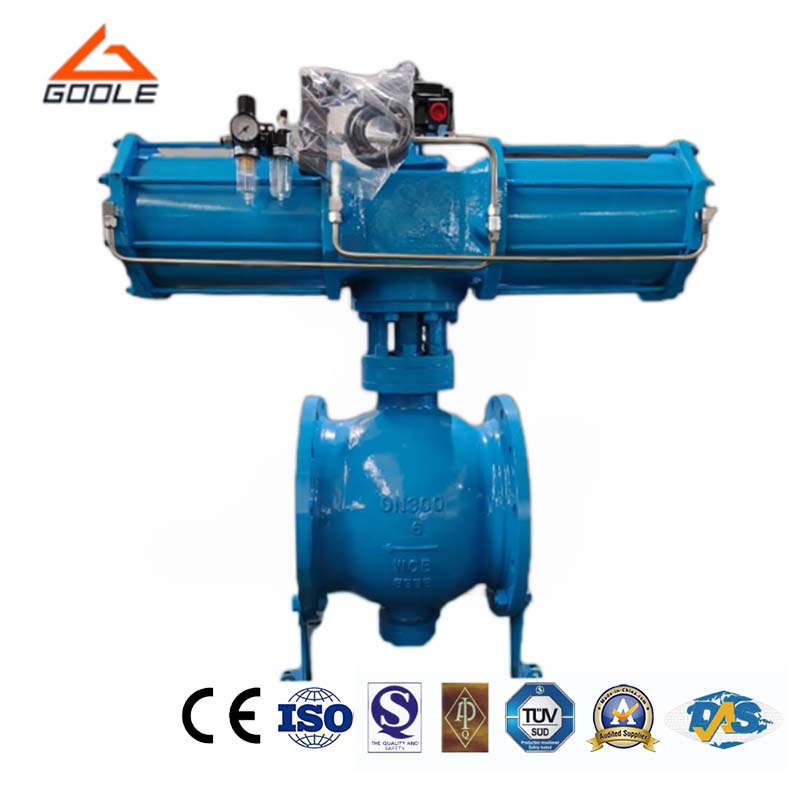

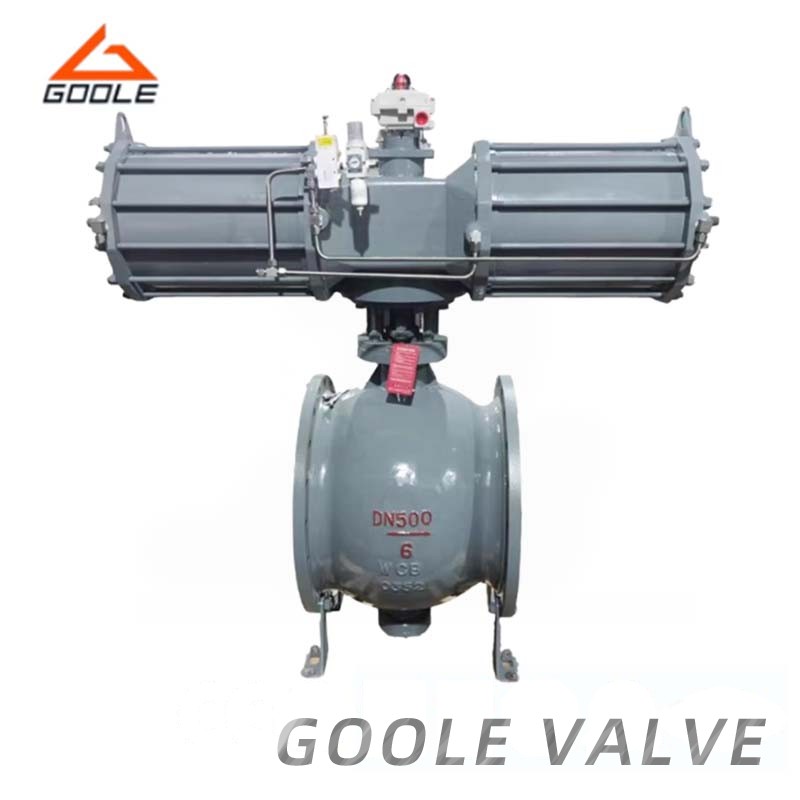

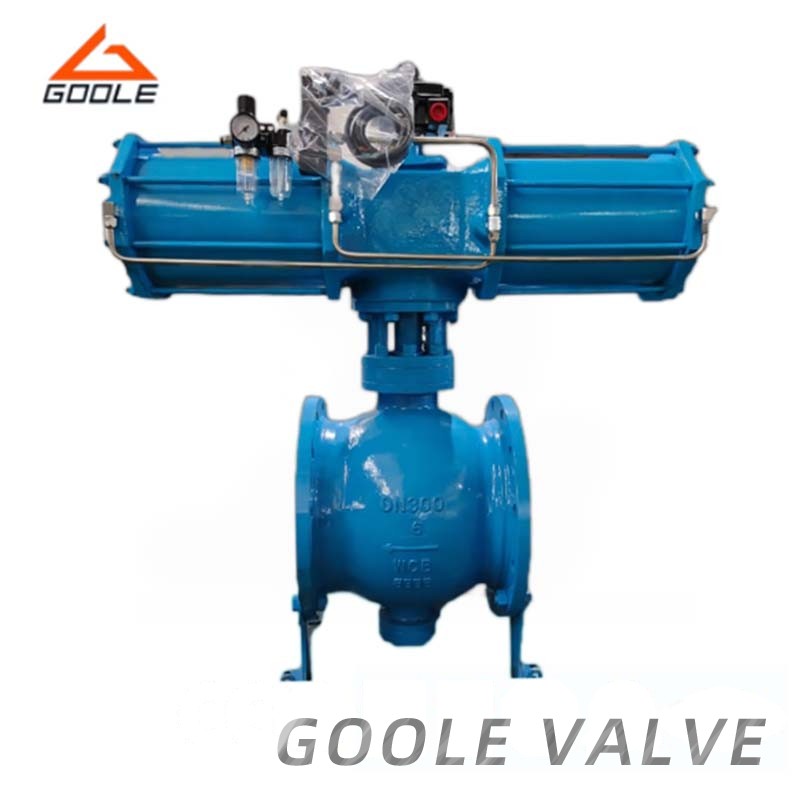

The pneumatic actuated top entry hemisphere ball valve is engineered with a specialized eccentric body, eccentric ball, and precision-machined seat. As the heavy-duty stem rotates, it automatically aligns with the common fluid path, ensuring an exceptionally tight closure and superior sealing performance under demanding conditions. The ball fully disengages from the seat during operation, completely eliminating the friction and wear issues typically associated with standard seal rings. This sophisticated mechanism effectively addresses the common seat and spherical surface degradation found in traditional ball valves.
To further enhance durability, non-metallic elastic materials are securely embedded within the reinforced metal seat, providing a protective barrier for the metal surface against abrasive media. Touching the exterior reveals a meticulously coated, corrosion-resistant finish designed for harsh environments.
This advanced valve configuration is tailored for severe industrial applications. It delivers reliable performance when handling challenging media such as steel and aluminum processing fluids, fibrous slurries, small solid particulates, paper pulp, fly ash, and volatile petroleum gases. Plant operators in petrochemical refineries, metallurgical facilities, and power generation plants rely on this customized solution to manage high-wear and specialized media with absolute precision.
This configuration allows direct, unobstructed access to internal components for routine maintenance, visual inspection, or part replacement while the piping system remains fully operational. By eliminating the necessity to remove the entire valve body from the pipeline, facility managers can significantly reduce operational downtime and maintenance overhead.
Designed for direct integration into modern Distributed Control Systems (DCS), the valve supports standard ISO 5211 interfaces and NAMUR mounting configurations. It accommodates precision pneumatic actuators equipped with visual position indicators, limit switches, and explosion-proof enclosures, ensuring accurate, automated control responses for critical field adjustments.
The unique eccentric hemisphere geometry permits the flexible, direct installation of actuators or transmission units without requiring cumbersome additional mounting brackets. This streamlined architecture reduces overall weight and minimizes potential vibration points during high-velocity fluid transfer.
Engineered for absolute safety in volatile environments, the unit incorporates integral Double Block and Bleed (DBB) capabilities alongside verified fire-safe structural integrity. Anti-static devices and blowout-proof stems are standard, guaranteeing secure operation even when subjected to extreme temperatures, high-pressure surges, or hazardous chemical media.
Understanding the precise material composition and structural dimensions is vital for accurate pipeline integration. The following breakdown details the meticulously selected materials for each component, from the resilient PE bonnet to the SS304 ball and PTFE-carbon reinforced washers. Every part is forged and machined to exact tolerances, ensuring long-lasting structural integrity and optimal fluid dynamics.
Item | Part. Name | Material |
1 | Bonnet | PE |
2 | Extension pipe | st37 |
3 | Body | st37 |
4 | Flat washer | st37 |
5 | Butterfly Spring | 60Si2MnA |
6 | Ball seat | SS202 |
7 | O-ring | EPDM |
8 | Ball washer | PTFE+20%C |
9 | Ball | SS304 |
10 | Stem washer | PTFE+20%C |
11 | Stem sleeve | st37 |
12 | Stem | SS410 |
13 | Stem ring | PTFE+20%C |
14 | Stem O-ring | FPM |
15 | Sleeve | st37 |
16 | Positioning PIN | ASTM1035 |
17 | Handle | st37 |
18 | Washer | Q235A |
19 | Nut | Q235A |
20 | Handle cap | ABS |
For pipeline engineers and system designers, precise face-to-face dimensions and standardized flange connections are critical. The engineering schematics provide comprehensive spatial data, allowing for exact structural matching and spatial planning within complex industrial layouts. Comprehensive technical documentation, including CAD files, PDF engineering drawings, and detailed Installation, Operation, and Maintenance (IOM) manuals, are available to accelerate internal technical reviews and procurement approvals.
The operational specifications of this pneumatic actuated hemisphere ball valve are rigorously defined to meet the most demanding industrial criteria. From a broad nominal diameter range of 20mm to 400mm, to an adaptable nominal pressure capacity spanning PN1.6 to 6.4MPa, the unit is built for versatile deployment. The carefully selected core materials, including WCB, CF8, CF8M, and CF3M, provide exceptional resistance to chemical degradation and mechanical stress.
Nominal pressure | PN1.6~6.4MPa |
Nominal diameter | 20~400mm |
Appliable Temperature | Hard Seal:-40~300ºC |
Soft Seal | -40~180ºC |
Applicable medium | Water,gas,oil quality and so on |
Driving Means | Manual ,Electric, Worm wheels |
Body materials | WCB, CF8, CF8M, CF3M |
Stem | 2Cr13, 304, 316 |
Rotary angle | 90° |
Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
Core Material | CF8, CF8M, CF3M |

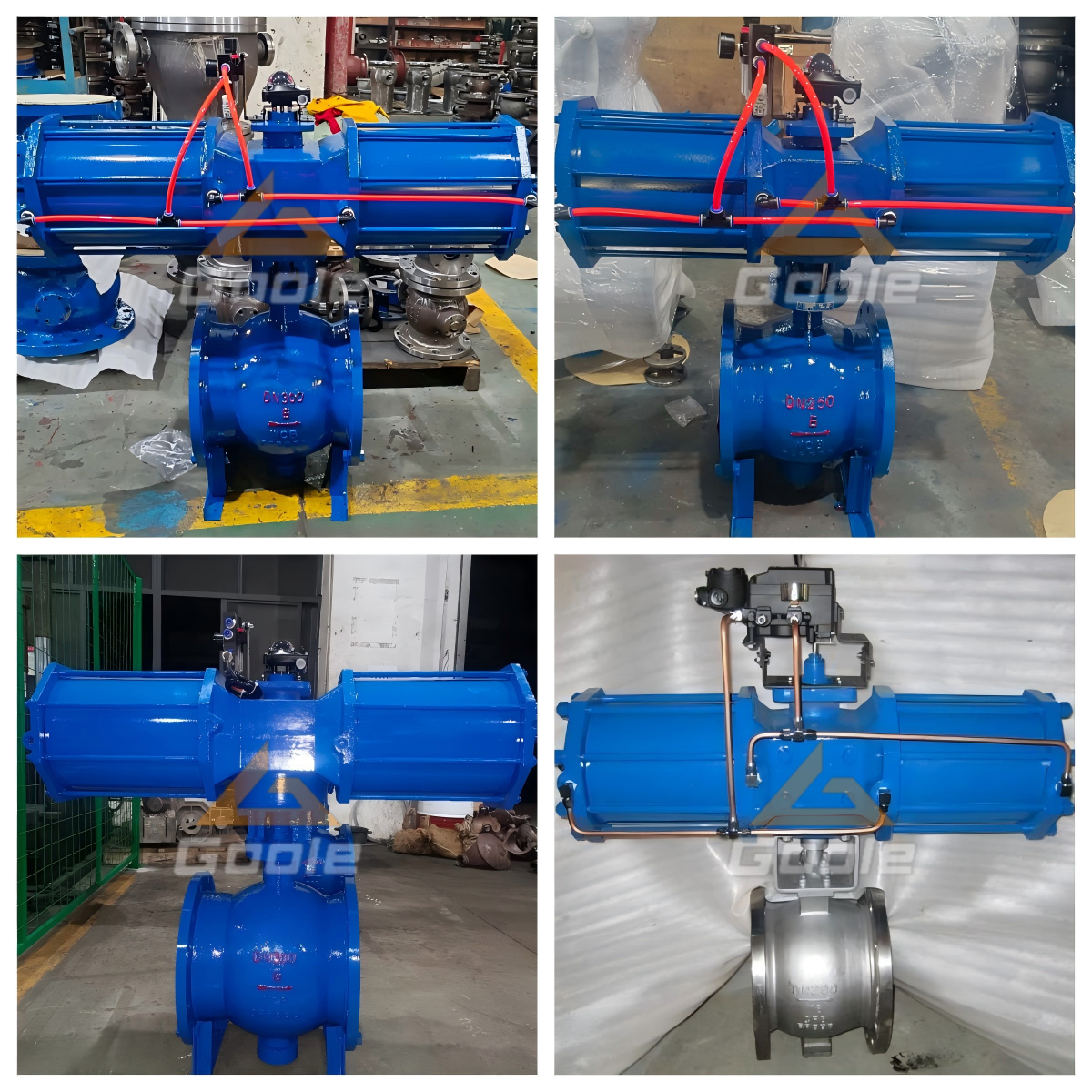

The visual presentation of the valve highlights its heavy-duty industrial finish and precision engineering. The exterior surface features a specialized anti-corrosion coating that feels smooth yet highly durable to the touch, designed to repel moisture and aggressive atmospheric chemicals. The reinforced flange connections and solid actuator mounting pads reflect a commitment to structural stability.
Every visible seam and joint is machined with exacting precision, leaving no room for micro-leaks or mechanical weakness. The distinct metallic sheen of the exposed stainless steel components contrasts with the protective body coating, visually indicating the premium grade of materials utilized in its construction. This meticulous craftsmanship ensures the valve not only performs flawlessly but also maintains its structural integrity over decades of continuous service.
A: The top-entry design allows for comprehensive maintenance, internal inspection, or internal part replacement without removing the heavy valve body from the pipeline. This is an ideal, time-saving solution for critical fluid management systems where operational downtime must be strictly minimized and labor efficiency maximized.
A: Yes, the unit strictly adheres to API 6D/6A and ASME B16.10 design standards. It incorporates essential safety features such as verified fire-safe design, resilient O-ring sealing, and Double Block and Bleed (DBB) capability. Furthermore, it meets stringent environmental and potential ATEX explosion-proof requirements, significantly reducing compliance risks for large-scale industrial procurement.
A: By fully disengaging the ball from the seat during rotation, the eccentric design eliminates the constant rubbing and friction inherent in standard valves. This mechanical separation prevents premature wear of the sealing surfaces, ensuring a bubble-tight shutoff even after thousands of operational cycles.
Our gear-driven, forged steel structure, and top-mounted ball valve design are meticulously engineered to fully meet the most rigorous industrial maintenance requirements. The top-mounted structure and modular internal design facilitate rapid on-site maintenance, drastically reducing costly downtime during routine inspections or emergency repairs. The valve features integral double block and bleed (DBB) capabilities, self-tilting seats for optimal alignment, and tested fire integrity, ensuring reliable control and absolute safe operation with each precise rotation.
Beyond standard functionality, we focus on maximizing the operational lifespan and minimizing the Total Cost of Ownership (TCO). Extensive performance testing guarantees an exceptionally high number of failure-free switching cycles. The low-torque operational advantage reduces the strain on pneumatic and electric actuators, extending the life of the entire automation system. Combined with advanced anti-corrosion coating processes, this valve is an ideal, long-term investment for engineering teams that prioritize uncompromised pipeline performance, safety, and practical reliability.
