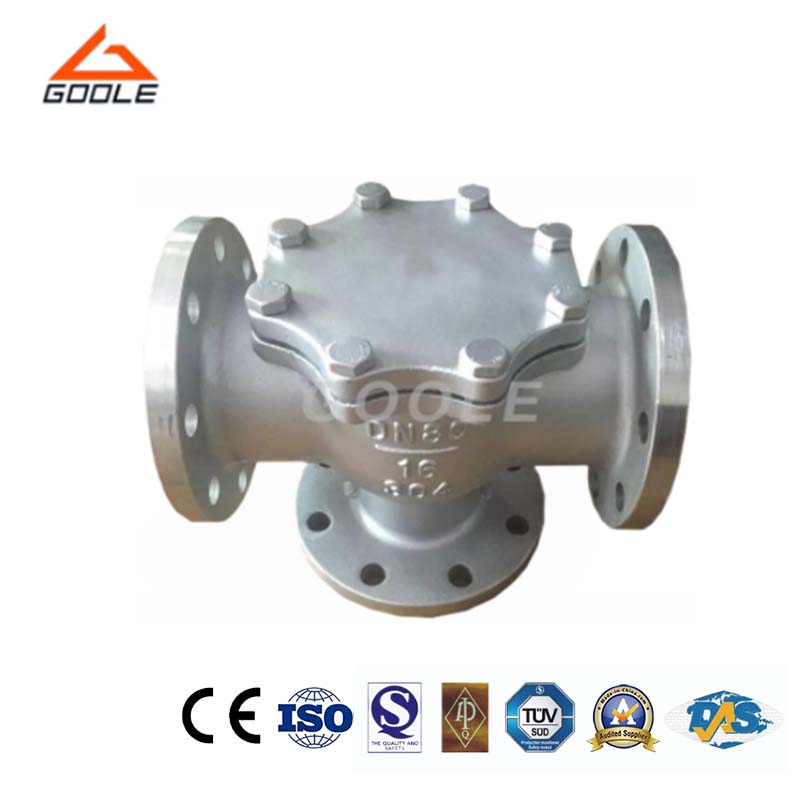

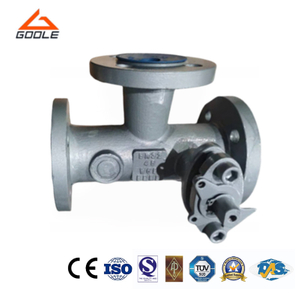

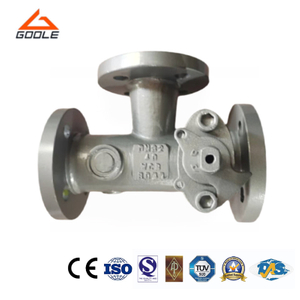

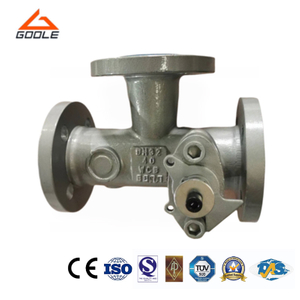

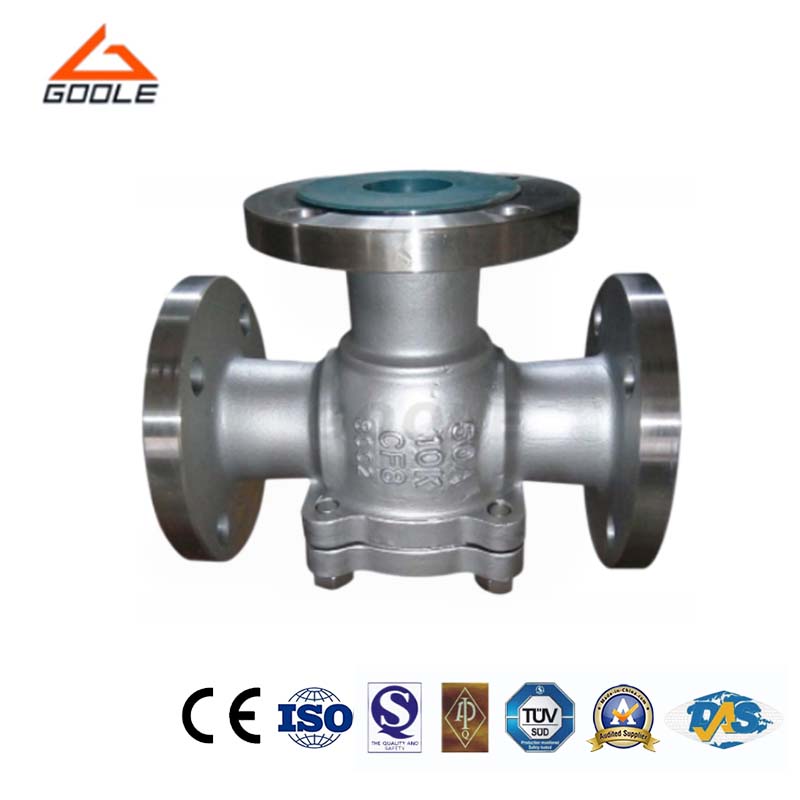

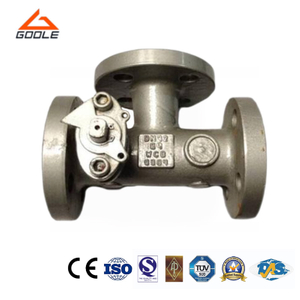

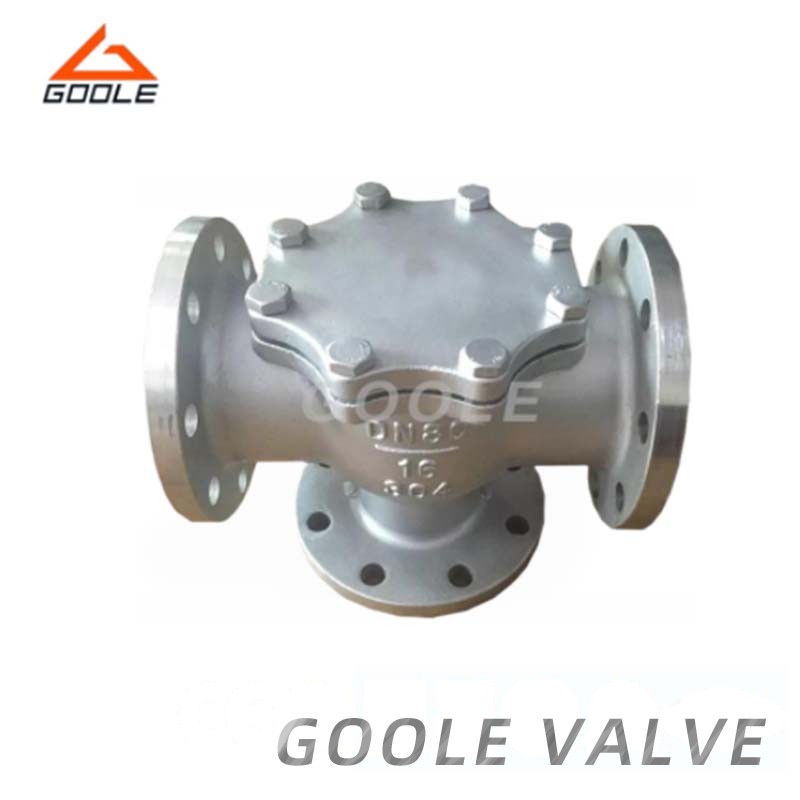

L PORT Three Way Floating Ball Valve ( Q44F) Features:1. Cast Type with 2 Pcs Split Body Deisgn or Forged Type with 3 PCS Body Design, Cast Material: WCB, CF8, CF8M, CF8C, Duplex Stainless Steel, etc.Forged Material: A105, F304, F316, F317, F347, F11, F51, F59, ETC.Other Materials available upon Request, available in Various Trim and Seat (Resilient and Metal) Materials To Suit Different Service Conditions.2. Available Operation:Normal Handle or Lockable Handle Operated...
| Quantity: | |
|---|---|

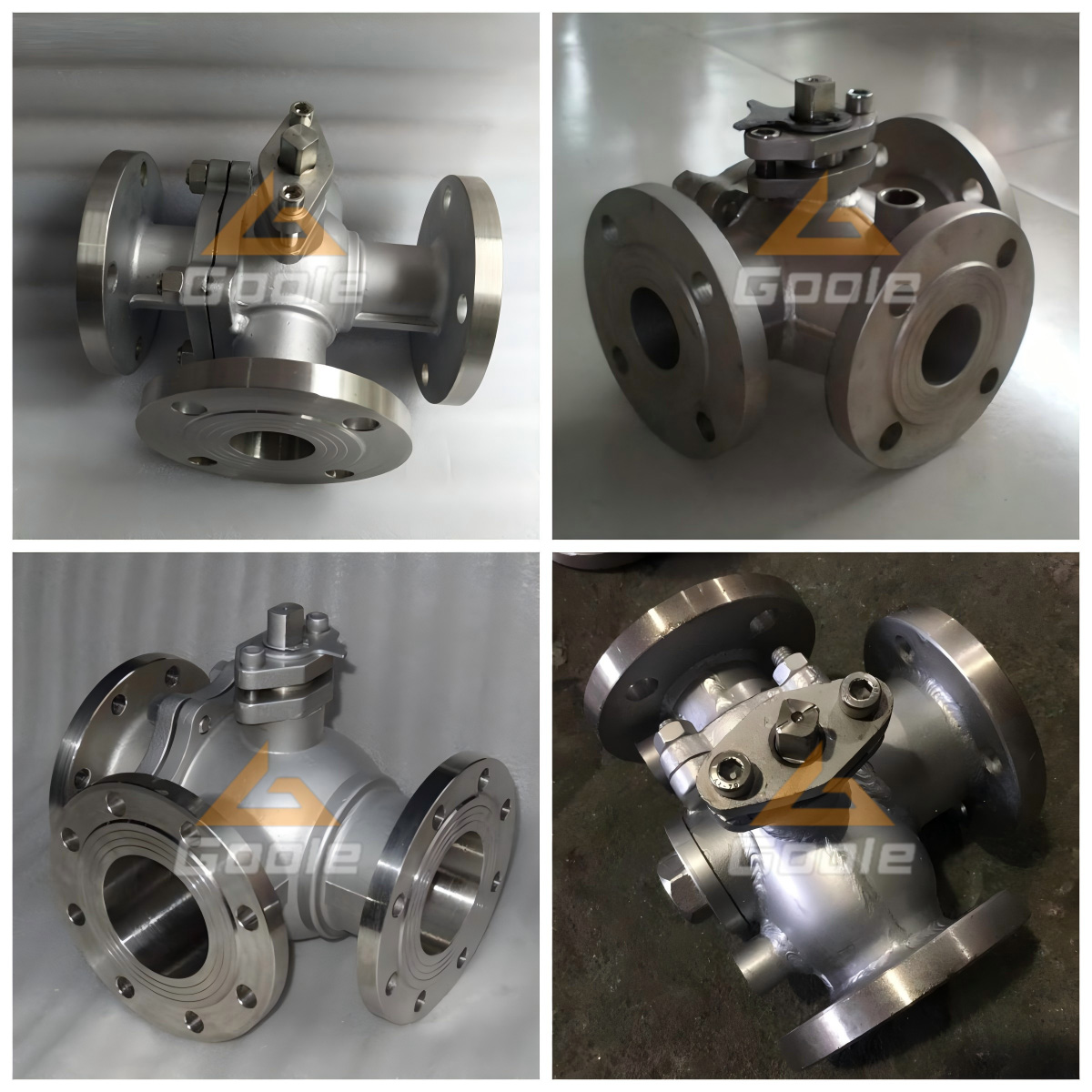

A three-way float ball valve is a common valve commonly used in pipeline systems that require control of fluid direction. Its unique T-shaped design enables fluid control between one inlet and two outlets, making it suitable for situations where fluid transfer or merging is required.
● Compact Structure: Low flow resistance allows it to operate efficiently in various fluid control systems, reducing energy loss.
● Easy to Operate: The switch adopts a unique spherical design, which can be fully opened or closed by rotating 90 degrees, greatly improving work efficiency.
● Good Sealing Performance: Advanced sealing materials and structures are used to ensure good sealing effect under various working conditions and prevent fluid leakage.
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L/L1(RF/BW) | in | 17.75 | 20.00 | 22.75 | 26.5 | 36.00 | 40.25 | 50.00 | 56.00 | / | / |
| mm | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | / | / | |
| L2(RTJ) | in | 17.88 | 21.25 | 23.00 | 26.88 | 36.50 | 40.88 | 50.88 | 56.88 | / | / |
| mm | 454 | 540 | 584 | 683 | 927 | 1038 | 1292 | 1445 | / | / | |
| H | in | 7.50 | 9.00 | 11.00 | 14.12 | 15.75 | 18.88 | 20.50 | 26.38 | / | / |
| mm | 190 | 230 | 280 | 360 | 400 | 480 | 520 | 670 | / | / | |
| W | in | 24 | 32 | 32 | 32 | 32 | 40 | 40 | 40 | / | / |
| mm | 600 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | / | / | |
| WT(Kg) | RF/RTJ | 68 | 95 | 120 | 185 | 675 | 1100 | 1650 | 2300 | / | / |
| BW | 54 | 74 | 91 | 122 | 555 | 918 | 1355 | 2950 | / | / |
| Form | Type T,L three way ball valve |
| Inside nominal diameter DN(mm) | DN15-DN300 |
| Nominal pressure | 1.6 2.5 4.0 6.4Mpa |
| Liquid range | Air ,water, gas ,oil and petrochemical products corrosive medium |
| Working temperature | Hard seal:-40 --300 Soft seal:-40 --180 |
| Spillage | 0 conform to ANSIB16.104standard |
| Main material | Valve body : WCB 304 316 316L Spool: 304 316 316L |
| Seat form | Stainless steel movable hard seal, PTFE soft seal |
| Surface preparation | Polishing |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valve is made of high-quality materials, ensuring excellent durability and reliability. Its innovative design ensures precise and efficient fluid control, meeting a wide range of industrial application needs. We provide comprehensive after-sales service to ensure that any problems encountered during use can be resolved in a timely manner. By choosing our three-way ball valve, you will enjoy excellent product performance and worry free user experience.
