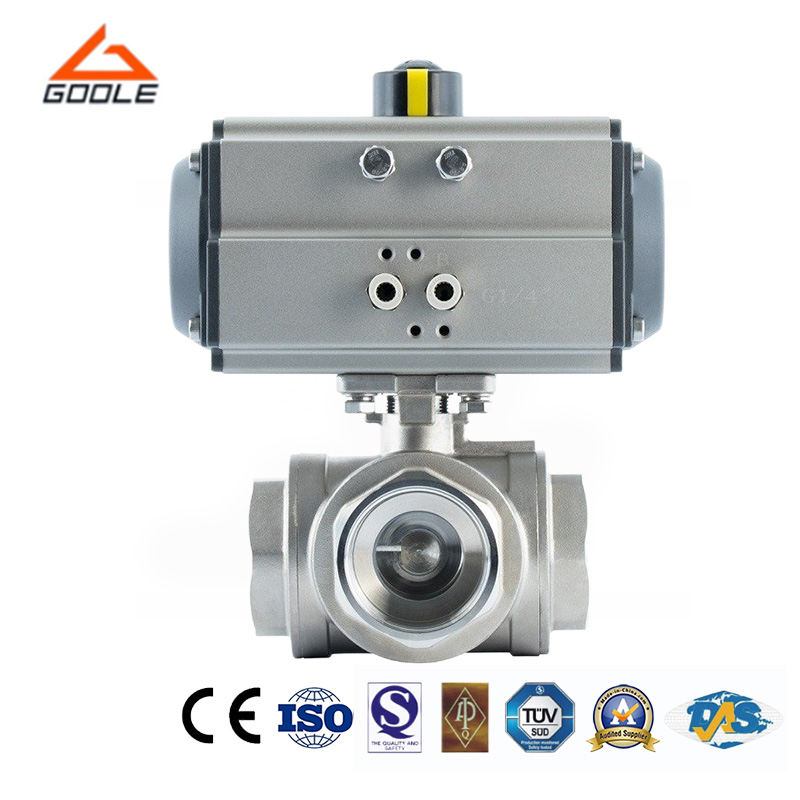

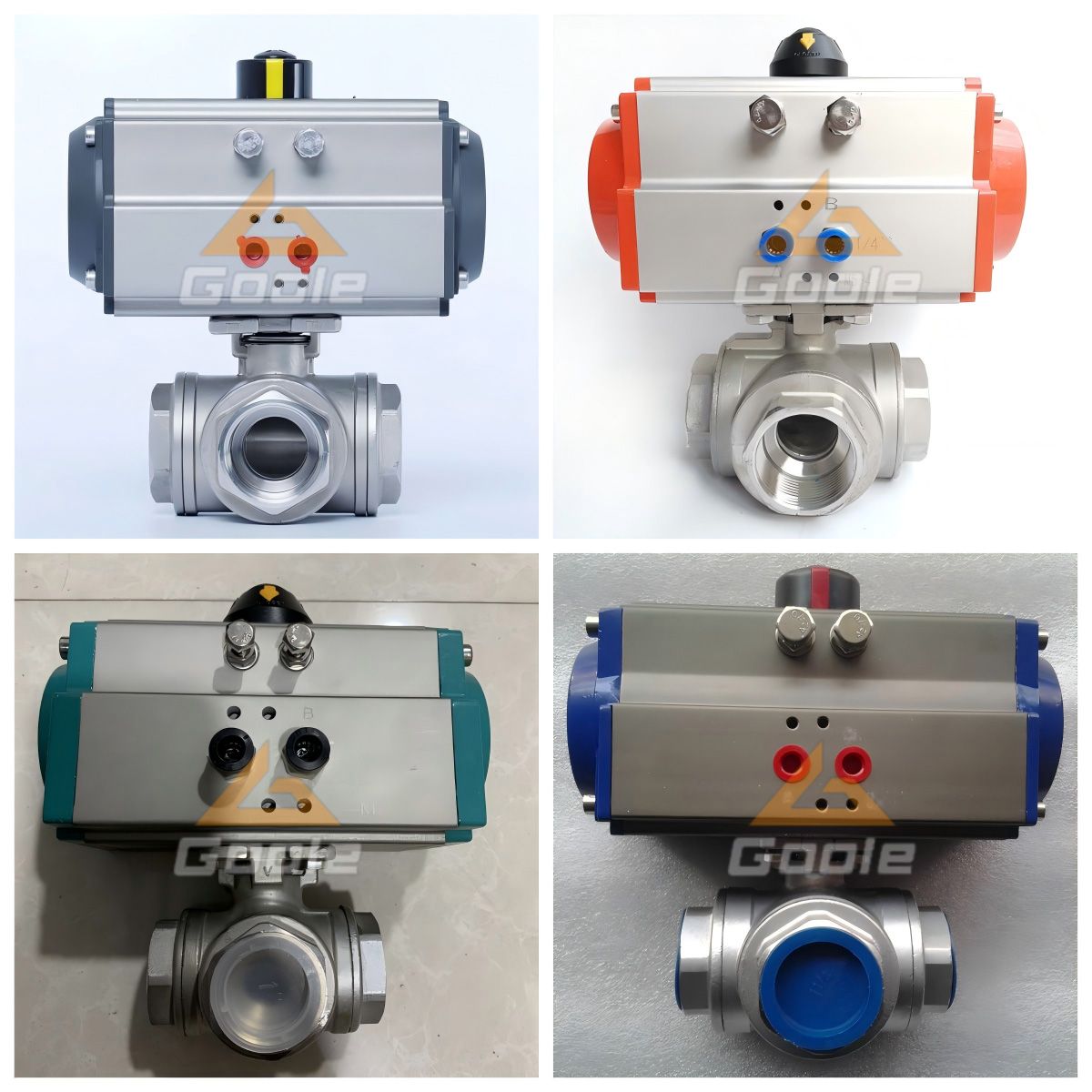

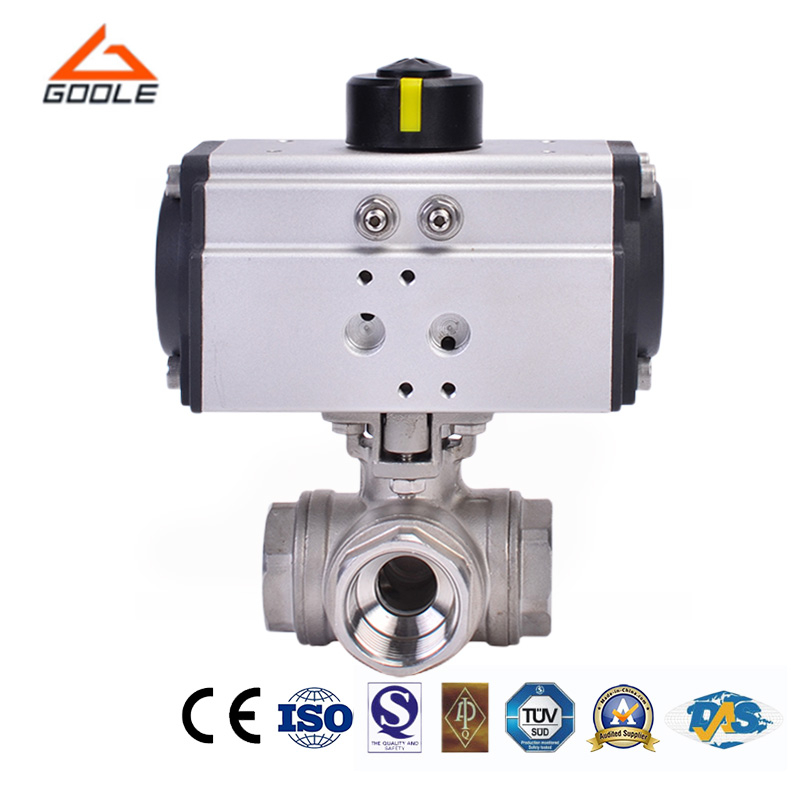

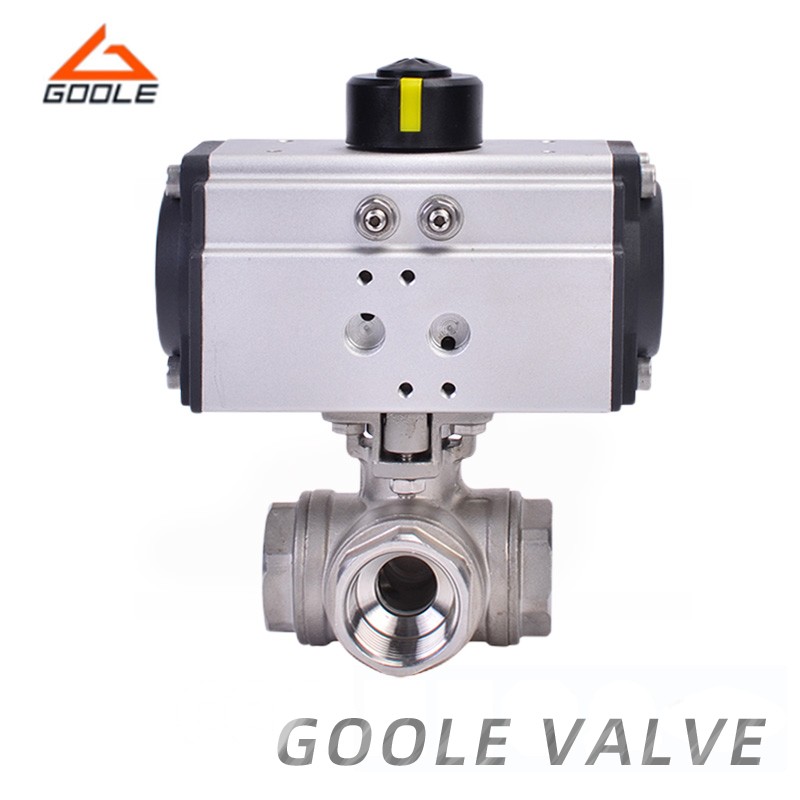

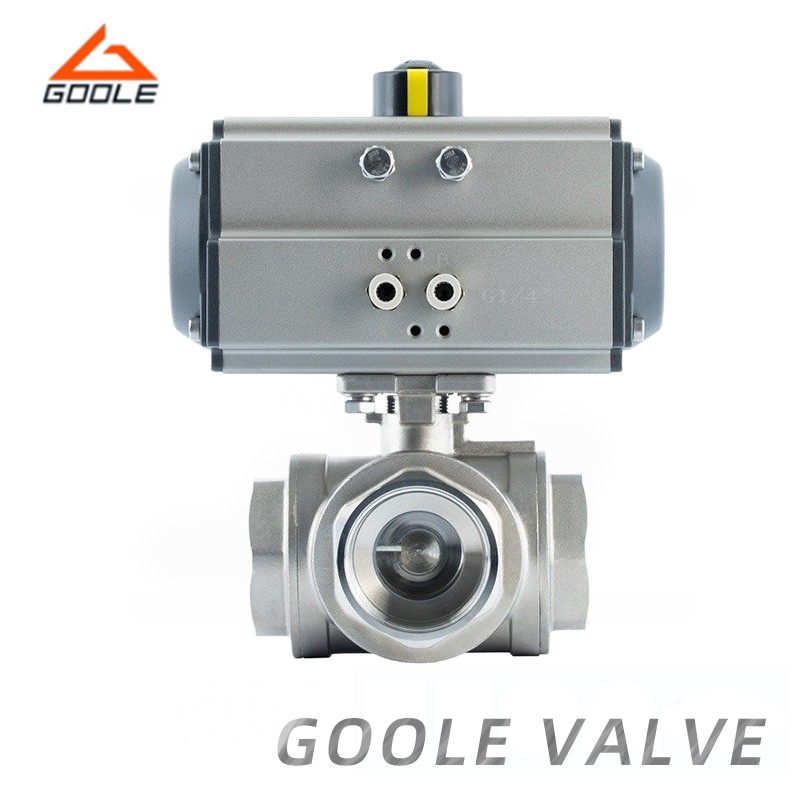

Pneumatic threaded three-way ball valves are widely used in industries such as chemical, petroleum, power, pharmaceutical, beer, food, dairy products, beverages, cosmetics, as well as engineering support for industrial pipelines. Its unique design and outstanding performance make it an ideal choice for various applications. The three-way structure allows for flexible flow control, enabling the valve to guide fluid flow in multiple directions. In addition, its durable structure ensures long-term reliability and stability, making it suitable for harsh industrial environments.
● Compact Structure: With low flow resistance, it operates efficiently within the fluid control system, thereby minimizing energy loss to the greatest extent possible.
● Easy to Operate: The switch features a unique spherical design that allows for quick opening and closing. Only a 90 degree rotation can significantly improve work efficiency.
● Good Sealing Performance: Advanced sealing materials and structures ensure reliable sealing under various working conditions, preventing fluid leakage.
ITEM | PART NAME | MATERIAL | ||
1 | CAP | CF8M | CF8 | WCB |
2 | THRUST WASHER | PTFE | ||
3 | STEM SEALING | PTFE | ||
4 | STOP NUT | SS304 | ||
5 | STEM NUT | SS304 | ||
6 | HANDLE COVER | PLASTIC | ||
7 | HANDLE | SS304 | ||
8 | STEM | SS316 | SS304 | SS304 |
9 | BODY | CF8M | CF8 | WCB |
10 | BALL SEAT | R-PTFE | PTFE | PTFE |
11 | GASKET | PTFE | ||
12 | BALL | SS316 | SS304 | SS304 |
13 | LOCKING PIN | SS304 | ||
1000PSI/PN63 DIMENSION
SIZE | L | D | W | H | H1 | R | C | TORQUE N.M | CV |
1/2" | 73 | 12 | 110 | 57 | 29 | 36 | M6 | 5 | 1.3 |
3/4" | 80 | 15 | 120 | 61 | 32 | 42 | M6 | 7 | 2 |
1" | 88 | 18 | 145 | 67 | 36.5 | 42 | M6 | 8 | 3.4 |
1-1/4" | 125 | 25 | 145 | 81 | 44 | 42 | M6 | 15 | 7.1 |
1-1/2" | 136 | 32 | 160 | 97 | 52.5 | 50 | M6 | 22 | 12.4 |
2" | 152 | 38 | 170 | 108 | 58.5 | 50 | M6 | 25 | 20.3 |
| STANDARD PRESSURE | 1000PSI |
SHELL PRESSURE TESTING | 10.4Mpa |
WATER SEAL TESTING | 7.6Mpa |
AIR SEAL TESTING | 0.4-0.7Mpa |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valve is made of high-quality materials to ensure its durability and reliability. Its innovative design ensures precise and efficient fluid control, meeting the diverse needs of industrial applications. We are committed to providing comprehensive after-sales service to ensure that any problems you encounter during use can be promptly and effectively resolved. By choosing our three-way ball valve, you will experience excellent performance and worry free user experience.
