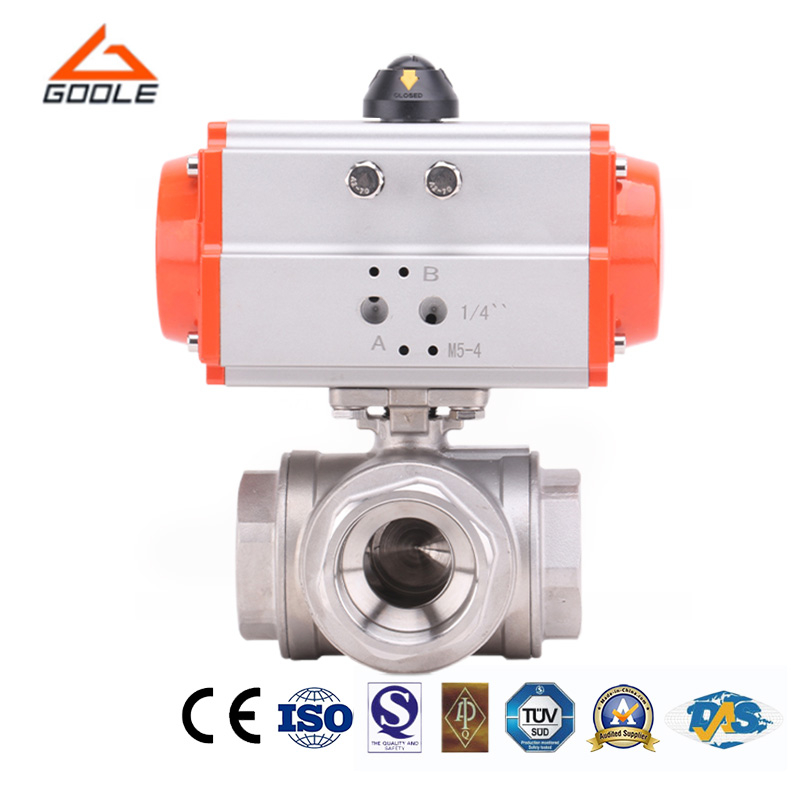

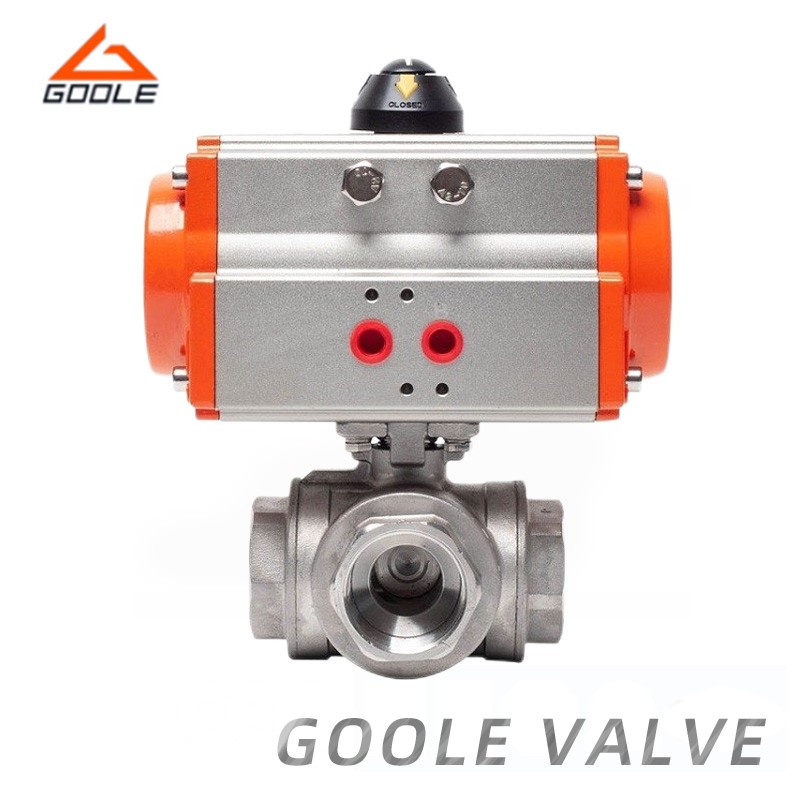

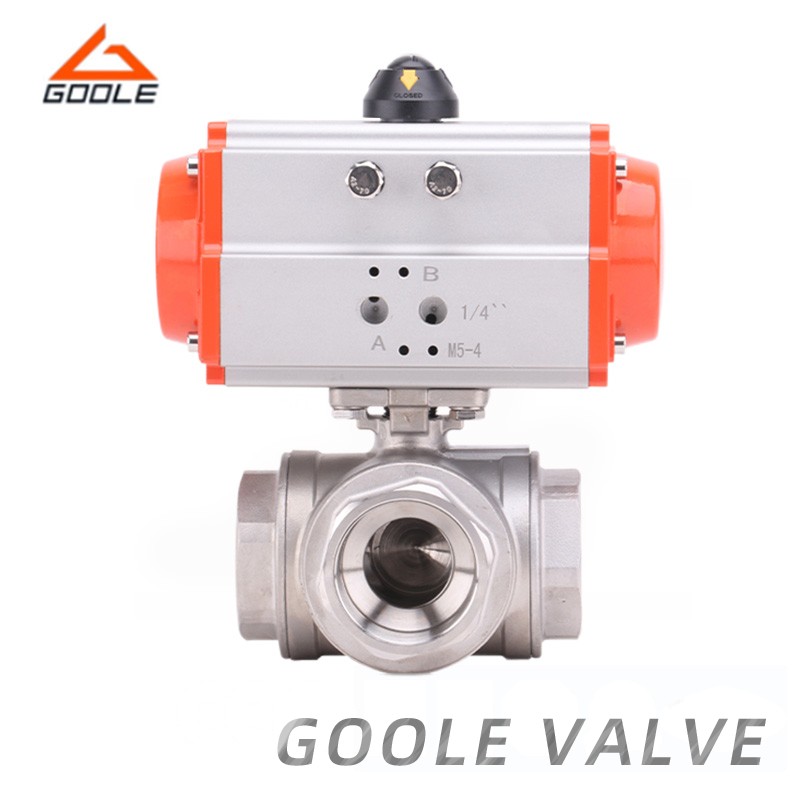

The pneumatic threaded three-way ball valve is widely used in various industries, including chemical, petroleum, power, pharmaceutical, beer, food, dairy, beverage, cosmetics, and industrial pipeline engineering. Its unique design and superior performance make it an ideal choice for a variety of applications. The flexible three-way structure allows for multi-directional fluid control. Additionally, its robust and durable construction ensures long-term reliability and stability, making it suitable for harsh industrial environments.
● Compact Structure: With low flow resistance, can operate efficiently in the fluid control system, thus minimizing energy loss.
● Easy to Operate: The switch adopts a unique spherical design to achieve quick opening and closing. Only 90 degrees of rotation can significantly improve work efficiency.
● Good Sealing Performance: Advanced sealing materials and structures ensure reliable sealing under a variety of working conditions to prevent fluid leakage.
ITEM | PART NAME | MATERIAL | ||
1 | CAP | CF8M | CF8 | WCB |
2 | THRUST WASHER | PTFE | ||
3 | STEM SEALING | PTFE | ||
4 | STOP NUT | SS304 | ||
5 | STEM NUT | SS304 | ||
6 | HANDLE COVER | PLASTIC | ||
7 | HANDLE | SS304 | ||
8 | STEM | SS316 | SS304 | SS304 |
9 | BODY | CF8M | CF8 | WCB |
10 | BALL SEAT | R-PTFE | PTFE | PTFE |
11 | GASKET | PTFE | ||
12 | BALL | SS316 | SS304 | SS304 |
13 | LOCKING PIN | SS304 | ||
1000PSI/PN63 DIMENSION
SIZE | L | D | W | H | H1 | R | C | TORQUE N.M | CV |
1/2" | 73 | 12 | 110 | 57 | 29 | 36 | M6 | 5 | 1.3 |
3/4" | 80 | 15 | 120 | 61 | 32 | 42 | M6 | 7 | 2 |
1" | 88 | 18 | 145 | 67 | 36.5 | 42 | M6 | 8 | 3.4 |
1-1/4" | 125 | 25 | 145 | 81 | 44 | 42 | M6 | 15 | 7.1 |
1-1/2" | 136 | 32 | 160 | 97 | 52.5 | 50 | M6 | 22 | 12.4 |
2" | 152 | 38 | 170 | 108 | 58.5 | 50 | M6 | 25 | 20.3 |
| STANDARD PRESSURE | 1000PSI |
SHELL PRESSURE TESTING | 10.4Mpa |
WATER SEAL TESTING | 7.6Mpa |
AIR SEAL TESTING | 0.4-0.7Mpa |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valve is crafted from premium materials to ensure durability and reliability. Its innovative design ensures precise and efficient fluid control, meeting the diverse needs of industrial applications. We are dedicated to providing comprehensive after-sales service, ensuring that any issues you encounter during use are promptly and effectively resolved. By choosing our three-way ball valve, you will enjoy superior performance and a worry-free user experience.
