| Quantity: | |
|---|---|

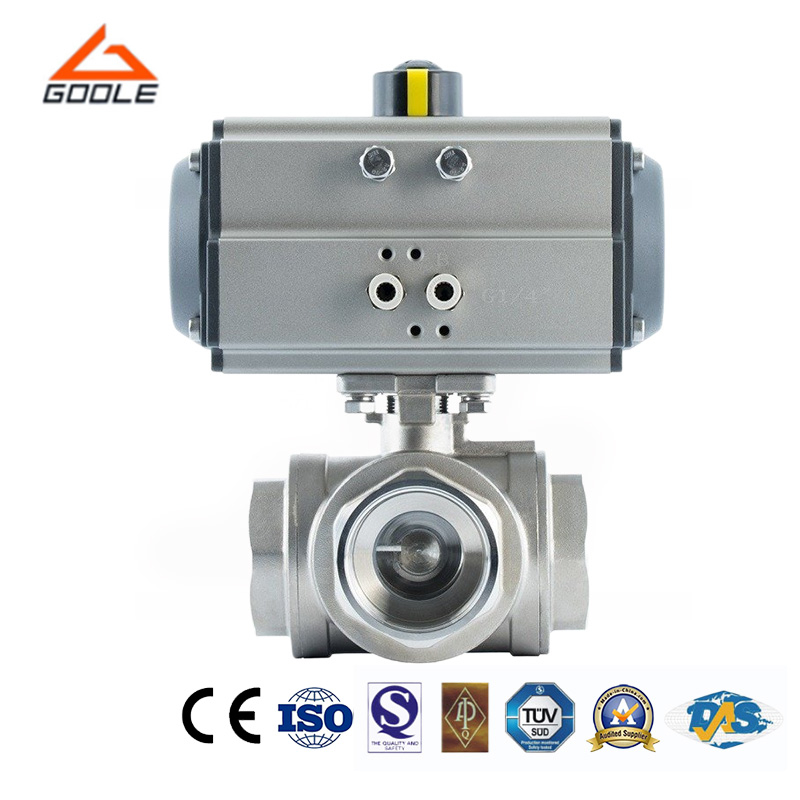

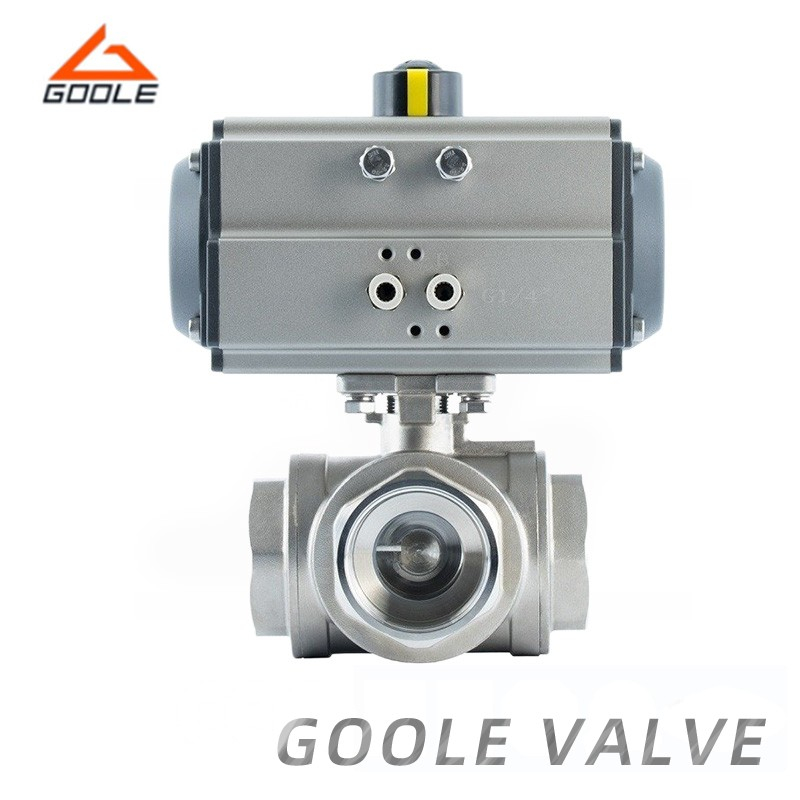

The Pneumatic Thread three-way ball valve has been widely used in various industries, including chemical, petroleum, power, pharmaceutical, beer, food, dairy, beverage, cosmetic, and engineering support for industrial piping. Its unique design and superior performance make it an ideal choice for a range of applications. The three-way structure allows for flexible flow control, enabling the valve to direct fluid flow in multiple directions. Furthermore, its durable construction ensures long-term reliability and stability, making it suitable for use in harsh industrial environments.
● Compact Structure: Featuring low flow resistance, it operates efficiently within the fluid control system, thereby minimizing energy loss.
● Easy to Operate: The switch employs a unique spherical design for quick opening and closing. A mere 90-degree rotation can significantly enhance work efficiency.
● Good Sealing Performance: Advanced sealing materials and structures ensure reliable sealing under various working conditions, preventing fluid leakage.
ITEM | PART NAME | MATERIAL | ||
1 | CAP | CF8M | CF8 | WCB |
2 | THRUST WASHER | PTFE | ||
3 | STEM SEALING | PTFE | ||
4 | STOP NUT | SS304 | ||
5 | STEM NUT | SS304 | ||
6 | HANDLE COVER | PLASTIC | ||
7 | HANDLE | SS304 | ||
8 | STEM | SS316 | SS304 | SS304 |
9 | BODY | CF8M | CF8 | WCB |
10 | BALL SEAT | R-PTFE | PTFE | PTFE |
11 | GASKET | PTFE | ||
12 | BALL | SS316 | SS304 | SS304 |
13 | LOCKING PIN | SS304 | ||
1000PSI/PN63 DIMENSION
SIZE | L | D | W | H | H1 | R | C | TORQUE N.M | CV |
1/2" | 73 | 12 | 110 | 57 | 29 | 36 | M6 | 5 | 1.3 |
3/4" | 80 | 15 | 120 | 61 | 32 | 42 | M6 | 7 | 2 |
1" | 88 | 18 | 145 | 67 | 36.5 | 42 | M6 | 8 | 3.4 |
1-1/4" | 125 | 25 | 145 | 81 | 44 | 42 | M6 | 15 | 7.1 |
1-1/2" | 136 | 32 | 160 | 97 | 52.5 | 50 | M6 | 22 | 12.4 |
2" | 152 | 38 | 170 | 108 | 58.5 | 50 | M6 | 25 | 20.3 |
| STANDARD PRESSURE | 1000PSI |
SHELL PRESSURE TESTING | 10.4Mpa |
WATER SEAL TESTING | 7.6Mpa |
AIR SEAL TESTING | 0.4-0.7Mpa |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valve is crafted from premium materials, ensuring its durability and reliability. Its innovative design guarantees precise and efficient fluid control, catering to the diverse needs of industrial applications. We are committed to providing comprehensive after-sales service, ensuring that any issues you encounter during use are promptly and effectively resolved. By choosing our three-way ball valve, you will experience superior performance and a worry-free user experience.
