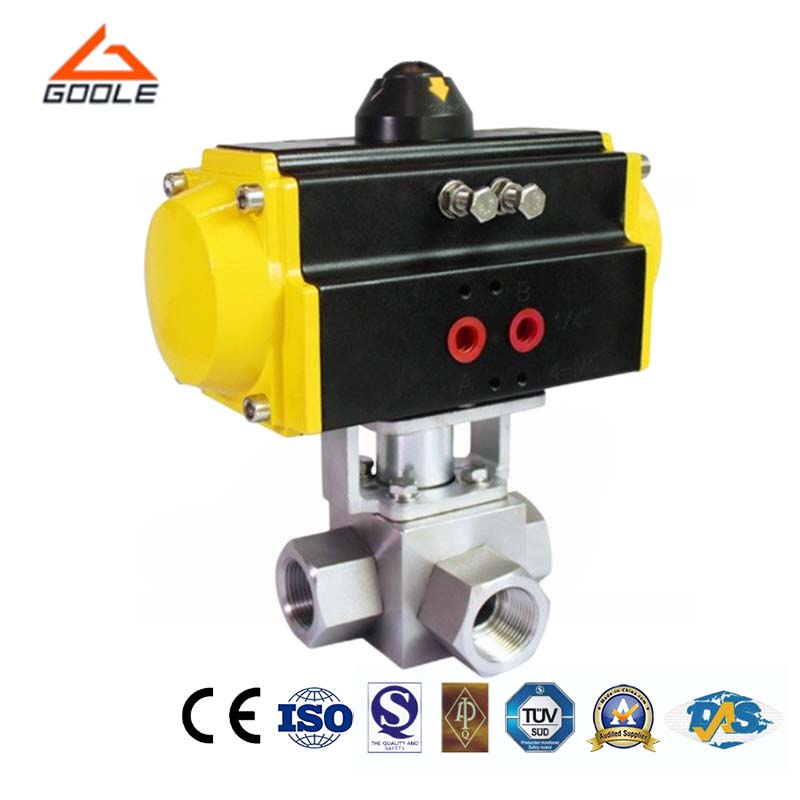

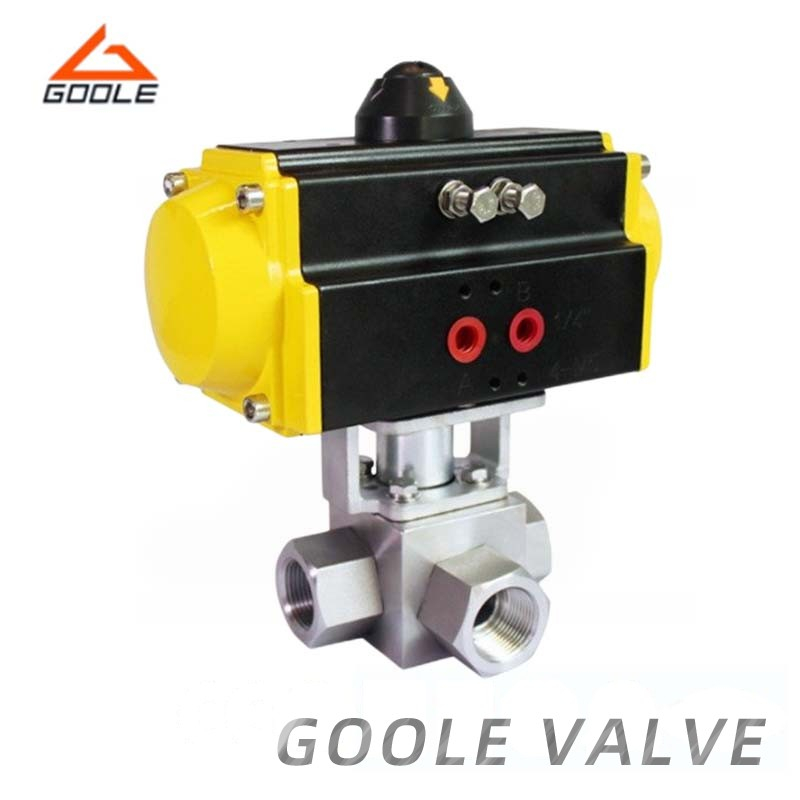

The pneumatic high-pressure three-way ball valve is divided into three parts by two valve seats on a cross-section perpendicular to the axis of the valve body. The entire valve is designed symmetrically around the central axis of the valve stem. This valve is mainly used to cut off, distribute, and change the flow direction of the medium in the pipeline. Its pivot structure ensures that the ball remains precisely centered under high pressure conditions, thereby achieving excellent handling performance. The electric actuator adopts an integrated design and can be directly adjusted for on/off status by connecting to a 220V power supply. In addition, the actuator can be equipped with an internal servo module that controls valve operation through input control signals (4-20mADC or 1-5VDC) and single-phase power supply.
● Compact Structure: With low flow resistance, efficient operation in fluid control systems, thereby minimizing energy loss to the greatest extent possible.
● Easy to Operate: The switch features a unique spherical design that allows for quick opening and closing. Only a 90 degree rotation can significantly improve work efficiency.
● Good Sealing Performance: Advanced sealing materials and structures are used to ensure reliable sealing under various working conditions and prevent fluid leakage.
DN | Pipe Thread | size(mm) | Pipe Thread | size(mm) | |||||||
d | L | H | W | E | H | W | SW | L | |||
6 | 1/4 | 11 | 70 | 43 | 108 | 42.5 | - | - | - | - | 70 |
10 | 3/8 | 11 | 70 | 43 | 108 | 42.5 | - | - | - | - | - |
15 | 1/2 | 11 | 85 | 43 | 108 | 42.5 | 1/2 | 68 | 130 | 41 | 85 |
20 | 3/4 | 14 | 95 | 45.5 | 146 | 47.5 | 3/4 | 77 | 180 | 46 | 95 |
25 | 1 | 21 | 105 | 59.5 | 146 | 52.5 | 1 | 82 | 180 | 55 | 105 |
32 | 1 1 /4 | 25 | 120 | 64.5 | 146 | 60 | 1 1 /4 | 115 | 300 | 70 | 120 |
40 | 1 1 /2 | 32 | 130 | 76 | 254 | 65 | 1 1 /2 | 120 | 300 | 80 | 130 |
50 | 2 | 38 | 150 | 81 | 254 | 75 | 2 | 130 | 300 | 100 | 150 |
| STANDARD PRESSURE | 1000PSI |
SHELL PRESSURE TESTING | 10.4Mpa |
WATER SEAL TESTING | 7.6Mpa |
AIR SEAL TESTING | 0.4-0.7Mpa |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valve is made of high-quality materials, ensuring excellent durability and reliability. Our innovative design ensures precise and efficient fluid control, meeting the diverse needs of industrial applications. We are committed to providing comprehensive after-sales service to ensure that any problems you encounter during use can be promptly and effectively resolved. By choosing our three-way ball valve, you will experience excellent performance and worry free user experience.
