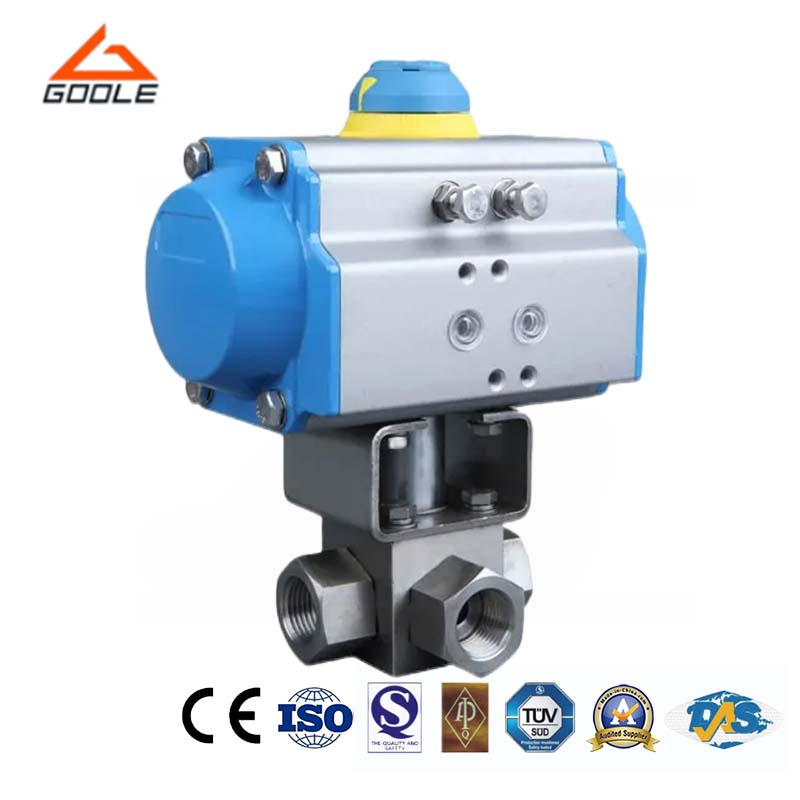

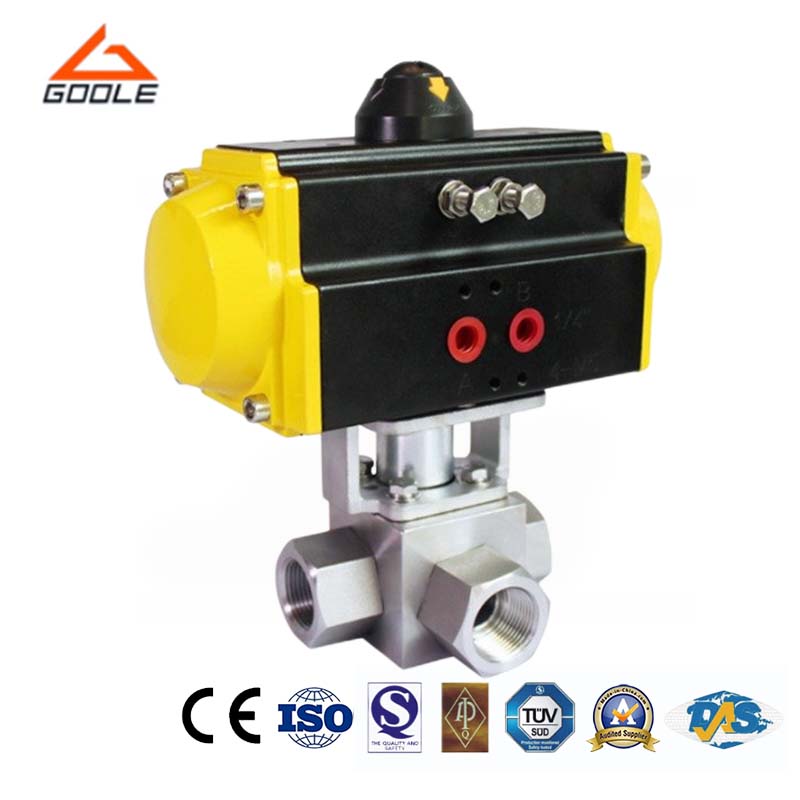

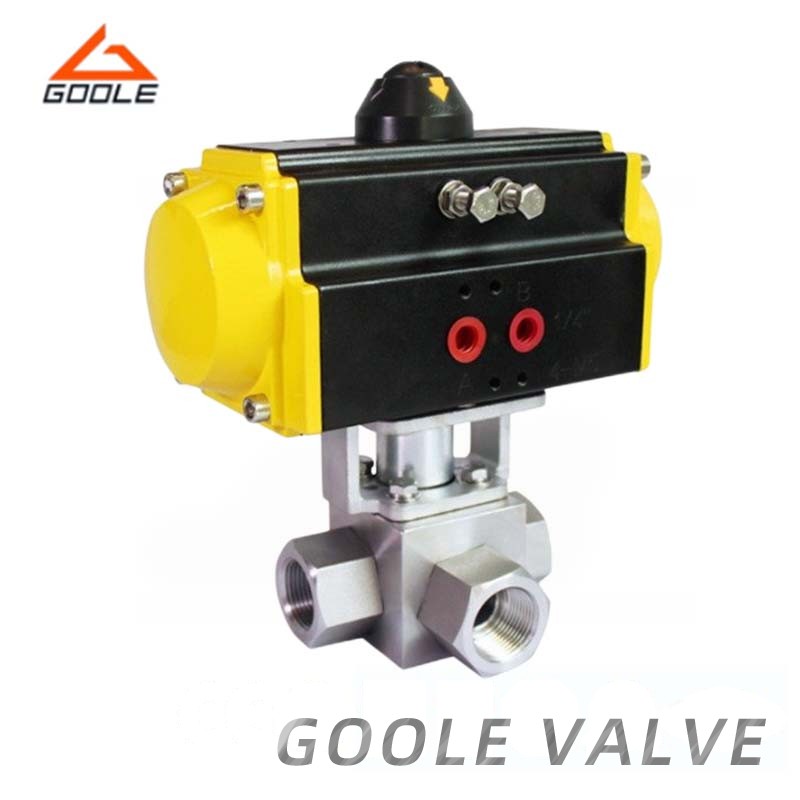

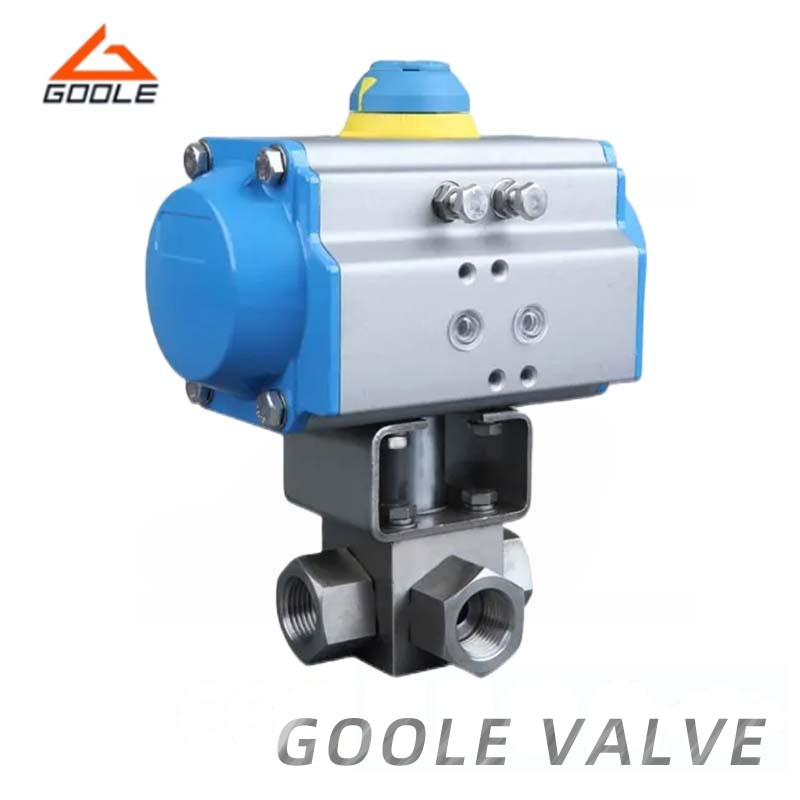

The pneumatic high-pressure three-way ball valve is divided into three sections by two valve seats in the cross-section perpendicular to the valve body axis. The valve is designed to be symmetrical around the central axis of the valve stem. This valve is primarily used for cutting off, distributing, and changing the direction of fluid flow in pipelines. Its pivot structure ensures that the ball remains precisely centered under high pressure, achieving excellent operational performance. The electric actuator features an integrated design, allowing direct adjustment of the on/off state by connecting to a 220V power supply. Additionally, the actuator can be equipped with an internal servo module, which controls the valve's operation through input control signals (4-20mA or 1-5V DC) and single-phase power.
● Compact Structure: With low flow resistance, can operate efficiently in the fluid control system, thus minimizing energy loss.
● Easy to Operate: The switch adopts a unique spherical design, which can be opened and closed quickly. Only 90 degrees of rotation is needed to significantly improve work efficiency.
● Good Sealing Performance: Advanced sealing materials and structures are used to ensure reliable sealing under various working conditions and prevent fluid leakage.
DN | Pipe Thread | size(mm) | Pipe Thread | size(mm) | |||||||
d | L | H | W | E | H | W | SW | L | |||
6 | 1/4 | 11 | 70 | 43 | 108 | 42.5 | - | - | - | - | 70 |
10 | 3/8 | 11 | 70 | 43 | 108 | 42.5 | - | - | - | - | - |
15 | 1/2 | 11 | 85 | 43 | 108 | 42.5 | 1/2 | 68 | 130 | 41 | 85 |
20 | 3/4 | 14 | 95 | 45.5 | 146 | 47.5 | 3/4 | 77 | 180 | 46 | 95 |
25 | 1 | 21 | 105 | 59.5 | 146 | 52.5 | 1 | 82 | 180 | 55 | 105 |
32 | 1 1 /4 | 25 | 120 | 64.5 | 146 | 60 | 1 1 /4 | 115 | 300 | 70 | 120 |
40 | 1 1 /2 | 32 | 130 | 76 | 254 | 65 | 1 1 /2 | 120 | 300 | 80 | 130 |
50 | 2 | 38 | 150 | 81 | 254 | 75 | 2 | 130 | 300 | 100 | 150 |
| STANDARD PRESSURE | 1000PSI |
SHELL PRESSURE TESTING | 10.4Mpa |
WATER SEAL TESTING | 7.6Mpa |
AIR SEAL TESTING | 0.4-0.7Mpa |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valves are crafted from premium materials, ensuring exceptional durability and reliability. Our innovative design ensures precise and efficient fluid control, meeting the diverse needs of industrial applications. We are committed to providing comprehensive after-sales service, ensuring that any issues you encounter during use are promptly and effectively resolved. By choosing our three-way ball valves, you will enjoy superior performance and a worry-free user experience.
