Side entry type stainless steel floating ball valve main parameterNormal Size: 1/2"~8"Pressure rating: 150 LB~900 LBMaterials: WCB, LCB, LCC, CF8...
| Quantity: | |
|---|---|

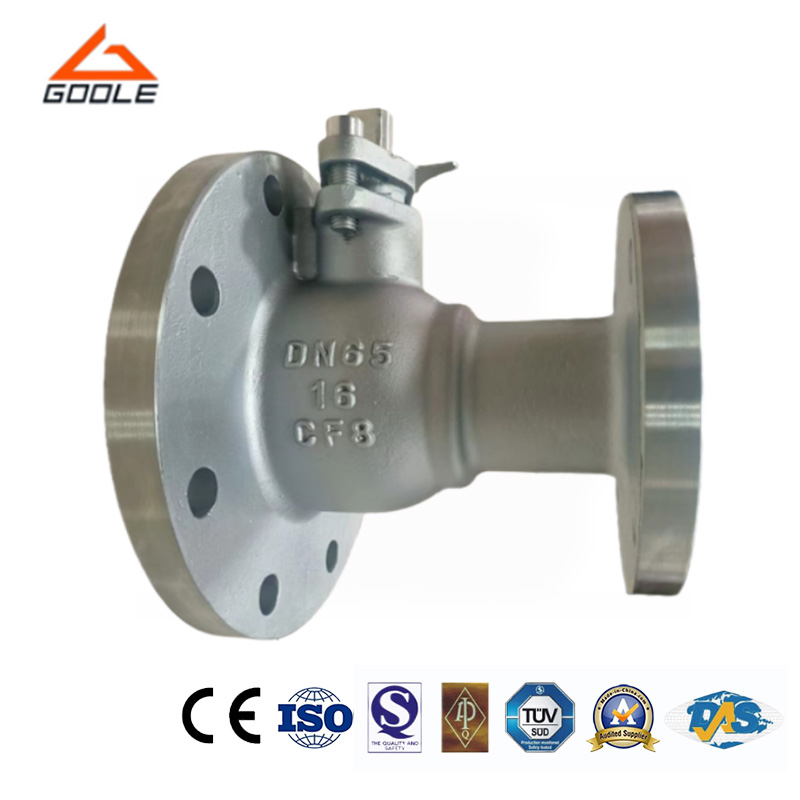

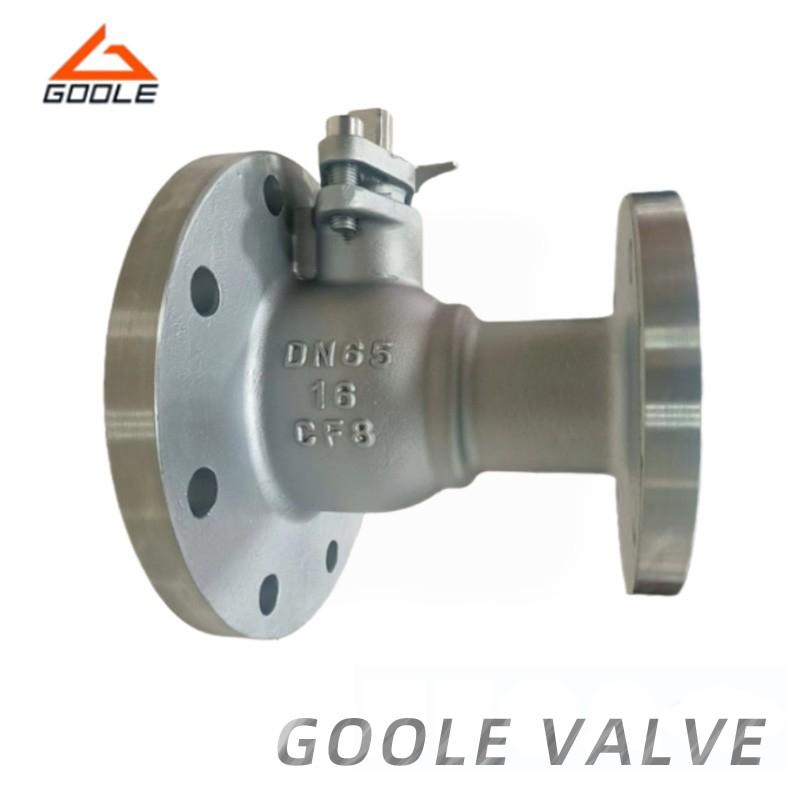

Flanged Ends Tank Bottom Discharge Ball Valve is mainly used for the bottom of storage tanks, reaction vessels, and various other containers. It is used to eliminate residual process media and can be customized according to specific requirements. This valve has two designs: flat end and inclined end. PTFE lined ball valves are opened or closed by rotating the ball. Its characteristics include smooth operation, compact size, reliable sealing, simple structure, and easy maintenance, which contribute to its wide application.
The valve body, valve disc (ball), and other wet parts in contact with the medium are coated with fluoroplastics such as FEP, PTFE, and PFA. These materials enable the valve to resist any corrosive medium other than molten alkali metals and fluorides. These valves are particularly suitable for industries such as chlor alkali, industrial inorganic chemicals, metals and mining, nitrogen and phosphorus fertilizers, oil refining, pharmaceuticals, etc.
● Excellent Material: This material has strong corrosion resistance and can maintain stability for a long time even under complex working conditions.
● Ingenious Design: The ball valve has an intuitive design, easy to operate and quickly switch, thereby improving operational efficiency.
● Excellent Sealing Effect: Stainless steel discharge ball valve effectively prevents medium leakage and ensures production safety.
| DN | D | D1 | D2 | D3 | D4 |
| 25/32 | 115 | 85 | 65 | 140 | 100 |
| 32/40 | 140 | 100 | 78 | 150 | 110 |
| 40/50 | 150 | 110 | 85 | 165 | 125 |
| 50/65 | 165 | 125 | 100 | 185 | 145 |
| 65/80 | 185 | 145 | 120 | 200 | 160 |
| 80/100 | 200 | 160 | 135 | 220 | 180 |
| 100/125 | 220 | 180 | 155 | 250 | 210 |
| 125/150 | 250 | 210 | 185 | 285 | 240 |
| 150/200 | 285 | 240 | 210 | 340 | 295 |
| 200/250 | 340 | 295 | 265 | 405 | 355 |
| Design & Manufacture Standard | HG/T 3704, GB/T 12237, API6D | |||
| Fact to Face Dimension Standard | HG/T 3704, GB/T 12221 | |||
| Flange Standard | HG/T20592, GB/T 9119, ASME B16.5 | |||
| Inspection and Test Standard | GB/T 13927, JB/T 9092, API598 | |||
| Mark Standard | GB/T12241, GB/T12220, MSS 25 | |||
| Delivery Standard | JB/T7928 | |||
| Nominal Diameter | DN25-DN200 | |||
| Nominal Pressure | PN10 | PN16 | 150LB | |
| Test Pressure ( MPA) | Shell Test | 1.5 | 1.5 | 1.5 |
| High Pressure Sealing | 1.1 | 1.1 | 1.1 | |
| Low Pressure Sealing | 0.6 | 0.6 | 0.6 | |
| Applicable Temperature Range ( ºC) | PFA: -29 ~ 200, PTFE: -29~ 180, FEP: -29~ 150, GXPO: -10~80 | |||
| Applicable Medium | Strong Corrosive Medium i.e, Nitric acid, Liquid Chlorine, Sulfuric Acid and Aqua regia etc. | |||
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our stainless steel ball valves are made of high-quality stainless steel, ensuring excellent corrosion resistance and durability. They are not only an ideal choice for demanding industrial environments, but also meet the strict standards of high-purity chemical processes. Our ball valves have a unique and user-friendly design. The spherical structure enables fast and seamless opening and closing, reducing operational complexity and saving time. In addition, they also have excellent sealing ability, effectively preventing medium leakage and ensuring production safety. We focus on finer details and provide customized solutions. We can customize valve sizes, connection methods, and operating mechanisms to meet your exact requirements and ensure that the valve is perfectly integrated into your process system.
