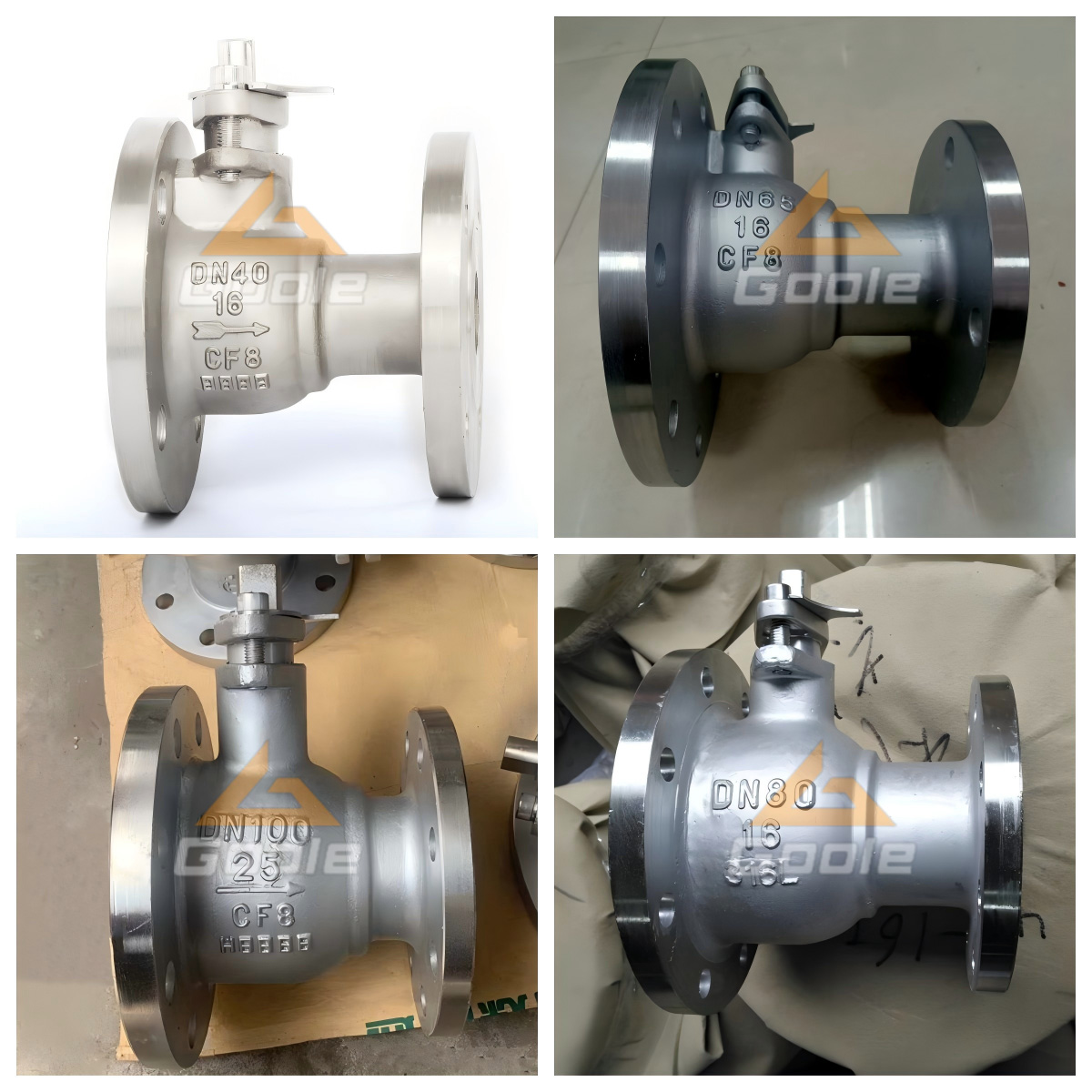

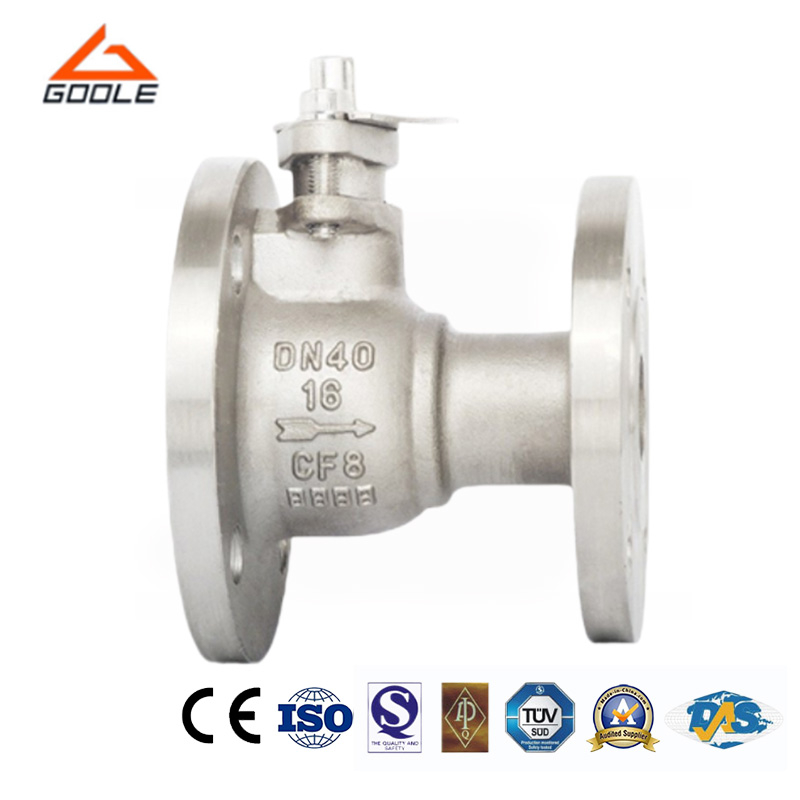

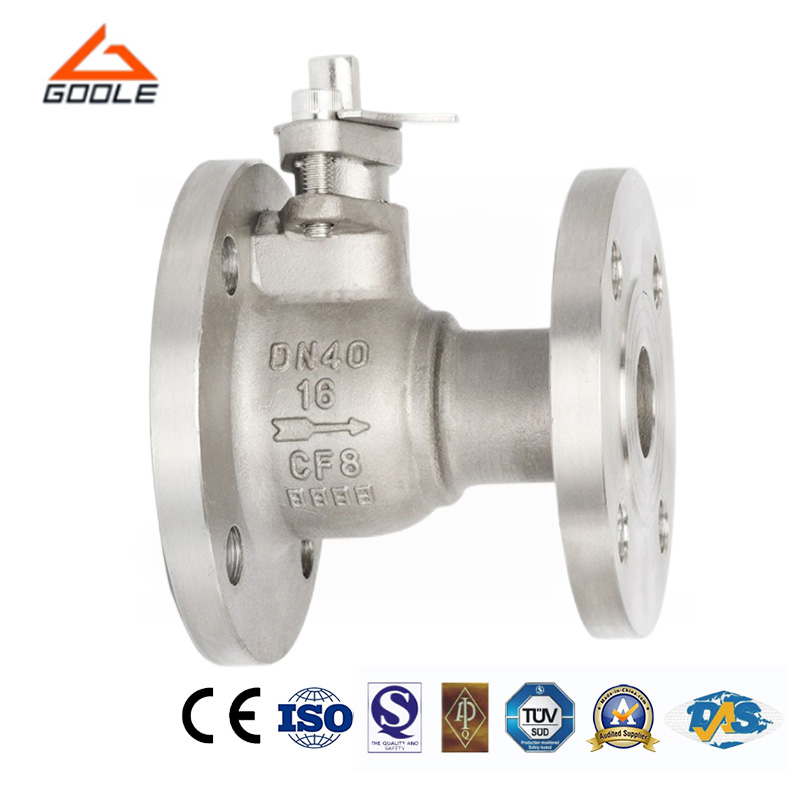

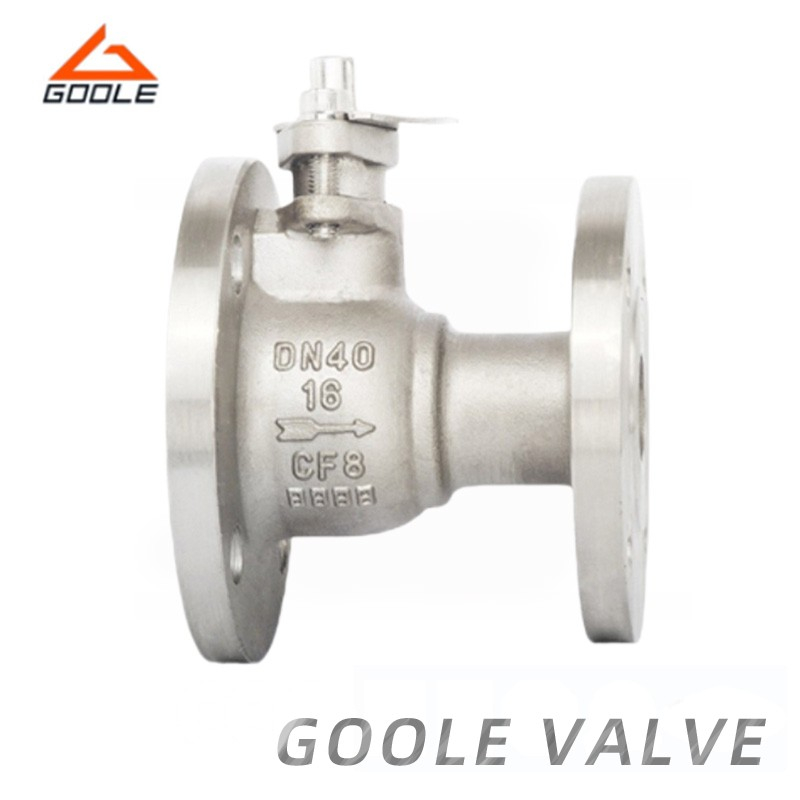

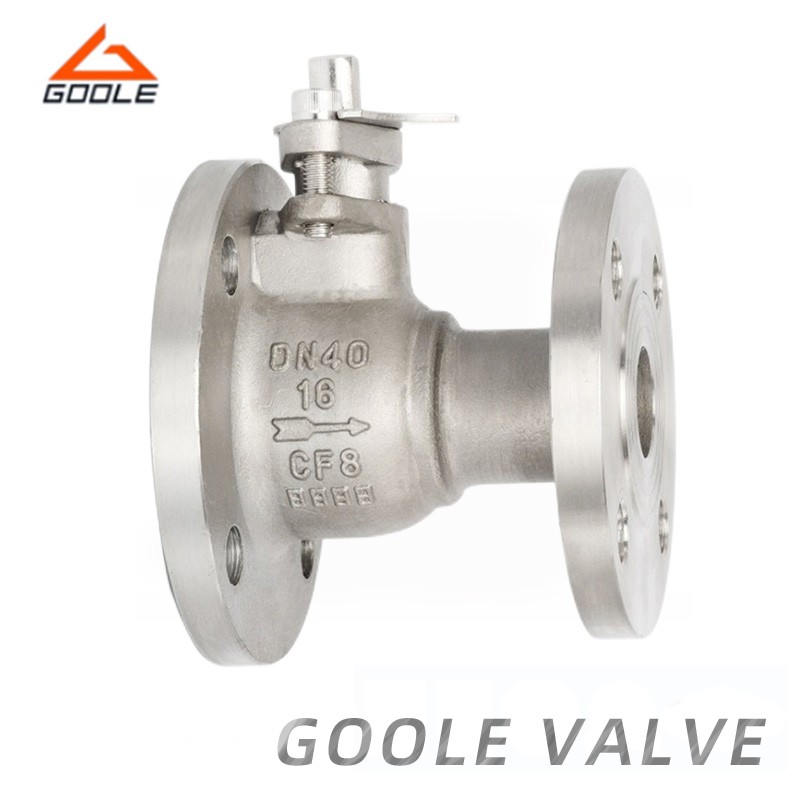

Side entry type stainless steel floating ball valve main parameterNormal Size: 1/2"~8"Pressure rating: 150 LB~900 LBMaterials: WCB, LCB, LCC, CF8...
| Quantity: | |
|---|---|
Flanged Ends Tank Bottom Discharge Ball Valve is primarily used at the base of storage tanks, reaction kettles, and other containers. It eliminates the phenomenon of process medium residue, tailored to the specific situation. The valve can be categorized into those with plain ends or oblique ends. The PTFE Lined ball valve operates by rotating the ball to open or close the valve. Its characteristics include a light switch action, compact size, reliable sealing, simple construction, and ease of maintenance, making it widely applicable.
The valve body, disc (ball), and other wetted parts that come into contact with the medium are lined with fluorine plastics such as FEP, PTFE, and PFA. It can withstand any corrosive medium except for molten alkali metals and fluorine compounds. These valves are ideal for use in chlor-alkali, industrial inorganic chemicals, metal and mining, nitrogen and phosphatic fertilizers, petroleum refining, pharmaceuticals, and other industries.
● Strong Material: Featuring strong corrosion resistance, it remains stable over long periods even under complex working conditions.
● Ingenious Design: The ball valve is designed for easy operation and rapid switching, thereby enhancing operational efficiency.
● Excellent Sealing Effect: The stainless steel discharge ball valve effectively prevents medium leakage, ensuring production safety.
| DN | D | D1 | D2 | D3 | D4 |
| 25/32 | 115 | 85 | 65 | 140 | 100 |
| 32/40 | 140 | 100 | 78 | 150 | 110 |
| 40/50 | 150 | 110 | 85 | 165 | 125 |
| 50/65 | 165 | 125 | 100 | 185 | 145 |
| 65/80 | 185 | 145 | 120 | 200 | 160 |
| 80/100 | 200 | 160 | 135 | 220 | 180 |
| 100/125 | 220 | 180 | 155 | 250 | 210 |
| 125/150 | 250 | 210 | 185 | 285 | 240 |
| 150/200 | 285 | 240 | 210 | 340 | 295 |
| 200/250 | 340 | 295 | 265 | 405 | 355 |
| Design & Manufacture Standard | HG/T 3704, GB/T 12237, API6D | |||
| Fact to Face Dimension Standard | HG/T 3704, GB/T 12221 | |||
| Flange Standard | HG/T20592, GB/T 9119, ASME B16.5 | |||
| Inspection and Test Standard | GB/T 13927, JB/T 9092, API598 | |||
| Mark Standard | GB/T12241, GB/T12220, MSS 25 | |||
| Delivery Standard | JB/T7928 | |||
| Nominal Diameter | DN25-DN200 | |||
| Nominal Pressure | PN10 | PN16 | 150LB | |
| Test Pressure ( MPA) | Shell Test | 1.5 | 1.5 | 1.5 |
| High Pressure Sealing | 1.1 | 1.1 | 1.1 | |
| Low Pressure Sealing | 0.6 | 0.6 | 0.6 | |
| Applicable Temperature Range ( ºC) | PFA: -29 ~ 200, PTFE: -29~ 180, FEP: -29~ 150, GXPO: -10~80 | |||
| Applicable Medium | Strong Corrosive Medium i.e, Nitric acid, Liquid Chlorine, Sulfuric Acid and Aqua regia etc. | |||
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our stainless steel ball valves are crafted from premium stainless steel, ensuring exceptional corrosion resistance and durability. They are not only ideal for demanding industrial settings but also fulfill the stringent requirements of high-purity chemical processes. Our ball valves boast a unique design that facilitates easy operation. The ball mechanism allows for rapid and seamless opening and closing, thereby decreasing operational complexity and saving time. Furthermore, they provide outstanding sealing capabilities, effectively preventing media leakage and ensuring production safety. We focus on the finer details and offer customized solutions. We can customize valve dimensions, connection types, and operating mechanisms to align with your particular requirements, guaranteeing that the valves are a perfect fit for your process system.
