Side entry type stainless steel floating ball valve main parameterNormal Size: 1/2"~8"Pressure rating: 150 LB~900 LBMaterials: WCB, LCB, LCC, CF8...
| Quantity: | |
|---|---|

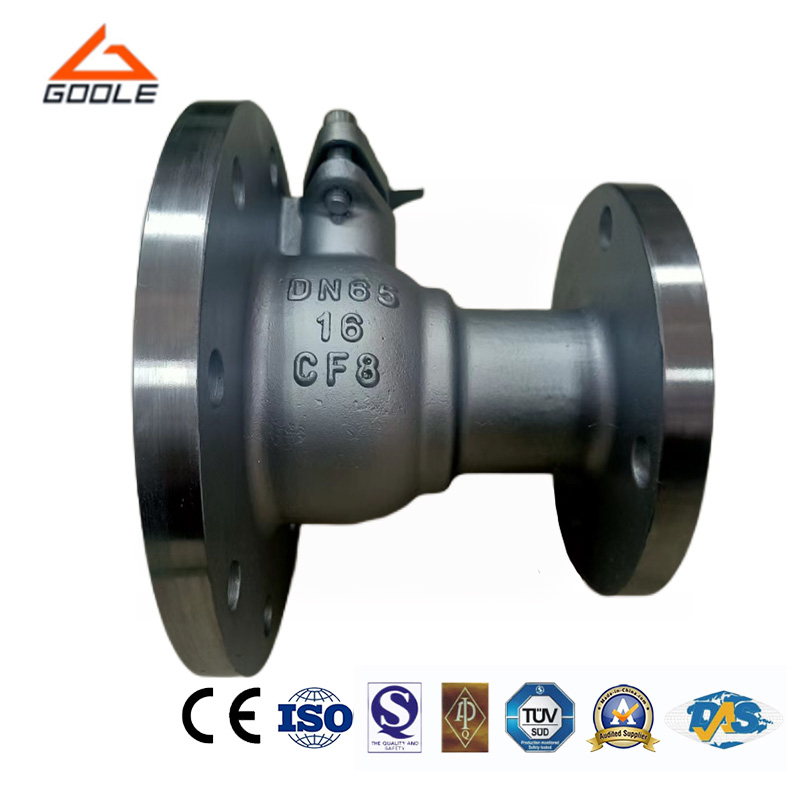

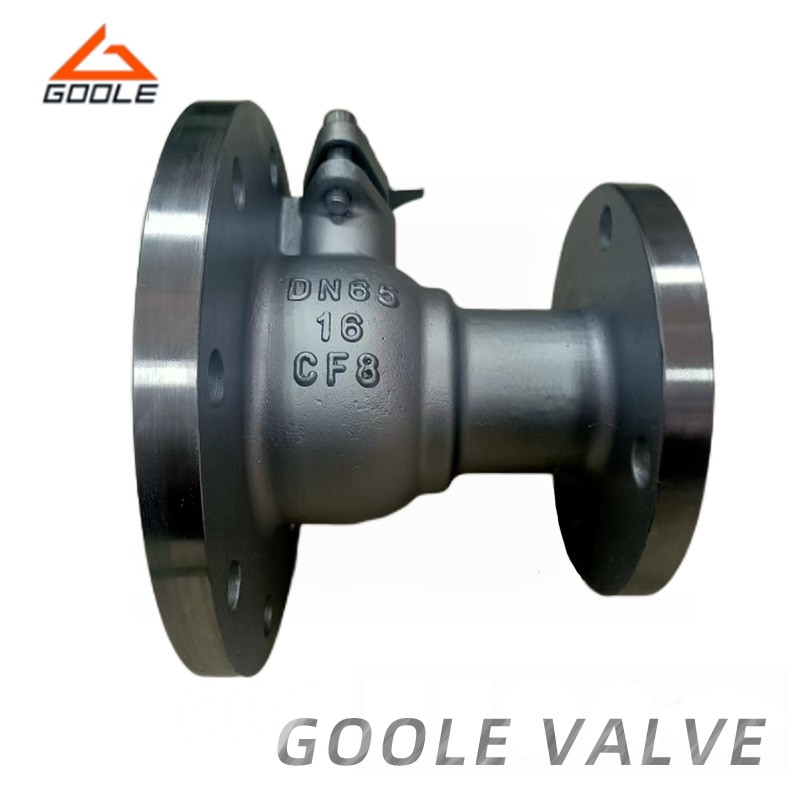

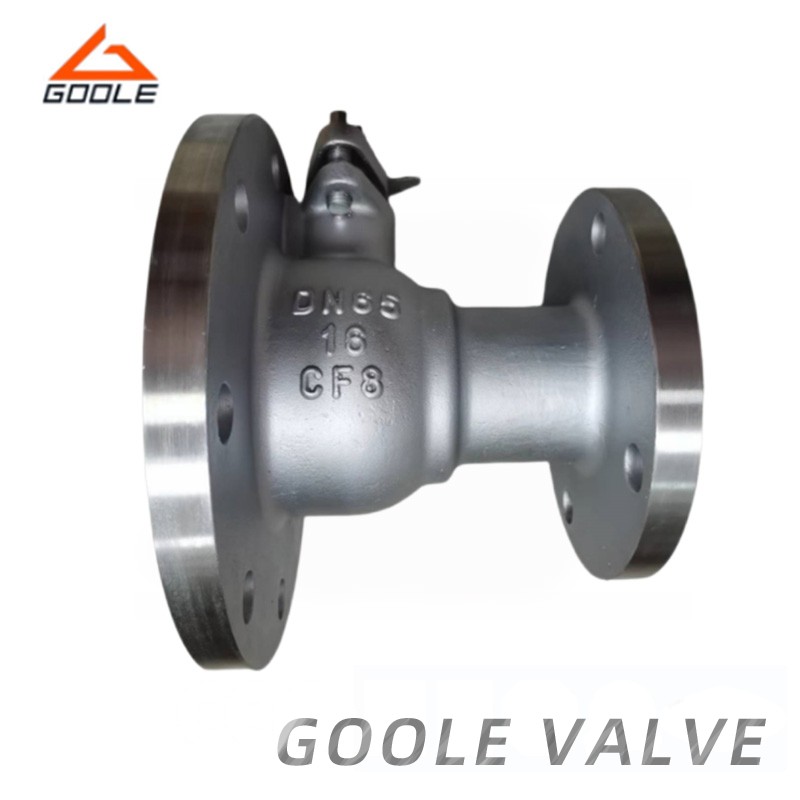

Flanged Ends Tank Bottom Discharge Ball Valve is primarily utilized at the base of storage tanks, reaction kettles, and various other containers. It serves to eliminate residual process media and can be tailored to meet specific requirements. The valve is available in both flat-end and inclined-end designs. The PTFE-lined ball valve operates by rotating the ball to open or close. Its attributes encompass smooth operation, a compact size, dependable sealing, a simple structure, and ease of maintenance, contributing to its widespread application.
The valve body, disc (ball), and other wet components that come into contact with the medium are coated with fluoroplastics such as FEP, PTFE, and PFA. These materials enable the valve to resist any corrosive media except for molten alkali metals and fluorides. These valves are especially well-suited for use in industries such as chlor-alkali, industrial inorganic chemicals, metal and mining, nitrogen and phosphorus fertilizers, petroleum refining, pharmaceuticals, and more.
● Excellent Material: The material boasts strong corrosion resistance, maintaining stability over long periods even in complex working conditions.
● Ingenious Design: The ball valve features an intuitive design that allows for easy operation and rd switching, thereby enhancing operational efficiency.
● Excellent Sealing Effect: The stainless steel discharge ball valve effectively prevents media leakage, ensuring production safety.
| DN | D | D1 | D2 | D3 | D4 |
| 25/32 | 115 | 85 | 65 | 140 | 100 |
| 32/40 | 140 | 100 | 78 | 150 | 110 |
| 40/50 | 150 | 110 | 85 | 165 | 125 |
| 50/65 | 165 | 125 | 100 | 185 | 145 |
| 65/80 | 185 | 145 | 120 | 200 | 160 |
| 80/100 | 200 | 160 | 135 | 220 | 180 |
| 100/125 | 220 | 180 | 155 | 250 | 210 |
| 125/150 | 250 | 210 | 185 | 285 | 240 |
| 150/200 | 285 | 240 | 210 | 340 | 295 |
| 200/250 | 340 | 295 | 265 | 405 | 355 |
| Design & Manufacture Standard | HG/T 3704, GB/T 12237, 6D | |||
| Fact to Face Dimension Standard | HG/T 3704, GB/T 12221 | |||
| Flange Standard | HG/T20592, GB/T 9119, ASME B16.5 | |||
| Inspection and Test Standard | GB/T 13927, JB/T 9092, 598 | |||
| Mark Standard | GB/T12241, GB/T12220, MSS 25 | |||
| Delivery Standard | JB/T7928 | |||
| Nominal Diameter | DN25-DN200 | |||
| Nominal Pressure | PN10 | PN16 | 150LB | |
| Test Pressure ( MPA) | Shell Test | 1.5 | 1.5 | 1.5 |
| High Pressure Sealing | 1.1 | 1.1 | 1.1 | |
| Low Pressure Sealing | 0.6 | 0.6 | 0.6 | |
| Applicable Temperature Range ( ºC) | PFA: -29 ~ 200, PTFE: -29~ 180, FEP: -29~ 150, GXPO: -10~80 | |||
| Applicable Medium | Strong Corrosive Medium i.e, Nitric acid, Liquid Chlorine, Sulfuric Acid and Aqua regia etc. | |||
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our stainless steel ball valves are manufactured from high-grade stainless steel, delivering superior corrosion resistance and long-lasting performance. They are well-suited for challenging industrial environments and meet the stringent demands of high-purity chemical applications. Featuring an innovative and intuitive design, these ball valves utilize a spherical structure that allows for smooth and effortless operation, reducing complexity and enhancing efficiency. Additionally, they offer excellent sealing performance, reliably preventing media leakage and ensuring safe production processes. Attention to detail is central to our approach, and we provide tailored solutions—customizing valve dimensions, connection types, and actuation mechanisms to precisely align with your specifications, guaranteeing seamless integration into your system.
