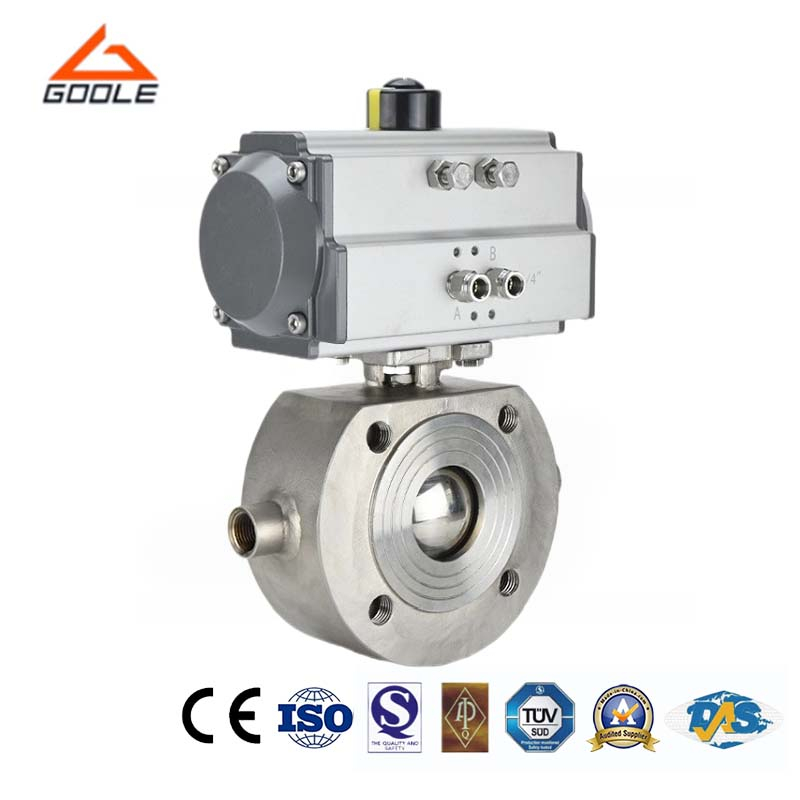

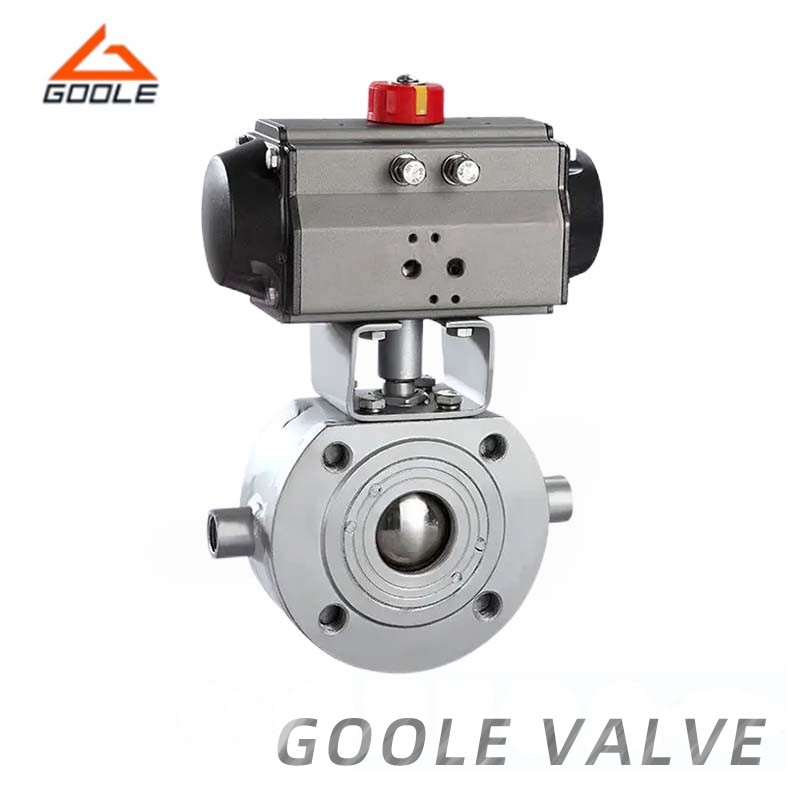

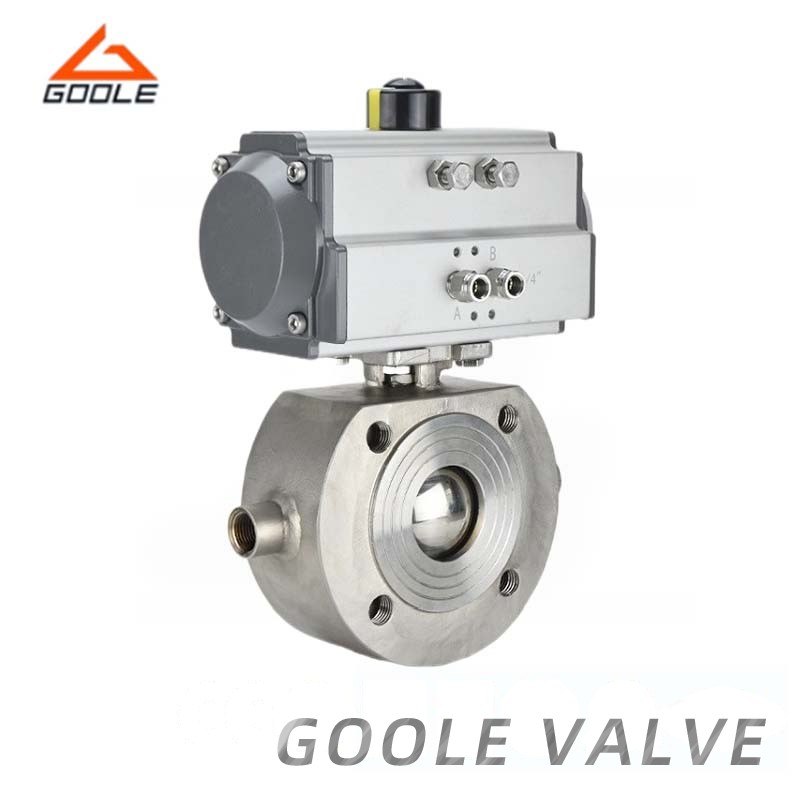

Pneumatc Short Type Jacketed Floating Ball Valve (GBQ71F) main parameter.Nominal Diameter: 1/2"-8"Nominal pressure: Class 150 ~ 600 LB Temperature: -20ºC~250ºC
| Quantity: | |
|---|---|
Pneumatic short ball valves are an innovative solution to deliver high-viscosity media such as heavy oil and glue that can easily solidify at room temperature. The valve is designed with a sleeve structure to provide insulation or cooling function to ensure the optimal temperature of the medium during transportation, thus ensuring efficient operation.
The body is made of carbon steel and coated with welded coating to improve its pressure resistance and structural integrity. The flange connection method is easy to install into existing piping systems, ensuring flexibility and reliability in handling viscous fluids. In addition, the valve is equipped with flexible graphite fillers and high-quality stainless steel balls to ensure long-term sealing in harsh environments.
The valve is generally suitable for high pressure applications with a temperature range of-20℃ to 250℃, and especially for handling liquid and semi-solid media in large piping systems.
●Jacketed Design:Provide insulation and cooling to ensure stable temperature of the medium during transportation.
●Flanged or Wafer Connection:Allow flexible and secure installation into existing pipeline systems.
●Heat-Resistant Materials:The sheath is made of stainless steel and carbon steel to improve pressure resistance and durability.
| NO. | Part name | Materials |
| 1 | Jacket | Stainless steel |
| 2 | Body | A216-WCB, CF8, CF8M |
| 3 | Bonnet | A105, F304, F316 |
| 4 | Ball | SS304, SS316 |
| 5 | Sealing Ring | PTFE PPL |
| 6 | Stem | 1Cr13, A247-410, F430, F316 |
| 7 | Packing | Flexible graphite |
| 8 | Gland | A216-WCB, CF8, CF8M |
Notes: Major parts of the valve series and materials of sealing surface differ according to actual working condition and customer's special requirement.
| Nominal Diameter | D | Pipe thread | ||||||||
| (mm) | (in) | d | L | (mm) | (in) | E | Q | H | W | P |
| 20 | 3/4″ | 19 | 117 | 40 | 1 1/2″ | 58.5 | 147 | 101 | 170 | G3/4″ |
| 25 | 1″ | 25 | 127 | 50 | 2″ | 62.5 | 156 | 106 | 170 | G3/4″ |
| 40 | 1 1/2″ | 38 | 165 | 65 | 2 1/2″ | 63.5 | 181 | 125 | 250 | 3/4″ |
| 50 | 2″ | 51 | 178 | 80 | 3″ | 68 | 218 | 135 | 250 | G3/4″ |
| 80 | 3″ | 76 | 229 | 150 | 6″ | 82 | 275 | 193 | 350 | G3/4″ |
| 100 | 4″ | 102 | 254 | 200 | 8″ | 83 | 300 | 265 | 420 | G3/4″ |
| 150 | 6″ | 152 | 292 | 250 | 10″ | 95 | 403 | 355 | 1000 | G3/4″ |
| 200 | 8″ | 203 | 330 | 300 | 12″ | 100 | 492 | 410 | 1300 | G3/4″ |
Remarks | Flange-diameter refer to the sample book of main type and connecting diameter ,according to the corresponding diameter. | |||||||||
| Nominal Diameter | 1/2"-8" |
| Nominal pressure | Class 150 ~ 600 LB |
| Temperature | -20ºC~250ºC |
| Connecting type | flange , wafer |
| Material | SS, CS |
| Driving means | manual, pneumatic, wore gear, electric |
| Applicable medium | Heavy oil , glue and other easy-clotting medium |
Q:What is the purpose of the jacketed design?
The jacket design helps with insulation or heat preservation, maintaining the optimal temperature of the medium and preventing them from solidifying in the pipeline.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
Pneumatic short sleeve ball valve is designed to effectively regulate fluids in high viscosity systems. The valve adopts a sheath design with insulation and cooling functions to ensure stable temperature and reliable operation. Its flange connection and flexible drive options make it an ideal choice for various industrial applications ranging from petroleum to food processing. Choose our high-quality and efficient solutions to meet your most demanding fluid transportation needs.
