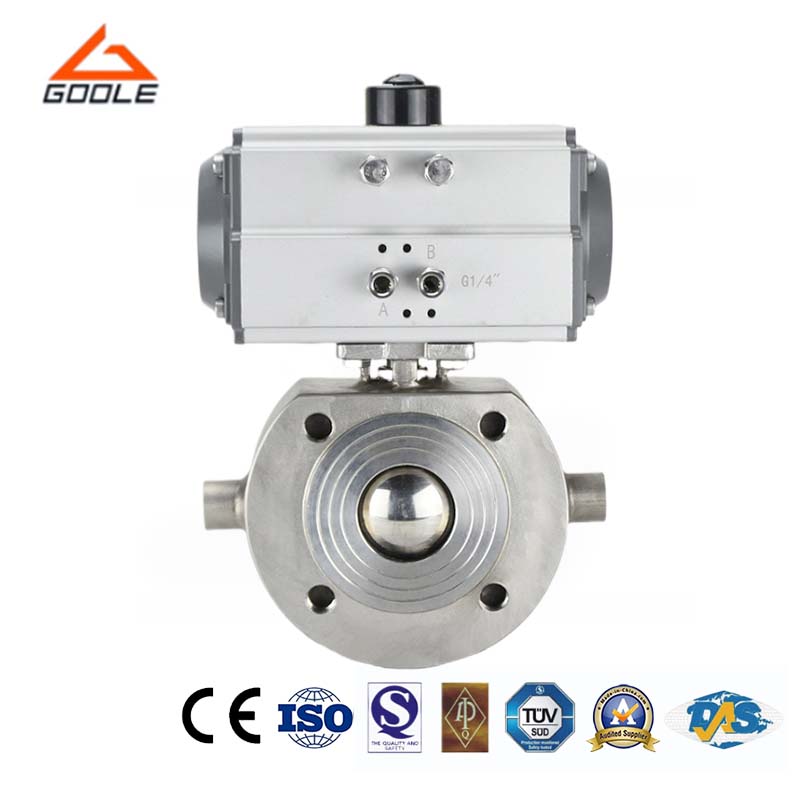

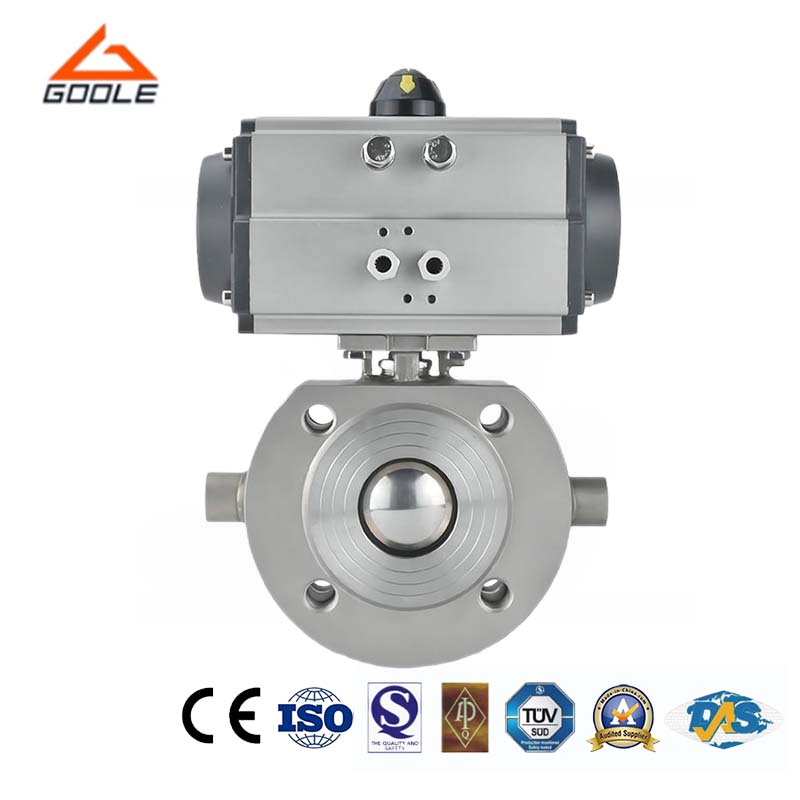

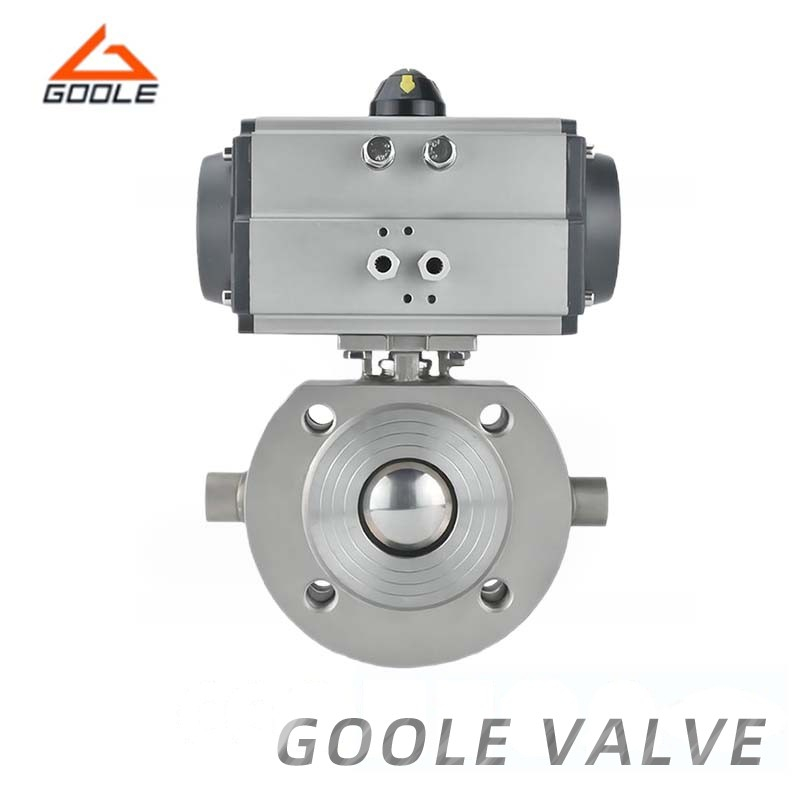

Pneumatc Short Type Jacketed Floating Ball Valve (GBQ71F) main parameter.Nominal Diameter: 1/2"-8"Nominal pressure: Class 150 ~ 600 LB Temperature: -20ºC~250ºC
| Quantity: | |
|---|---|

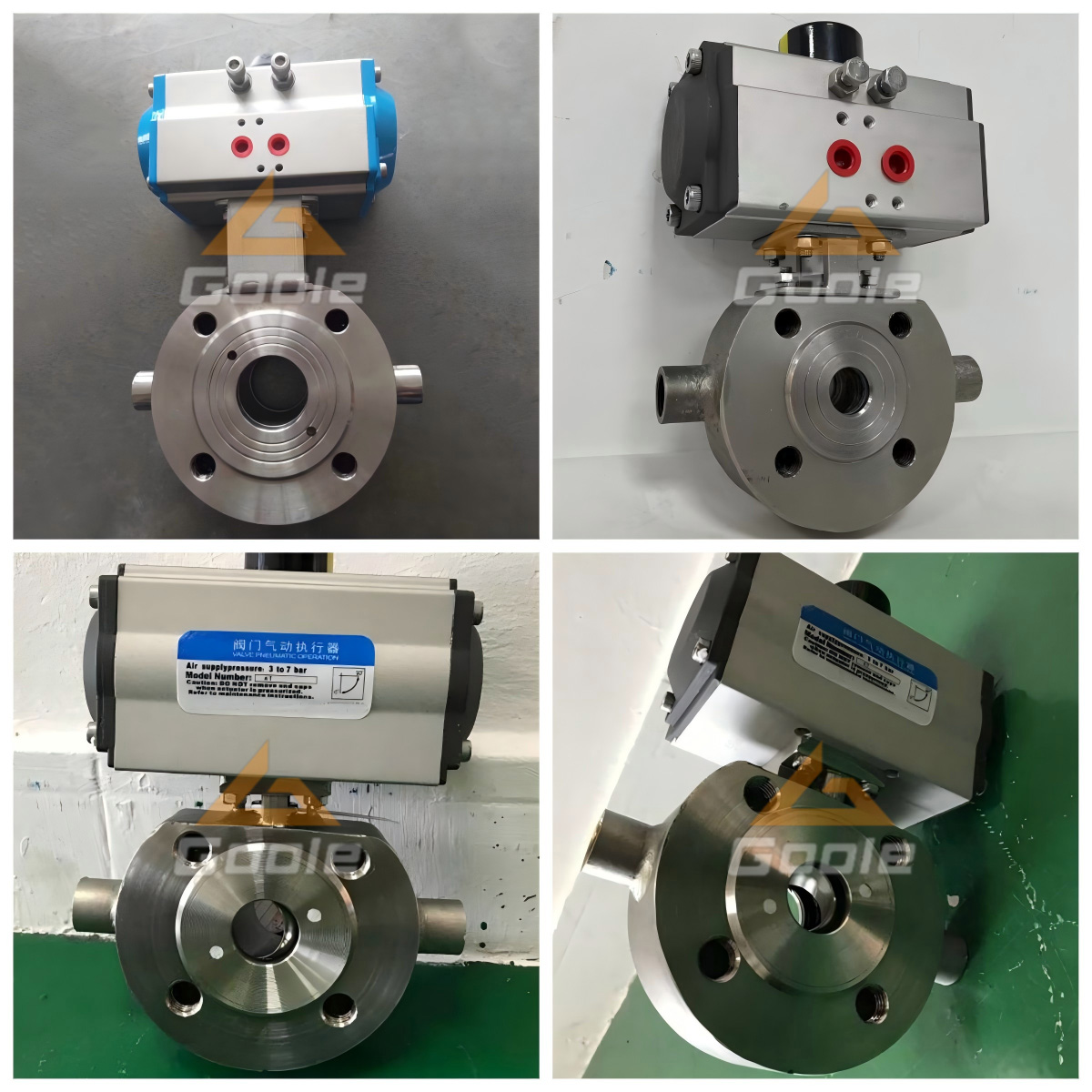

Pneumatic short jacket ball valve is an advanced solution for conveying high viscosity media such as heavy oil and glue that are prone to solidification at room temperature. The valve adopts a jacket structure design, providing insulation or cooling function to maintain the optimal temperature of the medium during transportation and ensure efficient operation.
The valve body is made of carbon steel and equipped with a welded jacket, which improves its pressure resistance and structural integrity. Flange connections facilitate installation into existing piping systems, ensuring flexibility and reliability when handling viscous fluids. The valve is also equipped with flexible graphite packing and high-quality stainless steel balls, ensuring tight closure and long-lasting sealing performance even in harsh environments.
This valve is typically used for high-pressure applications, with a temperature tolerance range of -20 º C to 250 º C. It is suitable for handling liquid and semi-solid media in large pipeline systems.
●Jacketed Design:Provides heat preservation and cold insulation, ensuring stable media temperature during transport.
●Flanged or Wafer Connection:Allows for flexible and secure installation into existing pipeline systems.
●Heat-Resistant Materials: Jacket made from stainless steel and carbon steel body for improved pressure resistance and durability.
| NO. | Part name | Materials |
| 1 | Jacket | Stainless steel |
| 2 | Body | A216-WCB, CF8, CF8M |
| 3 | Bonnet | A105, F304, F316 |
| 4 | Ball | SS304, SS316 |
| 5 | Sealing Ring | PTFE PPL |
| 6 | Stem | 1Cr13, A247-410, F430, F316 |
| 7 | Packing | Flexible graphite |
| 8 | Gland | A216-WCB, CF8, CF8M |
Notes: Major parts of the valve series and materials of sealing surface differ according to actual working condition and customer's special requirement.
| Nominal Diameter | D | Pipe thread | ||||||||
| (mm) | (in) | d | L | (mm) | (in) | E | Q | H | W | P |
| 20 | 3/4″ | 19 | 117 | 40 | 1 1/2″ | 58.5 | 147 | 101 | 170 | G3/4″ |
| 25 | 1″ | 25 | 127 | 50 | 2″ | 62.5 | 156 | 106 | 170 | G3/4″ |
| 40 | 1 1/2″ | 38 | 165 | 65 | 2 1/2″ | 63.5 | 181 | 125 | 250 | 3/4″ |
| 50 | 2″ | 51 | 178 | 80 | 3″ | 68 | 218 | 135 | 250 | G3/4″ |
| 80 | 3″ | 76 | 229 | 150 | 6″ | 82 | 275 | 193 | 350 | G3/4″ |
| 100 | 4″ | 102 | 254 | 200 | 8″ | 83 | 300 | 265 | 420 | G3/4″ |
| 150 | 6″ | 152 | 292 | 250 | 10″ | 95 | 403 | 355 | 1000 | G3/4″ |
| 200 | 8″ | 203 | 330 | 300 | 12″ | 100 | 492 | 410 | 1300 | G3/4″ |
Remarks | Flange-diameter refer to the sample book of main type and connecting diameter ,according to the corresponding diameter. | |||||||||
| Nominal Diameter | 1/2"-8" |
| Nominal pressure | Class 150 ~ 600 LB |
| Temperature | -20ºC~250ºC |
| Connecting type | flange , wafer |
| Material | SS, CS |
| Driving means | manual, pneumatic, wore gear, electric |
| Applicable medium | Heavy oil , glue and other easy-clotting medium |
Q:What is the purpose of the jacketed design?
The jacketed design helps insulate or preserve heat, maintaining the optimal temperature of media to prevent them from solidifying in the pipeline.
Q:What types of media can this valve handle?
This valve is ideal for high-viscosity media such as heavy oils, glue, and other substances prone to solidifying at normal temperatures.
Pneumatic short jacket ball valves are designed specifically for efficient fluid regulation in high viscosity systems. The valve adopts a jacket design with insulation and cooling functions, which can ensure stable medium temperature and reliable operation. Its flange connection and flexible drive options make it an ideal choice for various industrial applications ranging from petroleum to food processing. Choose us to tailor high-quality and efficient solutions to meet your most demanding fluid transportation needs.
