Side entry type stainless steel floating ball valve main parameterNormal Size: 1/2"~8"Pressure rating: 150 LB~900 LBMaterials: WCB, LCB, LCC, CF8...
| Quantity: | |
|---|---|

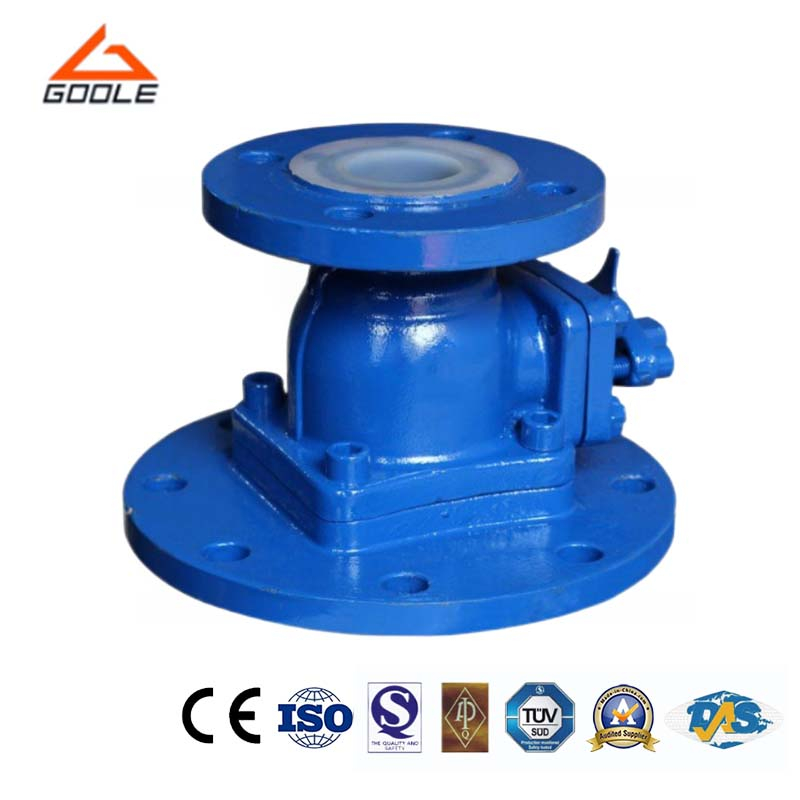

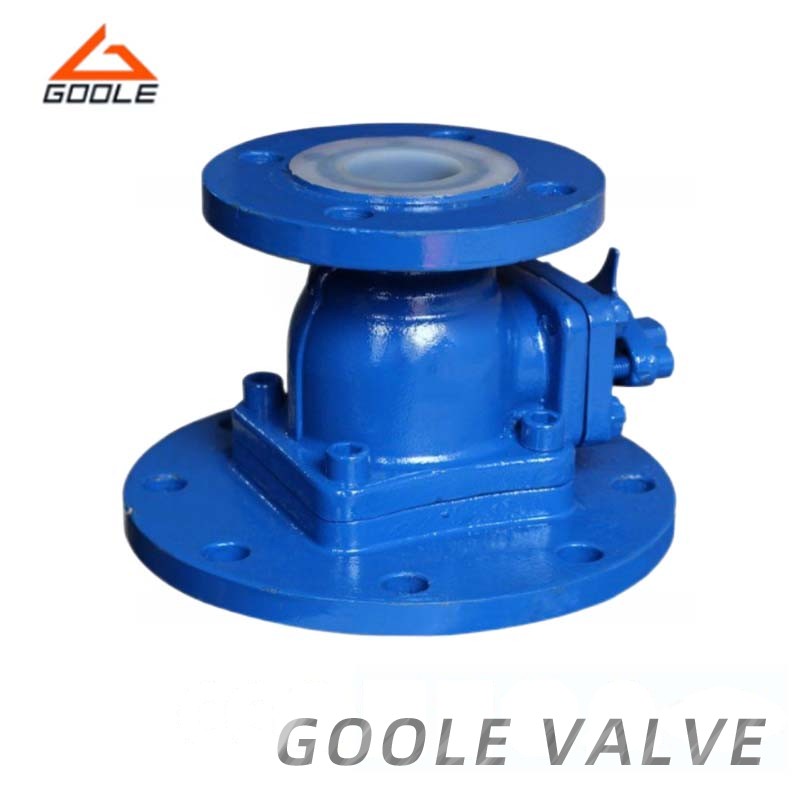

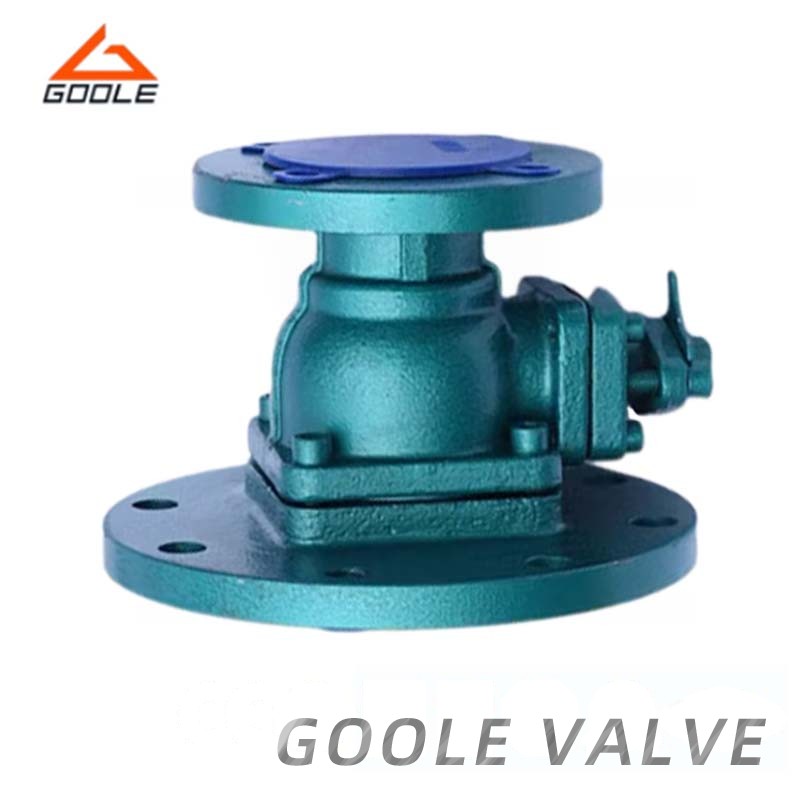

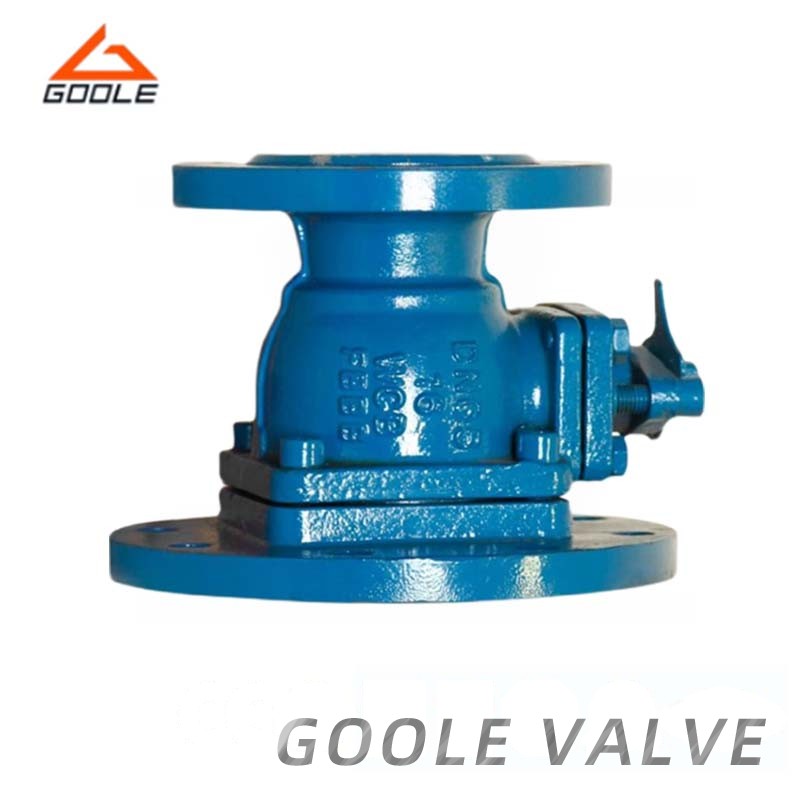

Flanged Ends Tank Bottom Discharge Ball Valve is primarily used at the base of storage tanks, reaction kettles, and other similar containers. It eliminates the phenomenon of residual process medium, tailored to the specific situation. The valve can be categorized into those with plain ends or oblique ends. The PTFE Lined Ball Valve operates by rotating the ball to open or close the valve. Its characteristics include a light switch action, compact size, reliable sealing, simple structure, and ease of maintenance, making it widely applicable.
The valve body, disc (ball), and other wetted parts that come into contact with the medium are lined with fluorine plastics such as FEP, PTFE, and PFA. This valve can withstand any corrosive medium, except for molten alkali metals and fluorine elements. It is an ideal product for use in chlor-alkali, industrial inorganic chemicals, metal and mining, nitrogen and phosphatic fertilizers, petroleum refining, pharmaceutical industries, and more.
● Excellent Material: This material has strong corrosion resistance, even in complex working conditions can be kept stable for a long time.
● Ingenious Design: The ball valve has an intuitive design, easy to operate and quick switching, thus improving the operation efficiency.
● Excellent Sealing Effect: Discharge ball valve effectively prevents the leakage of media, to ensure production safety.
| DN | D | D1 | D2 | D3 | D4 |
| 25/32 | 115 | 85 | 65 | 140 | 100 |
| 32/40 | 140 | 100 | 78 | 150 | 110 |
| 40/50 | 150 | 110 | 85 | 165 | 125 |
| 50/65 | 165 | 125 | 100 | 185 | 145 |
| 65/80 | 185 | 145 | 120 | 200 | 160 |
| 80/100 | 200 | 160 | 135 | 220 | 180 |
| 100/125 | 220 | 180 | 155 | 250 | 210 |
| 125/150 | 250 | 210 | 185 | 285 | 240 |
| 150/200 | 285 | 240 | 210 | 340 | 295 |
| 200/250 | 340 | 295 | 265 | 405 | 355 |
| Design & Manufacture Standard | HG/T 3704, GB/T 12237, API6D | |||
| Fact to Face Dimension Standard | HG/T 3704, GB/T 12221 | |||
| Flange Standard | HG/T20592, GB/T 9119, ASME B16.5 | |||
| Inspection and Test Standard | GB/T 13927, JB/T 9092, API598 | |||
| Mark Standard | GB/T12241, GB/T12220, MSS 25 | |||
| Delivery Standard | JB/T7928 | |||
| Nominal Diameter | DN25-DN200 | |||
| Nominal Pressure | PN10 | PN16 | 150LB | |
| Test Pressure ( MPA) | Shell Test | 1.5 | 1.5 | 1.5 |
| High Pressure Sealing | 1.1 | 1.1 | 1.1 | |
| Low Pressure Sealing | 0.6 | 0.6 | 0.6 | |
| Applicable Temperature Range ( ºC) | PFA: -29 ~ 200, PTFE: -29~ 180, FEP: -29~ 150, GXPO: -10~80 | |||
| Applicable Medium | Strong Corrosive Medium i.e, Nitric acid, Liquid Chlorine, Sulfuric Acid and Aqua regia etc. | |||
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our ball valves are made from high-quality materials, ensuring excellent corrosion resistance and durability. They are not only suitable for harsh industrial environments but also meet the stringent standards of high-purity chemical processes. Our ball valve design is unique and easy to use. The spherical structure allows for quick and smooth operation, reducing operational complexity and saving time. Additionally, they offer superior sealing performance, effectively preventing medium leakage and ensuring production safety. We pay attention to details and provide customized solutions. We can tailor valve sizes, connection methods, and operating mechanisms according to your specific needs, ensuring that the valves seamlessly integrate into your process system.
