Side entry type stainless steel floating ball valve main parameterNormal Size: 1/2"~8"Pressure rating: 150 LB~900 LBMaterials: WCB, LCB, LCC, CF8...
| Quantity: | |
|---|---|

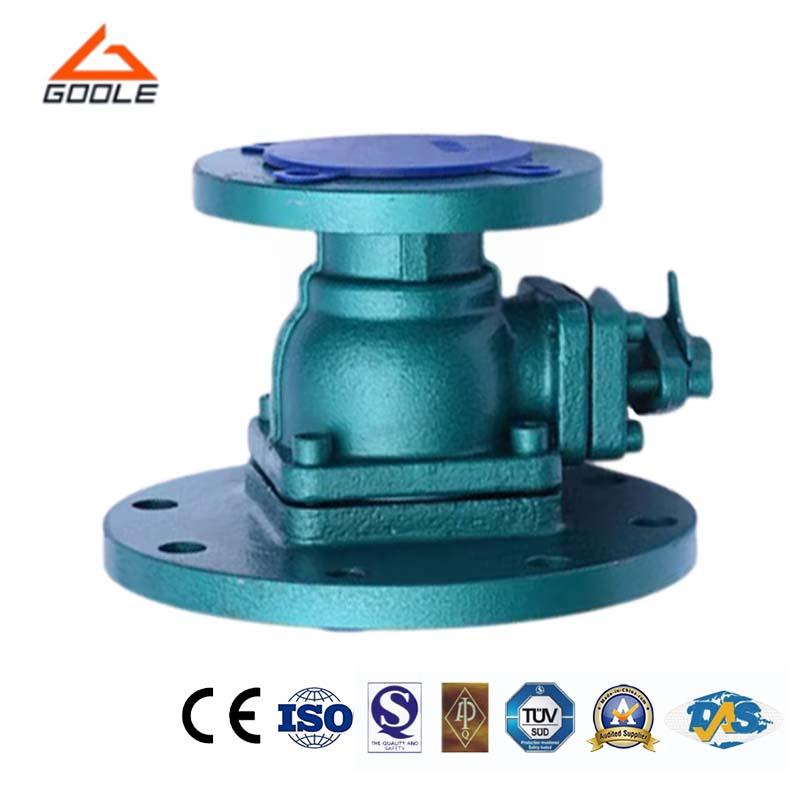

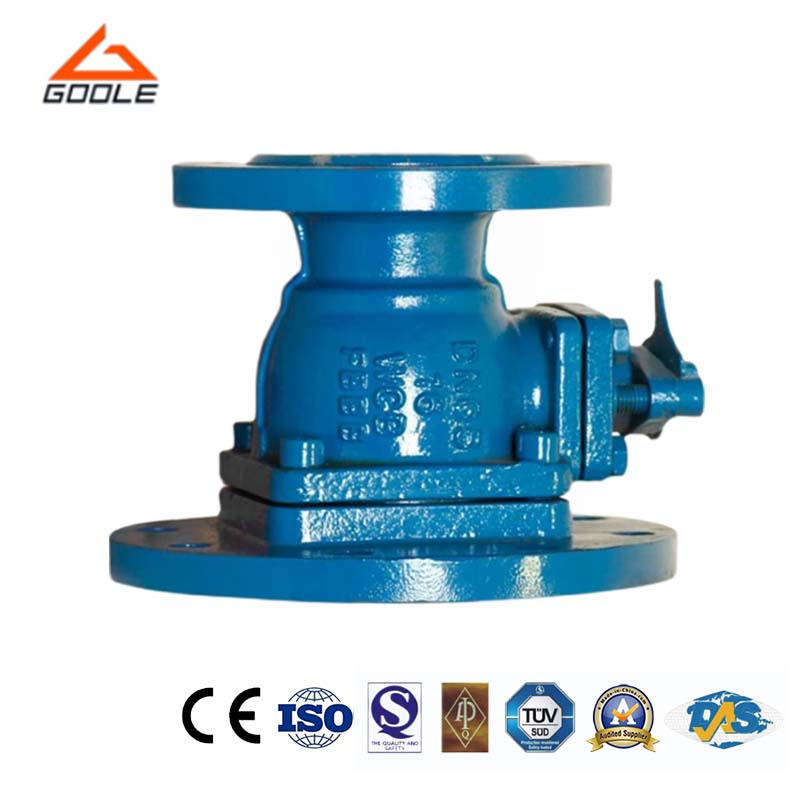

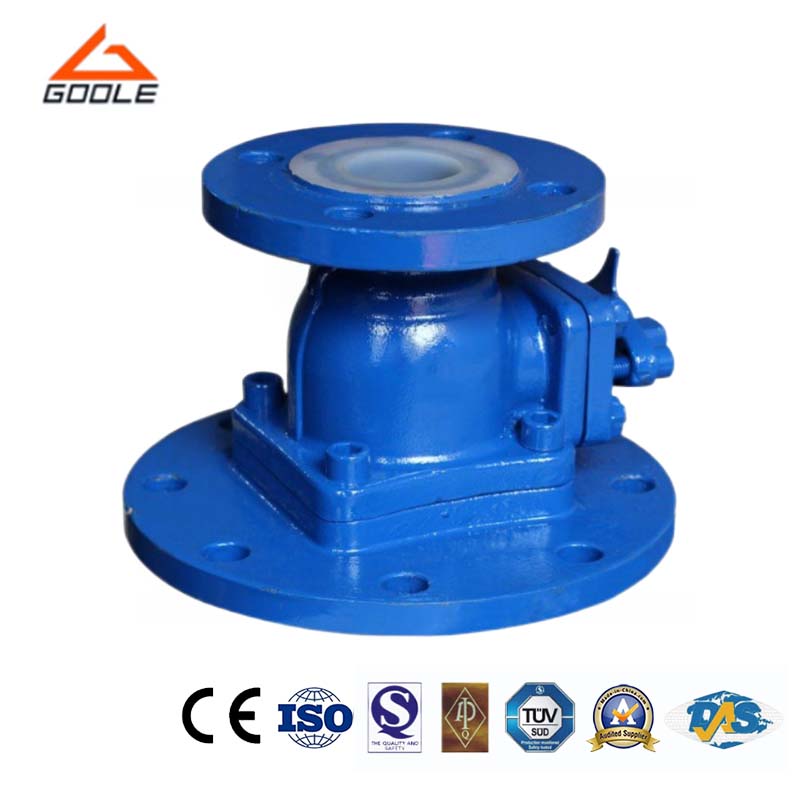

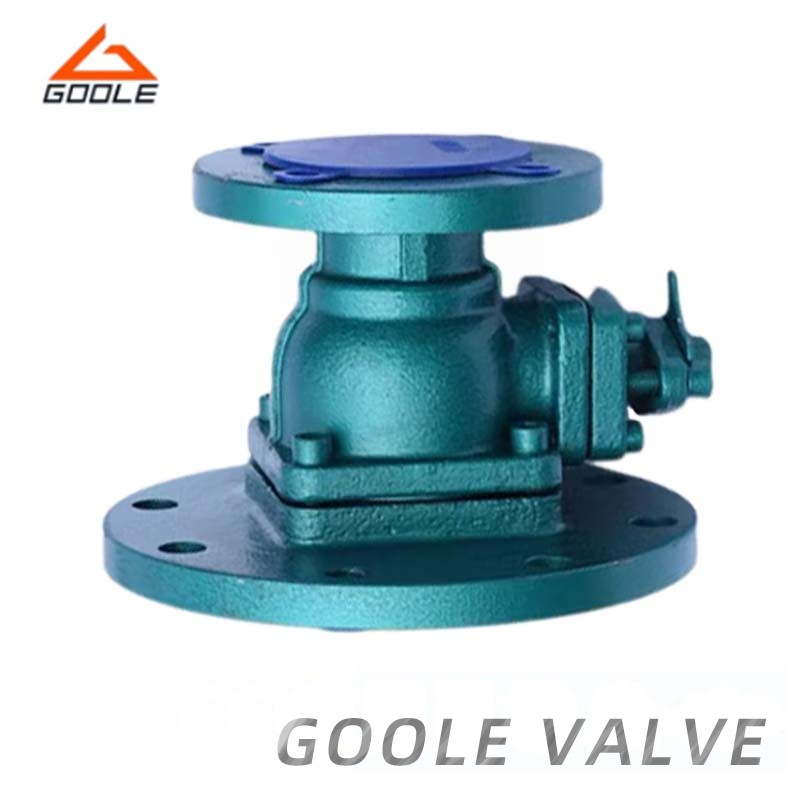

Flanged Ends Tank Bottom Discharge Ball Valve is primarily utilized for the discharge at the bottom of storage tanks, reaction vessels, and similar containers. It effectively eliminates the issue of residual process media and is customized to fit specific requirements. These valves can be categorized into those with flat ends or inclined ends. PTFE-lined ball valves are operated by rotating the ball. They are characterized by their light switch action, compact design, reliable sealing, simple construction, and ease of maintenance, which contribute to their widespread use.
The valve body, valve disc (ball), and other wetted parts that come into contact with the medium are lined with fluoroplastics such as FEP, PTFE, and PFA. This type of valve is resistant to corrosive media, with the exception of molten alkali metals and fluorine elements. It is an ideal choice for various industries, including chlor-alkali, industrial inorganic chemicals, metals and mining, nitrogen and phosphorus fertilizers, oil refining, pharmaceuticals, and more.
● Excellent Material: This material has strong corrosion resistance and can maintain stability for a long time even under complex working conditions.
● Ingenious Design: The ball valve design is intuitive, easy to operate, and switches quickly, improving operational efficiency.
● Excellent Sealing Effect: The discharge ball valve effectively prevents medium leakage and ensures production safety.
| DN | D | D1 | D2 | D3 | D4 |
| 25/32 | 115 | 85 | 65 | 140 | 100 |
| 32/40 | 140 | 100 | 78 | 150 | 110 |
| 40/50 | 150 | 110 | 85 | 165 | 125 |
| 50/65 | 165 | 125 | 100 | 185 | 145 |
| 65/80 | 185 | 145 | 120 | 200 | 160 |
| 80/100 | 200 | 160 | 135 | 220 | 180 |
| 100/125 | 220 | 180 | 155 | 250 | 210 |
| 125/150 | 250 | 210 | 185 | 285 | 240 |
| 150/200 | 285 | 240 | 210 | 340 | 295 |
| 200/250 | 340 | 295 | 265 | 405 | 355 |
| Design & Manufacture Standard | HG/T 3704, GB/T 12237, API6D | |||
| Fact to Face Dimension Standard | HG/T 3704, GB/T 12221 | |||
| Flange Standard | HG/T20592, GB/T 9119, ASME B16.5 | |||
| Inspection and Test Standard | GB/T 13927, JB/T 9092, API598 | |||
| Mark Standard | GB/T12241, GB/T12220, MSS 25 | |||
| Delivery Standard | JB/T7928 | |||
| Nominal Diameter | DN25-DN200 | |||
| Nominal Pressure | PN10 | PN16 | 150LB | |
| Test Pressure ( MPA) | Shell Test | 1.5 | 1.5 | 1.5 |
| High Pressure Sealing | 1.1 | 1.1 | 1.1 | |
| Low Pressure Sealing | 0.6 | 0.6 | 0.6 | |
| Applicable Temperature Range ( ºC) | PFA: -29 ~ 200, PTFE: -29~ 180, FEP: -29~ 150, GXPO: -10~80 | |||
| Applicable Medium | Strong Corrosive Medium i.e, Nitric acid, Liquid Chlorine, Sulfuric Acid and Aqua regia etc. | |||
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our ball valves are manufactured from high-quality materials to ensure excellent corrosion resistance and durability. They are not only suitable for harsh industrial environments but also meet the stringent standards of high-purity chemical processes. Our ball valve design is unique and user-friendly. The spherical structure ensures quick and smooth operation, reducing complexity and saving time. Additionally, they offer superior sealing performance, effectively preventing medium leakage and ensuring production safety. We pay attention to details and provide customized solutions. We can tailor valve sizes, connection methods, and operating mechanisms according to your specific needs, ensuring seamless integration with your process system.
