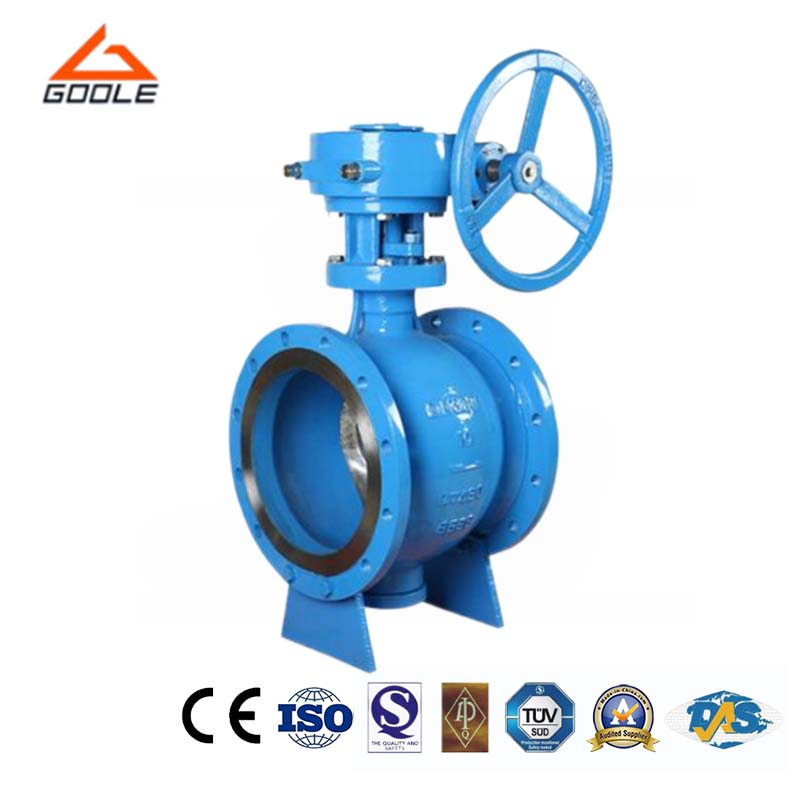

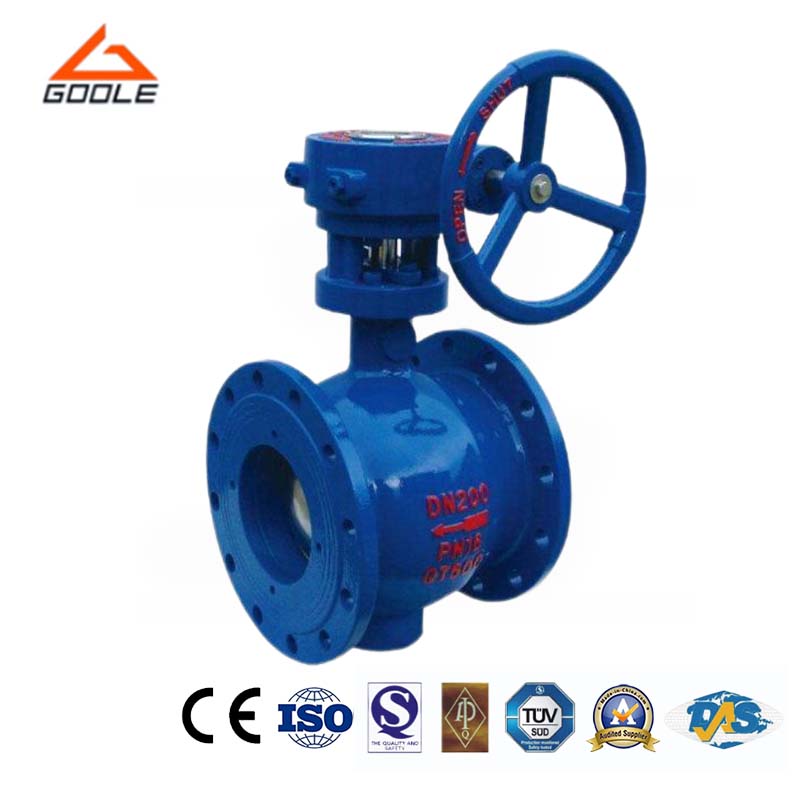

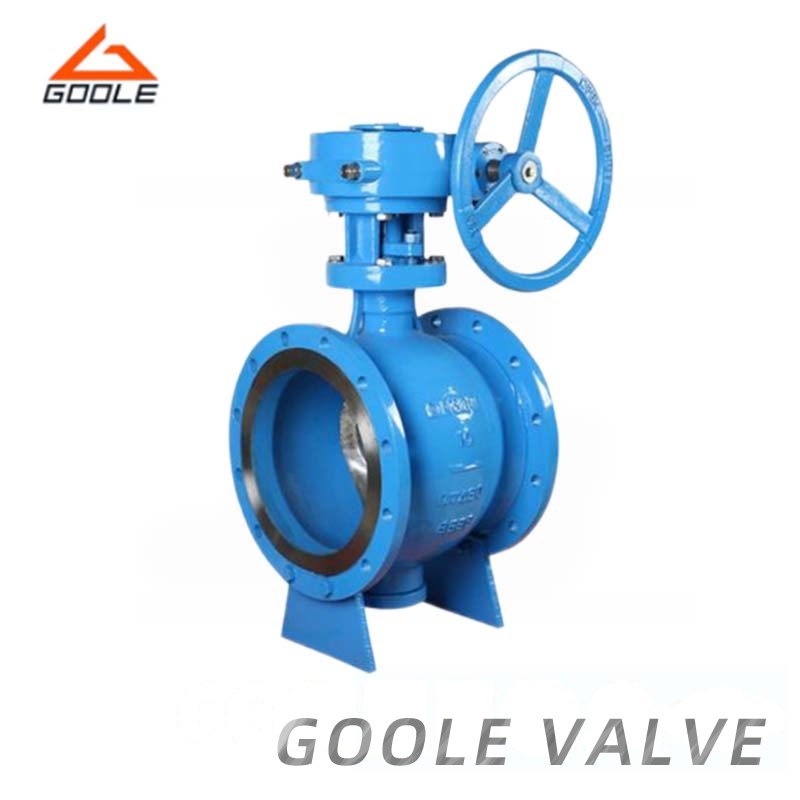

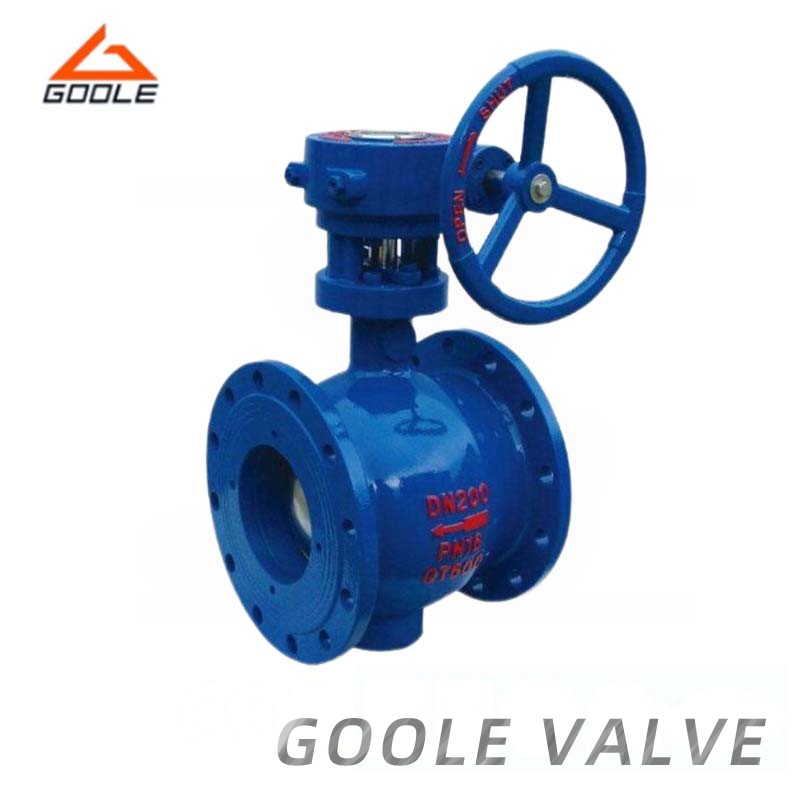

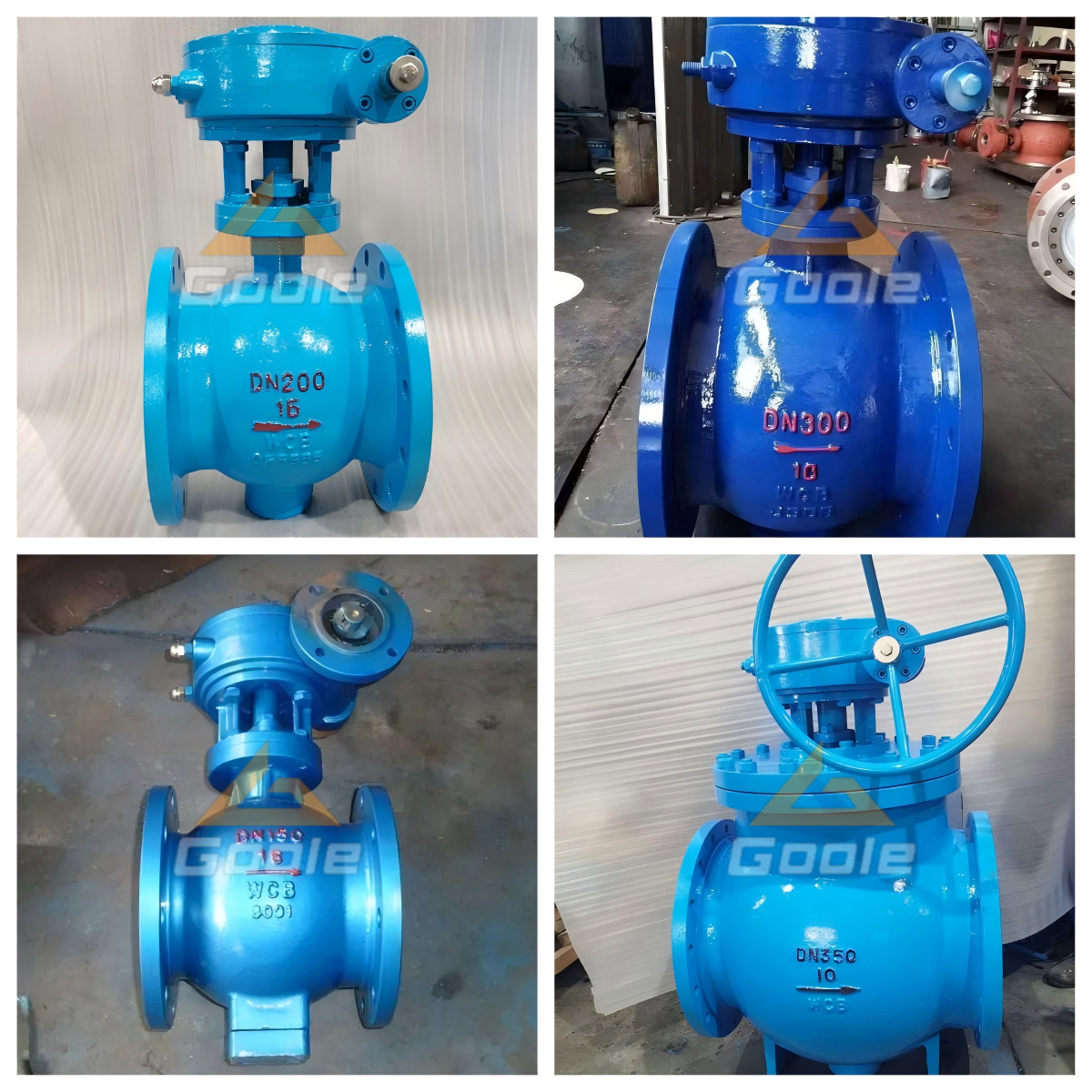

The top-mounted eccentric hemispherical valve uses an eccentric valve body, eccentric ball, and seat. As the stem rotates, it automatically aligns with the common path, ensuring a tighter closure and superior sealing performance. The ball is fully detached from the seat, eliminating wear issues associated with seal rings and resolving the problems of seat and spherical surface seals in traditional ball valves. Non-metallic elastic material is embedded in the metal seat, protecting the metal surface of the seat. This product is particularly suitable for media such as steel, aluminum, fibers, small solid particles, pulp, fly ash, and petroleum gases.
● Top Entry Design: This configuration allows direct access to internal components for maintenance, inspection, or replacement while the system remains online, eliminating the need to remove valves from the system.
● Gear Operation: Only 90 degrees of rotation is required to achieve fast and accurate control response, making it the best choice for field adjustment.
● Eccentric Hemisphere: This feature allows flexible installation of actuators or transmissions without the need for additional brackets.
| Item | Part. Name | Material |
| 1 | Bonnet | PE |
| 2 | Extension pipe | st37 |
| 3 | Body | st37 |
| 4 | Flat washer | st37 |
| 5 | Butterfly Spring | 60Si2MnA |
| 6 | Ball seat | SS202 |
| 7 | O-ring | EPDM |
| 8 | Ball washer | PTFE+20%C |
| 9 | Ball | SS304 |
| 10 | Stem washer | PTFE+20%C |
| 11 | Stem sleeve | st37 |
| 12 | Stem | SS410 |
| 13 | Stem ring | PTFE+20%C |
| 14 | Stem O-ring | FPM |
| 15 | Sleeve | st37 |
| 16 | Positioning PIN | ASTM1035 |
| 17 | Handle | st37 |
| 18 | Washer | Q235A |
| 19 | Nut | Q235A |
| 20 | Handle cap | ABS |
| Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
| Strength (water) (MPa) | Enclose (Water) (MPa) | ||||
| Q340 H-16C | 1.6 | 2.4 | 1.76 | -40~200ºC | Water,Vapour,Oil |
| Q340 H-25C | 2.5 | 3.75 | 2.5 | ||
Q: What is the main advantage of a top-entry valve design?
A: The top-entry design allows for maintenance or part replacement without removing the valve from the pipeline—ideal for critical systems where downtime must be minimized.
Q: Is it compliant with any specific industry standards?
A: Yes, it follows API 6D/6A and ASME B16.10 design standards, including features like firesafe design, O-ring sealing, and DBB capability.
Our gear-driven forged steel material and top-mounted ball valve design fully consider maintenance requirements. The top-mounted structure and modular design facilitate maintenance, thereby reducing downtime during inspection or repair. This valve features double block venting (DBB), self-tilting seats, and fire integrity, ensuring reliable control and safety with each rotation. It is an ideal choice for teams that prioritize pipeline performance and practicality.
