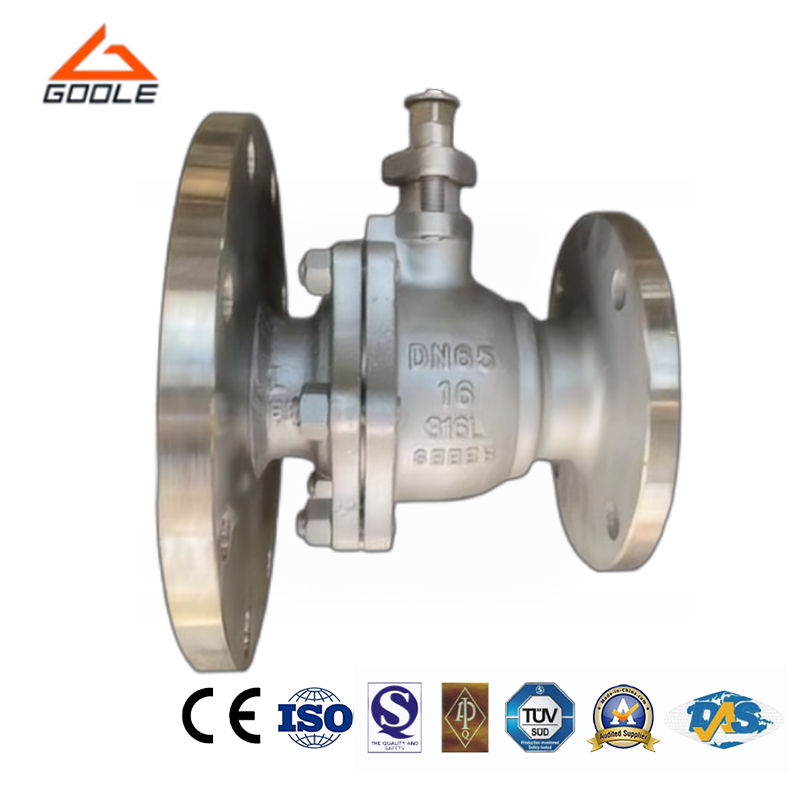

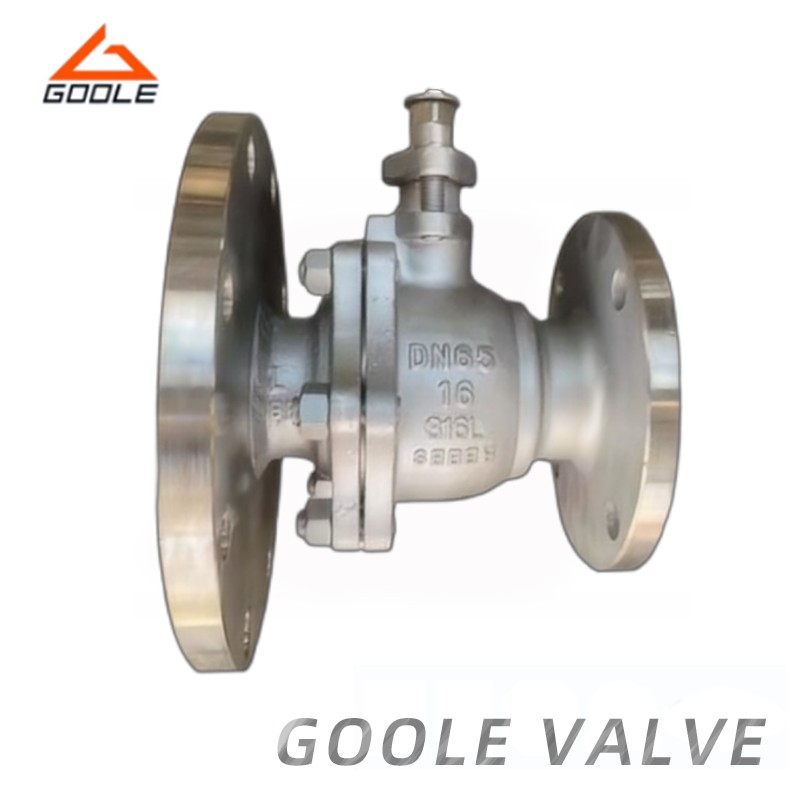

Side entry type stainless steel floating ball valve main parameterNormal Size: 1/2"~8"Pressure rating: 150 LB~900 LBMaterials: WCB, LCB, LCC, CF8...
| Quantity: | |
|---|---|
Flanged Ends Tank Bottom Discharge Ball Valve is mainly used for the bottom of storage tanks, reactors, and other containers. It eliminates residual process media based on actual conditions. It can be either flat or inclined. The working principle of the PTFE-lined ball valve is to maintain the valve open or closed by rotating the ball. Its features include easy operation, small size, reliable sealing, simple structure, and convenient maintenance, making it widely applied. The valve body, disc (ball), and other wet components that come into contact with the medium are all lined with fluoroplastics such as FEP, PTFE, and PFA. In addition to being resistant to molten alkali metals and fluorine elements, it can withstand any corrosive media. It is an ideal product for use in industries such as chlor-alkali, industrial organic chemicals, metals and mining, nitrogen fertilizers and phosphorus fertilizers, chemical fertilizers, petroleum refining, and pharmaceuticals.
● Strong Material: Strong corrosion resistance, can be kept stable for a long time under complex working conditions.
● Ingenious Design: Ball valve is easy to operate and quick to switch, which helps to improve the operation efficiency.
● Excellent Sealing Effect: Stainless steel discharge ball valve can effectively prevent medium leakage and ensure production safety.
| DN | D | D1 | D2 | D3 | D4 |
| 25/32 | 115 | 85 | 65 | 140 | 100 |
| 32/40 | 140 | 100 | 78 | 150 | 110 |
| 40/50 | 150 | 110 | 85 | 165 | 125 |
| 50/65 | 165 | 125 | 100 | 185 | 145 |
| 65/80 | 185 | 145 | 120 | 200 | 160 |
| 80/100 | 200 | 160 | 135 | 220 | 180 |
| 100/125 | 220 | 180 | 155 | 250 | 210 |
| 125/150 | 250 | 210 | 185 | 285 | 240 |
| 150/200 | 285 | 240 | 210 | 340 | 295 |
| 200/250 | 340 | 295 | 265 | 405 | 355 |
| Design & Manufacture Standard | HG/T 3704, GB/T 12237, API6D | |||
| Fact to Face Dimension Standard | HG/T 3704, GB/T 12221 | |||
| Flange Standard | HG/T20592, GB/T 9119, ASME B16.5 | |||
| Inspection and Test Standard | GB/T 13927, JB/T 9092, API598 | |||
| Mark Standard | GB/T12241, GB/T12220, MSS 25 | |||
| Delivery Standard | JB/T7928 | |||
| Nominal Diameter | DN25-DN200 | |||
| Nominal Pressure | PN10 | PN16 | 150LB | |
| Test Pressure ( MPA) | Shell Test | 1.5 | 1.5 | 1.5 |
| High Pressure Sealing | 1.1 | 1.1 | 1.1 | |
| Low Pressure Sealing | 0.6 | 0.6 | 0.6 | |
| Applicable Temperature Range ( ºC) | PFA: -29 ~ 200, PTFE: -29~ 180, FEP: -29~ 150, GXPO: -10~80 | |||
| Applicable Medium | Strong Corrosive Medium i.e, Nitric acid, Liquid Chlorine, Sulfuric Acid and Aqua regia etc. | |||
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our stainless steel ball valves are made from high-quality stainless steel materials, ensuring excellent corrosion resistance and durability. They are not only suitable for harsh industrial environments but also meet the requirements of high-purity chemical processes. Our ball valves feature a unique design that makes them easy to operate. The ball structure allows for quick and smooth opening and closing, reducing operational difficulty and time. Additionally, they offer superior sealing performance, effectively preventing medium leakage and ensuring production safety. We pay attention to details and provide customized services. We can tailor valve sizes, connection methods, and operating modes according to your specific needs, ensuring that the valves perfectly match your process system.
