Split body reduce bore trunnion mounted ball valve have two piece and three piece body structure.middle part is bolt connection, RPTFE seal insert into stainless steel ring with spring .keep good sealling...
| Quantity: | |
|---|---|

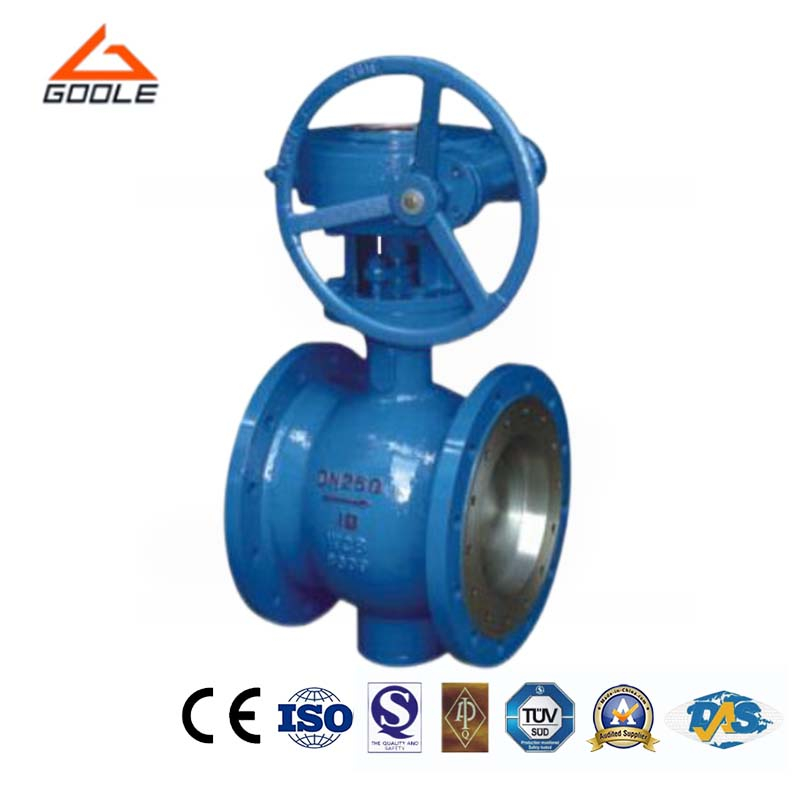

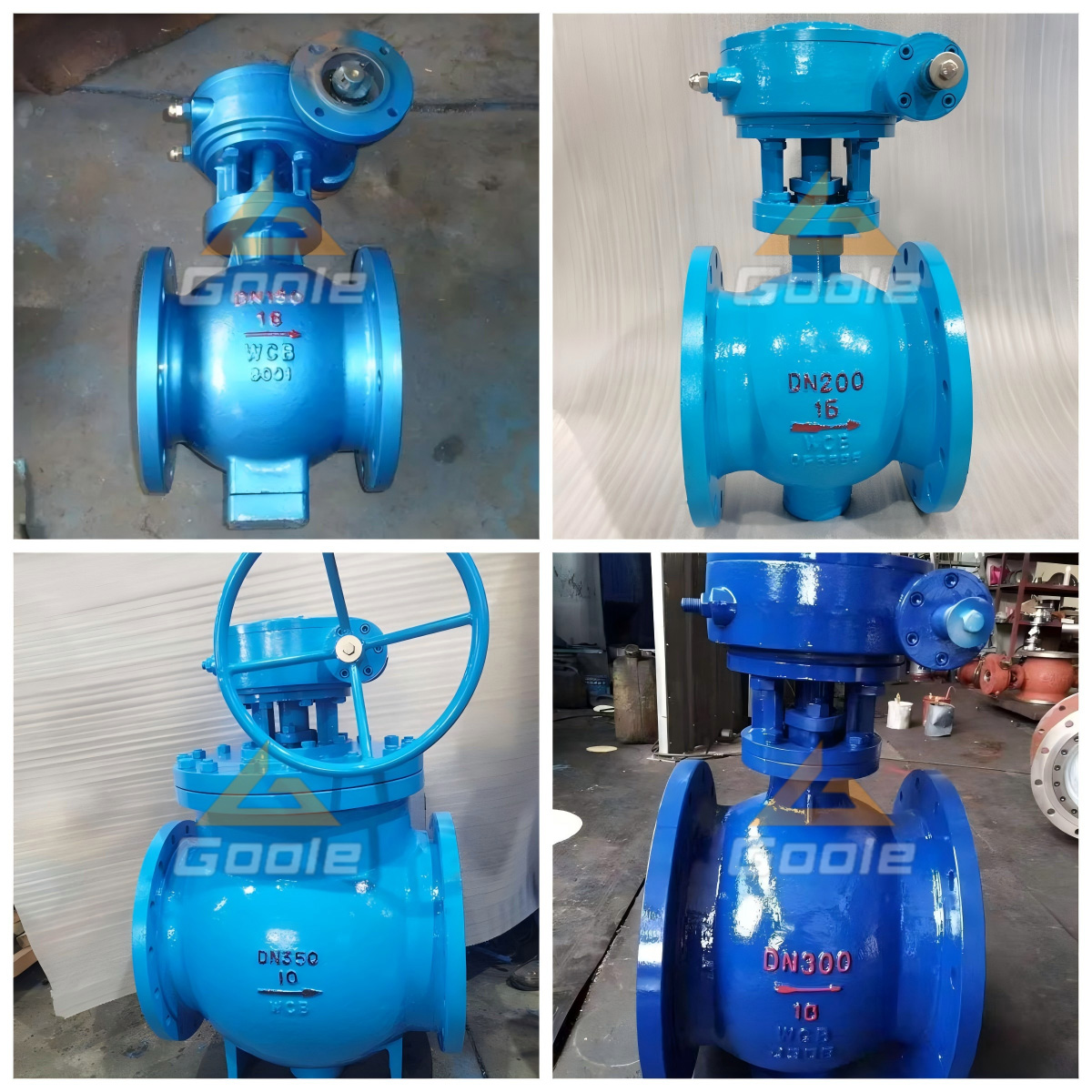

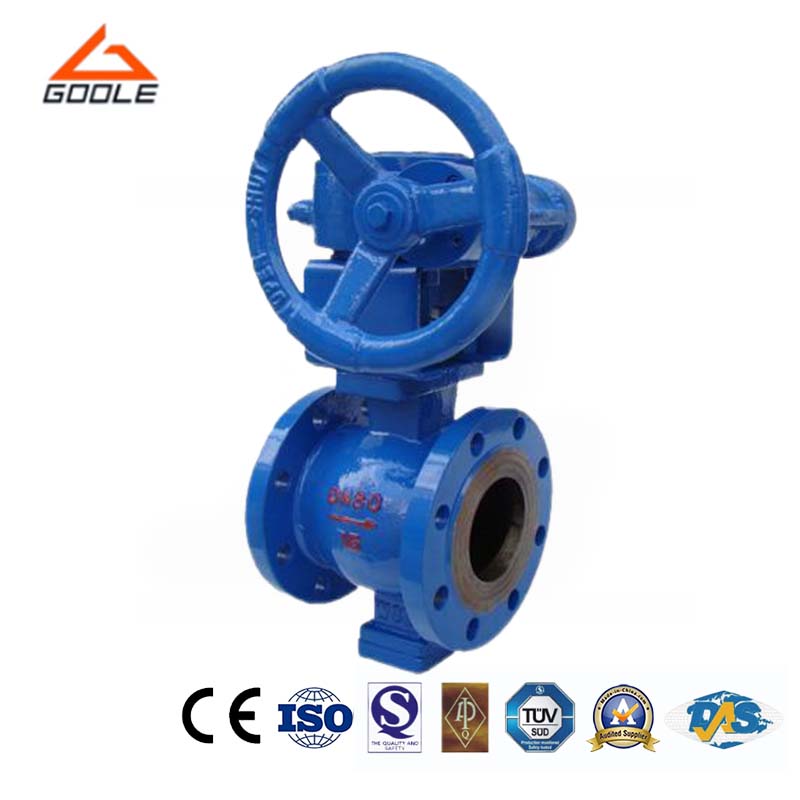

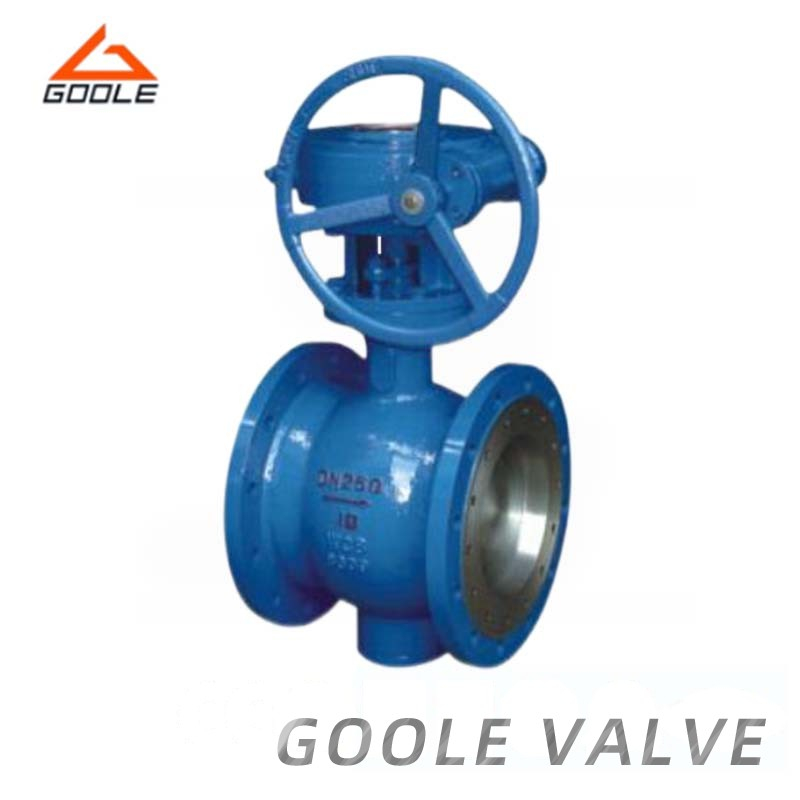

The top mounted eccentric hemispherical valve adopts an eccentric valve body, eccentric ball, and valve seat. When the valve stem rotates, it automatically aligns with the common path, ensuring tighter closure and excellent sealing performance. The ball and valve seat are completely separated, eliminating the wear problem related to the sealing ring and solving the problem of valve seat and spherical sealing in traditional ball valves. Non metallic elastic materials are embedded in the metal seat to protect the metal surface of the seat. This product is particularly suitable for media such as steel, aluminum, fiber, small solid particles, pulp, fly ash, and petroleum gas.
● Top-Entry Design: This configuration allows direct access to internal components for maintenance, inspection, or replacement while the system remains online, eliminating the need to remove valves from the system.
● Gear Operation: Only 90 degree rotation can achieve fast and precise control response, making it the best choice for on-site adjustment.
● Eccentric Hemisphere Body: This feature allows for flexible installation of actuators or transmissions without the need for additional brackets.
| Item | Part. Name | Material |
| 1 | Bonnet | PE |
| 2 | Extension pipe | st37 |
| 3 | Body | st37 |
| 4 | Flat washer | st37 |
| 5 | Butterfly Spring | 60Si2MnA |
| 6 | Ball seat | SS202 |
| 7 | O-ring | EPDM |
| 8 | Ball washer | PTFE+20%C |
| 9 | Ball | SS304 |
| 10 | Stem washer | PTFE+20%C |
| 11 | Stem sleeve | st37 |
| 12 | Stem | SS410 |
| 13 | Stem ring | PTFE+20%C |
| 14 | Stem O-ring | FPM |
| 15 | Sleeve | st37 |
| 16 | Positioning PIN | ASTM1035 |
| 17 | Handle | st37 |
| 18 | Washer | Q235A |
| 19 | Nut | Q235A |
| 20 | Handle cap | ABS |
| Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
| Strength (water) (MPa) | Enclose (Water) (MPa) | ||||
| Q340 H-16C | 1.6 | 2.4 | 1.76 | -40~200ºC | Water,Vapour,Oil |
| Q340 H-25C | 2.5 | 3.75 | 2.5 | ||
Q: What is the main advantage of a top-entry valve design?
A: The top-entry design allows for maintenance or part replacement without removing the valve from the pipeline—ideal for critical systems where downtime must be minimized.
Q: Is it compliant with any specific industry standards?
A: Yes, it follows API 6D/6A and ASME B16.10 design standards, including features like firesafe design, O-ring sealing, and DBB capability.
Our gear operation forged steel material and top mounted ball valve design fully consider maintenance requirements. The top mounted structure and modular design facilitate maintenance, thereby reducing downtime during inspections or repairs. This valve has dual block and release (DBB), self tilting seat, and fire integrity, ensuring reliable control and safety for each rotation. For teams that prioritize pipeline performance and practicality, this is an ideal choice.
