Side entry type stainless steel floating ball valve main parameterNormal Size: 1/2"~8"Pressure rating: 150 LB~900 LBMaterials: WCB, LCB, LCC, CF8...
| Quantity: | |
|---|---|

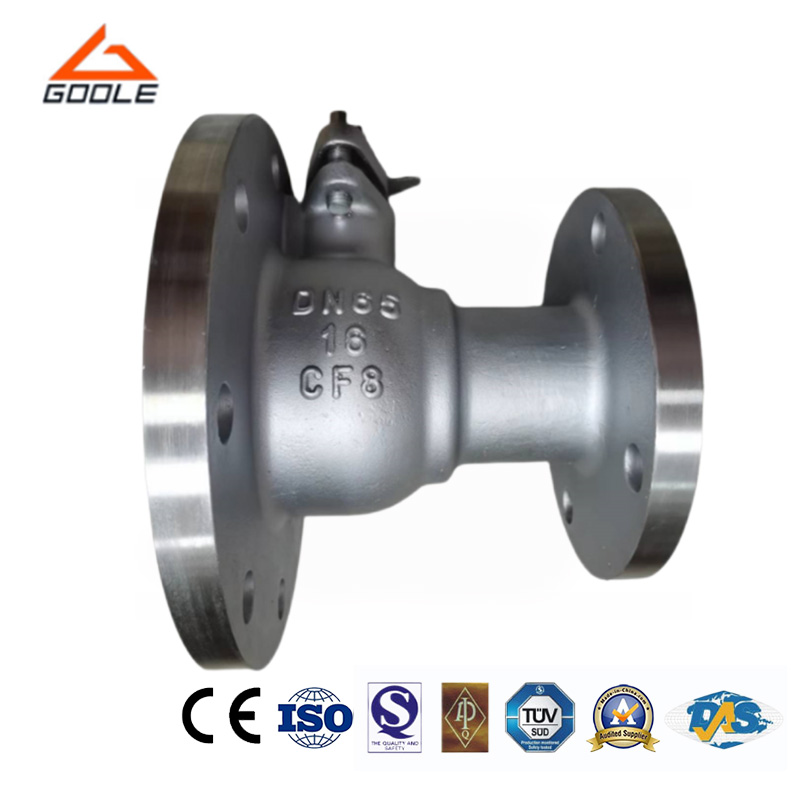

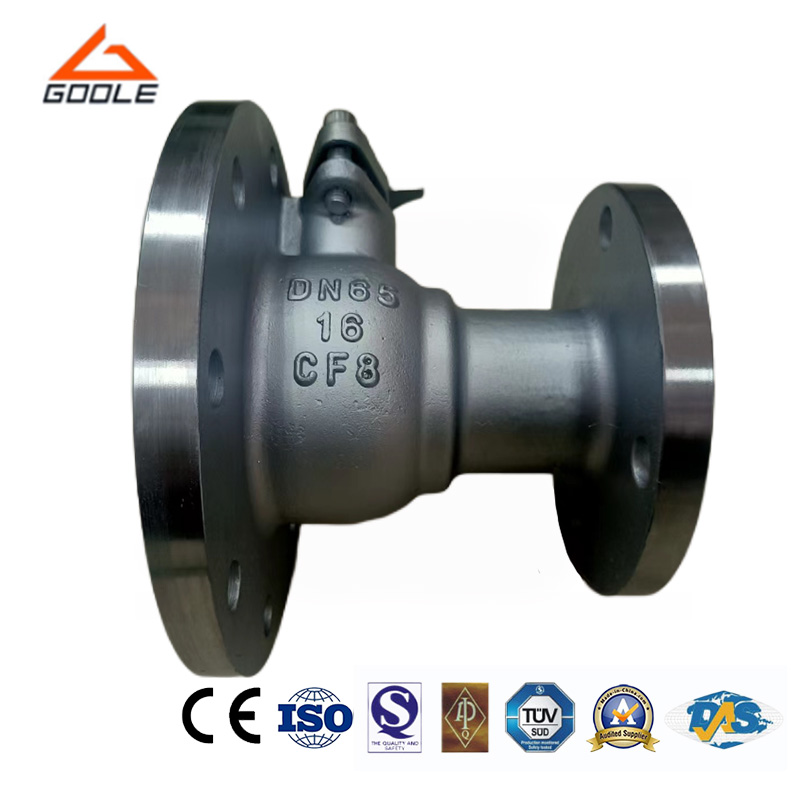

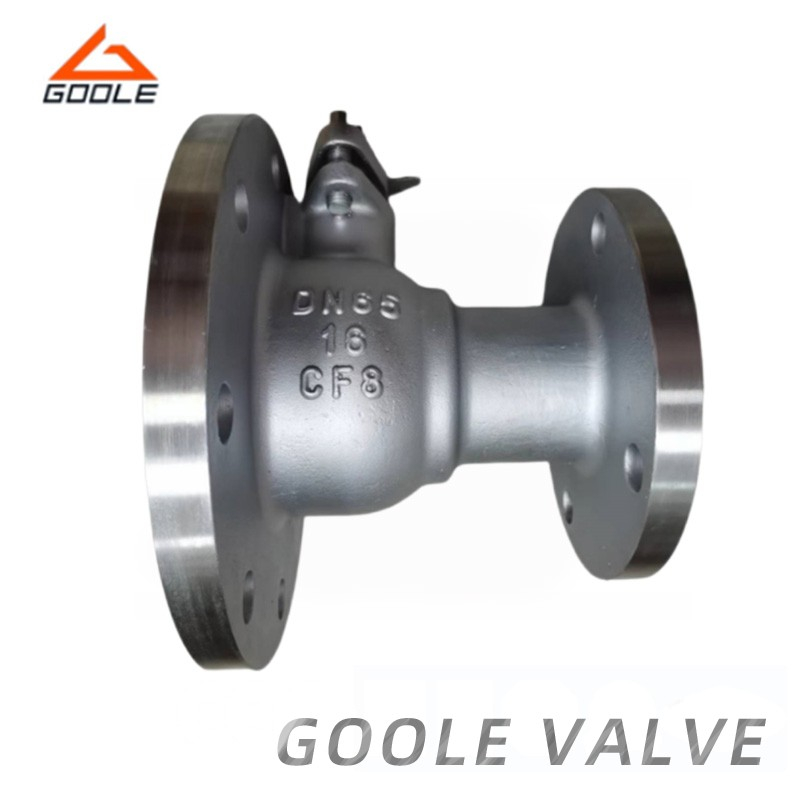

Flanged Ends Tank Bottom Discharge Ball Valve is mainly used at the bottom of the storage tank, reaction kettle and other containers.It eliminates the presence of residual process media and can be customized according to specific requirements. The valve can be either flat-end or inclined-end. The PTFE-lined ball valve opens or closes by rotating the ball. Its features include smooth operation, compact size, reliable sealing, simple structure, and ease of maintenance, making it widely applied.
The valve body, disc (ball), and other wet components in contact with the medium are lined with fluoroplastics such as FEP, PTFE, and PFA. Except for molten alkali metals and fluorides, they can withstand any corrosive media. These valves are particularly suitable for chlor-alkali, industrial inorganic chemicals, metal and mining, nitrogen fertilizers and phosphorus fertilizers, petroleum refining, pharmaceuticals, and other industries.
● Excellent Material: Has strong corrosion resistance, even in complex working conditions can be kept stable for a long time.
● Ingenious Design: The ball valve is designed to be easy to operate and switch quickly, thus improving operational efficiency.
● Excellent Sealing Effect: Stainless steel discharge ball valve effectively prevents the leakage of media, to ensure production safety.

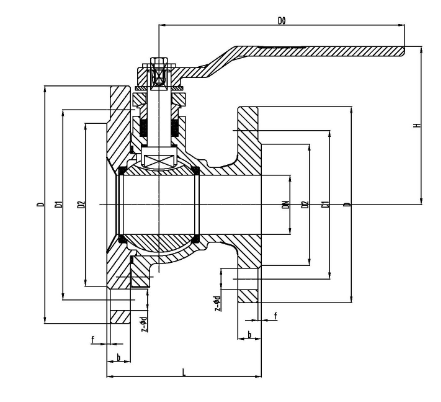

| DN | D | D1 | D2 | D3 | D4 |
| 25/32 | 115 | 85 | 65 | 140 | 100 |
| 32/40 | 140 | 100 | 78 | 150 | 110 |
| 40/50 | 150 | 110 | 85 | 165 | 125 |
| 50/65 | 165 | 125 | 100 | 185 | 145 |
| 65/80 | 185 | 145 | 120 | 200 | 160 |
| 80/100 | 200 | 160 | 135 | 220 | 180 |
| 100/125 | 220 | 180 | 155 | 250 | 210 |
| 125/150 | 250 | 210 | 185 | 285 | 240 |
| 150/200 | 285 | 240 | 210 | 340 | 295 |
| 200/250 | 340 | 295 | 265 | 405 | 355 |
| Design & Manufacture Standard | HG/T 3704, GB/T 12237, API6D | |||
| Fact to Face Dimension Standard | HG/T 3704, GB/T 12221 | |||
| Flange Standard | HG/T20592, GB/T 9119, ASME B16.5 | |||
| Inspection and Test Standard | GB/T 13927, JB/T 9092, API598 | |||
| Mark Standard | GB/T12241, GB/T12220, MSS 25 | |||
| Delivery Standard | JB/T7928 | |||
| Nominal Diameter | DN25-DN200 | |||
| Nominal Pressure | PN10 | PN16 | 150LB | |
| Test Pressure ( MPA) | Shell Test | 1.5 | 1.5 | 1.5 |
| High Pressure Sealing | 1.1 | 1.1 | 1.1 | |
| Low Pressure Sealing | 0.6 | 0.6 | 0.6 | |
| Applicable Temperature Range ( ºC) | PFA: -29 ~ 200, PTFE: -29~ 180, FEP: -29~ 150, GXPO: -10~80 | |||
| Applicable Medium | Strong Corrosive Medium i.e, Nitric acid, Liquid Chlorine, Sulfuric Acid and Aqua regia etc. | |||
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our stainless steel ball valves are manufactured from high-quality stainless steel, ensuring excellent corrosion resistance and durability. They are not only suitable for harsh industrial environments but also meet the stringent requirements of high-purity chemical processes. Our ball valve design is unique and easy to operate. The spherical structure allows for quick and smooth opening and closing, reducing operational complexity and saving time. Additionally, they offer superior sealing performance, effectively preventing medium leakage and ensuring production safety. We pay attention to details and provide customized solutions. We can tailor valve sizes, connection types, and operating mechanisms according to your specific needs, ensuring that the valves are perfectly suited for your process system.
