In compact piping systems where space, efficiency, and ease of maintenance are top priorities, the Threaded Floating Ball Valve provides an ideal solution. Designed for small-diameter pipelines, this type of Floating Ball Valve offers exceptional sealing performance with simplified connection methods. This article explores the structural design, operational advantages, thread standards (NPT, BSPT), anti-leakage measures, installation tips, and long-term maintenance strategies for threaded floating ball valves.
For dependable, precision-engineered threaded valve solutions, Goole Valve Technology Co., Ltd. stands out as a trusted manufacturer with proven experience across diverse industries.

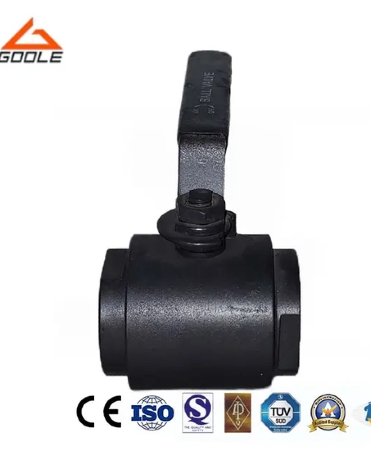

The Threaded Floating Ball Valve is structurally similar to other floating ball valve types but is specially designed with female threaded ends (or male/female as required) instead of flanges or welded ends. Key components include:
Valve Body: Typically forged brass, stainless steel, or carbon steel, featuring internal threads.
Floating Ball: Sits unsupported, held in place by upstream and downstream soft seats.
Seats: Made from PTFE or RPTFE, allowing excellent sealing under low to medium pressure.
Stem: Connects the ball to a manual handle or actuator.
Threaded Ends: Precision-machined to match international thread standards (e.g., NPT, BSPT).
This design ensures tight shut-off in systems where welding or flanging is impractical or where frequent valve changes may be necessary.
Threaded floating ball valves bring several advantages, particularly in low-pressure and small-scale systems:
Floating Ball Valve designs eliminate the need for welding, flanging, or special tools, especially when using a Threaded Floating Ball Valve. This makes them ideal for quick installations in both residential and industrial systems, significantly reducing labor time and total installation costs while improving efficiency for on-site workers.
Thanks to their compact size, Floating Ball Valves are perfect for confined areas like behind equipment panels, under sinks, or in modular piping skids. Lightweight and easy to handle, especially in SW/BW Floating Ball Valve models, they are suitable for tight-space installations and small-bore pipelines without compromising performance.
With fewer parts and simplified installation procedures, a Floating Ball Valve ensures lower initial costs and minimal maintenance needs. Whether you select a Flanged Floating Ball Valve for industrial piping or a threaded type for residential use, these valves provide a highly economical long-term solution.
Threaded Floating Ball Valves, in particular, offer the advantage of reusability. As long as threads and internal seats remain in good condition, they can be unthreaded and reused in multiple systems. This adds operational flexibility and reduces waste and overall component costs.
Floating Ball Valves are used across a wide variety of systems, including water supply, HVAC, compressed air, and light chemical processes. Options like Flanged Floating Ball Valves for industrial applications or SW/BW Floating Ball Valves for welded systems ensure they can adapt to numerous fluid control requirements with ease.
When selecting a Threaded Floating Ball Valve, understanding the threading standard is essential to ensure proper fit and sealing. Two globally recognized standards are:
Tapered thread
Defined by ANSI/ASME B1.20.1
Thread angle: 60°
Requires sealant or Teflon tape to prevent leaks
Common in North America and globally for industrial equipment
Tapered thread
Defined by ISO 7/1 and BS21
Thread angle: 55°
Common in Europe, Asia, and Middle East
Also needs sealant for reliable sealing
Feature | NPT | BSPT |
Angle | 60° | 55° |
Compatibility | Not interchangeable | Not interchangeable |
Regions | US, Canada, Latin America | UK, EU, Asia, Australia |
Sealing Method | Teflon tape/paste | Hemp or Teflon tape |
Important Note: Mixing BSPT and NPT threads is not recommended. Even though they may seem close, their different angles and pitches can result in poor sealing and potential leakage.
Threaded joints are prone to leakage if not installed correctly. Follow these key practices to ensure leak-free operation:
PTFE Teflon tape: Wrap clockwise 2–3 times around male threads.
Thread paste (pipe dope): Applied thinly over threads for added sealing and lubricity.
Avoid applying too much, which could squeeze into the valve and affect performance.
Begin by hand-tightening the Threaded Floating Ball Valve, then apply a wrench for only one to two additional turns. Over-tightening can damage the valve body, especially on brass or stainless steel valves, leading to cracks or thread deformation that may result in costly leaks during service.
Before securing a Flanged Floating Ball Valve or SW/BW Floating Ball Valve, always ensure perfect alignment with the pipeline axis. Misalignment introduces mechanical stress at the connection points, increasing the risk of leaks, premature wear, or even failure under high pressure or thermal cycling.
Once the Floating Ball Valve is installed, conduct a pressure test using soapy water or calibrated pressure gauges. This helps verify sealing integrity. Even small weeping leaks should be corrected immediately to prevent future system failures or safety risks in high-pressure applications.
Threaded Floating Ball Valves are convenient, but repeated reuse of threaded ends can degrade sealing effectiveness. Always inspect male and female threads for wear, rust, or damage before reassembly. Apply thread sealant or tape as needed to ensure leak-proof performance after installation.
Goole Valve Technology Co., Ltd. supplies threaded ball valves with precise machining and durable threading, minimizing leakage risks during field installation.
Threaded floating ball valves require regular checks to maintain sealing integrity and operational safety.
External Inspection
Check for signs of corrosion, thread leaks, or body damage on the Floating Ball Valve. Monitor handle function—excessive stiffness may indicate seat wear or internal buildup, especially in SW/BW Floating Ball Valves used in process piping.
Function Test
Fully open and close the Floating Ball Valve to verify smooth operation. Listen for clicking or resistance, which may suggest stem wear or internal obstruction, particularly in Flanged Floating Ball Valve installations.
Lubrication (if applicable)
Some Floating Ball Valve models, especially industrial-grade Threaded Floating Ball Valves, include stem lubrication ports. Use manufacturer-approved grease to maintain seal integrity and prolong service life under frequent cycling.
Leak Detection
Regularly perform leak tests on Floating Ball Valves used in air, gas, or fuel systems. Detecting early leaks helps prevent system downtime and is critical for safety in high-pressure Flanged or SW/BW connections.
Service Type | Suggested Replacement |
Water or air | 3–5 years depending on cycles |
Fuel or oils | 2–3 years |
Corrosive media | 1–2 years or as per inspection |
High-cycle systems | Based on seat wear and torque feedback |
A proper maintenance log helps in tracking valve performance and predicting failures before they happen.
For top-quality Threaded Floating Ball Valves built to international standards like NPT and BSPT, Goole Valve Technology Co., Ltd. delivers:
✅ High-precision threading for tight sealing and compatibility
✅ Wide material range: Stainless steel,forged steel , carbon steel
✅ Customizable body designs and thread types
✅ Reliable seat and stem construction for long-term use
✅ Global service network and fast technical response
If your project requires threaded ball valves with reliable sealing and flexible configuration, Goole Valve is ready to support your needs. Visit their website or contact their engineering team for tailored product recommendations and technical documentation.
