Application:City Gas:gas outlet pipe,supply pipe for main line and all brach lines etc.District heat supply:Outlet pipe,main line and brach line for large heat supply equipment.Heat exchanger:on-off of pipe and all loops...
| Quantity: | |
|---|---|

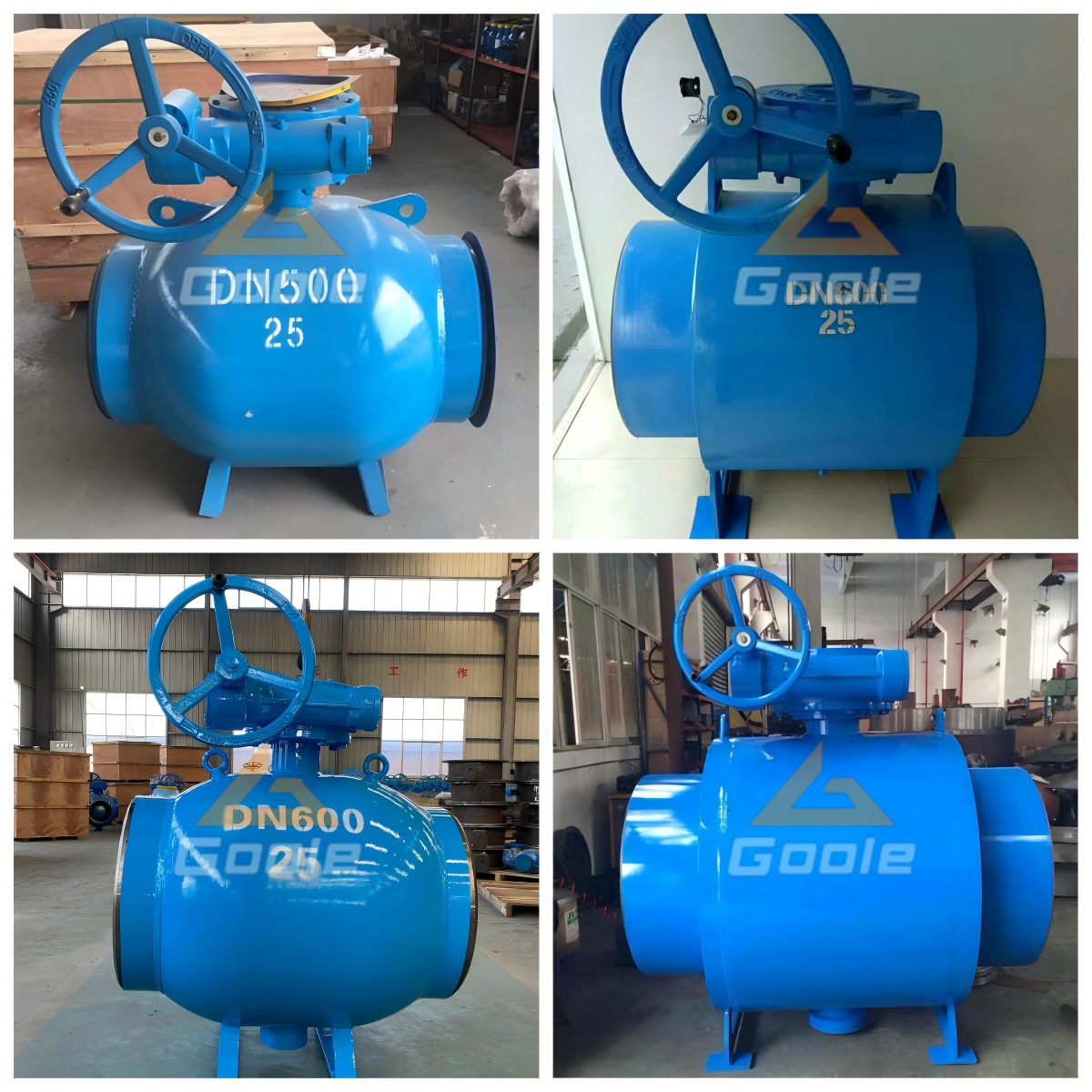

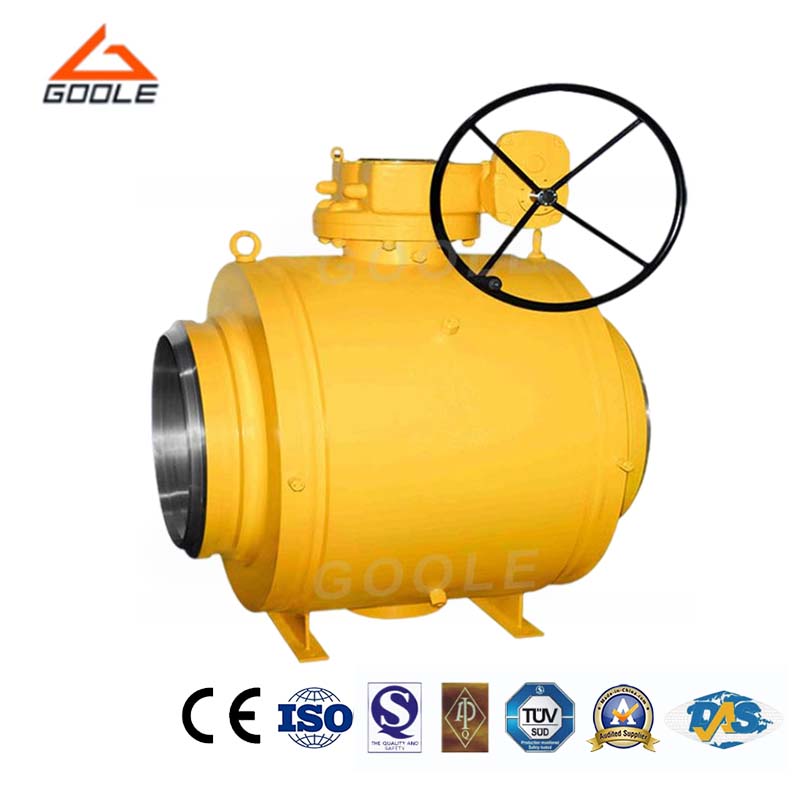

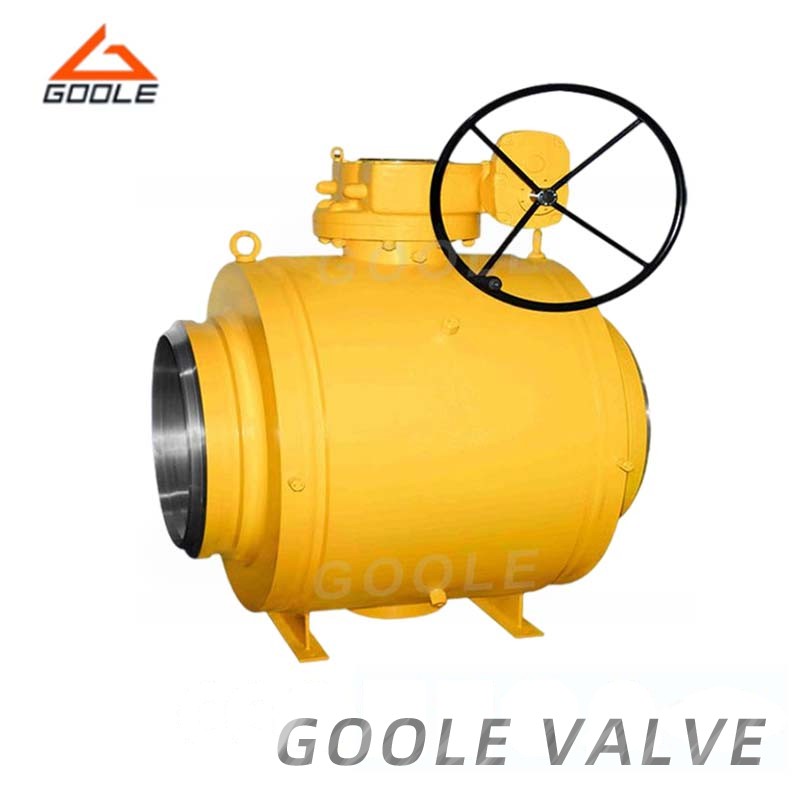

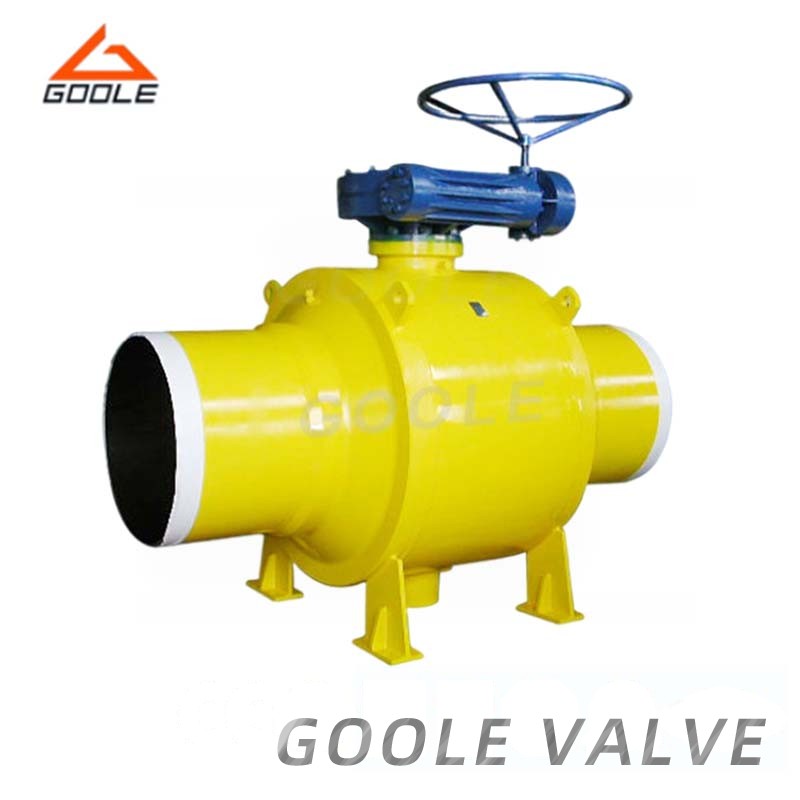

The characteristic of a fully welded ball valve is its structure, where the valve body, valve seat, and ball are connected by welding to form a unit. This design enhances the strength and sealing performance of the valve, ensuring stable operation under harsh conditions such as high pressure and high temperature. Fully welded ball valves are widely used in industries such as petroleum, chemical, and natural gas, making them essential equipment in these industries.
● Compact Structure: The fully welded integral ball valve adopts an integrated design, reducing the number of connecting components, making the structure more compact and space saving. This design not only simplifies installation and maintenance, but also improves sealing performance.
● Excellent Sealing Performance: Welding connections eliminate potential leakage issues associated with traditional connections, ensuring stable flow of media within the pipeline.
● Strong Corrosion Resistance: The main body of the ball valve is usually made of corrosion-resistant materials such as stainless steel, which effectively resists the erosion of various corrosive media and extends its service life.
Body: ST37.8 / A105 / LF2 / F304 / F316. Etc.
Ball : F304 / F316 ( Option upon request )
Seat: PTFE+C / Nylon / PEEK. Etc.
| Size | A | B | L | D | D1 | D2 | E | |
| in | mm | mm | mm | mm | mm | mm | mm | |
| 8 | 200 | 243 | 400 | 400 | 150 | 219.1 | 267 | 315 |
| 10 | 250 | 252 | 500 | 560 | 200 | 273.1 | 356 | 346 |
| 12 | 300 | 236 | 500 | 635 | 250 | 323.9 | 457 | 402 |
| 14 | 350 | 331 | 600 | 650 | 300 | 355.6 | 508 | 491 |
| 16 | 400 | 331 | 600 | 760 | 337 | 406.4 | 559 | 479 |
| 18 | 450 | 331 | 600 | 842 | 337 | 457.2 | 559 | 479 |
| 20 | 500 | 360 | 700 | 910 | 387 | 508.0 | 680 | 540 |
| 22 | 550 | 360 | 700 | 1092 | 438 | 559.0 | 718 | 577 |
| 24 | 600 | 413 | 800 | 1065 | 489 | 609.6 | 812 | 662 |
| 26 | 650 | 413 | 800 | 1245 | 541 | 660.4 | 898 | 755 |
| 28 | 700 | 433 | 900 | 1346 | 591 | 711.2 | 1016 | 790 |
| 30 | 750 | 433 | 900 | 1397 | 635 | 768.0 | 1020 | 790 |
| 32 | 800 | 433 | 900 | 1524 | 686 | 812.8 | 1095 | 860 |
| 34 | 850 | 433 | 900 | 1625 | 737 | 863.6 | 1172 | 793 |
| 36 | 900 | 433 | 900 | 1727 | 781 | 914.4 | 1237 | 913 |
| 40 | 1000 | 433 | 900 | 1900 | 874 | 1016.0 | 1385 | 865 |
| 44 | 1100 | 550 | 900 | 2000 | 976 | 1117.6 | 1600 | 970 |
| 48 | 1200 | 550 | 900 | 2100 | 1020 | 1219.2 | 1700 | 975 |
| 52 | 1300 | 550 | 900 | 2200 | 1166 | 1320.8 | 1967 | 980 |
| 56 | 1400 | 550 | 900 | 2300 | 1262 | 1422.4 | 2100 | 990 |
| Pressure Rating | 150-600lb,1.6-4.0 Mpa |
| Connecting Size | 1/2"-40",DN15-1000mm |
| Connecting type | Thread,Welding,Flange,etc |
| Applicable Temp(ºC) | -19-150 |
| Applicable Medium | Water,Oil,Natural gas,etc |
| Operating Mode | Lever,Gear,Electric,Pneumatic,etc |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The mechanical principle of the fully welded ball valve lies in its sophisticated design, which ensures reliable fluid control. The valve features a spherical disc, or ball, with a bore that can be rotated 90 degrees between open and closed positions. When the bore is aligned with the pipeline, fluid flows freely through the valve.
Our fully welded ball valve has several key features. Firstly, its sturdy structure ensures long-term durability and reliability, capable of withstanding the most challenging industrial environments. In addition, the implementation of seamless welding technology eliminates potential leakage points, thereby improving safety and performance. Finally, our dedication to quality and innovation ensures that valves comply with the latest industry standards, maximizing the value of your investment.
