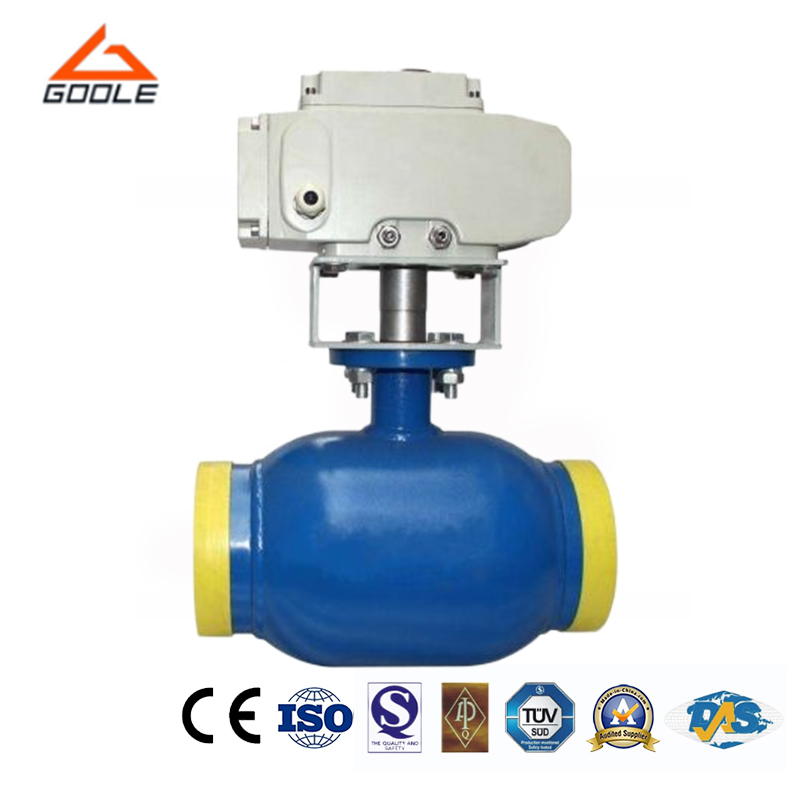

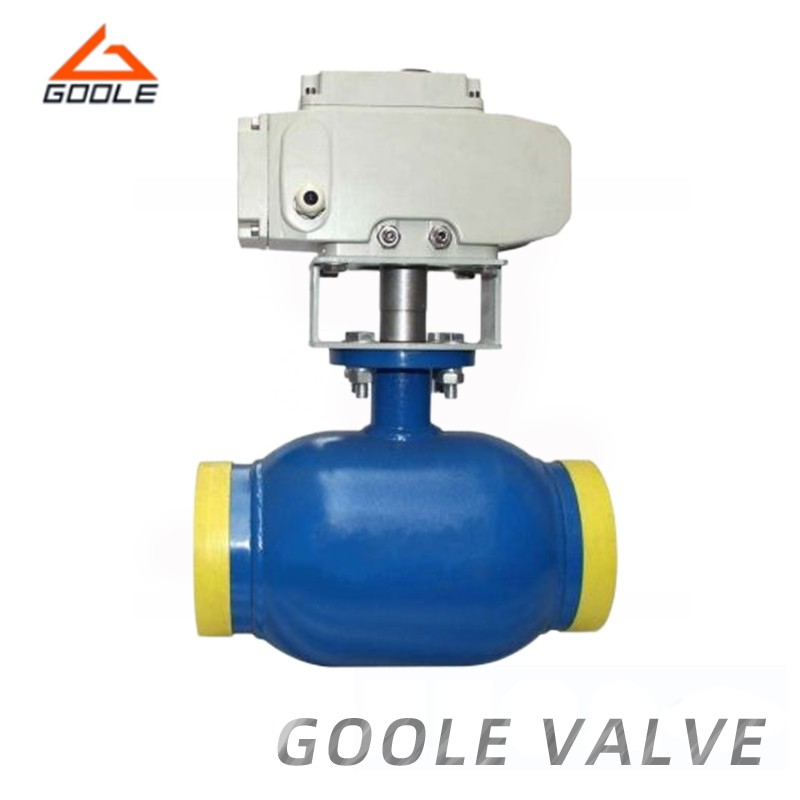

Electric Fully Welded Ball Valve

Product Introduction

The fully welded ball valve is renowned for its sophisticated structural design, which employs advanced welding techniques to ensure a tight fit between the valve body, seat, and ball. This design significantly enhances the valve's strength and sealing performance, allowing it to operate stably and reliably even in extreme conditions such as high pressure and high temperature. Thanks to its outstanding performance, the fully welded ball valve is widely used in industries like oil, chemical, and natural gas, becoming an essential component in these sectors.

Product Features

● Compact Structure: The fully welded integral ball valve boasts an integrated design that minimizes the number of connecting parts, resulting in a more compact and space-efficient structure. This design not only simplifies installation and maintenance but also enhances sealing performance.

● Excellent Sealing Performance: Welded connections eliminate common leakage issues associated with traditional methods, ensuring a stable flow of the medium within the pipeline.

● Strong Corrosion Resistance: The ball valve body is typically constructed from corrosion-resistant materials such as stainless steel, effectively combating the erosion caused by various corrosive media and prolonging its service life.

Product Details

Size		A	B	L	D	D1	D2	E
in	mm	mm	mm	mm	mm	mm	mm
8	200	243	400	400	150	219.1	267	315
10	250	252	500	560	200	273.1	356	346
12	300	236	500	635	250	323.9	457	402
14	350	331	600	650	300	355.6	508	491
16	400	331	600	760	337	406.4	559	479
18	450	331	600	842	337	457.2	559	479
20	500	360	700	910	387	508.0	680	540
22	550	360	700	1092	438	559.0	718	577
24	600	413	800	1065	489	609.6	812	662
26	650	413	800	1245	541	660.4	898	755
28	700	433	900	1346	591	711.2	1016	790
30	750	433	900	1397	635	768.0	1020	790
32	800	433	900	1524	686	812.8	1095	860
34	850	433	900	1625	737	863.6	1172	793
36	900	433	900	1727	781	914.4	1237	913
40	1000	433	900	1900	874	1016.0	1385	865
44	1100	550	900	2000	976	1117.6	1600	970
48	1200	550	900	2100	1020	1219.2	1700	975
52	1300	550	900	2200	1166	1320.8	1967	980
56	1400	550	900	2300	1262	1422.4	2100	990

Technical Parameters

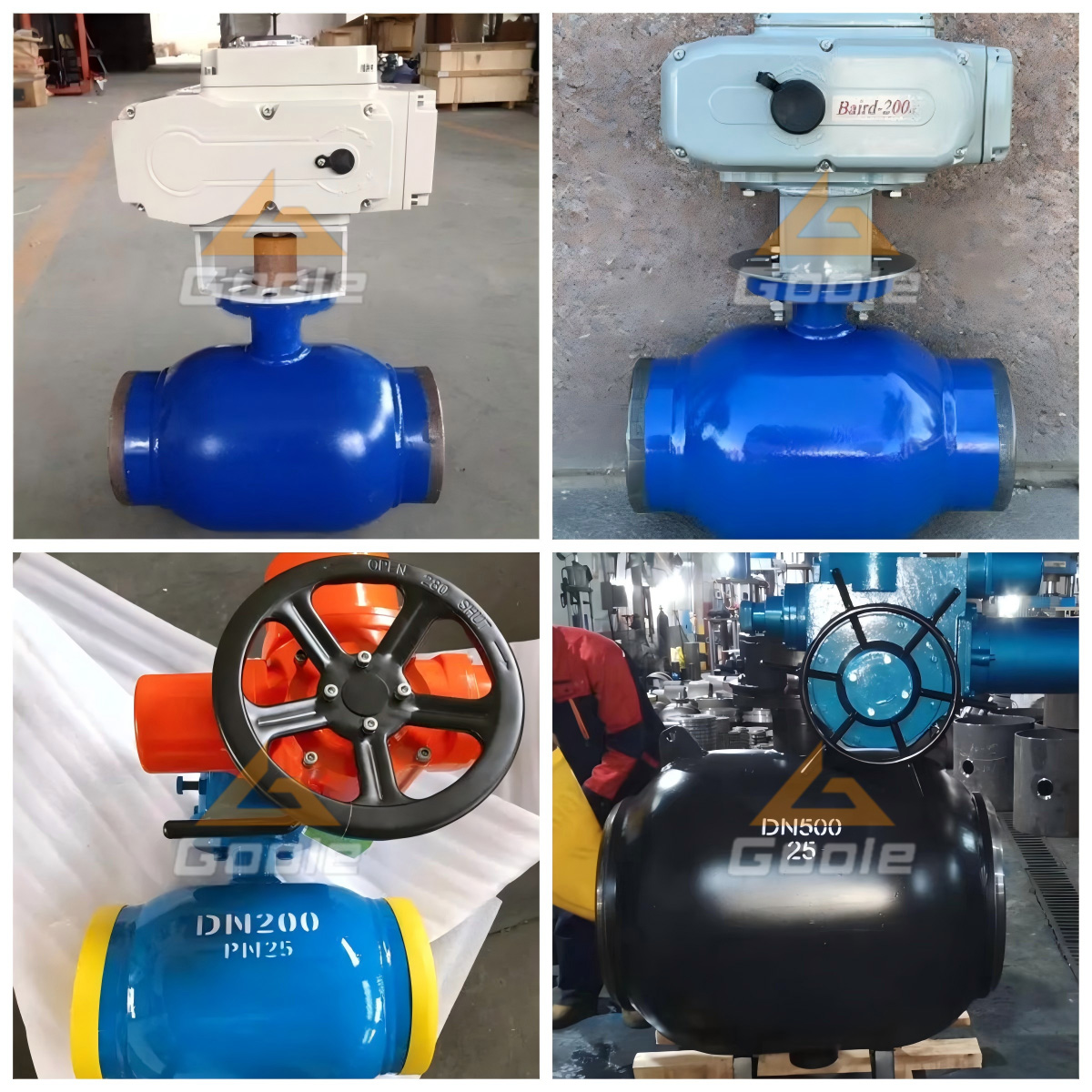

Product Display

Frequently Asked Questions（FAQs）

Q1:What is the main suitable of this valve?

This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.

Q2:What mechanical principle is used?

The mechanical principle of the fully welded ball valve lies in its sophisticated design, which ensures reliable fluid control. The valve features a spherical disc, or ball, with a bore that can be rotated 90 degrees between open and closed positions. When the bore is aligned with the pipeline, fluid flows freely through the valve.

Why Choose Us?

Our fully welded ball valves offer several significant advantages. Firstly, their robust design ensures long-lasting durability and reliability, capable of withstanding a variety of extreme industrial environments. Secondly, by employing advanced seamless welding technology, we have effectively eliminated potential leakage risks, significantly enhancing the product's safety and overall performance. Lastly, our commitment to quality and innovation ensures that the valves fully comply with the latest industry standards, maximizing your return on investment.
