Flange fully welded ball valve specification.Pressure class: Class150-2,500, PN 10-420 Diameter range: DN 15~ 1400 (1/2"~56") ...
| Quantity: | |
|---|---|

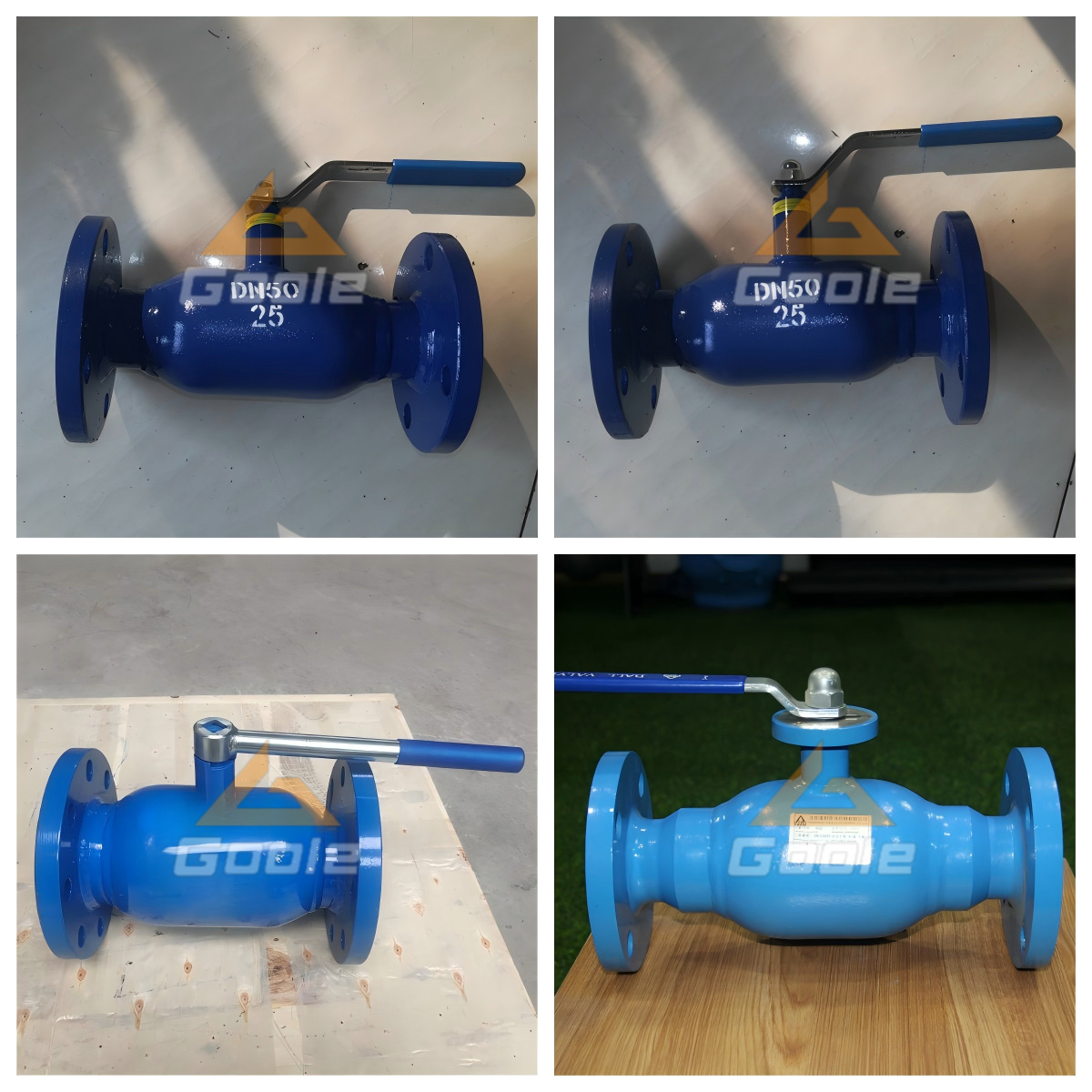

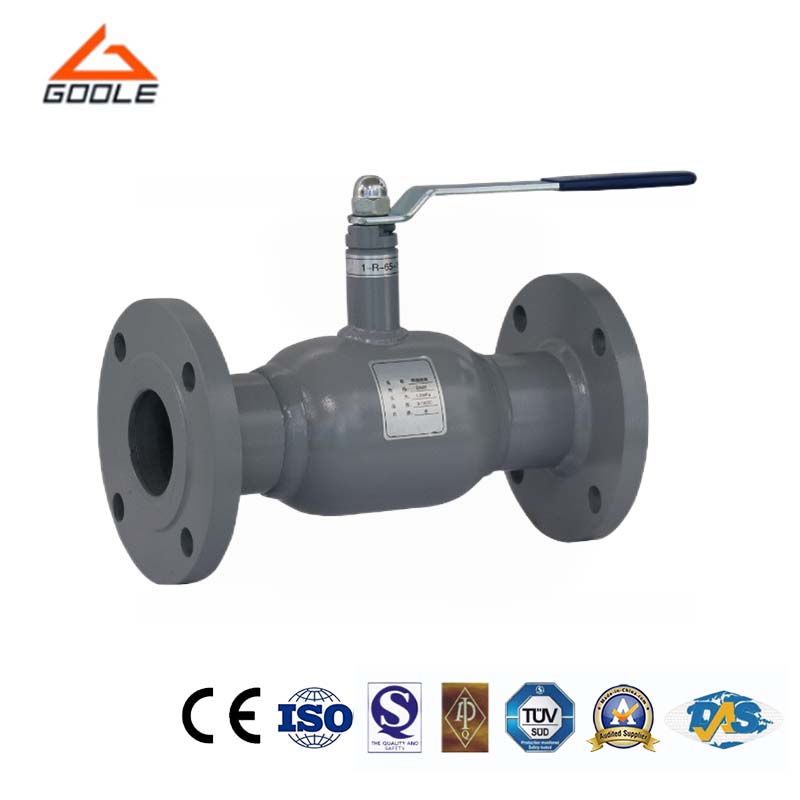

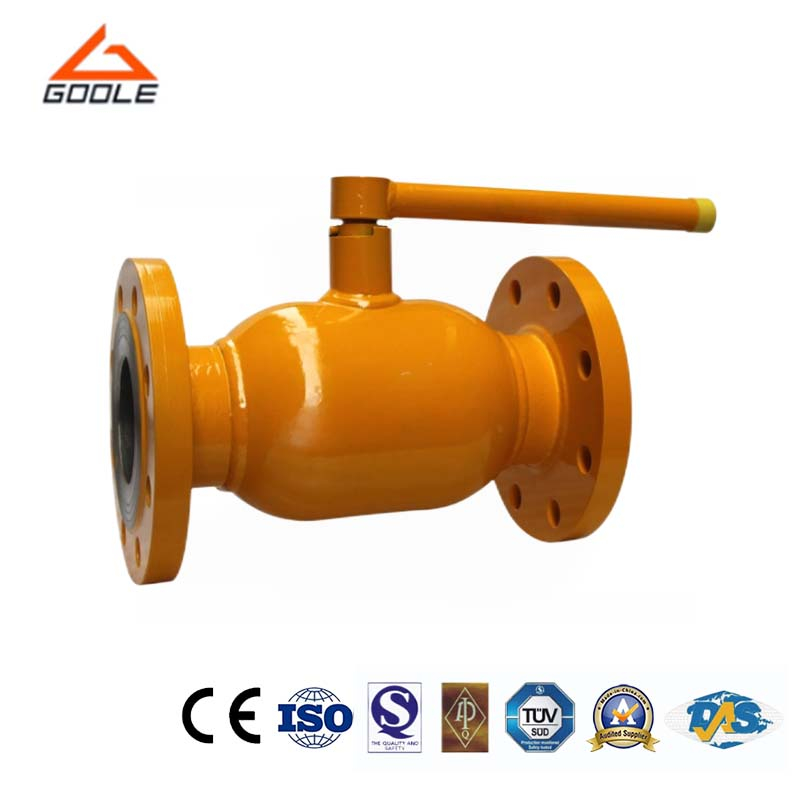

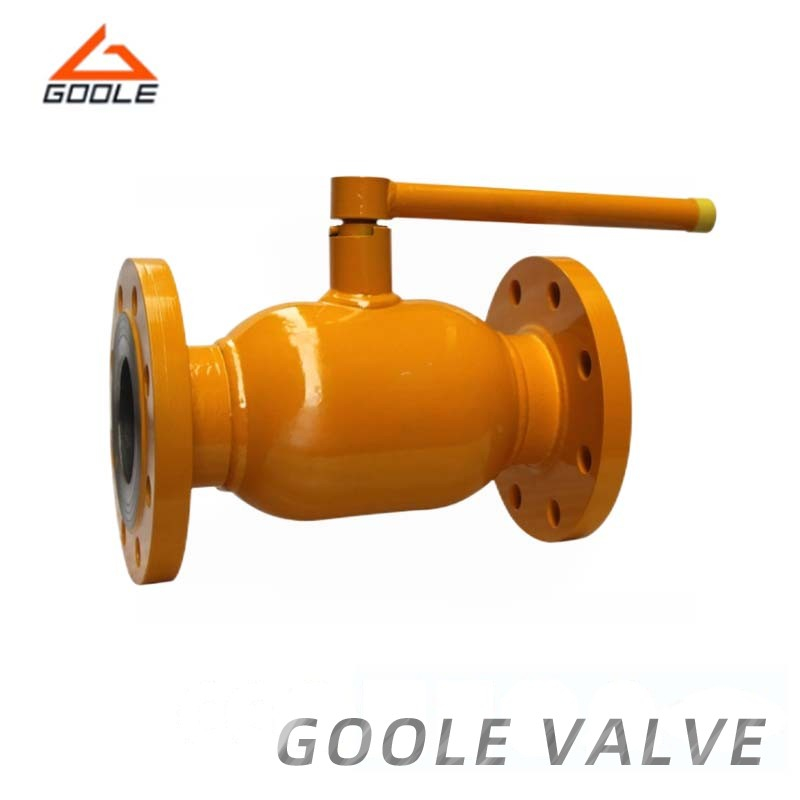

The fully welded ball valve is known for its clever structural design, which uses advanced welding technology to ensure a tight fit between the valve body, valve seat, and ball. This design significantly improves the strength and sealing performance of the valve, enabling it to operate stably even under extreme conditions such as high pressure and high temperature. Due to its excellent performance, fully welded ball valves have been widely used in industries such as petroleum, chemical, and natural gas, becoming an important component of these industries.
● Compact Structure: The fully welded integral ball valve adopts an integrated design, reducing the number of connecting components, making the structure more compact and saving space. This design not only simplifies installation and maintenance, but also improves sealing performance.
● Excellent Sealing Performance: Welding connections eliminate common leakage problems associated with traditional connection methods, ensuring stable flow of media inside the pipeline.
● Strong Corrosion Resistance: The main body of ball valves is usually made of stainless steel and other corrosion-resistant materials, which can effectively resist the erosion of various corrosive media and extend their service life.
| Size | A | B | L | D | D1 | D2 | |
| in | mm | mm | mm | mm | mm | mm | mm |
| 1/2 | 15 | 129 | 64 | 210 | 15 | 21.3 | 42 |
| 3/4 | 20 | 129 | 64 | 230 | 15 | 26.7 | 42 |
| 1 | 25 | 159 | 76 | 230 | 20 | 33.4 | 48 |
| 1 1/4 | 32 | 159 | 85 | 260 | 25 | 42.2 | 60 |
| 1 1/2 | 40 | 230 | 95 | 300 | 32 | 48.3 | 76 |
| 2 | 50 | 230 | 100 | 300 | 40 | 60.3 | 89 |
| 2 1/2 | 65 | 300 | 159 | 300 | 50 | 76.1 | 114 |
| 3 | 80 | 300 | 170 | 300 | 65 | 88.9 | 140 |
| 4 | 100 | 450 | 192 | 325 | 80 | 114.3 | 185 |
| 5 | 125 | 450 | 208 | 325 | 100 | 141.3 | 216 |
| 6 | 150 | 450 | 241 | 350 | 125 | 168.3 | 219 |
| Pressure class | Class150-2,500, PN 10-420 |
| Diameter range | DN 15~ 1400 (1/2"~56") |
| Temperature | -50ºC~280ºC |
| Connecting type | flange |
| Ball | floating ball or trunnion mounted |
| Applicable medium | water,gas,oil, etc |
| Driving means | manual, gearboxes, electric, pneumatic, hydraulic, etc |
| Available Material | SS,CS, A105,A216,CF8,CF8M, LCB, LCC, etc. ( Selected at clients'request ) |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The mechanical principle of the fully welded ball valve lies in its sophisticated design, which ensures reliable fluid control. The valve features a spherical disc, or ball, with a bore that can be rotated 90 degrees between open and closed positions. When the bore is aligned with the pipeline, fluid flows freely through the valve.
Our fully welded ball valve has several significant advantages. Firstly, its sturdy structure ensures long-lasting durability and reliability, capable of withstanding the harshest industrial environments. Secondly, the use of seamless welding technology effectively eliminates potential leakage risks, improving safety and overall performance. Finally, our commitment to quality and innovation ensures that our valves comply with the latest industry standards, maximizing your return on investment.
