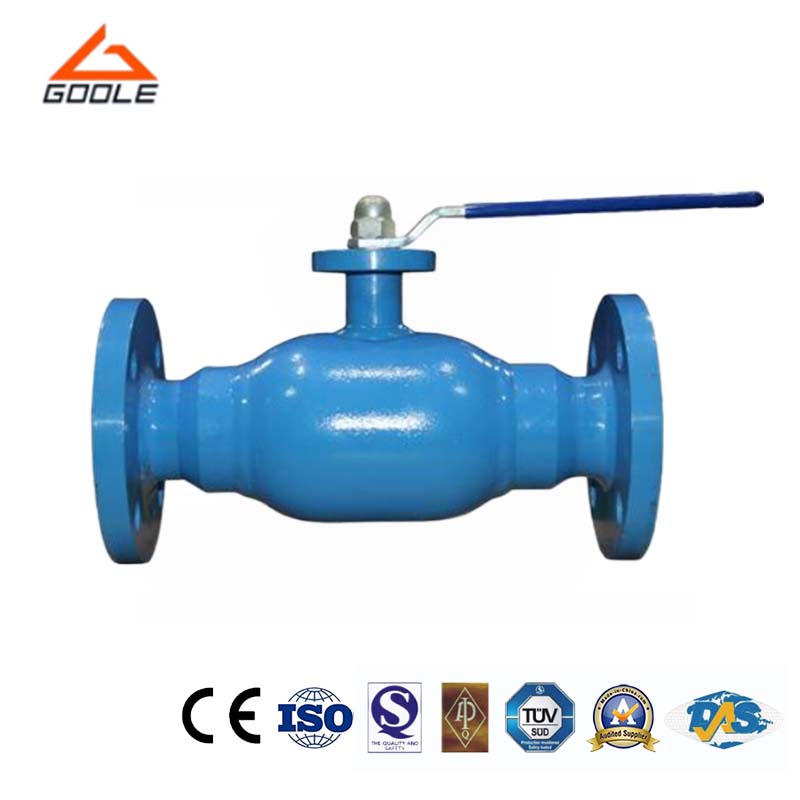

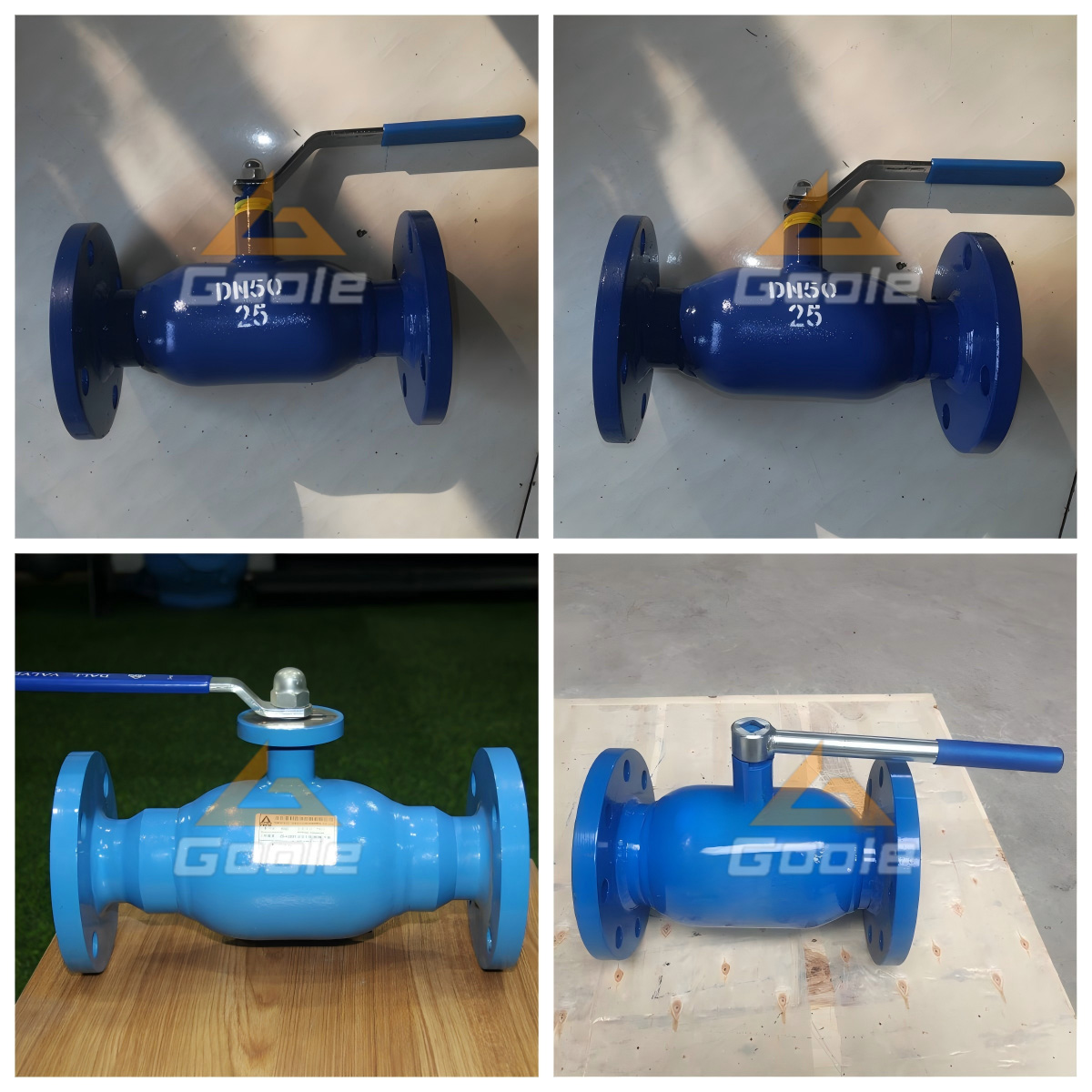

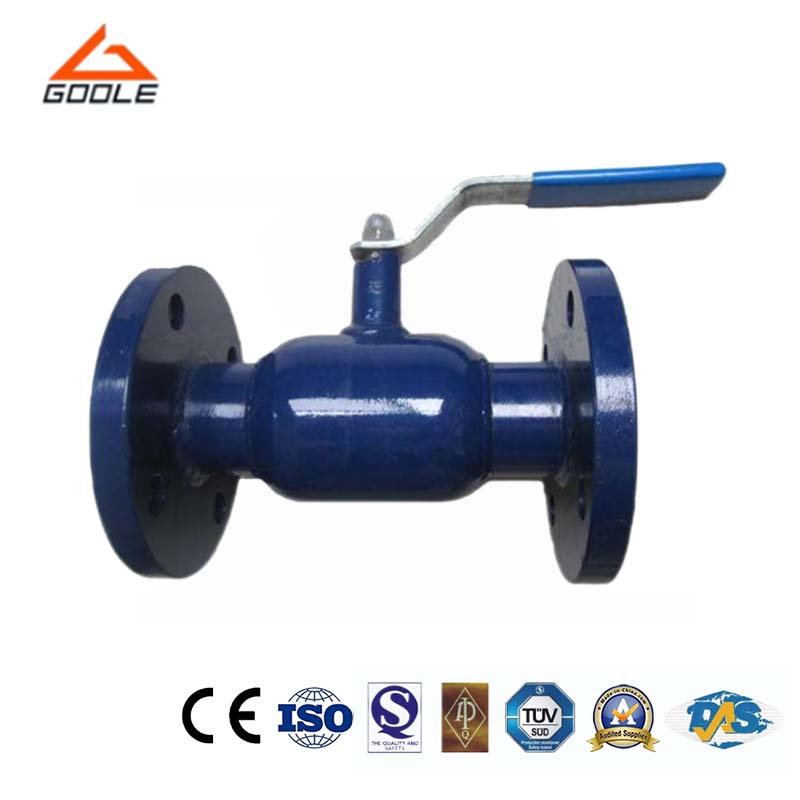

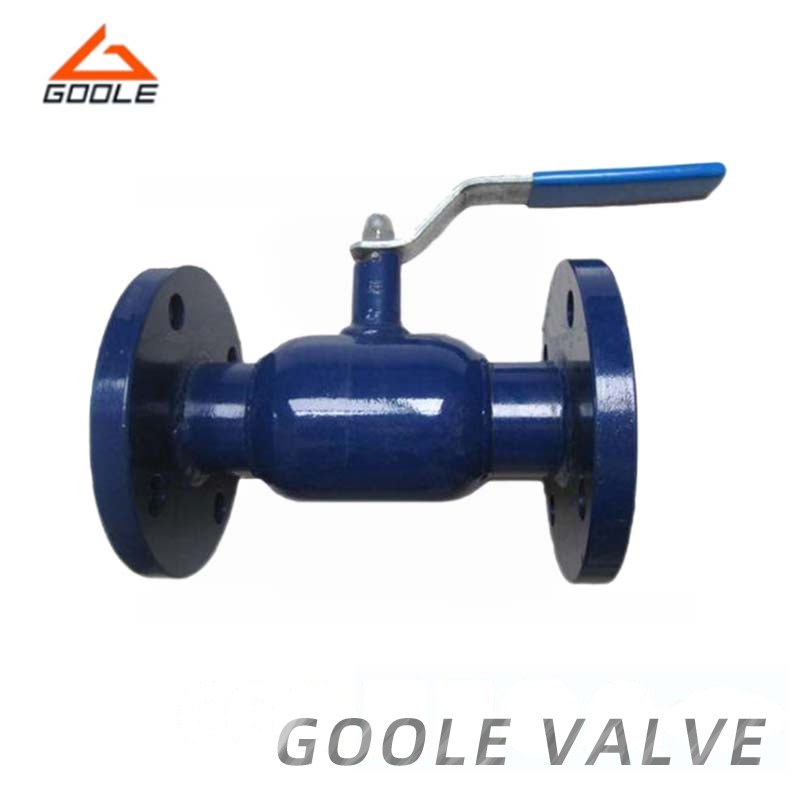

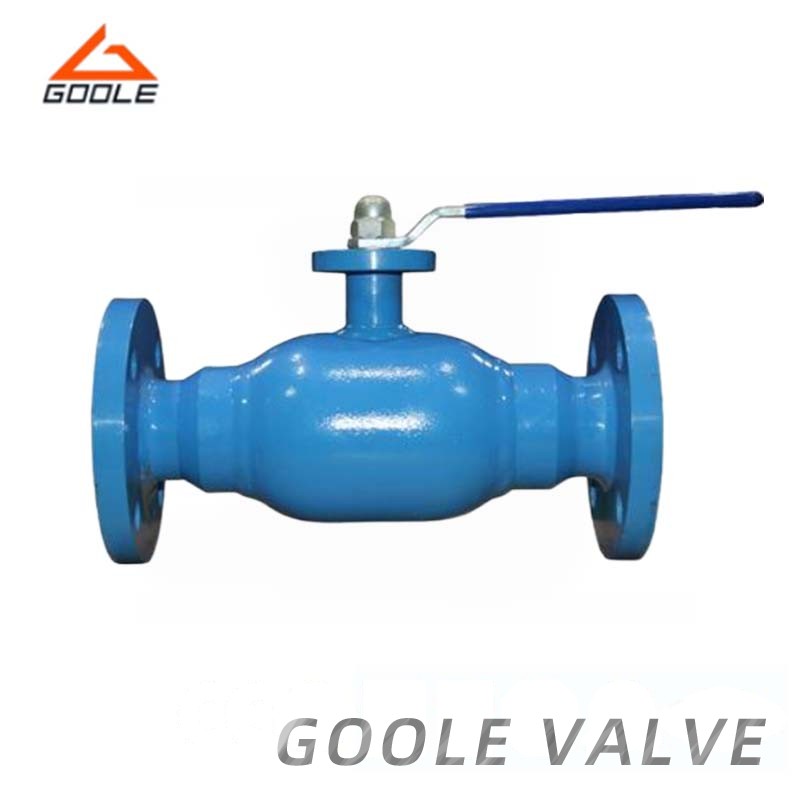

Flange fully welded ball valve specification.Pressure class: Class150-2,500, PN 10-420 Diameter range: DN 15~ 1400 (1/2"~56") ...
| Quantity: | |
|---|---|
Fully welded ball valves are known for their complex structural design, which utilizes advanced welding techniques to ensure a tight connection between the valve body, seat, and ball. This design significantly improves the strength and sealing performance of the valve, enabling it to operate stably even under extreme conditions such as high pressure and high temperature. Due to its excellent performance, fully welded ball valves have been widely used in industries such as petroleum, chemical, and natural gas, becoming an important component of these industries.
● Compact Structure: The fully welded integral ball valve adopts an integrated design, reducing the number of connecting components, making the structure more compact and space saving. This design not only simplifies installation and maintenance, but also improves sealing performance.
● Excellent Sealing Performance: Welding connections eliminate common leakage problems associated with traditional connections, ensuring stable flow of media inside the pipeline.
● Strong Corrosion Resistance: The main body of the ball valve is usually made of corrosion-resistant materials such as stainless steel, which effectively resists erosion caused by various corrosive media and extends its service life.
| Size | A | B | L | D | D1 | D2 | |
| in | mm | mm | mm | mm | mm | mm | mm |
| 1/2 | 15 | 129 | 64 | 210 | 15 | 21.3 | 42 |
| 3/4 | 20 | 129 | 64 | 230 | 15 | 26.7 | 42 |
| 1 | 25 | 159 | 76 | 230 | 20 | 33.4 | 48 |
| 1 1/4 | 32 | 159 | 85 | 260 | 25 | 42.2 | 60 |
| 1 1/2 | 40 | 230 | 95 | 300 | 32 | 48.3 | 76 |
| 2 | 50 | 230 | 100 | 300 | 40 | 60.3 | 89 |
| 2 1/2 | 65 | 300 | 159 | 300 | 50 | 76.1 | 114 |
| 3 | 80 | 300 | 170 | 300 | 65 | 88.9 | 140 |
| 4 | 100 | 450 | 192 | 325 | 80 | 114.3 | 185 |
| 5 | 125 | 450 | 208 | 325 | 100 | 141.3 | 216 |
| 6 | 150 | 450 | 241 | 350 | 125 | 168.3 | 219 |
| Pressure class | Class150-2,500, PN 10-420 |
| Diameter range | DN 15~ 1400 (1/2"~56") |
| Temperature | -50ºC~280ºC |
| Connecting type | flange |
| Ball | floating ball or trunnion mounted |
| Applicable medium | water,gas,oil, etc |
| Driving means | manual, gearboxes, electric, pneumatic, hydraulic, etc |
| Available Material | SS,CS, A105,A216,CF8,CF8M, LCB, LCC, etc. ( Selected at clients'request ) |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The mechanical principle of the fully welded ball valve lies in its sophisticated design, which ensures reliable fluid control. The valve features a spherical disc, or ball, with a bore that can be rotated 90 degrees between open and closed positions. When the bore is aligned with the pipeline, fluid flows freely through the valve.
Our fully welded ball valves have many significant advantages. Firstly, its sturdy structure ensures long-lasting durability and reliability, capable of withstanding the most challenging industrial environments. Secondly, the use of seamless welding technology effectively eliminates potential leakage risks, improving safety and overall performance. Finally, our commitment to quality and innovation ensures that valves comply with the latest industry standards, maximizing your return on investment.
