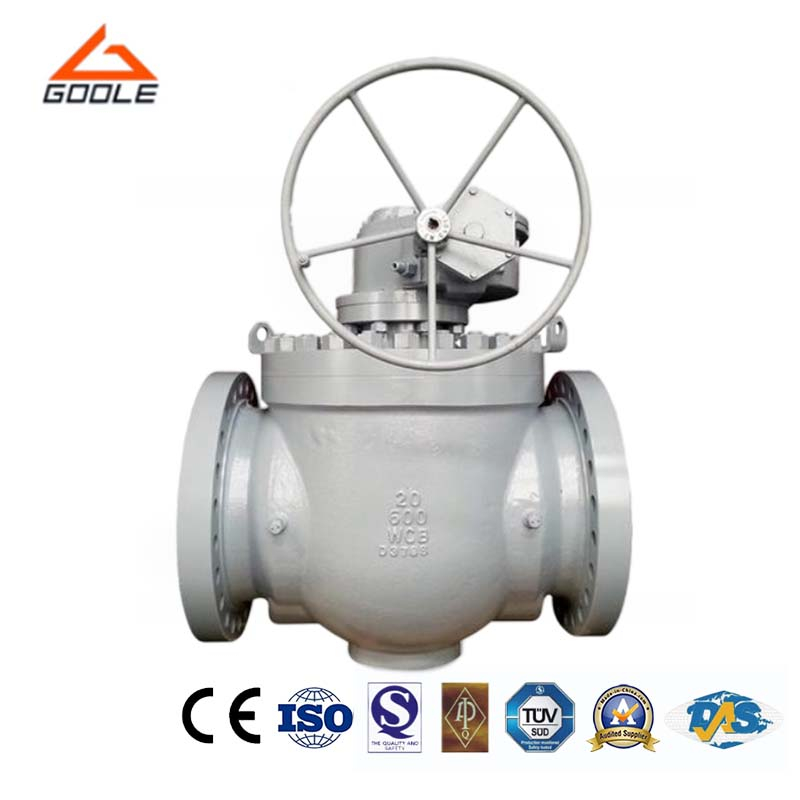

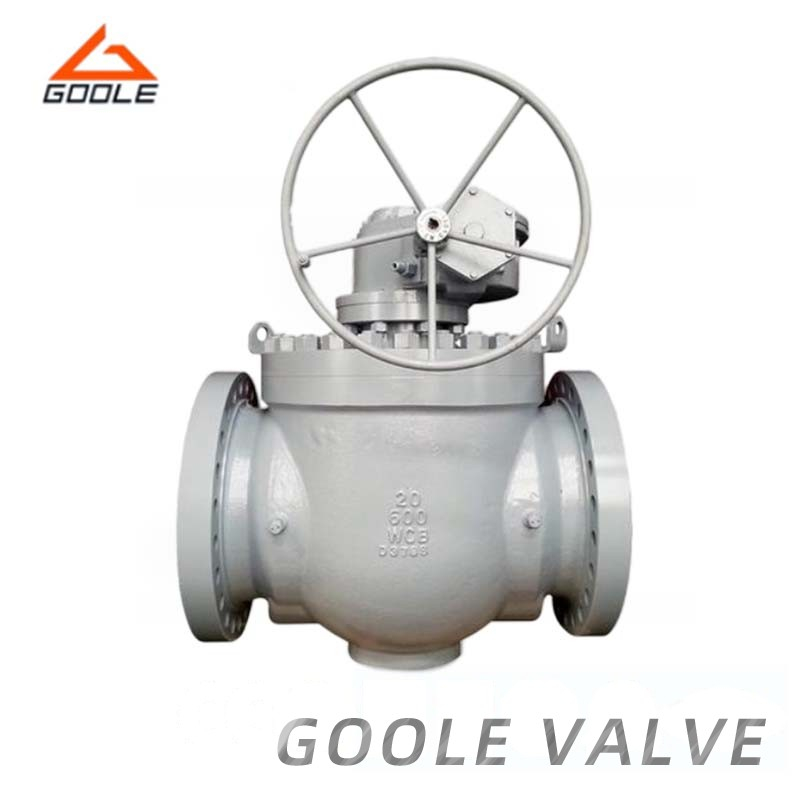

The top-mounted gear-operated ball valve with flange connection is designed for seamless operation in high-pressure environments. This valve features a top-mounted design, making it easy to access internal components without the need to remove the valve from the pipeline for maintenance or part replacement. This structure reduces downtime and ensures long-term efficient operation. The valve uses a gear mechanism that provides smooth and controlled operation even under harsh conditions.
● Top Entry Design: This feature makes it easy to maintain and replace parts without having to remove the valve from the pipe, thus reducing downtime and improving maintainability.
● Gear Operating Mechanism: This mechanism ensures smooth, controlled operation with minimal torque and reliable performance even in high pressure environments.
● Fire safety and self depressurizing seats: These seats are equipped with leak prevention and system protection functions in the event of pressure accumulation.
| Item | Part. Name | Material |
| 1 | Bonnet | PE |
| 2 | Extension pipe | st37 |
| 3 | Body | st37 |
| 4 | Flat washer | st37 |
| 5 | Butterfly Spring | 60Si2MnA |
| 6 | Ball seat | SS202 |
| 7 | O-ring | EPDM |
| 8 | Ball washer | PTFE+20%C |
| 9 | Ball | SS304 |
| 10 | Stem washer | PTFE+20%C |
| 11 | Stem sleeve | st37 |
| 12 | Stem | SS410 |
| 13 | Stem ring | PTFE+20%C |
| 14 | Stem O-ring | FPM |
| 15 | Sleeve | st37 |
| 16 | Positioning PIN | ASTM1035 |
| 17 | Handle | st37 |
| 18 | Washer | Q235A |
| 19 | Nut | Q235A |
| 20 | Handle cap | ABS |
| Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
| Strength (water) (MPa) | Enclose (Water) (MPa) | ||||
| Q340 H-16C | 1.6 | 2.4 | 1.76 | -40~200ºC | Water,Vapour,Oil |
| Q340 H-25C | 2.5 | 3.75 | 2.5 | ||
Q:What is the advantage of the top-entry design?
The top-entry design allows for in-line servicing, meaning internal parts can be accessed and replaced without having to remove the valve from the pipeline, significantly reducing maintenance time.
Q:Is this valve suitable for high-demand or critical applications?
Yes, the valve features firesafe design, double block and bleed (DBB) functionality, and self-relieving seats, making it ideal for critical and high-demand applications.
Q:How does the gear-operated mechanism benefit this valve?
The gear-operated mechanism enables precise and easy control of fluid flow, making it suitable for high-pressure systems where consistent operation is essential.
The top inlet gear operated ear shaft ball valve with flange connection has a sturdy design, easy maintenance, and safe fluid control, making it an ideal choice for demanding pipeline systems. The top entrance structure simplifies maintenance, while the gear operating mechanism ensures smooth operation in high-pressure environments. We provide professional pre-sales consultation and after-sales support to ensure that you choose the perfect solution for your specific application. We are committed to providing high-quality products and excellent customer service, ensuring that every step from selection to operation satisfies you.
