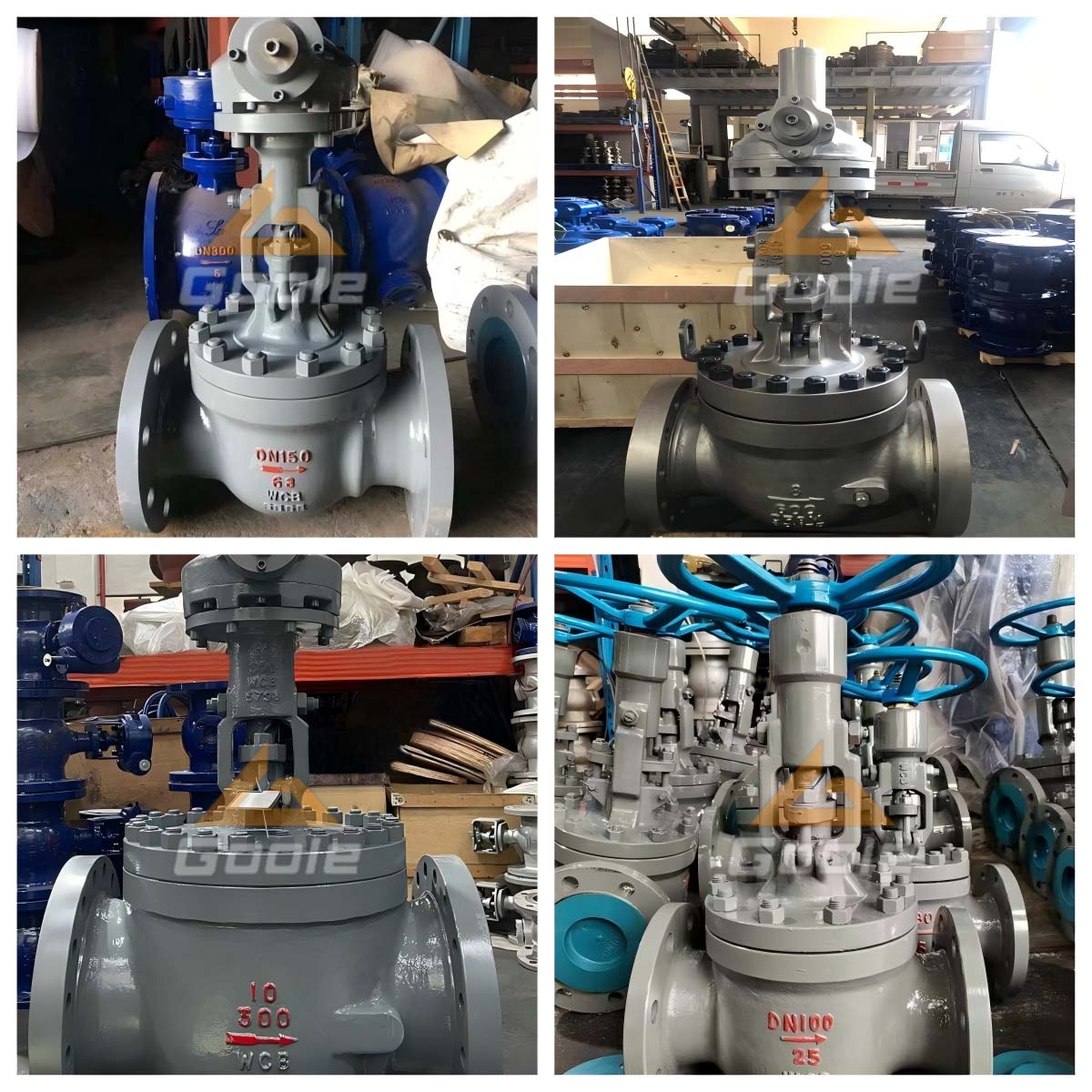

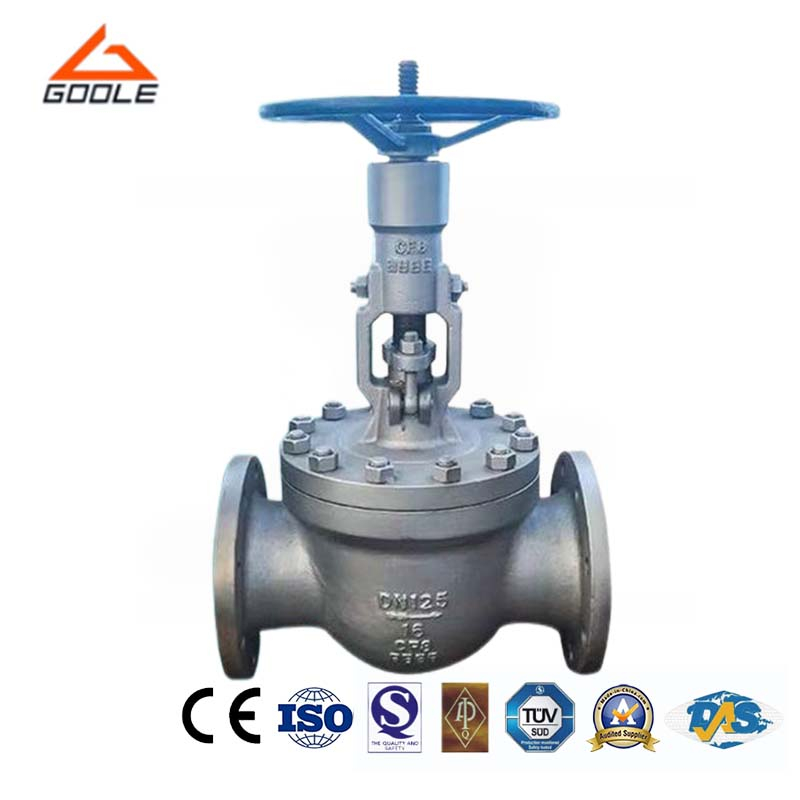

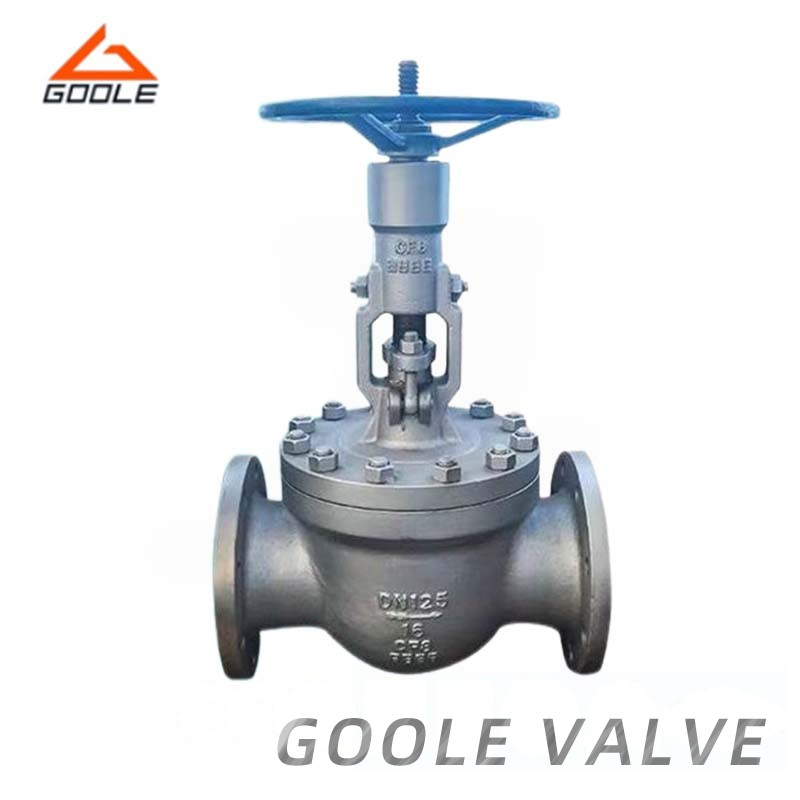

The Low Fluid Resistance Orbit Ball Valve is specifically designed to provide smooth and efficient gas flow control with minimal pressure drop. Featuring handwheel operation, it allows for precise manual control over gas flow, ensuring optimal performance in various gas handling applications. Constructed from durable cast or forged materials, this valve is built to withstand demanding conditions and provide reliable, long-term operation.
● Low Fluid Resistance: Ensures smooth gas flow control with minimal pressure drop, enhancing system efficiency.
● Handwheel Operated: Allows for easy and precise manual control of gas flow, offering a simple, user-friendly solution.
● Cast/Forged Construction: Provides durability and reliability, ensuring the valve performs effectively in harsh environments.
NO. | Part name | Material | ||||||
A216 WCB | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M | ||
1 | Body | A216 WCB | A217 WCB | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
2 | Plug | A351 CF8 | A351 CF8 | A351 CF8 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
3 | Gasket | Flexible graphite+stainless steel/PTFE | ||||||
4 | Cover | A216 WCB | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
5 | Bolt | A193 B7 | A193 B16 | A193 B16 | A1293 B8 | A193 B8M | ||
6 | Nut | A194 2H | A194 4 | A194 4 | A194 8 | A194 8M | ||
7 | Packing | Flexible graphite/PTFE | ||||||
8 | Gland | A216 WCB | A216 WC9 | A216 C5 | A351 CF8 | A351 CF8M | ||
9 | Wrench | A216 WCB | A216 WC9 | A216 C5 | A351 CF8 | A351 CF8M | ||
10 | Yoke nut | A439-D2/Cu-Allog | ||||||
11 | Hand wheel | ASTM A536 Gr.60-40-18 A216 WCB | ||||||
| Size | inch | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
L-RF | mm | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 |
H | mm | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 |
W | mm | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 300 | 300 | 340 | 400 | 450 | 450 | 500 | 500 |
Weight | Kg | 9 | 10 | 11 | 17 | 19 | 23 | 25 | 32 | 55 | 82 | 98 | 130 | 178 | 250 | 380 |
| TYPE | ORBIT BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
Q1:What is the primary use of this valve?
This valve is ideal for gas flow control, offering minimal resistance to maintain smooth and efficient operation.
Q2:How is it operated?
It is manually operated via a handwheel, allowing for precise control of the gas flow.
Our Low Fluid Resistance Orbit Ball Valve offers minimal pressure drop, ensuring efficient and smooth gas flow control. Constructed from durable cast or forged materials, it is designed for long-term reliability, even in demanding environments. The handwheel operation provides precise manual control, making it easy to manage gas flow with accuracy.
We adhere to the highest quality standards in production, with thorough testing procedures, including API 607, API 6D, and ISO 9001 certifications. Each valve undergoes rigorous testing to ensure it meets international standards for safety, reliability, and performance. With our commitment to high-quality manufacturing, you can trust our valves to deliver consistent performance, durability, and efficiency in your gas control systems.
