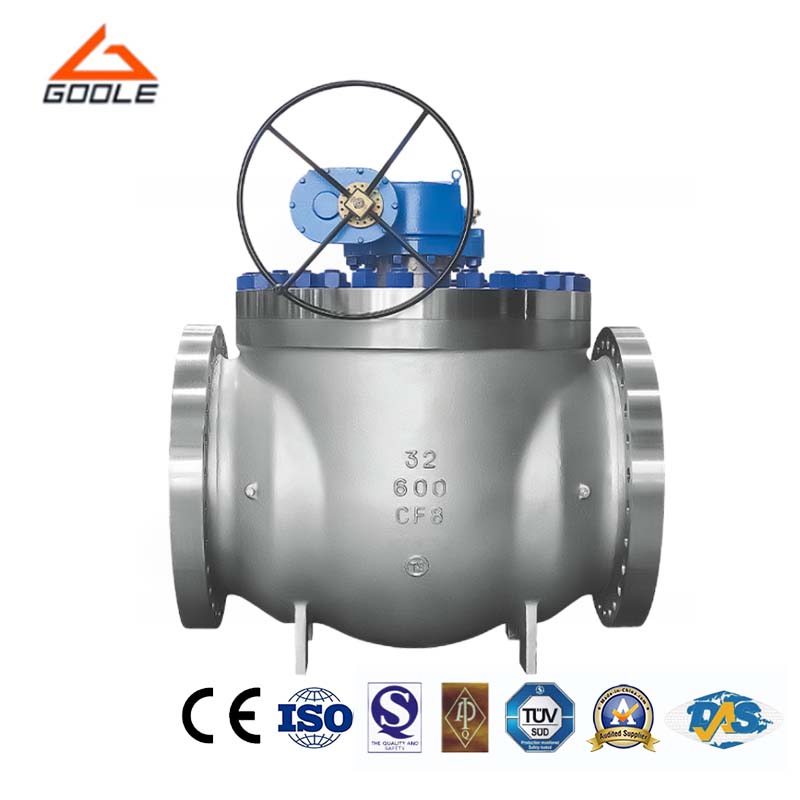

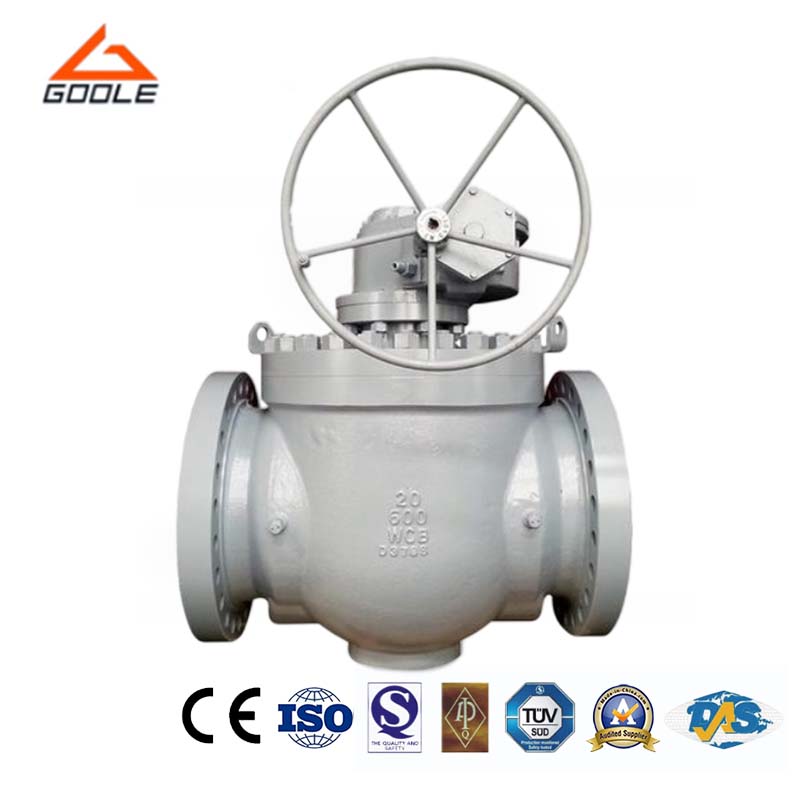

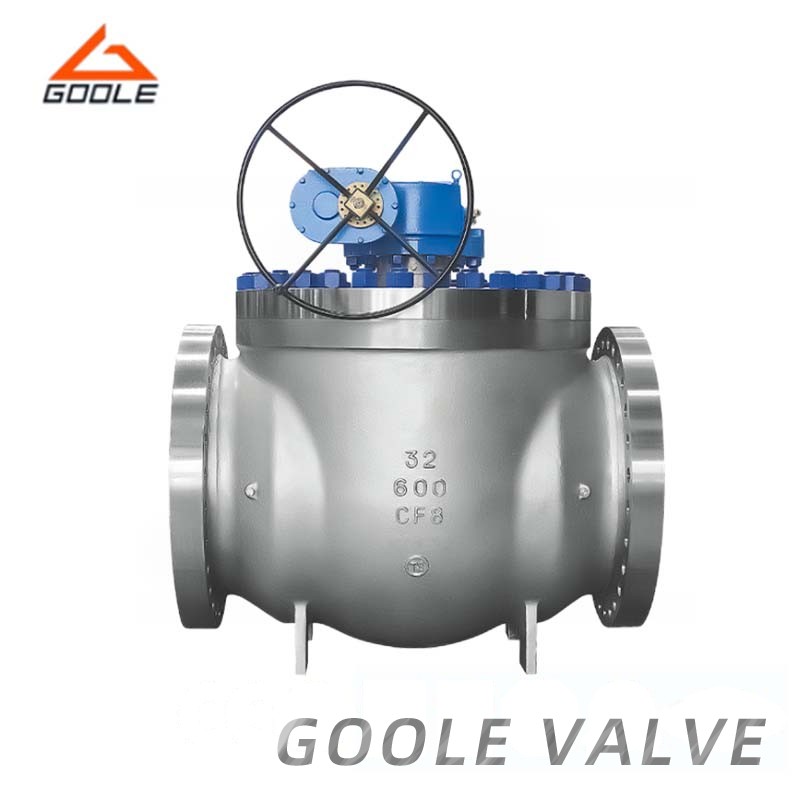

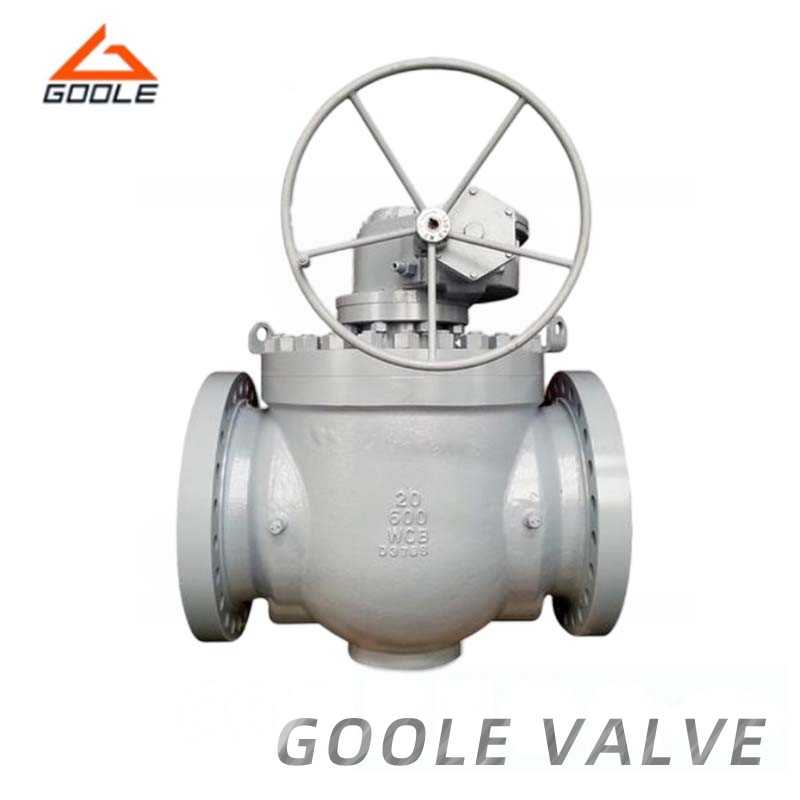

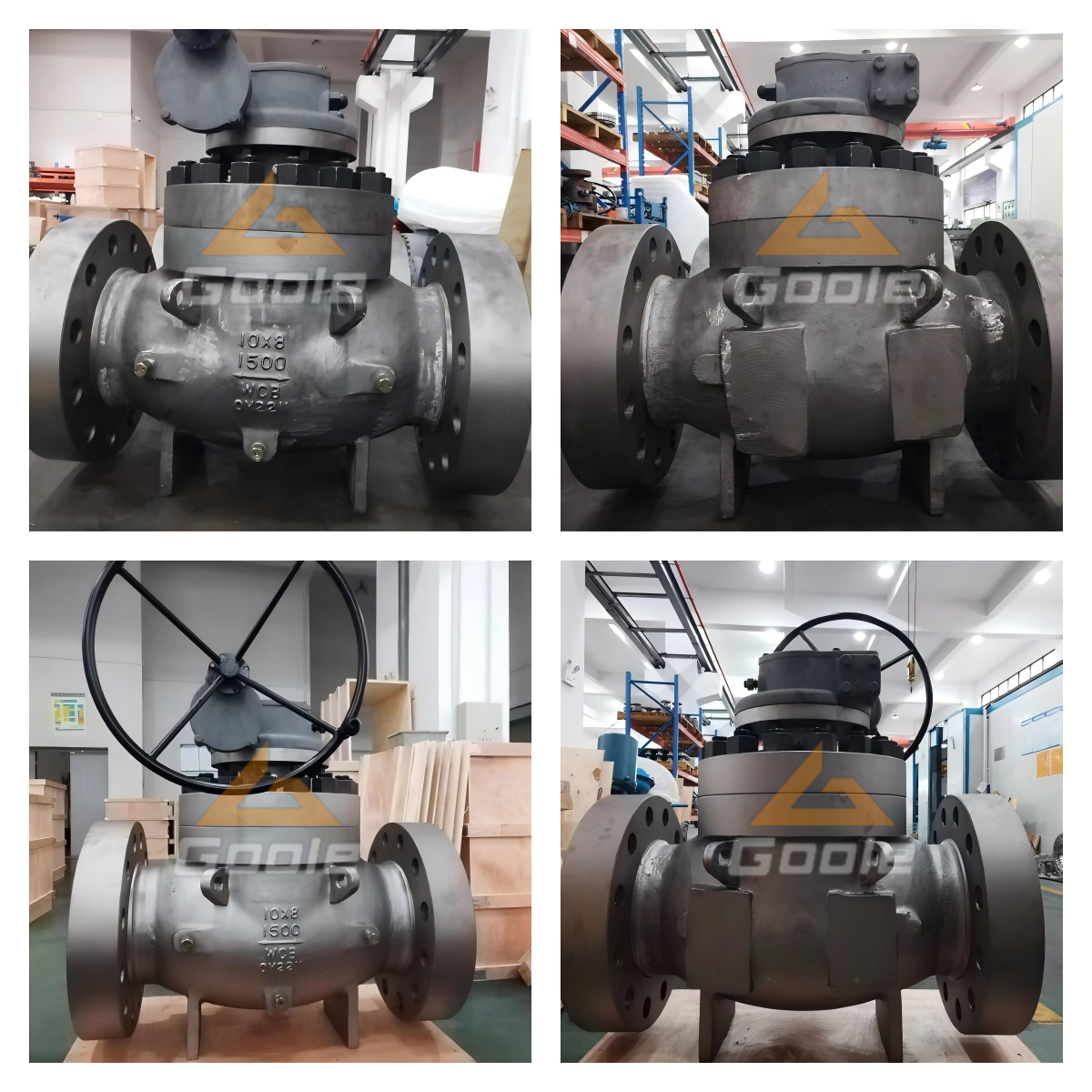

The top-mounted, gear-operated ball valve with a flange connection is engineered for seamless operation in high-pressure environments. Featuring a top-mounted design, this valve allows easy access to internal components, eliminating the need to remove the valve from the pipeline for maintenance or part replacement. This design minimizes downtime and ensures long-term, efficient operation. Additionally, the valve employs a gear mechanism that facilitates smooth and controlled operation, even in harsh conditions.
● Top Entry Design: This feature enables easy maintenance and part replacement without the necessity of removing the valve from the pipeline, thereby decreasing downtime and improving serviceability.
● Gear Operated Mechanism: This mechanism ensures smooth, controlled operation with minimal torque, offering reliable performance even in high-pressure environments.
● Firesafe and Self-Relieving Seats: These seats are equipped with features that prevent leaks and safeguard the system in the event of pressure build-up.
| Item | Part. Name | Material |
| 1 | Bonnet | PE |
| 2 | Extension pipe | st37 |
| 3 | Body | st37 |
| 4 | Flat washer | st37 |
| 5 | Butterfly Spring | 60Si2MnA |
| 6 | Ball seat | SS202 |
| 7 | O-ring | EPDM |
| 8 | Ball washer | PTFE+20%C |
| 9 | Ball | SS304 |
| 10 | Stem washer | PTFE+20%C |
| 11 | Stem sleeve | st37 |
| 12 | Stem | SS410 |
| 13 | Stem ring | PTFE+20%C |
| 14 | Stem O-ring | FPM |
| 15 | Sleeve | st37 |
| 16 | Positioning PIN | ASTM1035 |
| 17 | Handle | st37 |
| 18 | Washer | Q235A |
| 19 | Nut | Q235A |
| 20 | Handle cap | ABS |
| Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
| Strength (water) (MPa) | Enclose (Water) (MPa) | ||||
| Q340 H-16C | 1.6 | 2.4 | 1.76 | -40~200ºC | Water,Vapour,Oil |
| Q340 H-25C | 2.5 | 3.75 | 2.5 | ||
Q:What is the advantage of the top-entry design?
The top-entry design allows for in-line servicing, meaning internal parts can be accessed and replaced without having to remove the valve from the pipeline, significantly reducing maintenance time.
Q:Is this valve suitable for high-demand or critical applications?
Yes, the valve features firesafe design, double block and bleed (DBB) functionality, and self-relieving seats, making it ideal for critical and high-demand applications.
Q:How does the gear-operated mechanism benefit this valve?
The gear-operated mechanism enables precise and easy control of fluid flow, making it suitable for high-pressure systems where consistent operation is essential.
The top inlet gear-operated ear shaft ball valve with a flange connection boasts a robust design, easy maintenance, and safe fluid control, making it an ideal choice for demanding pipeline systems. The top entrance structure simplifies maintenance, while the gear-operating mechanism ensures smooth operation in high-pressure environments. We provide professional pre-sales consultation and after-sales support to ensure that you choose the perfect solution for your specific application. We are committed to providing high-quality products and excellent customer service, ensuring that every step from selection to operation satisfies you.
