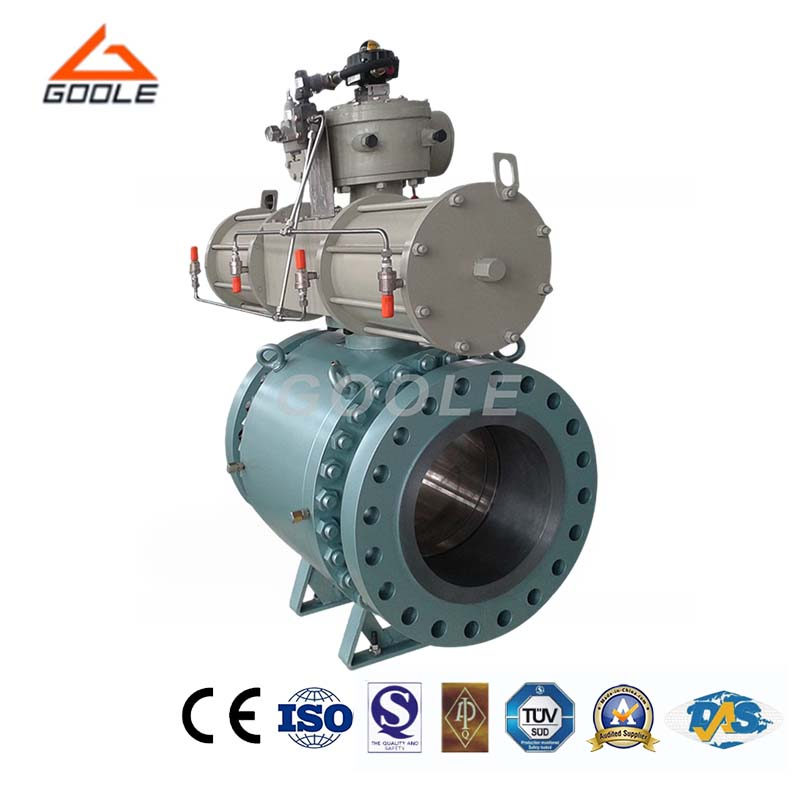

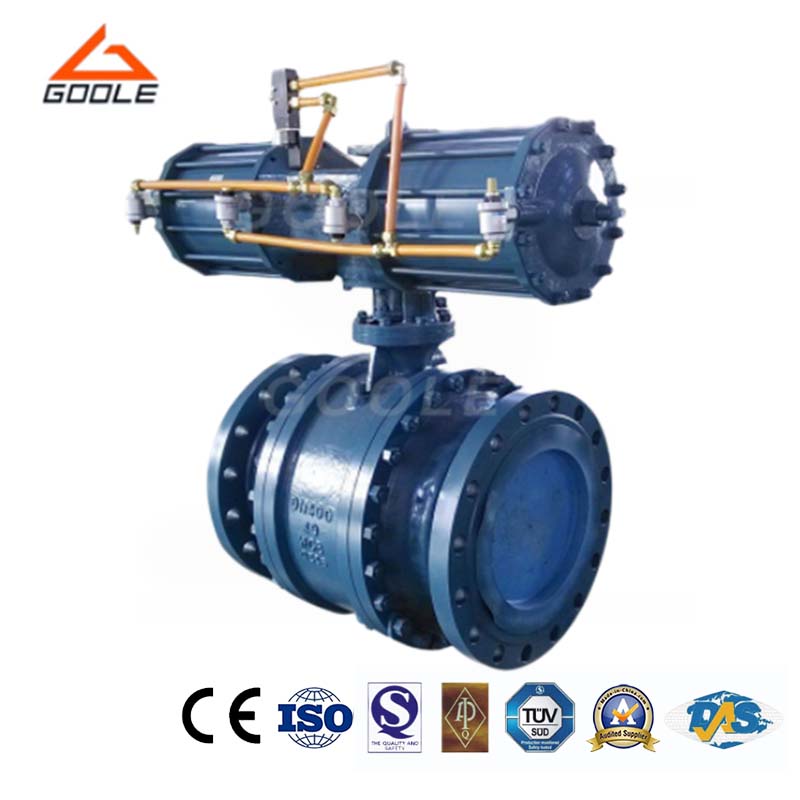

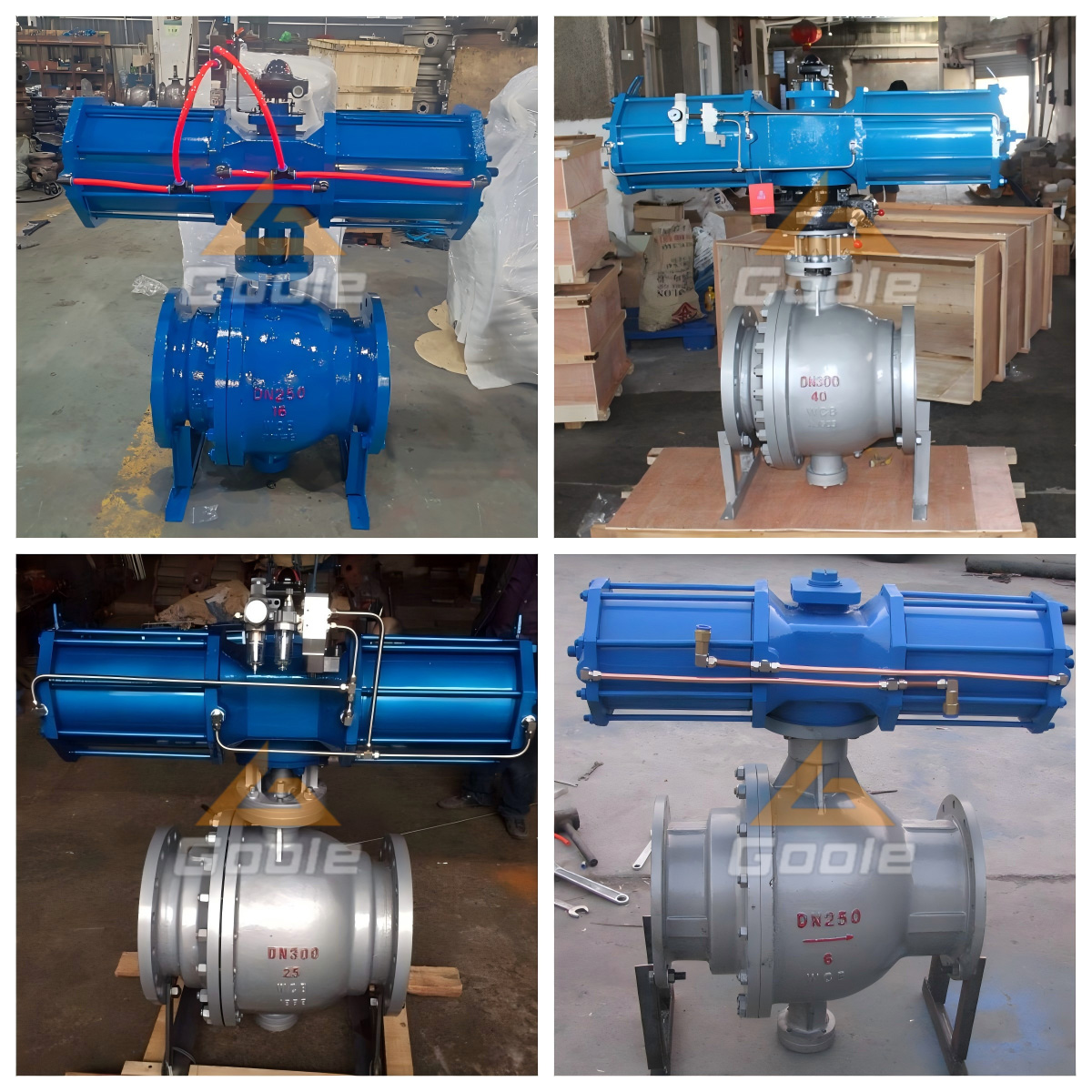

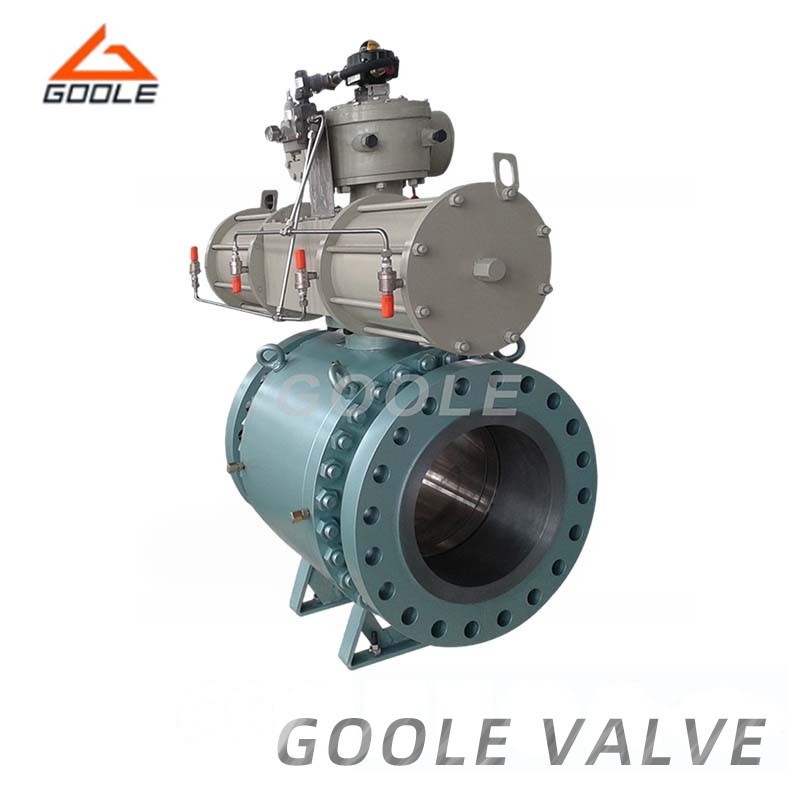

The 3PCS Pneumatic Actuated Forged Steel Ball Valve combines the durability of forged steel with the precision of pneumatic actuation, making it ideal for applications that require reliable flow management under high-pressure conditions. This valve is engineered with a floating ball design that self-adjusts according to the flow of the medium, ensuring consistent sealing and smooth operation.
The pneumatic actuator allows for automated and precise control of fluid flow, significantly reducing the need for manual operation and improving the efficiency of pipeline systems. With quick, reliable opening and closing, the valve is perfect for industries requiring rapid adjustments in fluid flow, such as in chemical processing, water treatment, and oil & gas operations.
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC |
| Soft Seal | -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on. |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Nominal diameter DN, Rated flow coefficient Kv, Allowable pressure difference.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| TYPE | TRUNNION BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
Q:What is the advantage of bi-directional sealing?
Bi-directional sealing ensures the valve performs effectively under both forward and reverse flow conditions, preventing fluid leakage and ensuring system safety.
Q:What are the actuation options available for this valve?
The valve can be equipped with pneumatic, electric, or manual actuators, offering flexibility depending on your application needs.
Q:How does the floating ball design improve the valve’s performance?
The floating ball design automatically adjusts to the flow rate, ensuring optimal sealing and smooth operation, preventing leakage under fluctuating pressure conditions.
The 3PCS Pneumatic Actuated Forged Steel Ball Valve is the perfect solution for efficient fluid regulation and precise flow control in high-pressure pipeline systems. With pneumatic actuation, quick opening and closing, and bi-directional sealing, this valve offers enhanced performance and flexibility for a wide range of industrial applications. Our team provides custom solutions tailored to your needs, ensuring optimal performance and long-term reliability in your pipeline system.
