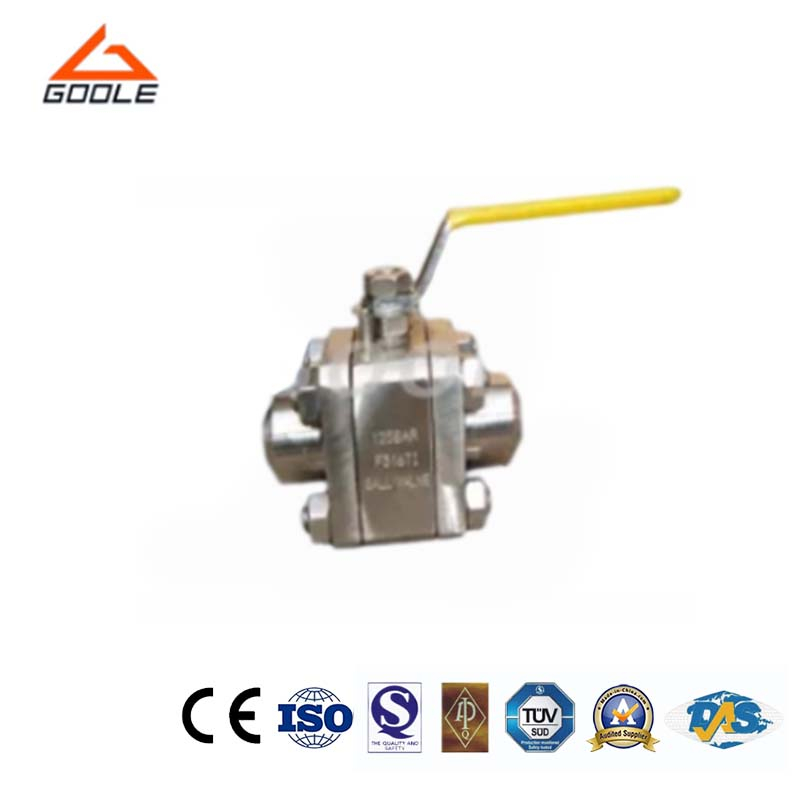

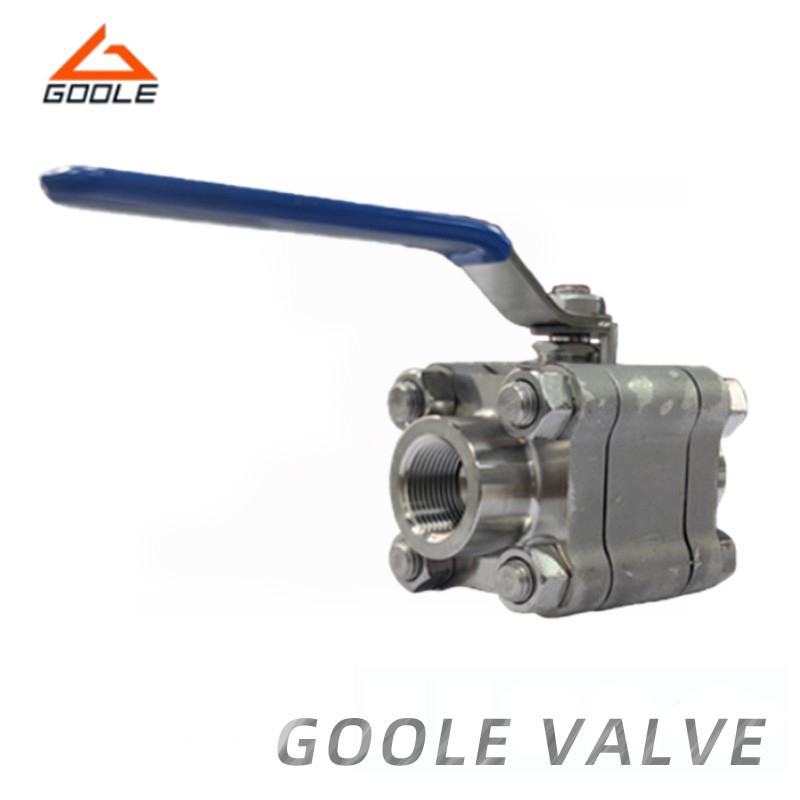

The three-piece forged steel butt ball valve is designed for high performance fluid control in industrial systems, emphasizing ease of maintenance and long-term reliability. The three-piece design simplifies disassembly and reassembly, reduces downtime, and improves overall maintainability.
The valve is connected through butt welding, providing a reliable seal to ensure safe installation and minimize the risk of liquid leakage. The valve's size range is from 3/8 inch to 2 inches and can withstand pressures up to 1500 pounds, designed specifically for high-pressure environments. It can control various fluids, including water, oil, air, and some corrosive liquids, making it a powerful solution in industries where performance and reliability are critical.
● Forged Steel Construction: Provides excellent strength and durability, ensuring reliable performance even in challenging environments.
● Corrosion-Resistant Materials: The valve is made of high quality carbon steel, with excellent durability and corrosion resistance, suitable for all kinds of fluids.
● Wide Temperature Range: The valve can provide either a hard seal or a soft seal and can handle a wide range of temperatures, from-40℃ to 300℃ for the hard seal and from-40℃ to 180℃ for the soft seal.
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
Main Dimensions
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.50 | 3.38 | 4.00 | 6.00 | 7.00 | 9.25 | 9.88 | 11.00 | 12.62 | / |
| mm | 55 | 55 | 65 | 85 | 100 | 150 | 180 | 235 | 250 | 280 | 320 | / | |
| W | in | 8 | 8 | 12 | 12 | 16 | 16 | 24 | 24 | 24 | 24 | 32 | / |
| mm | 200 | 200 | 300 | 300 | 400 | 400 | 600 | 600 | 600 | 600 | 800 | / | |
| WT(Kg) | RF | 3.1 | 4.1 | 6 | 9.5 | 12.8 | 20 | 26 | 45 | 126 | 216 | 270 | / |
| BW | 2.6 | 3.9 | 5.2 | 8.7 | 11.8 | 19 | 28 | 47 | 131 | 226 | 295 | / |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q1:What is the benefit of the three-piece design?
The three-piece design allows for easy disassembly and reassembly, reducing maintenance time and ensuring quick repairs when needed, making it highly efficient for industrial use.
Q2:What type of connection does the valve have?
The valve features butt-welded connections, providing a secure, leak-proof fit for reliable operation in demanding industrial systems.
Our three-piece forged steel butt-welded ball valve design is aimed at improving efficiency and ease of maintenance. The three-piece design facilitates quick repairs, reducing downtime and ensuring continuous system operation. The forged steel structure guarantees durability and strength, while the butt-welded connection ensures safe and leak-proof installation. It is highly suitable for various industries.
