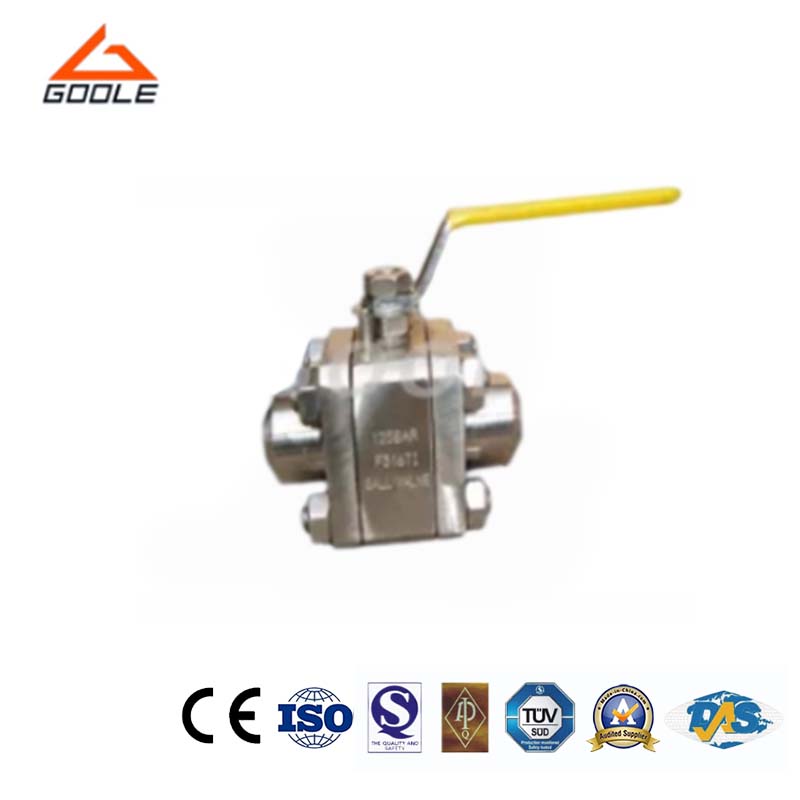

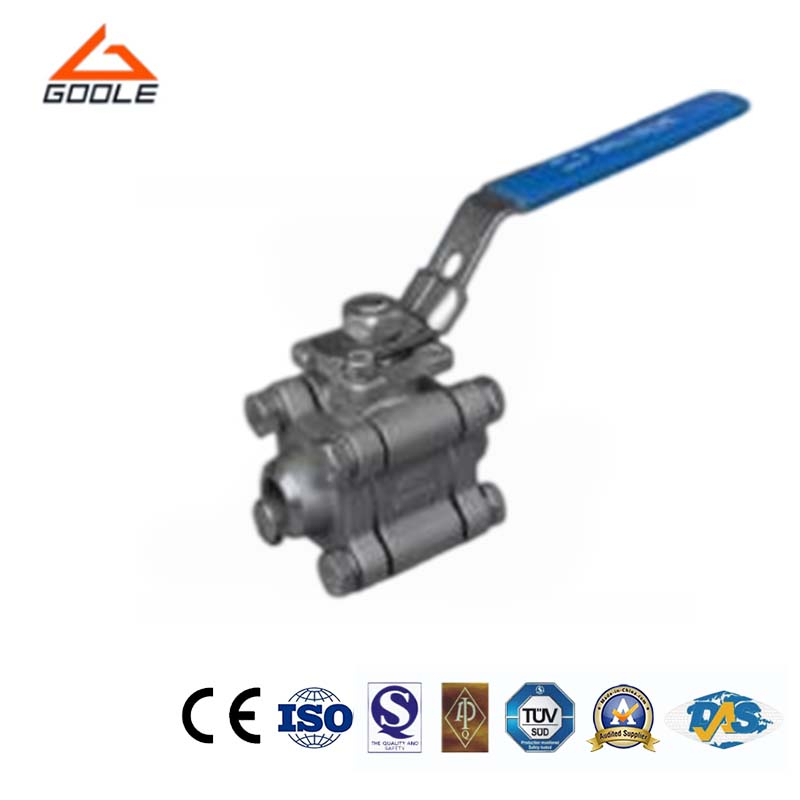

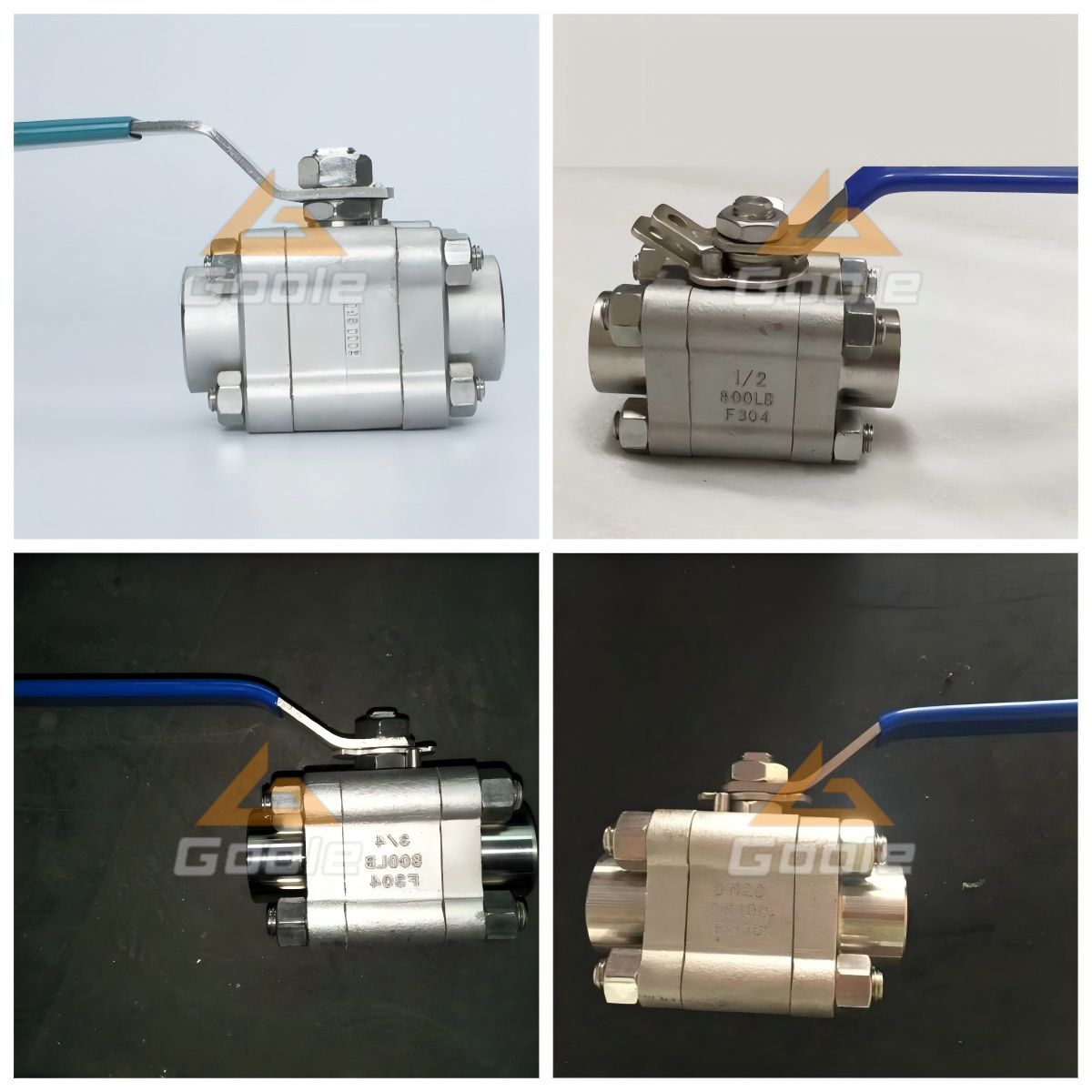

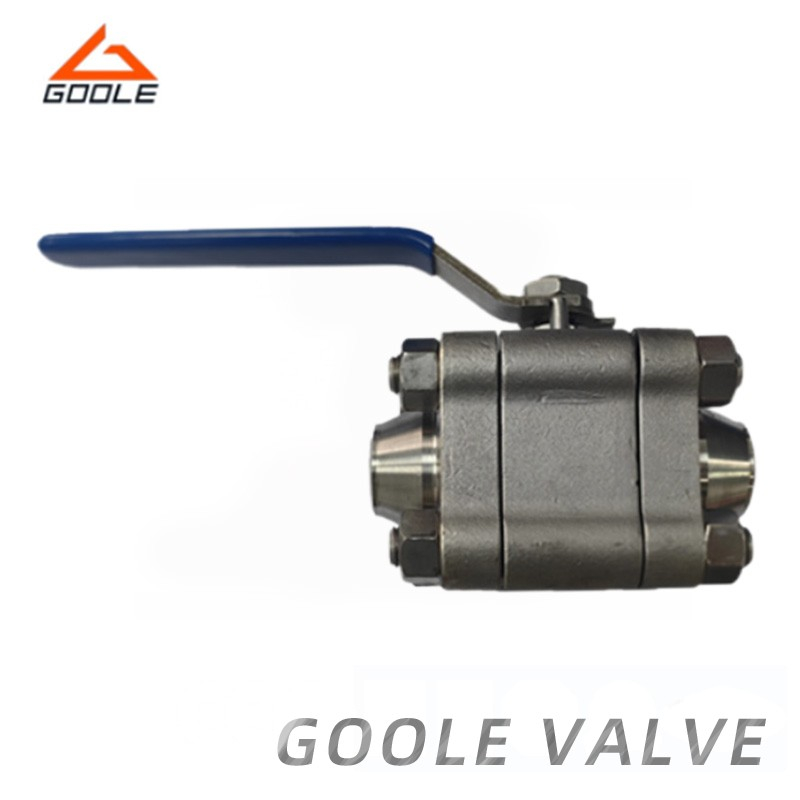

The three piece forged steel butt welded ball valve is designed specifically for high-performance fluid control in industrial systems, emphasizing ease of maintenance and long-term reliability. The three piece design simplifies disassembly and reassembly, reduces downtime, and improves overall maintainability.
The valve is connected by butt welding, providing a secure leak proof fit, ensuring safe installation, and minimizing the risk of fluid leakage. The size of this valve ranges from 3/8 inch to 2 inches and can operate at pressures up to 1500 pounds, designed specifically for high-pressure environments. It can control various fluids, including water, oil, air, and some corrosive liquids, making it a powerful solution for industries where performance and reliability are crucial.
● Forged Steel Construction: Provides excellent strength and durability, ensuring reliable performance even in challenging environments.
● Corrosion-Resistant Materials: This valve is made of high-quality carbon steel, which has excellent durability and corrosion resistance, and is suitable for various fluids.
● Wide Temperature Range: This valve can provide hard or soft seals and can handle a wide range of temperatures, with hard seals ranging from -40 ° C to 300 ° C and soft seals ranging from -40 ° C to 180 ° C.
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
Main Dimensions
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.50 | 3.38 | 4.00 | 6.00 | 7.00 | 9.25 | 9.88 | 11.00 | 12.62 | / |
| mm | 55 | 55 | 65 | 85 | 100 | 150 | 180 | 235 | 250 | 280 | 320 | / | |
| W | in | 8 | 8 | 12 | 12 | 16 | 16 | 24 | 24 | 24 | 24 | 32 | / |
| mm | 200 | 200 | 300 | 300 | 400 | 400 | 600 | 600 | 600 | 600 | 800 | / | |
| WT(Kg) | RF | 3.1 | 4.1 | 6 | 9.5 | 12.8 | 20 | 26 | 45 | 126 | 216 | 270 | / |
| BW | 2.6 | 3.9 | 5.2 | 8.7 | 11.8 | 19 | 28 | 47 | 131 | 226 | 295 | / |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q1:What is the benefit of the three-piece design?
The three-piece design allows for easy disassembly and reassembly, reducing maintenance time and ensuring quick repairs when needed, making it highly efficient for industrial use.
Q2:What type of connection does the valve have?
The valve features butt-welded connections, providing a secure, leak-proof fit for reliable operation in demanding industrial systems.
Our three piece forged steel butt welded ball valve is designed to improve efficiency and be easy to maintain. The three piece design enables quick maintenance, minimizes downtime, and ensures your system stays running. The forged steel structure ensures durability and strength, while the butt welding connection ensures safe and leak proof installation. Very suitable for various industries.
