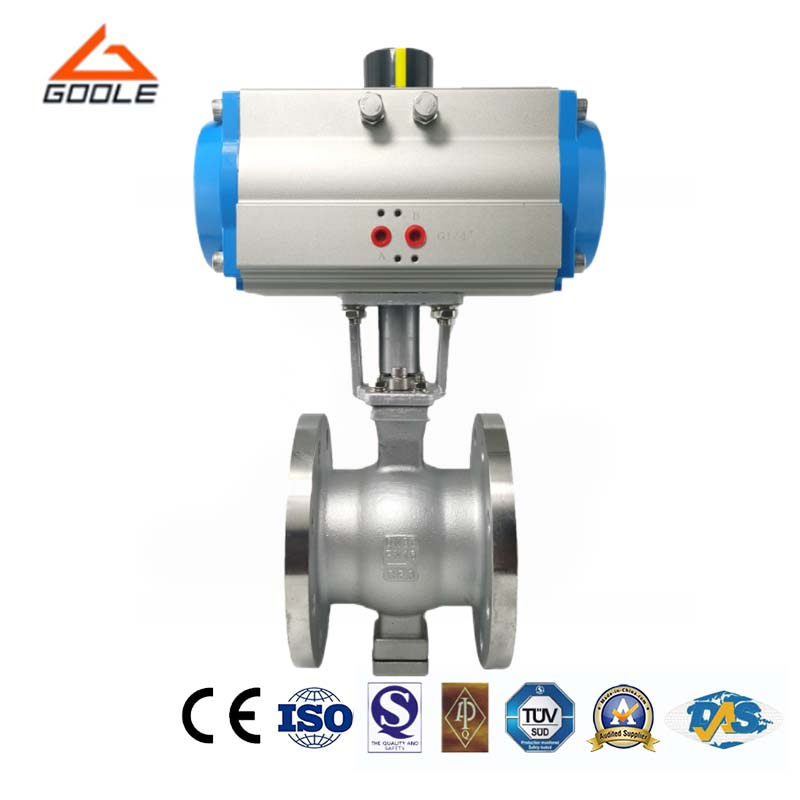

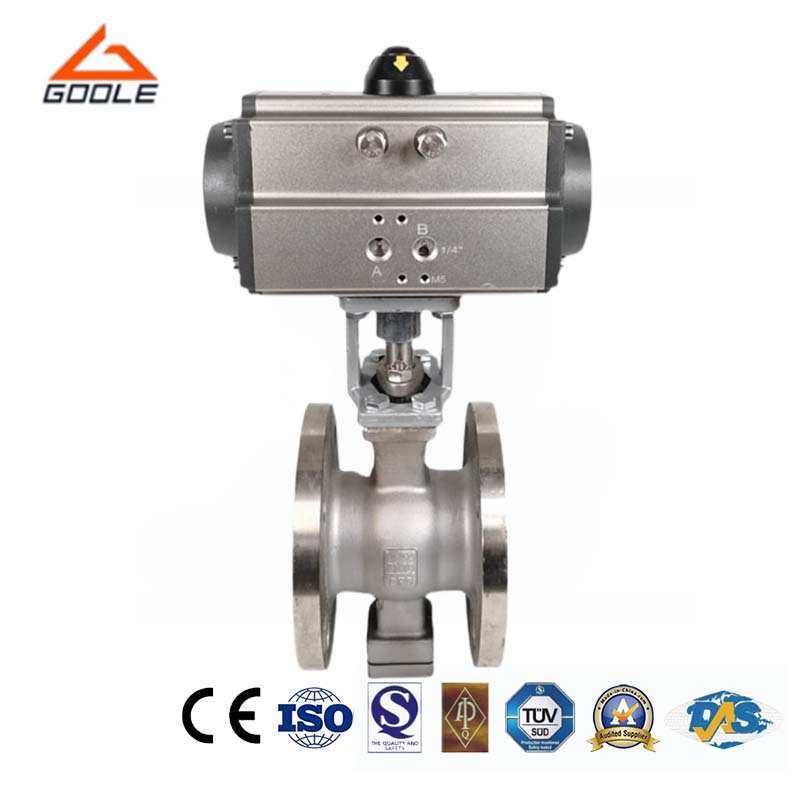

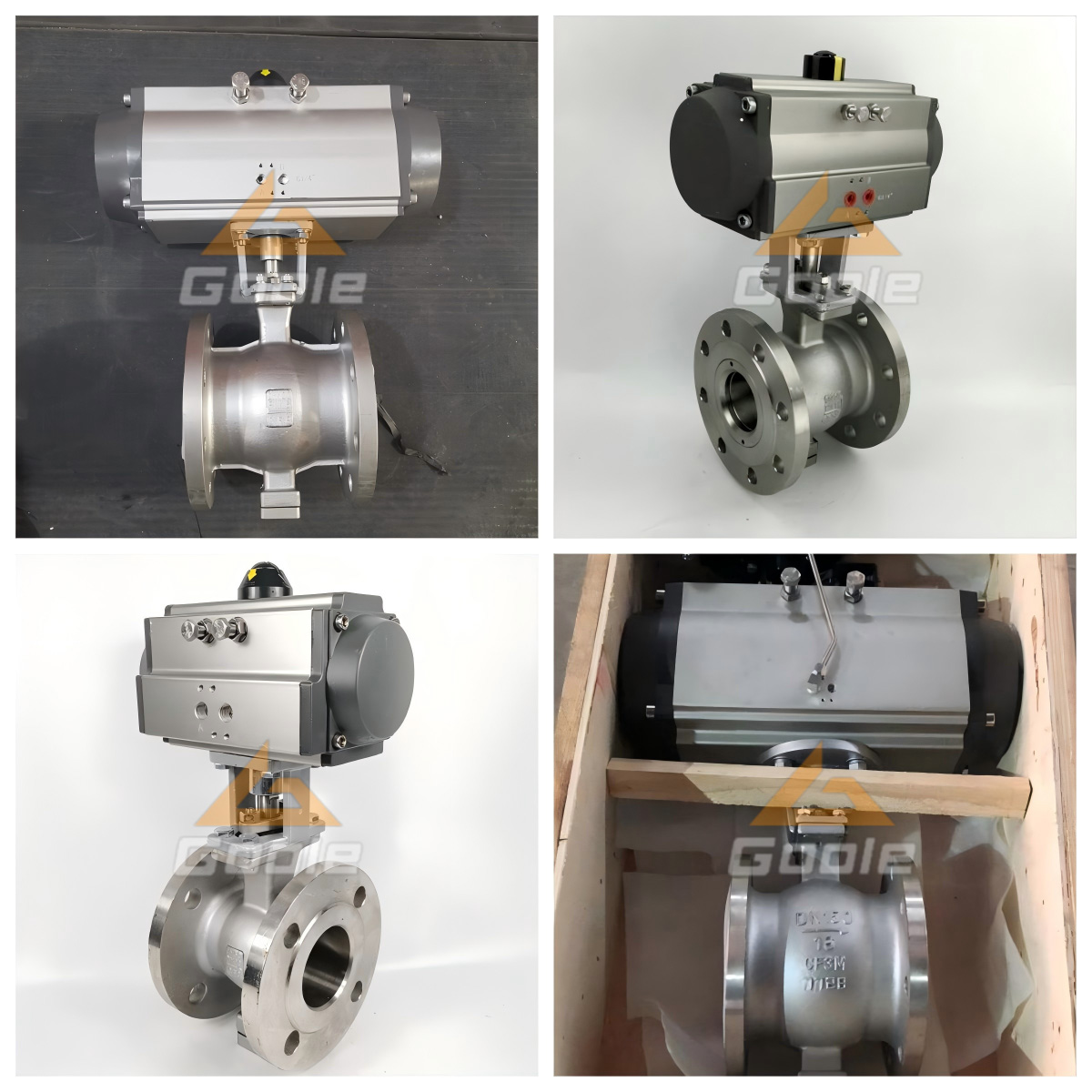

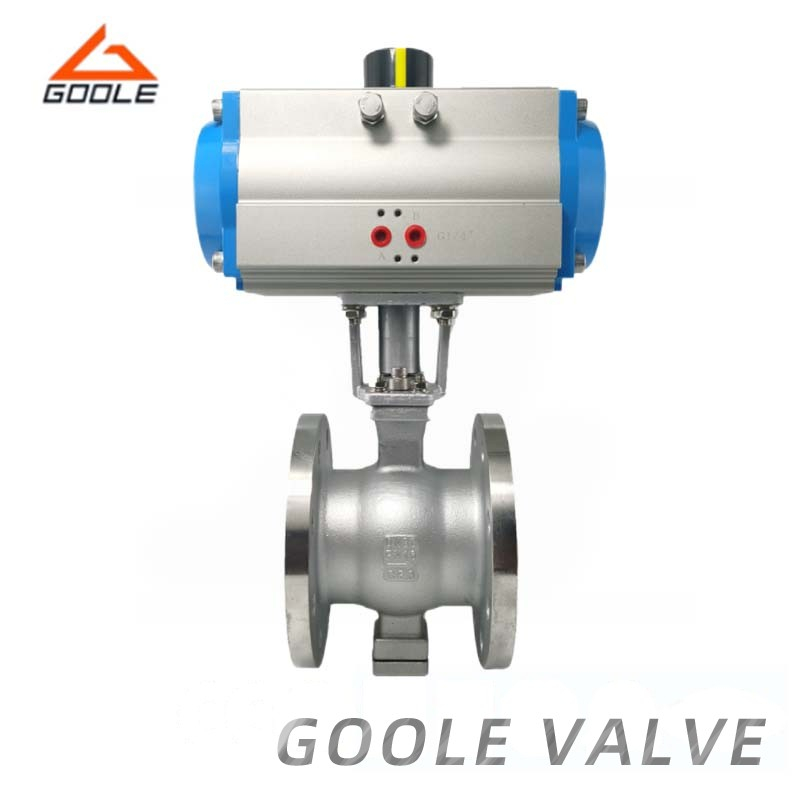

Pneumatic V-shaped regulating ball valve is a rotary ball valve with a core seat made of metal or metal to PTFE sealing and matching. It combines the best control characteristics of the ball valve and butterfly valve into one, and can be used as both a control regulating valve and a shut-off valve.
●V Incision Design:The shear force between the ball and the metal seat type V incision, especially suitable for containing fiber and small solid particle, pulp and other medium.
●Small Pressure Loss:Fully open flow capacity, small pressure loss, and the media will not deposit in the body cavity.
●Long Service Life:Using a spring-loaded movable seat structure , Preventing the occurrence of ball core and valve seat from jamming or other issues, reliable sealing and long service life.
●Accurate Regulation:The valve has the advantages of accurate regulation and reliable positioning function, approximately equal percentage flow characteristics, large adjustable range, the maximum adjustable ratio 100:1.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the V Incision design?
The unique V-port design not only optimizes fluid flow but also reduces pressure loss and improves the efficiency of the overall system.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
The excellent performance and stability of our pneumatic V-ball valves has been widely validated in numerous industrial applications. In high high high and harsh environment, our pneumatic V-shaped ball valves provide reliable performance in fine operations that requiring precise flow control. The design is user-friendly, making the installation, maintenance and operation become simple and fast. The unique V-port design not only optimizes fluid flow but also reduces pressure loss and improves the efficiency of the overall system. In addition, we provide comprehensive after-sales service and technical support to ensure that customers can get timely help and solve any problems in the use process.
