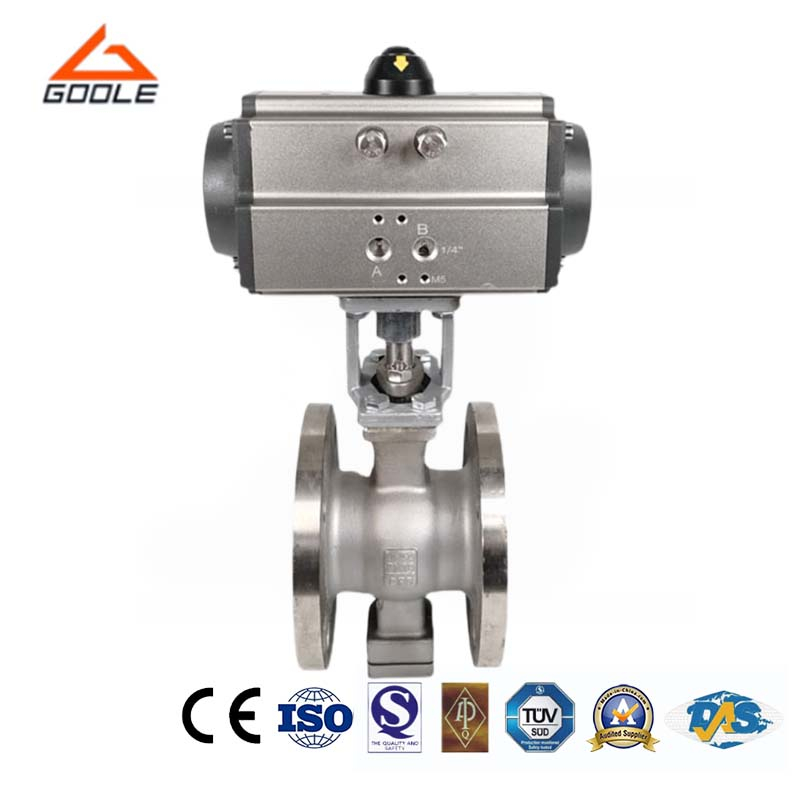

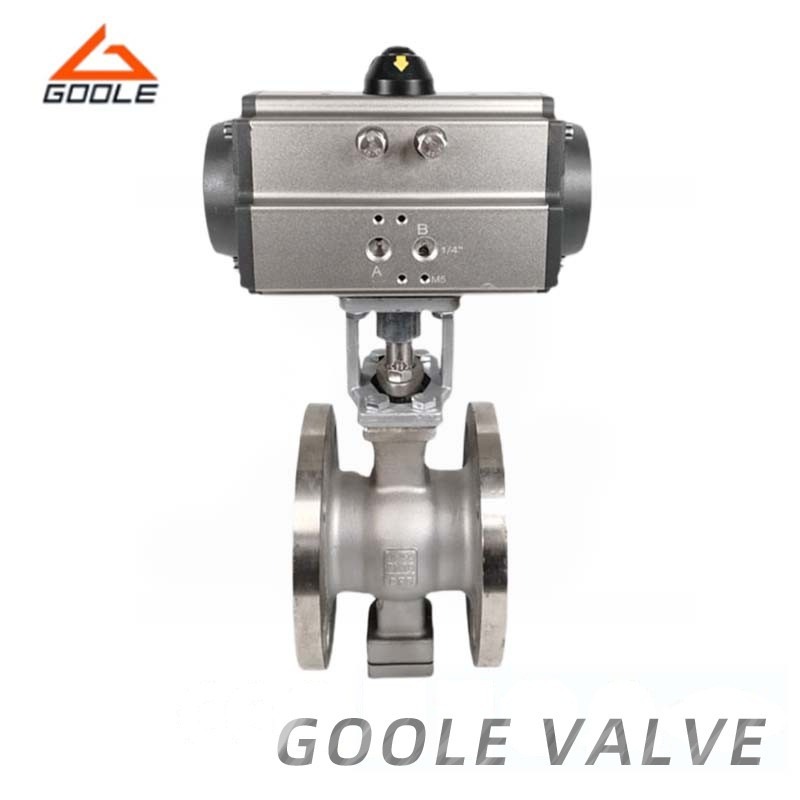

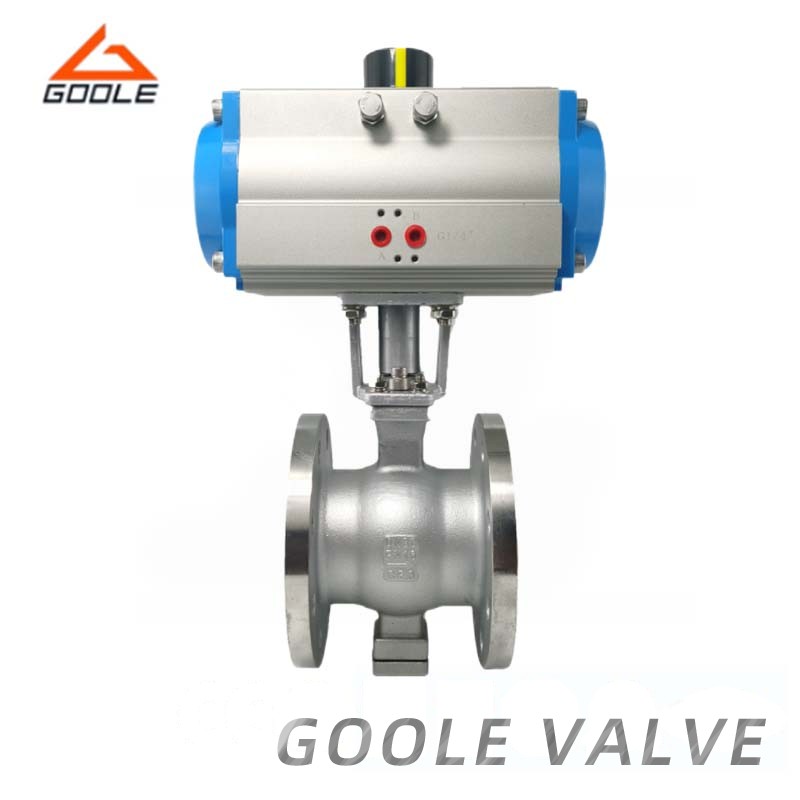

Pneumatic V-shaped regulating ball valve is a rotary ball valve, with a core seat made of metal or metal matched with PTFE seal. It combines the optimal control characteristics of ball valves and butterfly valves, and can be used as both a control regulating valve and a globe valve.
●V Incision Design:The shear force between the ball and the metal seat type V incision, especially suitable for containing fiber and small solid particle, pulp and other medium.
●Small Pressure Loss:Fully open flow capacity, small pressure loss, and the media will not deposit in the body cavity.
●Long Service Life:Using a spring-loaded movable seat structure , Preventing the occurrence of ball core and valve seat from jamming or other issues, reliable sealing and long service life.
●Accurate Regulation:The valve has the advantages of accurate regulation and reliable positioning function, approximately equal percentage flow characteristics, large adjustable range, the maximum adjustable ratio 100:1.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the V Incision design?
The unique V-port design not only optimizes fluid flow but also reduces pressure loss and improves the efficiency of the overall system.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
The excellent performance and stability of our pneumatic V-ball valve have been widely validated in numerous industrial applications. In high, high, and harsh environments, our pneumatic V-ball valve provides reliable performance in delicate operations that require precise flow control. This design is user-friendly, making installation, maintenance, and operation simple and fast. The unique V-shaped port design not only optimizes fluid flow, but also reduces pressure loss and improves the efficiency of the entire system. In addition, we provide comprehensive after-sales service and technical support to ensure that customers can receive timely assistance and solve any problems during use.
