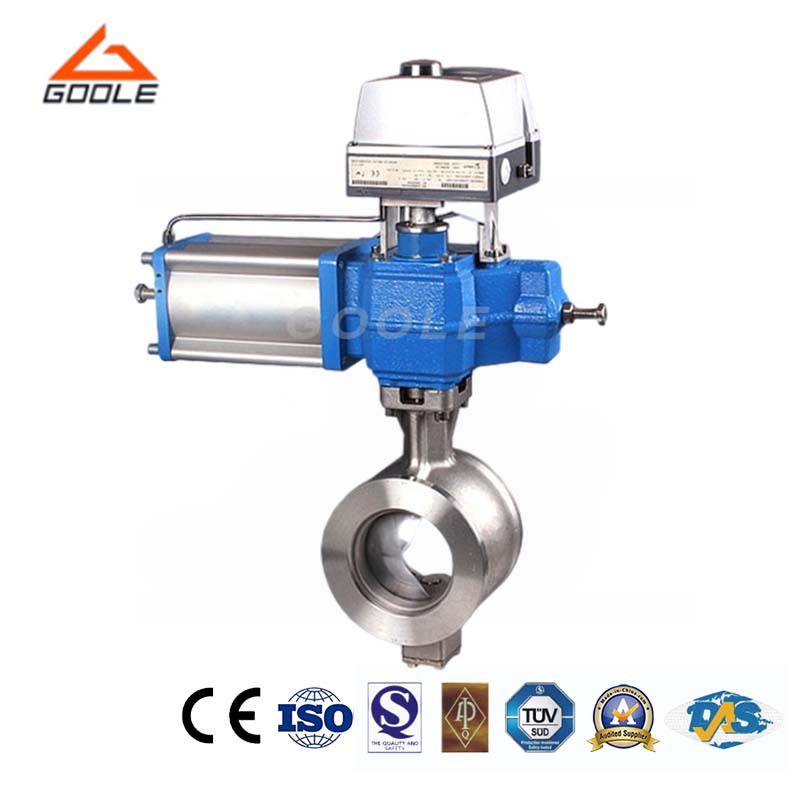

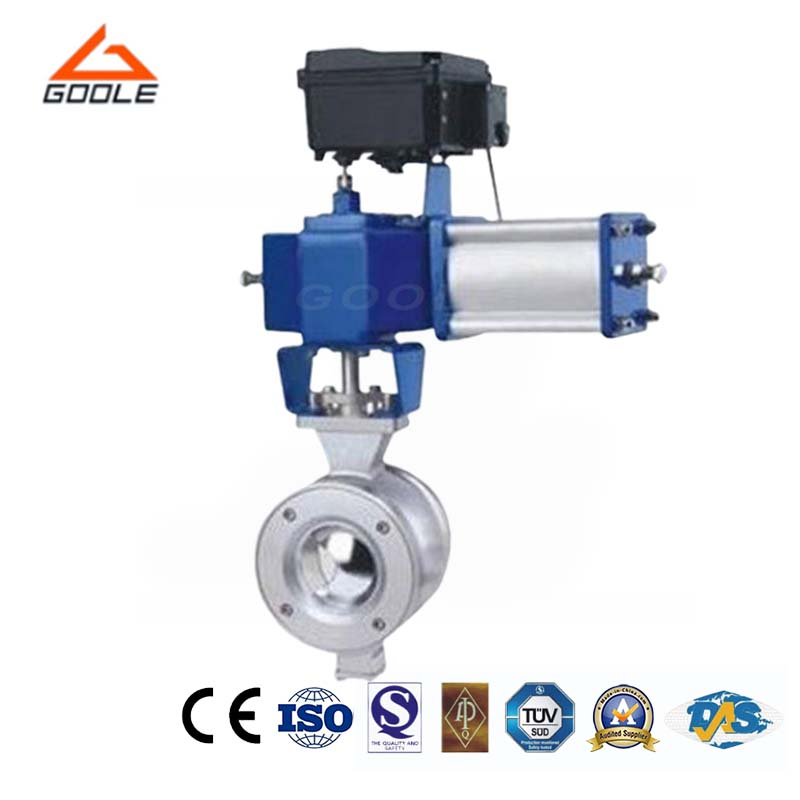

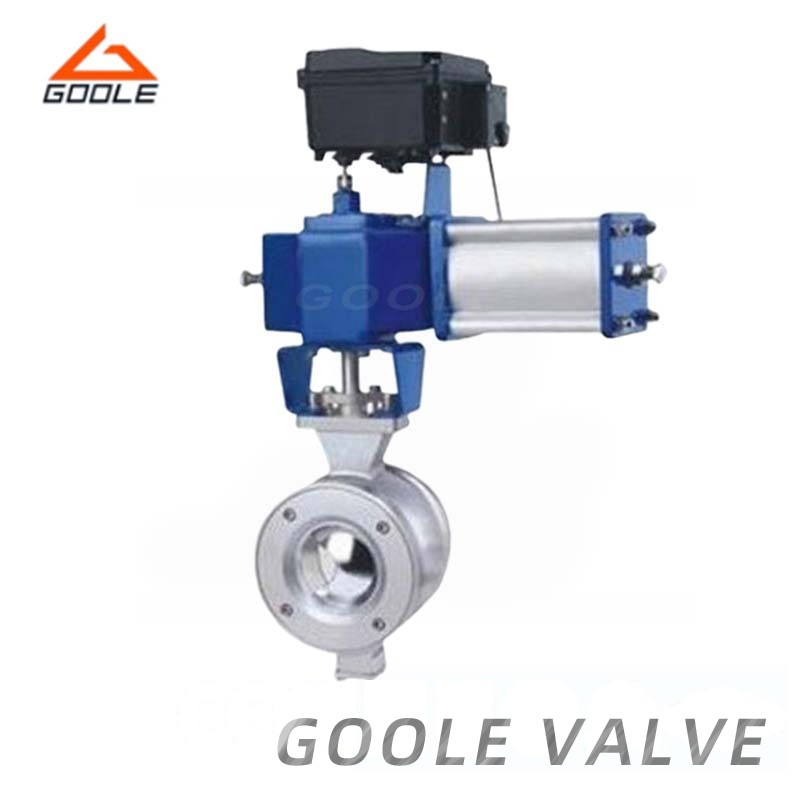

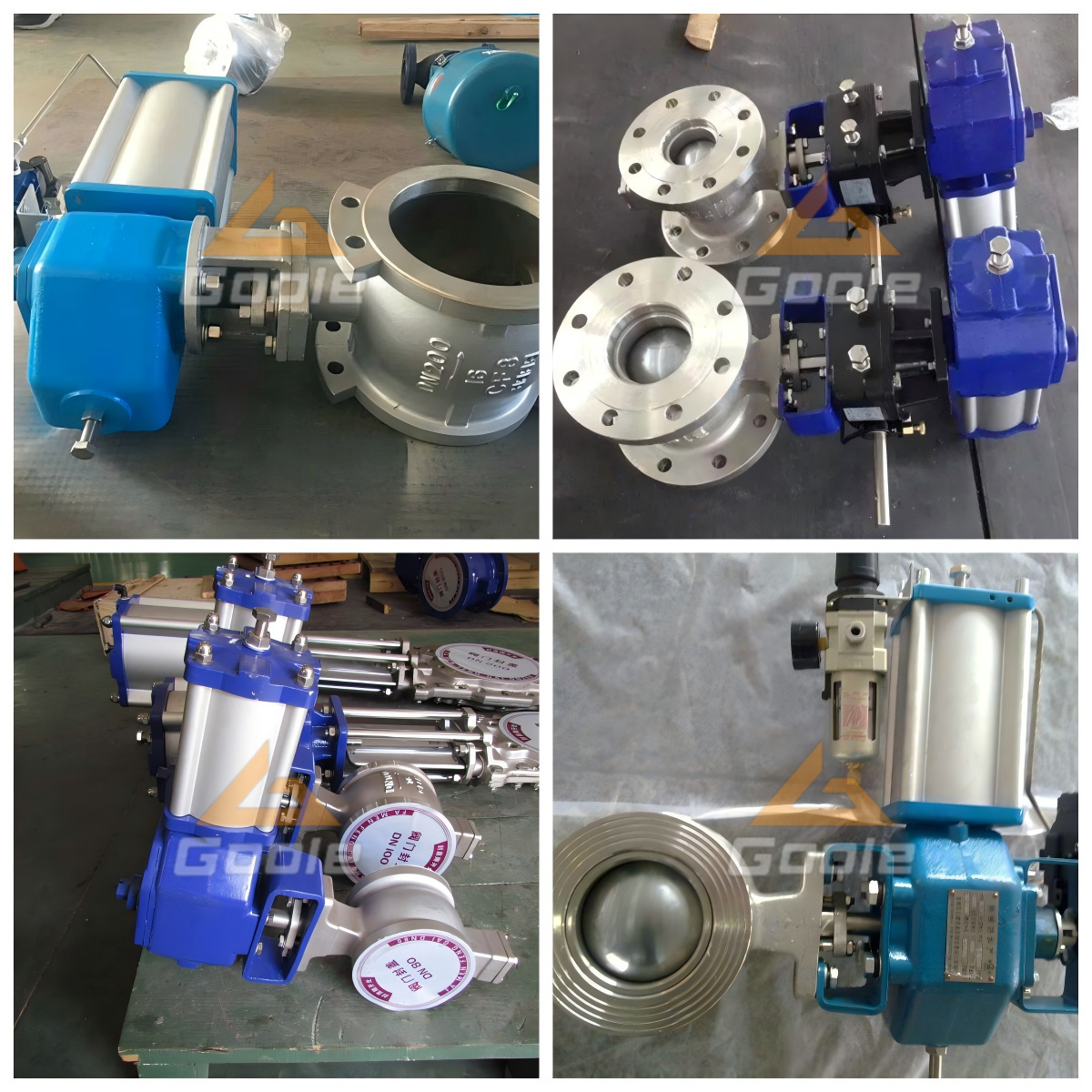

Pneumatic V-shaped regulating ball valve is a newly developed hard sealed and PTFE sealed regulating ball valve. It adopts a movable valve seat structure loaded with leaf springs, which will not cause jamming or detachment between the valve seat and the sphere. The sealing is reliable and the service life is long. The V-shaped ball valve core is designed with a V-shaped notch with a special switch, which has a large flow capacity, low pressure loss, and precise interception and control functions. The flow characteristics are approximately equal in percentage. The opening and closing components adopt a V-shaped spherical defect structure, completely solving the problem of medium deposition in the valve chamber.
● V incision design: the shear force between the ball and the metal seat V incision is especially suitable for the medium containing fibers, small solid particles, pulp, etc.
● Small pressure loss: fully open flow, minimum pressure loss, the medium will not be deposited in the body cavity.
● Long service life: the use of the valve seat structure with spring loading movable seat structure, to prevent the ball core and the valve seat and other problems, to ensure reliable sealing, long service life.
● Accurate adjustment: the valve has the advantages of accurate adjustment, reliable positioning function, approximate flow characteristics, large adjustment range, and the maximum adjustment ratio of 100:1.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the V Incision design?
The unique v-shaped port design not only optimizes fluid flow but also reduces pressure loss, thereby increasing the efficiency of the entire system.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
Our pneumatic V-type ball valve has proven its worth in numerous industrial applications due to its outstanding performance and stability. Even under high temperatures, high pressures, and harsh conditions, it can still provide stable and reliable performance in precise flow control operations. The valve design focuses on user experience, simplifying installation, maintenance, and operation procedures for greater convenience and speed. The unique design of the V-port not only optimizes fluid flow but also reduces pressure loss, thereby enhancing the efficiency of the entire system. Additionally, we offer comprehensive after-sales service and technical support to ensure that customers receive timely assistance and can resolve any issues encountered during use.
