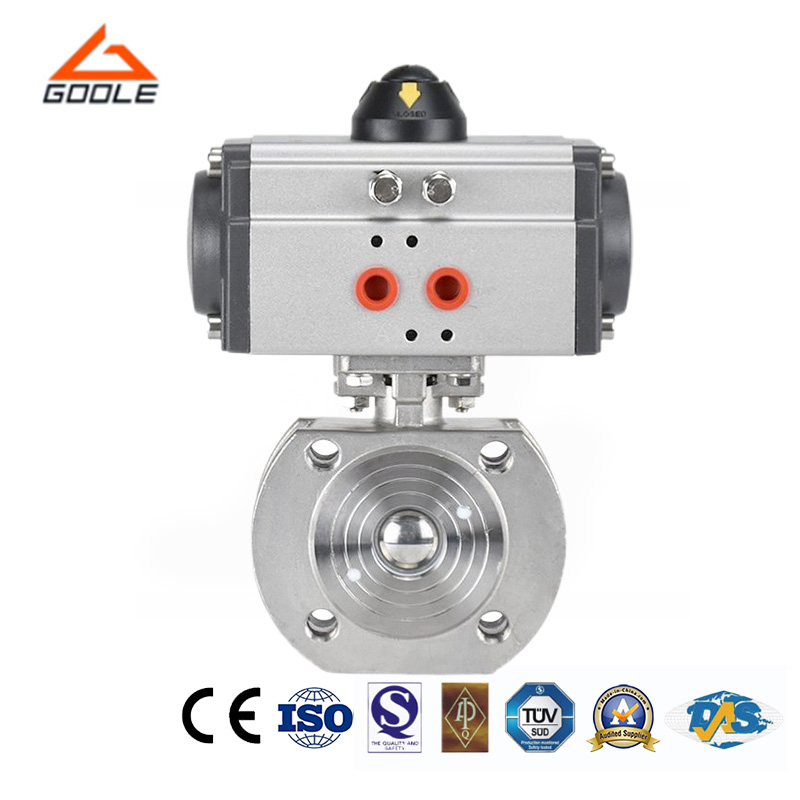

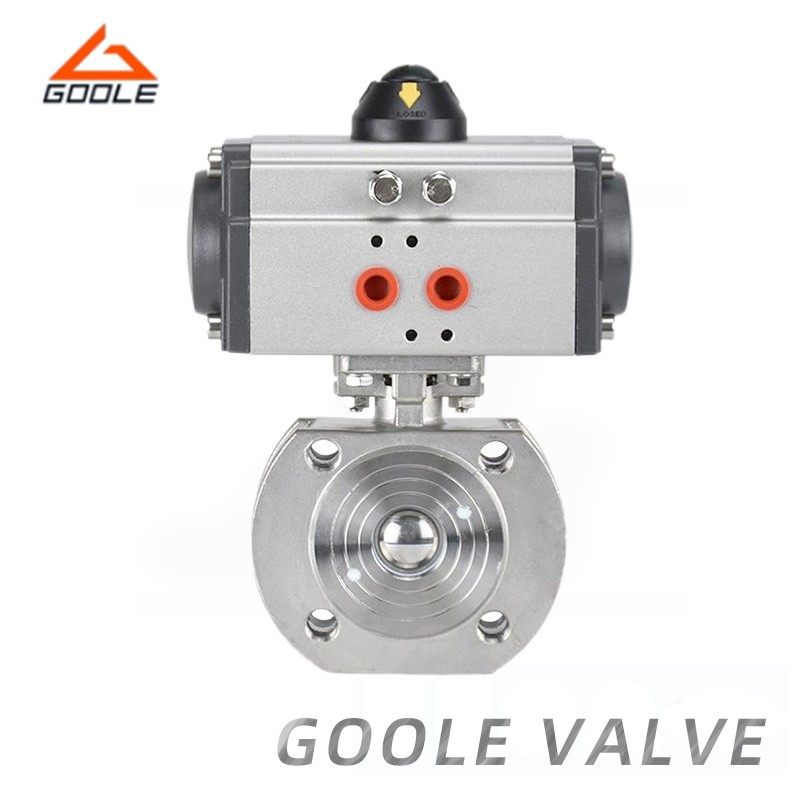

Pneumatic wafer type ball valve is a ball valve equipped with an electric actuator. The execution speed of the electric actuator is relatively fast and does not require manual labor, which greatly saves human resources and time.Pneumatic wafer type ball valves are compact, small in size, and lightweight, making them easy to install and maintain. They offer excellent sealing performance, effectively preventing medium leakage and ensuring system stability and safety. Additionally, these ball valves have good corrosion resistance and heat tolerance, making them suitable for various harsh operating conditions, thereby enhancing the efficiency and reliability of industrial production.
●Wafer Type Design:Provides heat preservation and cold insulation, ensuring stable media temperature during transport.
●Flanged or Wafer Connection:Allows for flexible and secure installation into existing pipeline systems.
●Heat-Resistant Materials: Made from stainless steel and carbon steel body for improved pressure resistance and durability.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the Wafer Type design?
The wafer type design, compact structure, easy to install and maintain, greatly reduce the cost of use.
Q:What types of media can this valve handle?
This valve is ideal for high-viscosity media such as heavy oils, glue, and other substances prone to solidifying at normal temperatures.
First, our pneumatic wafer type ball valves are made of high quality materials to ensure their excellent durability and reliability. Secondly, the unique design, compact structure, easy to install and maintain, greatly reduce the cost of use. Moreover, our ball valve has good sealing performance, can effectively prevent media leakage, to ensure the safety of the system. Finally, we provide comprehensive pre-sale and after-sales service to ensure that customers receive timely technical support and solutions during the use process.
