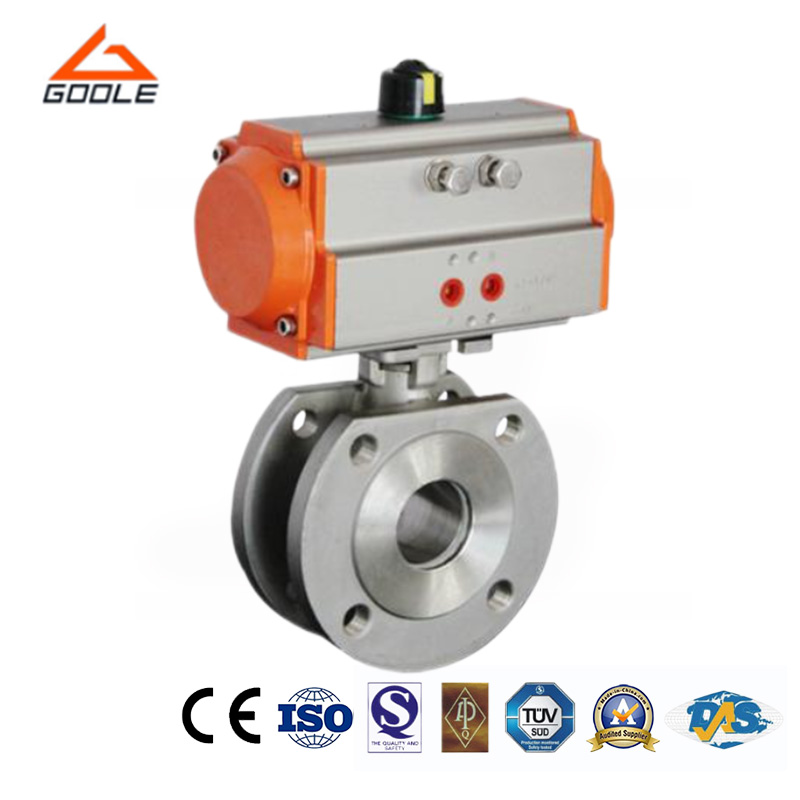

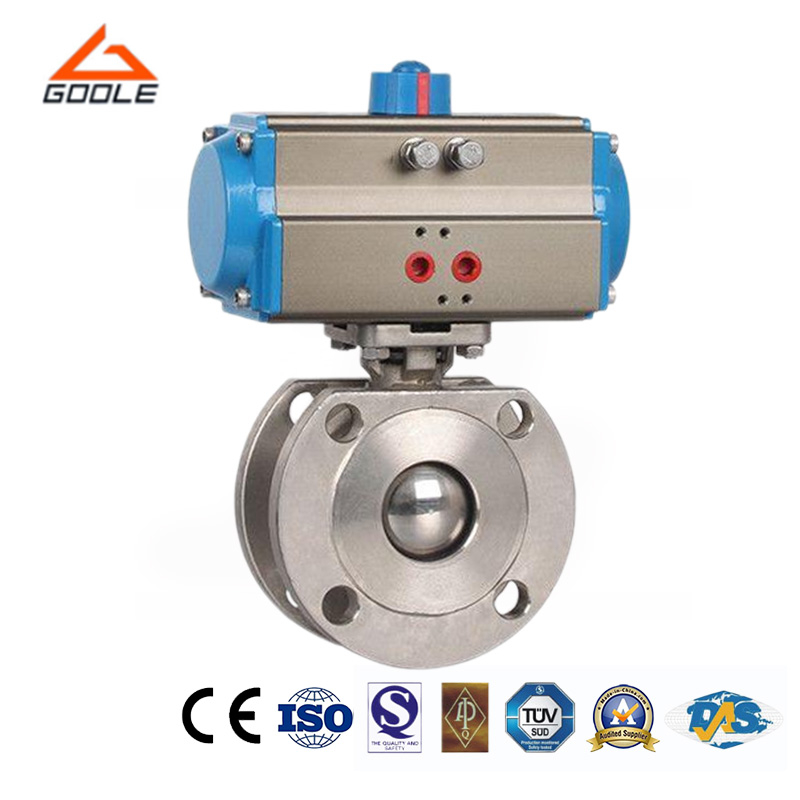

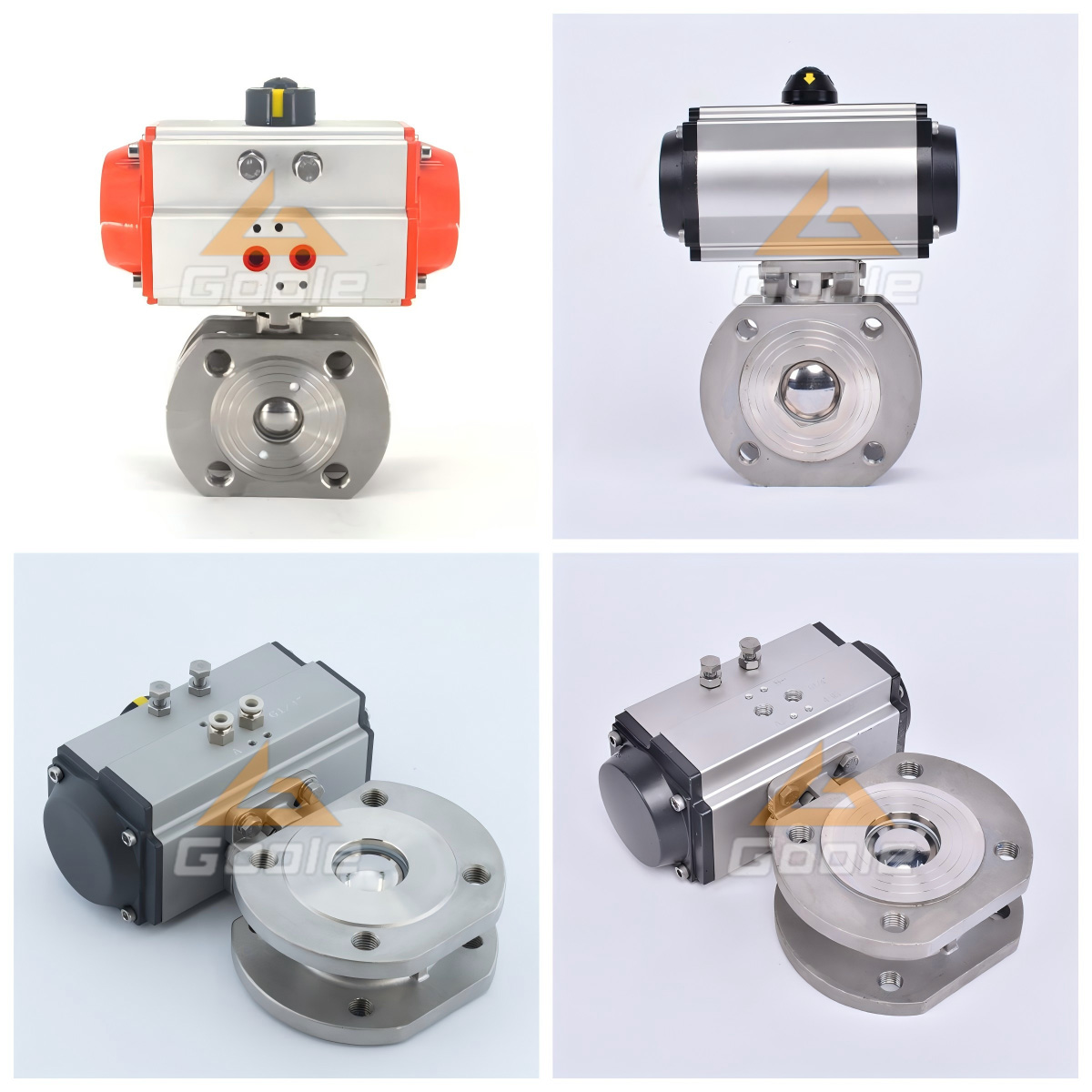

Pneumatic wafer type ball valves are equipped with electric actuators, which can achieve fast execution speed without manual intervention, significantly saving manpower and time resources. Its structural design is compact, small in size, lightweight, and easy to install and maintain. In addition, the sealing performance of the ball valve is excellent, effectively preventing medium leakage and ensuring the stability and safety of the system. At the same time, it also exhibits excellent corrosion resistance and high temperature resistance, adapting to various harsh working environments, thereby improving the efficiency and reliability of industrial production.
● Wafer Type design: Provides insulation and cooling to ensure temperature stability of the medium during transportation.
● Flange or chip connection: Allows flexible and safe installation into existing piping systems.
● Heat resistant material: Made of stainless steel and carbon steel, which improves pressure resistance and durability.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the Wafer Type design?
The wafer type design, compact structure, easy to install and maintain, greatly reduce the cost of use.
Q:What types of media can this valve handle?
This valve is ideal for high-viscosity media such as heavy oils, glue, and other substances prone to solidifying at normal temperatures.
Our pneumatic wafer type ball valves are made of high-quality materials, ensuring excellent durability and reliability. The unique design, compact structure, easy installation and maintenance greatly reduce the cost of use. In addition, our ball valves have excellent sealing performance, which can effectively prevent medium leakage and ensure system safety. Finally, we provide comprehensive pre-sales and after-sales services to ensure that customers receive timely technical support and solutions during use.
