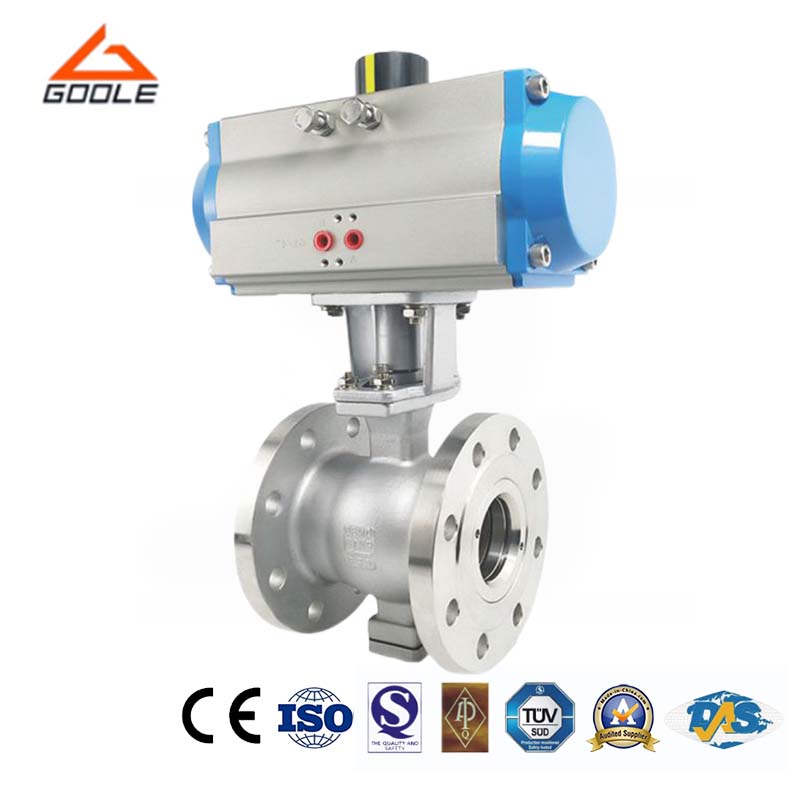

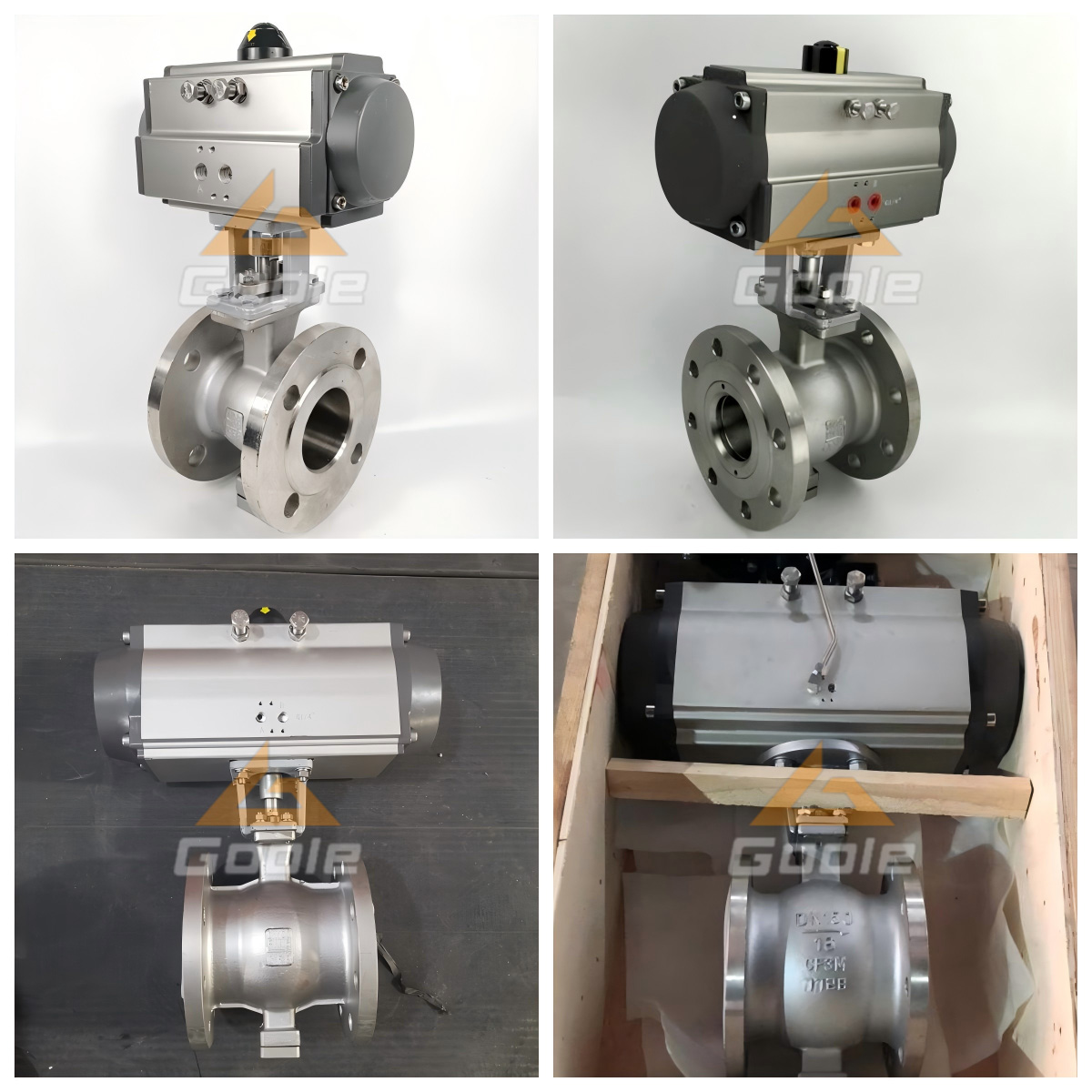

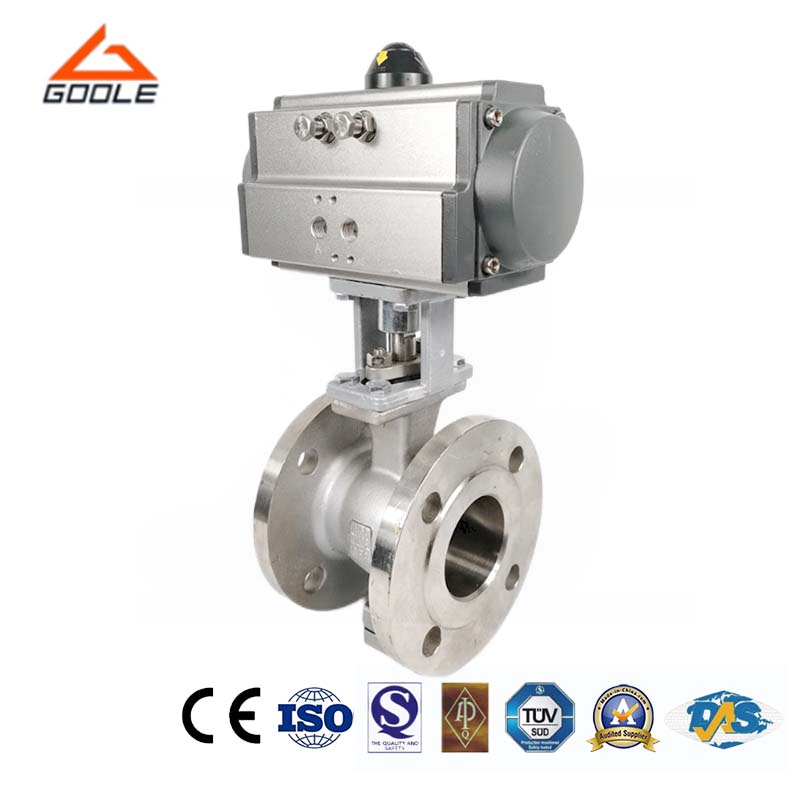

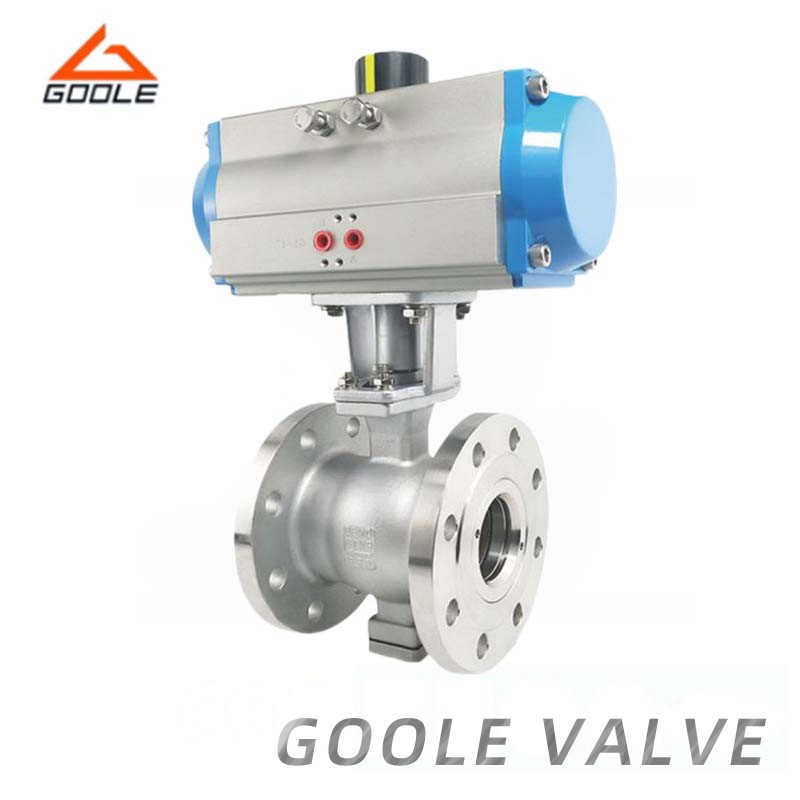

The pneumatic V-type control ball valve is a rotating ball valve made of metal or metal sealing material that works together with PTFE. They incorporate the optimal control characteristics of ball and butterfly valves, allowing them for use as both control and stop valves. The pneumatic V-type control ball valve has a unique design; its V-type opening ensures excellent conditioning and precise control. These valves are compact and lightweight for easy installation and maintenance. In the fluid control system, the pneumatic V-type control ball valve can stably adjust the flow, pressure and temperature of the medium to ensure the stable operation of the system.
● V incision design: the shear force between the ball and the metal seat V incision is especially suitable for the medium containing fibers, small solid particles, pulp, etc.
● Small pressure loss: fully open flow, minimum pressure loss, the medium will not be deposited in the body cavity.
● Long service life: the use of the valve seat structure with spring loading movable seat structure, to prevent the ball core and the valve seat and other problems, to ensure reliable sealing, long service life.
● Accurate adjustment: the valve has the advantages of accurate adjustment, reliable positioning function, approximate flow characteristics, large adjustment range, and the maximum adjustment ratio of 100:1.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the V Incision design?
The unique V-shaped port design not only optimizes fluid flow, but also reduces pressure loss, thereby improving the efficiency of the entire system.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
Our pneumatic v-type ball valve has been widely verified in many industrial applications due to its excellent performance and stability. Even in high temperatures, high pressures, and harsh environments, it can still provide reliable performance in fine operations that require precise flow control. The design is user-friendly and simplifies the installation, maintenance and operation process, making it simple and fast. The unique v-shaped port design not only optimizes fluid flow but also reduces pressure loss, thereby increasing the efficiency of the entire system. In addition, we also provide comprehensive after-sales service and technical support to ensure that customers get timely help in the use process to solve any problems that arise.
