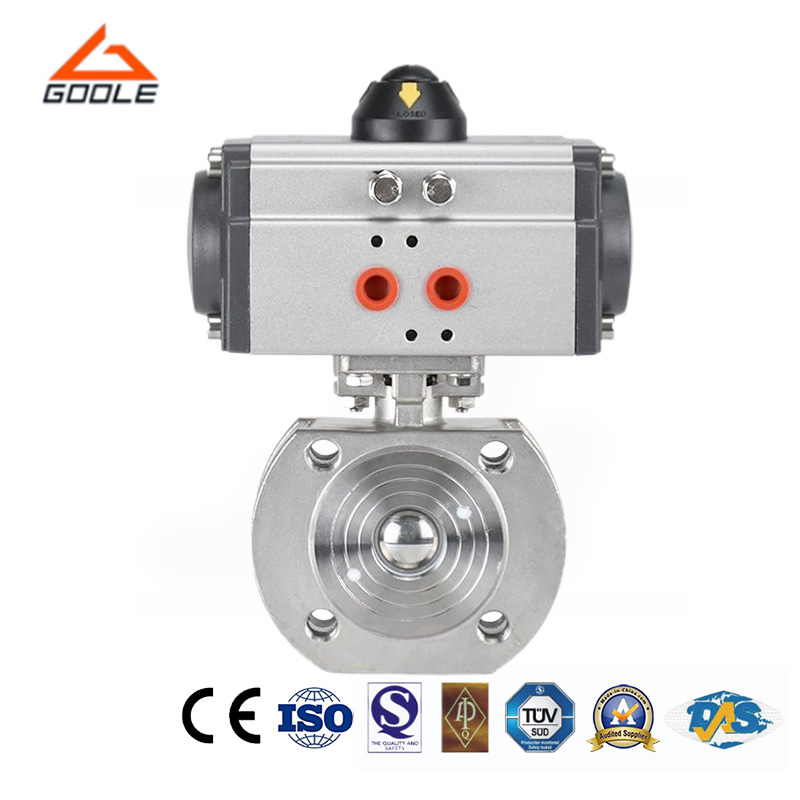

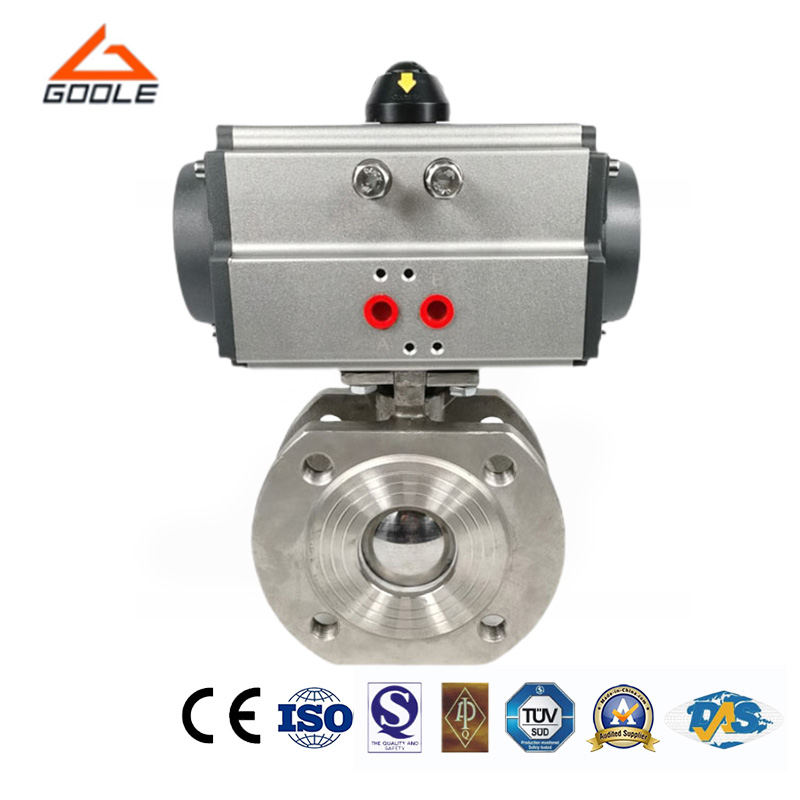

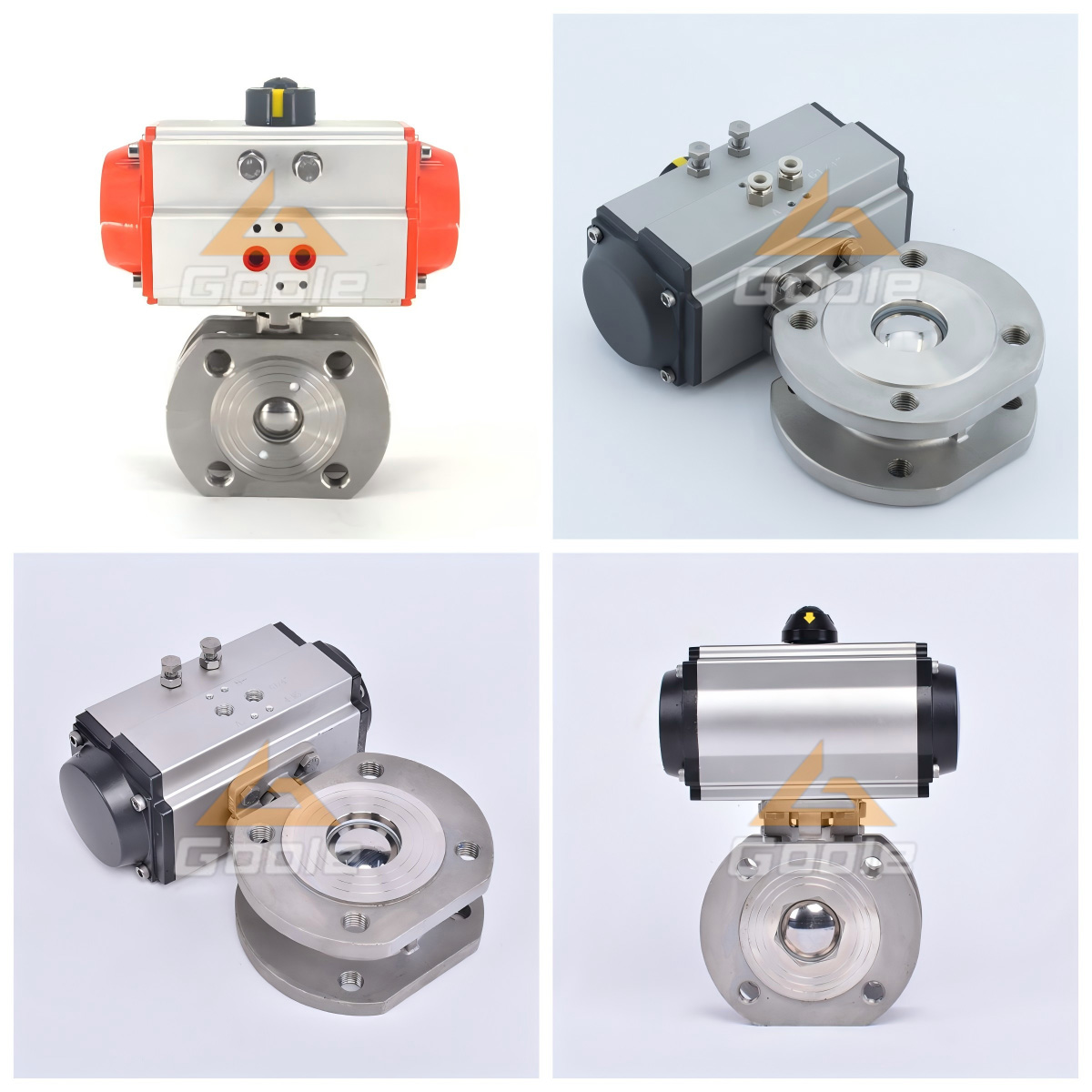

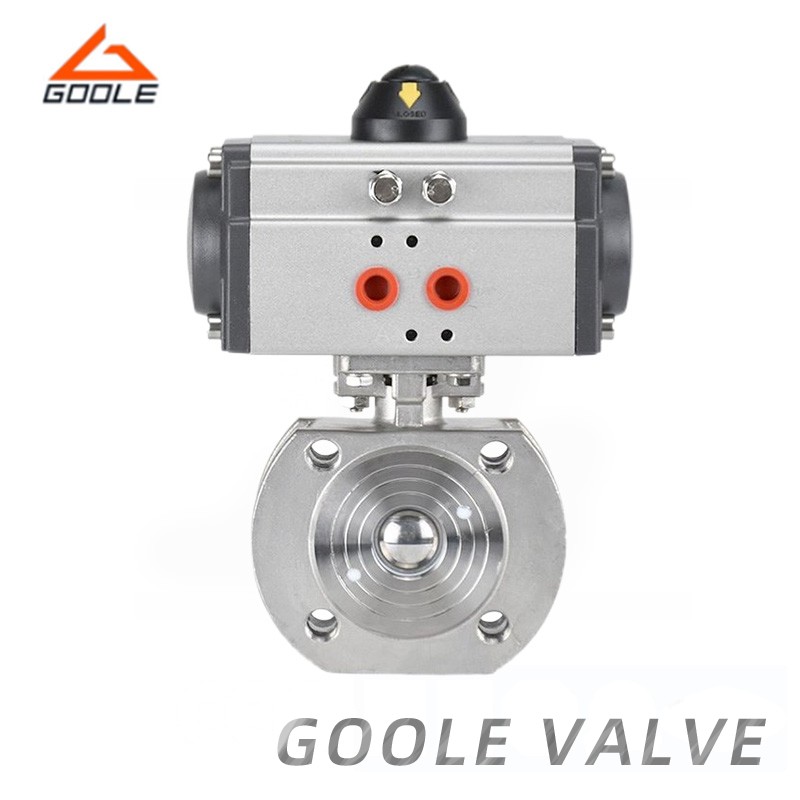

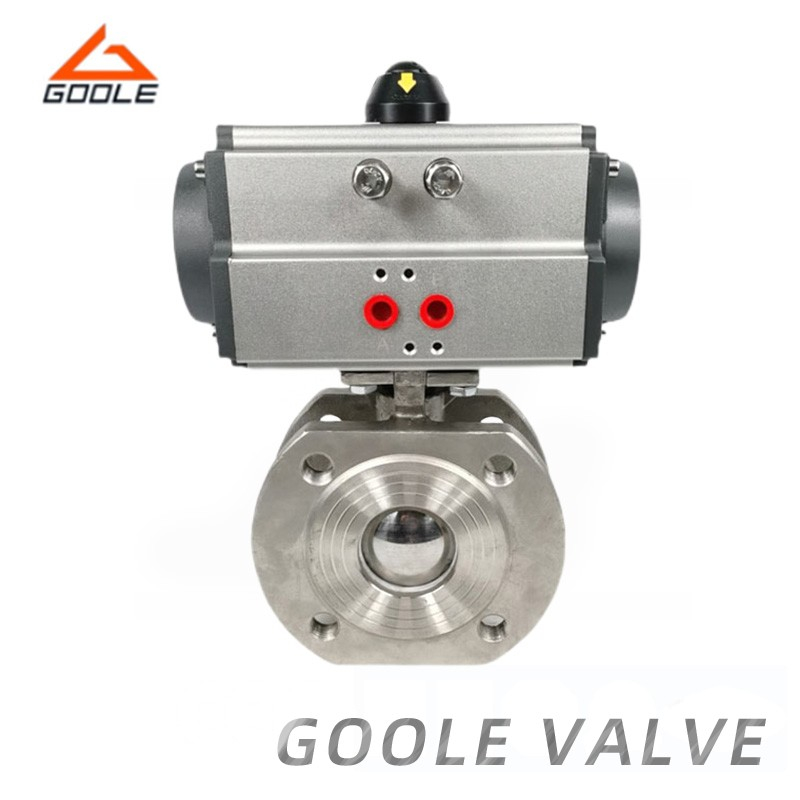

Pneumatic wafer type ball valve is a type of ball valve equipped with an electric actuator. The execution speed of electric actuators is relatively fast, without the need for manual labor, greatly saving human resources and time. Pneumatic wafer type ball valve has a compact structure, small volume, light weight, and is easy to install and maintain. They have excellent sealing performance, effectively preventing medium leakage and ensuring the stability and safety of the system. In addition, these ball valves have good corrosion resistance and heat resistance, making them suitable for various harsh operating conditions, thereby improving the efficiency and reliability of industrial production.
●Wafer Type Design:Provides heat preservation and cold insulation, ensuring stable media temperature during transport.
●Flanged or Wafer Connection:Allows for flexible and secure installation into existing pipeline systems.
●Heat-Resistant Materials: Made from stainless steel and carbon steel body for improved pressure resistance and durability.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the Wafer Type design?
The wafer type design, compact structure, easy to install and maintain, greatly reduce the cost of use.
Q:What types of media can this valve handle?
This valve is ideal for high-viscosity media such as heavy oils, glue, and other substances prone to solidifying at normal temperatures.
First, our pneumatic wafer type ball valve is made of high-quality materials to ensure its excellent durability and reliability. Secondly, the design is unique, the structure is compact, easy to install and maintain, greatly reducing the cost of use. In addition, our ball valves have excellent sealing performance, which can effectively prevent medium leakage and ensure the safety of the system. Finally, we provide comprehensive pre-sales and after-sales services to ensure that customers receive timely technical support and solutions during use.
