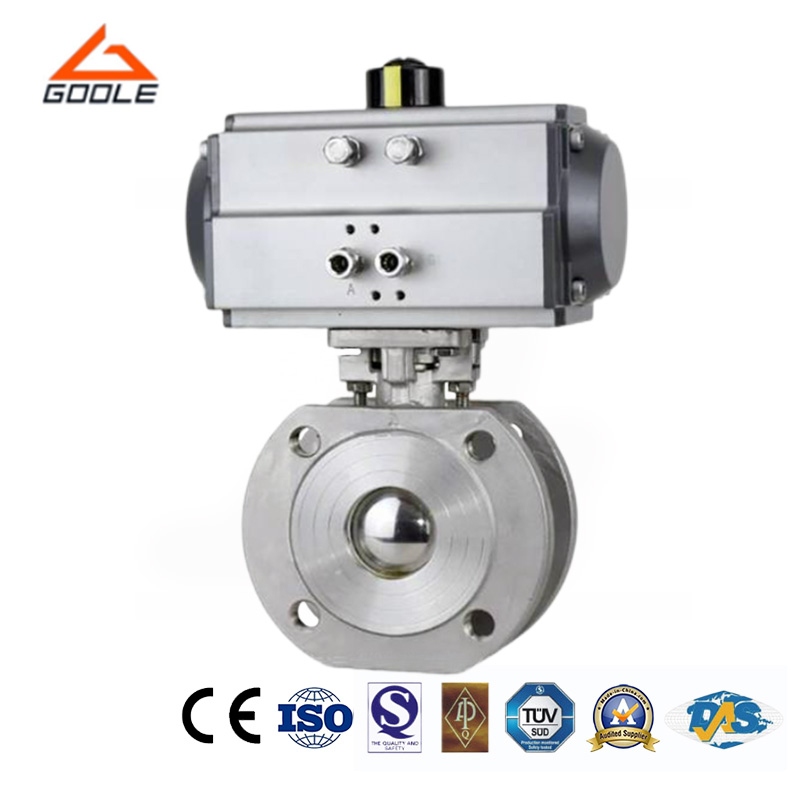

The pneumatic wafer type ball valve is equipped with electric actuator, which achieves fast execution speed without manual intervention, and significantly saves human and time resources. Its structure design is compact, compact size, light weight, easy to installation and maintenance work. In addition, the sealing performance of the ball valve is excellent, effectively preventing media leakage, and ensuring the stability and safety of the system. At the same time, it also shows excellent corrosion resistance and high temperature resistance characteristics, adapting to a variety of harsh working environment, thus improving the efficiency and reliability of industrial production.
●Wafer Type Design:Provide insulation and cooling to ensure stable temperature of the medium during transportation.
●Flanged or Wafer Connection:Allows for flexible and secure installation into existing pipeline systems.
●Heat-Resistant Materials: Made of stainless steel and carbon steel, it improves pressure resistance and durability.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the Wafer Type design?
The wafer type design, compact structure, easy to install and maintain, greatly reduce the cost of use.
Q:What types of media can this valve handle?
This valve is ideal for high-viscosity media such as heavy oils, glue, and other substances prone to solidifying at normal temperatures.
First, our pneumatic wafer-type ball valve is made of high-quality materials to ensure its excellent durability and reliability. Secondly, the unique design, compact structure, and easy installation and maintenance greatly reduce the cost of use. In addition, our ball valves have excellent sealing performance, which can effectively prevent medium leakage and ensure the safety of the system. Finally, we provide comprehensive pre-sales and after-sales services to ensure that customers receive timely technical support and solutions during use.
