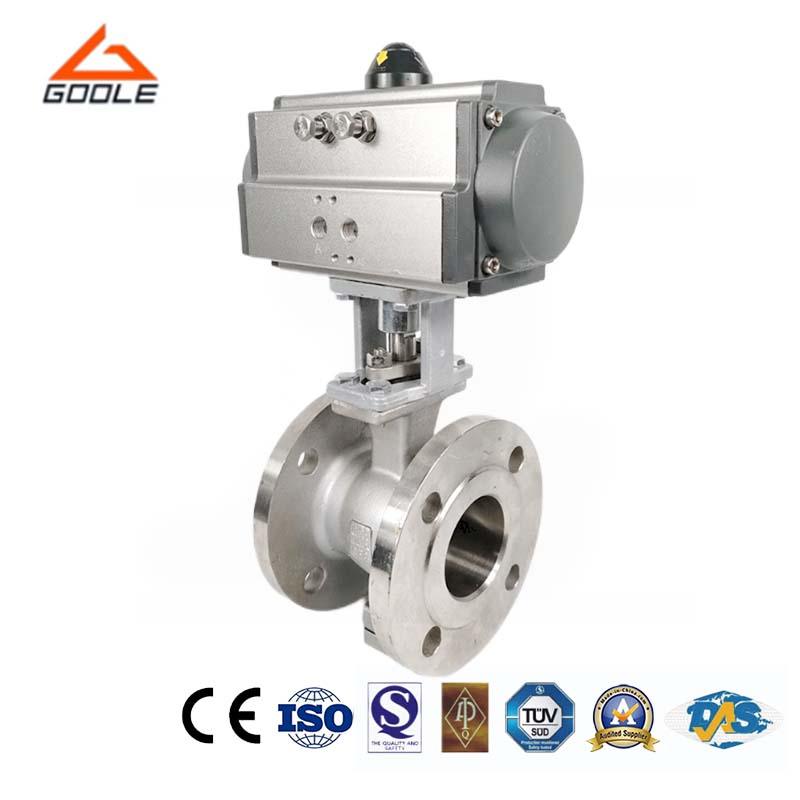

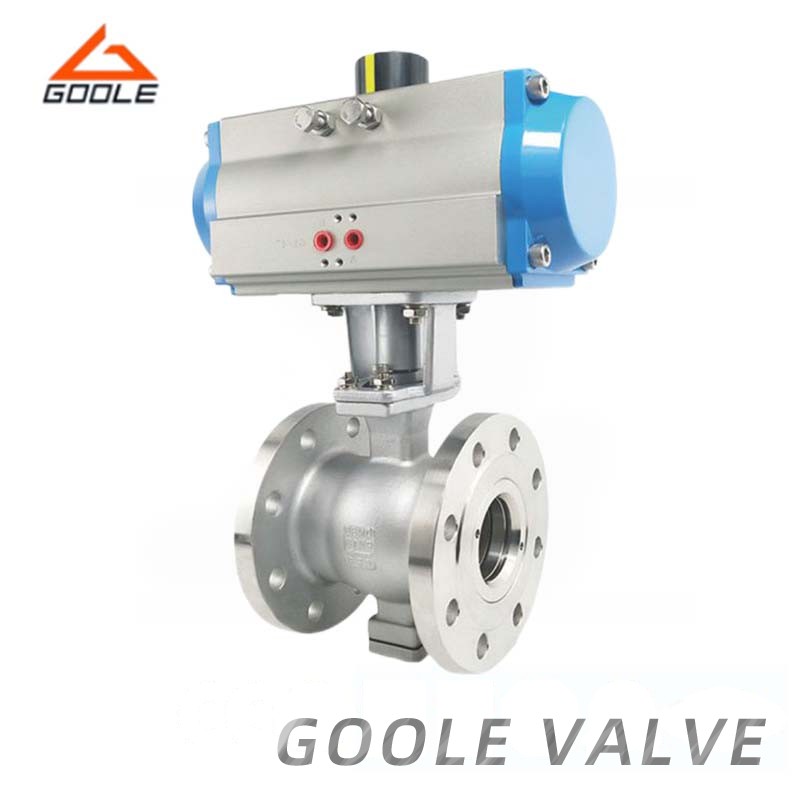

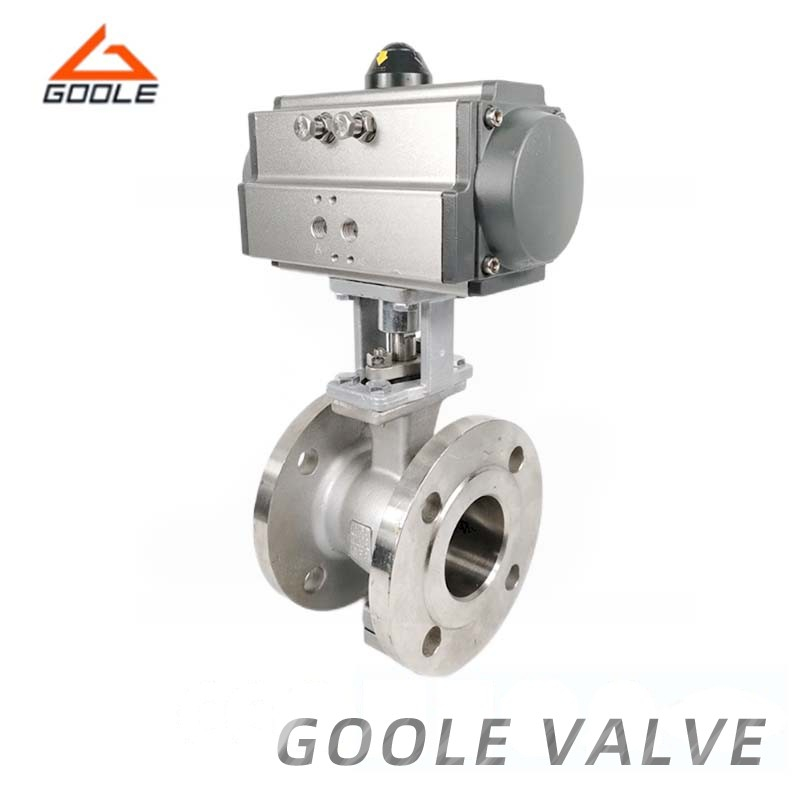

Pneumatic V-shaped control ball valves are rotary ball valves made of metal or metal-sealed materials that work in conjunction with Teflon. They combine the best control characteristics of both ball and butterfly valves, allowing them to function as either control valves or shut-off valves. Pneumatic V-shaped control ball valves feature a unique design; their V-shaped opening provides excellent regulation performance and precise control capabilities. The valves are compact and lightweight, making them easy to install and maintain. In fluid control systems, pneumatic V-shaped control ball valves can stably regulate the flow, pressure, and temperature of media to ensure the normal operation of the system.
● V incision design: the shear force between the ball and the metal seat V incision is especially suitable for the medium containing fibers, small solid particles, pulp, etc.
● Small pressure loss: fully open flow, minimum pressure loss, the medium will not be deposited in the body cavity.
● Long service life: the use of the valve seat structure with spring loading movable seat structure, to prevent the ball core and the valve seat and other problems, to ensure reliable sealing, long service life.
● Accurate adjustment: the valve has the advantages of accurate adjustment, reliable positioning function, approximate flow characteristics, large adjustment range, and the maximum adjustment ratio of 100:1.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the V Incision design?
The unique V-shaped port design not only optimizes fluid flow, but also reduces pressure loss, thereby improving the efficiency of the entire system.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
Our pneumatic V-ball valve has been widely validated in numerous industrial applications due to its excellent performance and stability. Even in high temperature, high pressure, and harsh environments, it can still provide reliable performance in fine operations that require precise flow control. This design is user-friendly, simplifying the installation, maintenance, and operation process, making it simple and fast. The unique V-shaped port design not only optimizes fluid flow, but also reduces pressure loss, thereby improving the efficiency of the entire system. In addition, we provide comprehensive after-sales service and technical support to ensure that customers can receive timely assistance and solve any problems during use.
