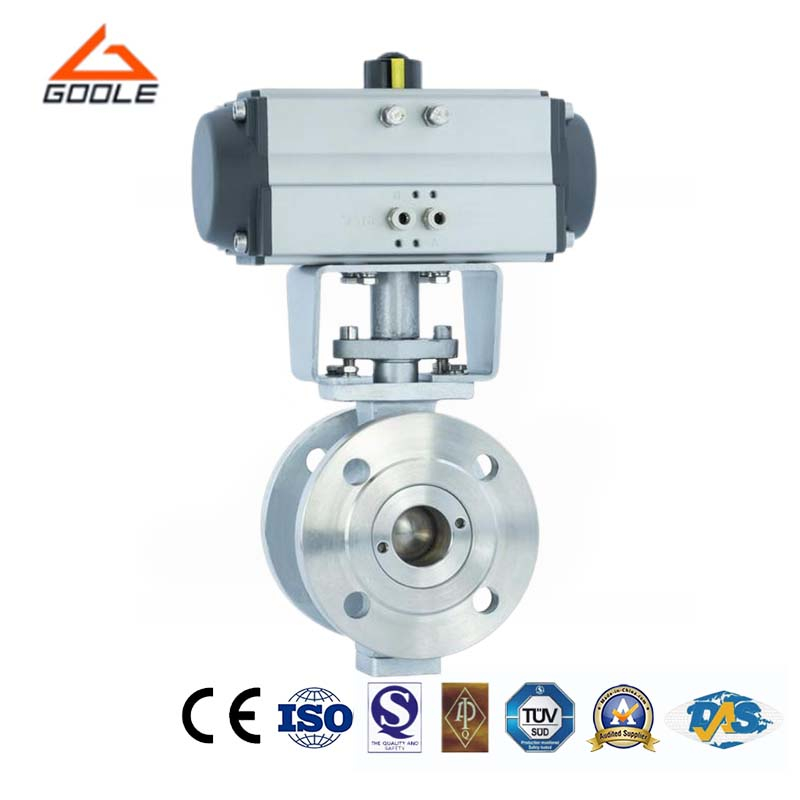

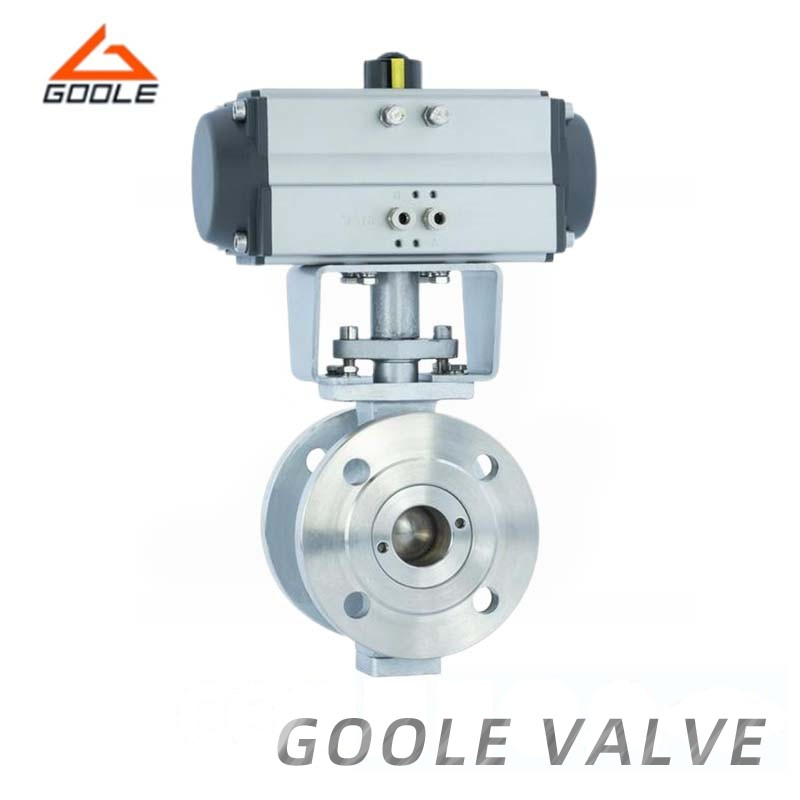

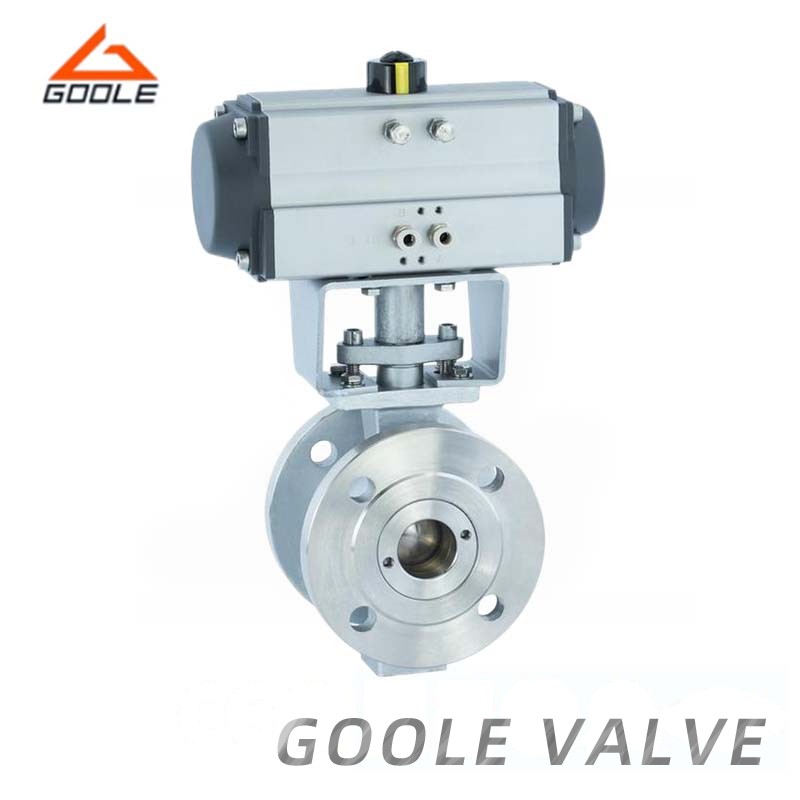

The pneumatic V-shaped regulating ball valve is a rotary ball valve sealed by metal or metal and matched with Teflon. It combines the best control characteristics of ball valve and butterfly valve, which can be used as both control valve and stop valve.
●V Incision Design:The shear force V-notch between the ball and the metal seat is particularly suitable for media containing fibers, small solid particles, pulp, etc.
●Small Pressure Loss:Fully open the flow rate, with minimal pressure loss, and the medium will not deposit in the body cavity.
●Long Service Life:The movable valve seat structure with spring loading is adopted to prevent jamming or other problems between the ball core and valve seat, ensuring reliable sealing and long service life.
●Accurate Regulation:This valve has the advantages of accurate adjustment, reliable positioning function, approximate flow characteristics, large adjustment range, and a maximum adjustment ratio of 100:1.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the V Incision design?
The unique V-shaped port design not only optimizes fluid flow, but also reduces pressure loss and improves the efficiency of the entire system.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
Our pneumatic V-type ball valve has been widely verified in many industrial applications with its excellent performance and stability. Even in high temperatures, high pressures, and harsh environments, it still provides reliable performance in fine operations that require precise flow control. The design is user-friendly and simplifies the installation, maintenance and operation process, making it simple and quick. The unique V-shaped port design not only optimizes fluid flow but also reduces pressure loss, thus improving the efficiency of the entire system. In addition, we provide comprehensive after-sales service and technical support to ensure that customers can timely get help to solve any problems.
