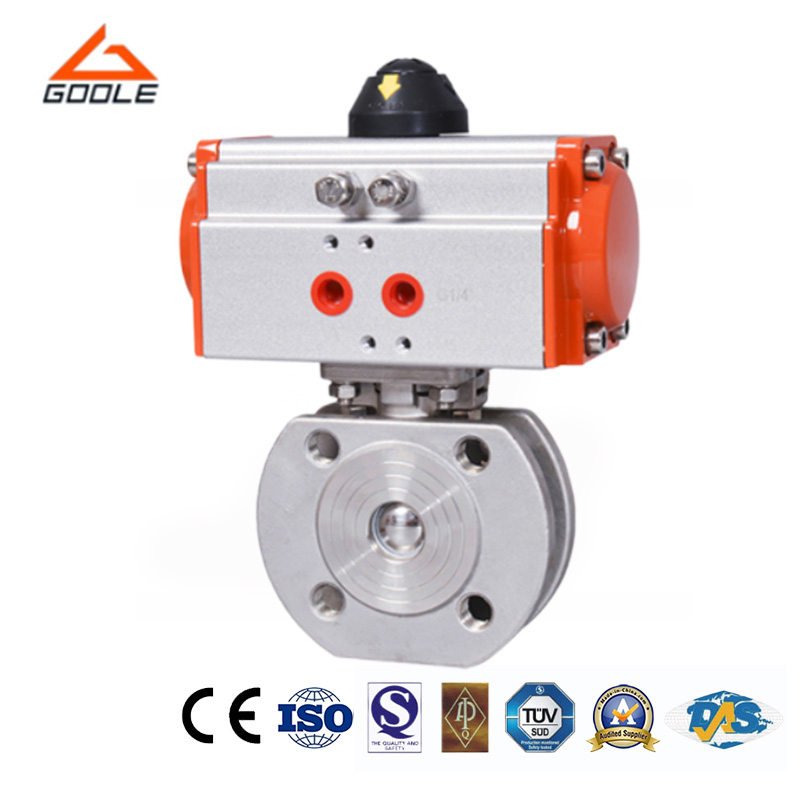

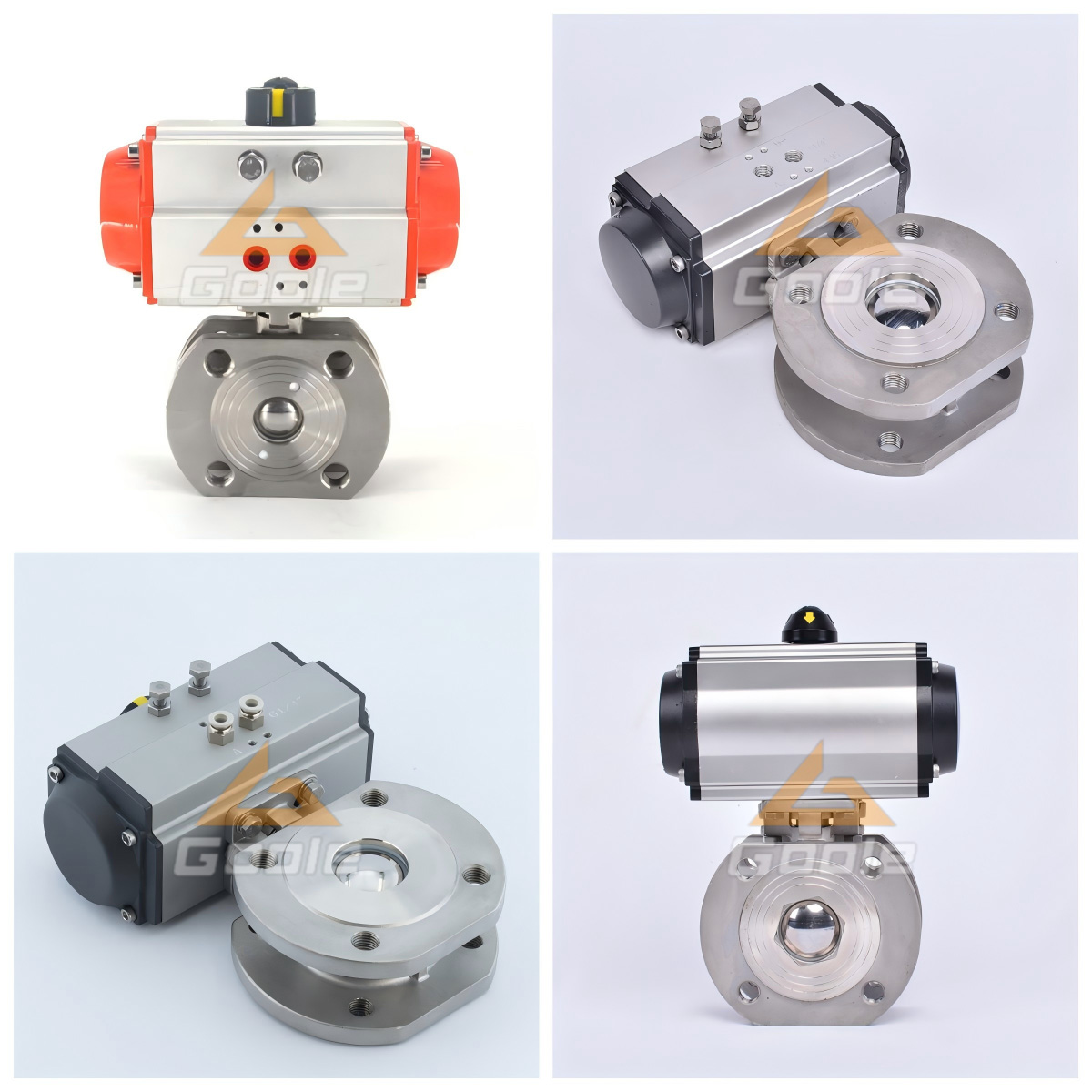

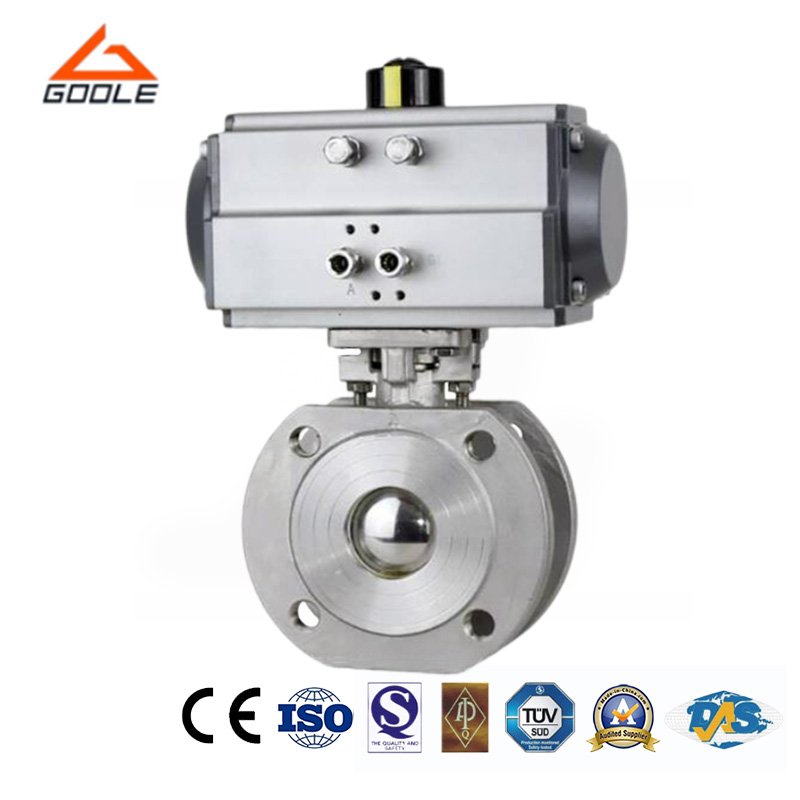

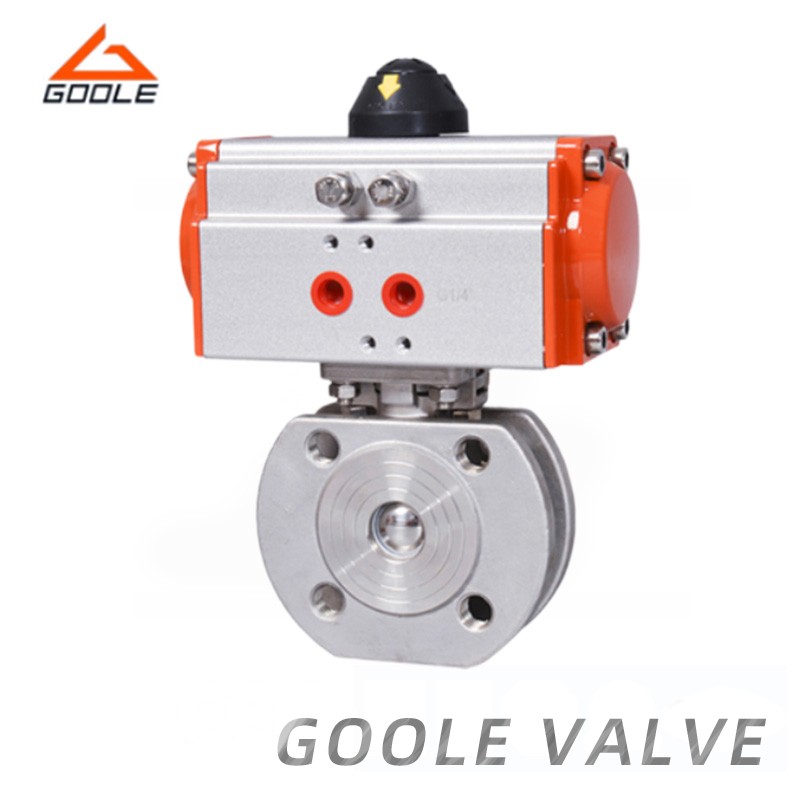

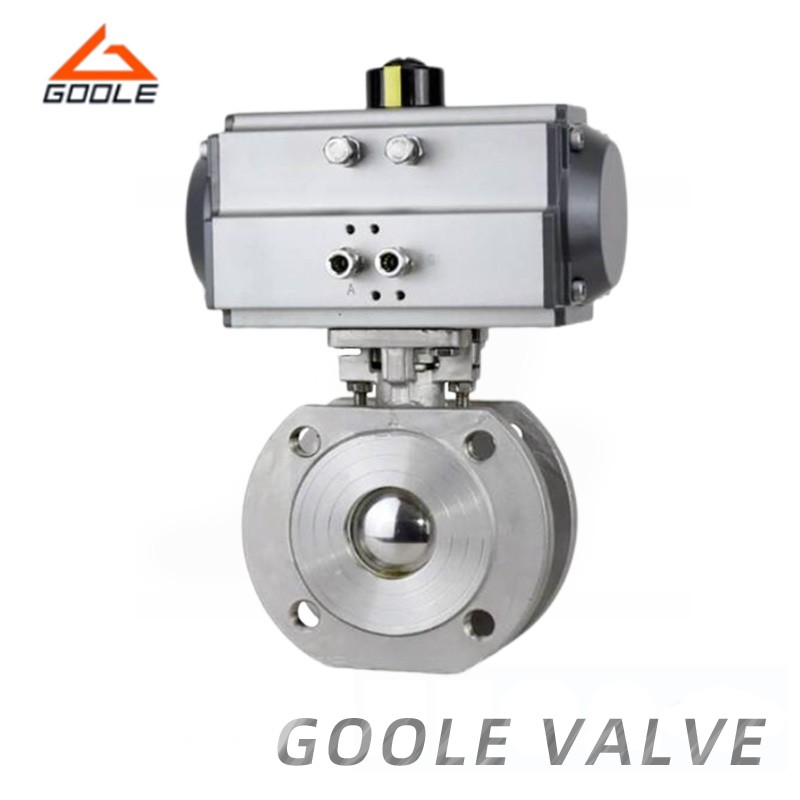

Pneumatic wafer type ball valve is a type of ball valve equipped with an electric actuator. The execution speed of electric actuators is relatively fast, without the need for manual labor, greatly saving human resources and time. The pneumatic wafer type ball valve has a compact structure, small volume, light weight, and is easy to install and maintain. Its excellent sealing performance can effectively prevent medium leakage, ensuring the stability and safety of the system. At the same time, the ball valve also has good corrosion resistance and high temperature resistance, suitable for various harsh working conditions, improving the efficiency and reliability of industrial production.
●Wafer Type Design:Provide insulation and cooling to ensure stable temperature of the medium during transportation.
●Flanged or Wafer Connection:Allows for flexible and secure installation into existing pipeline systems.
●Heat-Resistant Materials: Made of stainless steel and carbon steel, it improves pressure resistance and durability.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the Wafer Type design?
The wafer type design, compact structure, easy to install and maintain, greatly reduce the cost of use.
Q:What types of media can this valve handle?
This valve is ideal for high-viscosity media such as heavy oils, glue, and other substances prone to solidifying at normal temperatures.
First, our pneumatic wafer-type ball valves are made of high-quality materials to ensure their excellent durability and reliability. Secondly, the unique design, compact structure, convenient installation and maintenance, greatly reduce the cost of use. In addition, our ball valve has good sealing performance, can effectively prevent media leakage and ensure the safety of the system. Finally, we provide comprehensive pre-sale and after-sales service to ensure that customers receive timely technical support and solutions during the use process.
