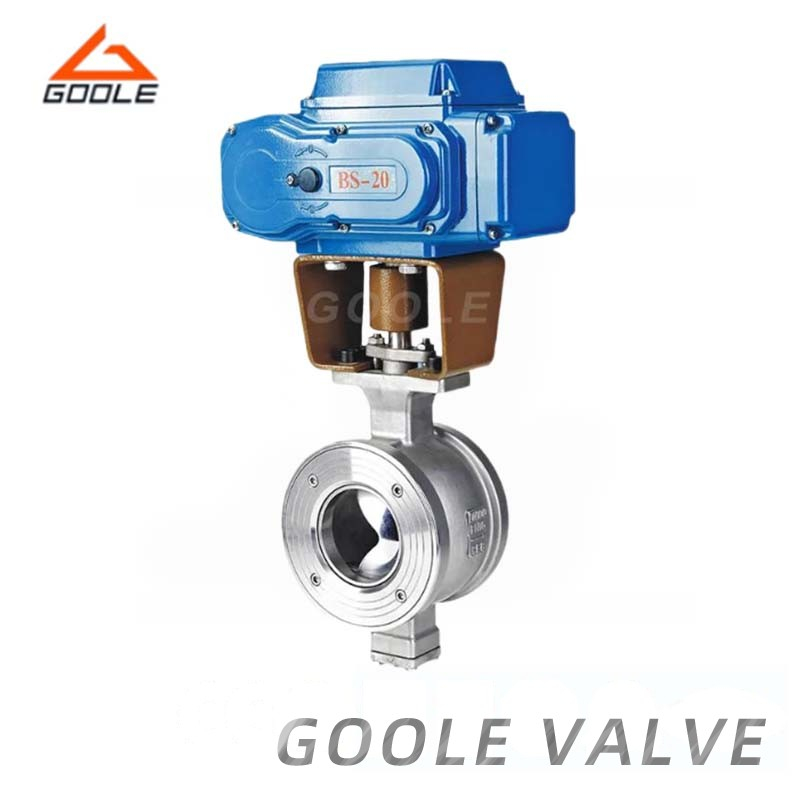

The electric V-type adjustable ball valve is a ball valve with a rotating function. Its core component, the —— valve seat, is made of metal or a seal combination of metal and polytetrafluoroethylene (PTFE). The design of this ball valve ingeniously combines the excellent control characteristics of both ball valves and butterfly valves. It can not only serve as a control valve for precise flow regulation but also function as a shut-off valve for opening and closing fluids, offering great flexibility and control accuracy.
●V Incision Design: There is a V-shaped groove between the sphere and the metal seat, which is especially suitable for fibers, small solid particles, pulp and other media.
●Small Pressure Loss: When the flow is fully opened, the pressure drop is very small to avoid medium deposition in the chamber.
●Long Service Life: The spring type movable valve seat design avoids faults such as ball core valve seat jamming, ensures sealing, and extends service life.
●Accurate Regulation: The valve has high regulation accuracy, stable positioning, almost the same flow characteristics, wide regulation range, the maximum regulation ratio can reach 100:1.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the V Incision design?
The unique V-port design not only optimizes fluid flow but also reduces pressure loss and improves the efficiency of the overall system.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
In many industrial fields, our company's electric V-type ball valves have passed extensive testing and application due to their outstanding performance and stability. Even in extremely harsh environments, these valves ensure precise operation, meeting stringent flow control requirements. The design focuses on user convenience, making installation, maintenance, and operation simple and efficient. The V-shaped design not only enhances fluid flow efficiency but also reduces pressure loss, thereby improving the overall system performance. We also commit to providing comprehensive after-sales service and technical support, ensuring that any issues encountered during use are promptly resolved.
