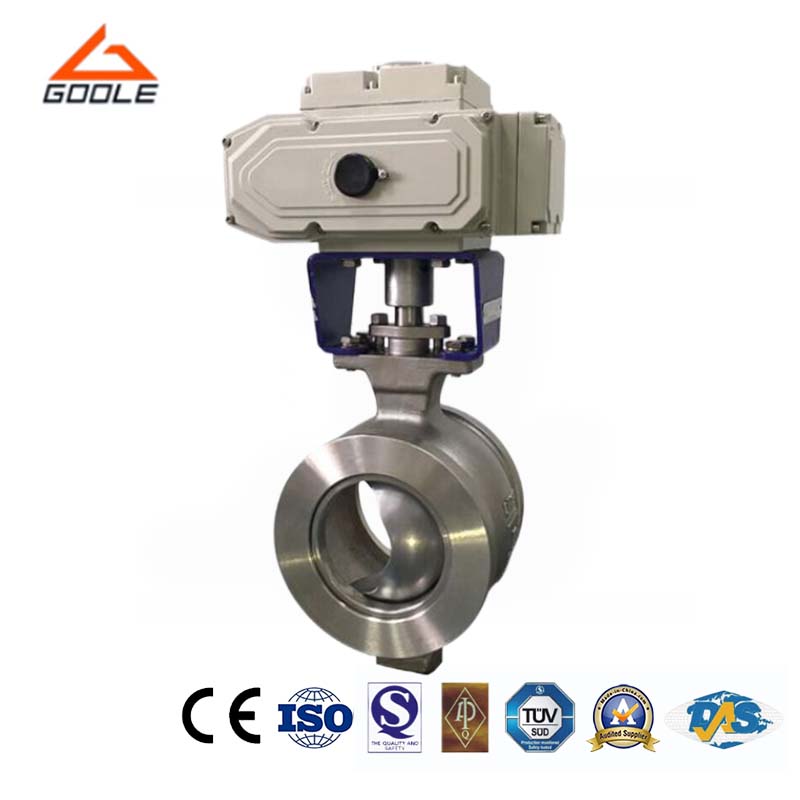

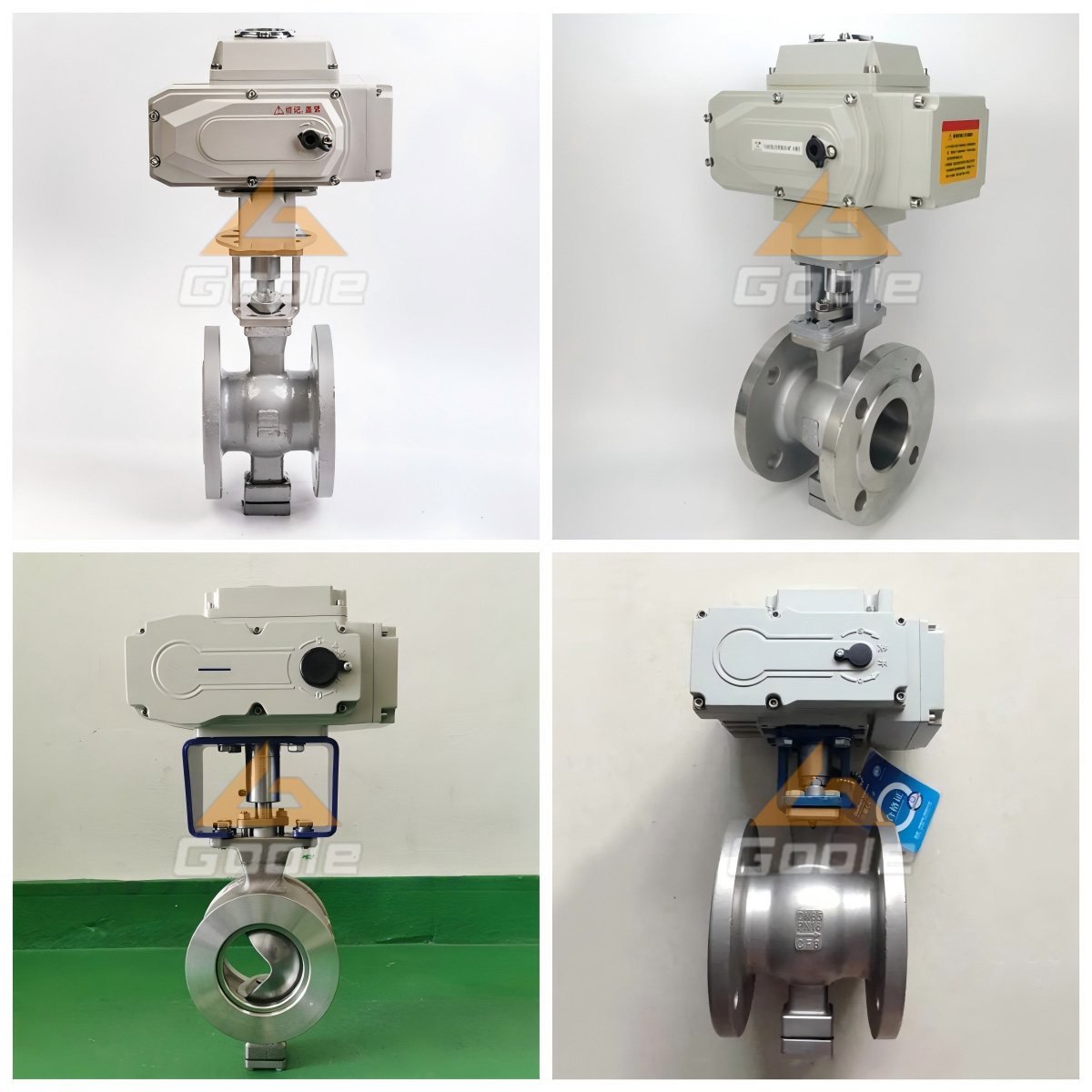

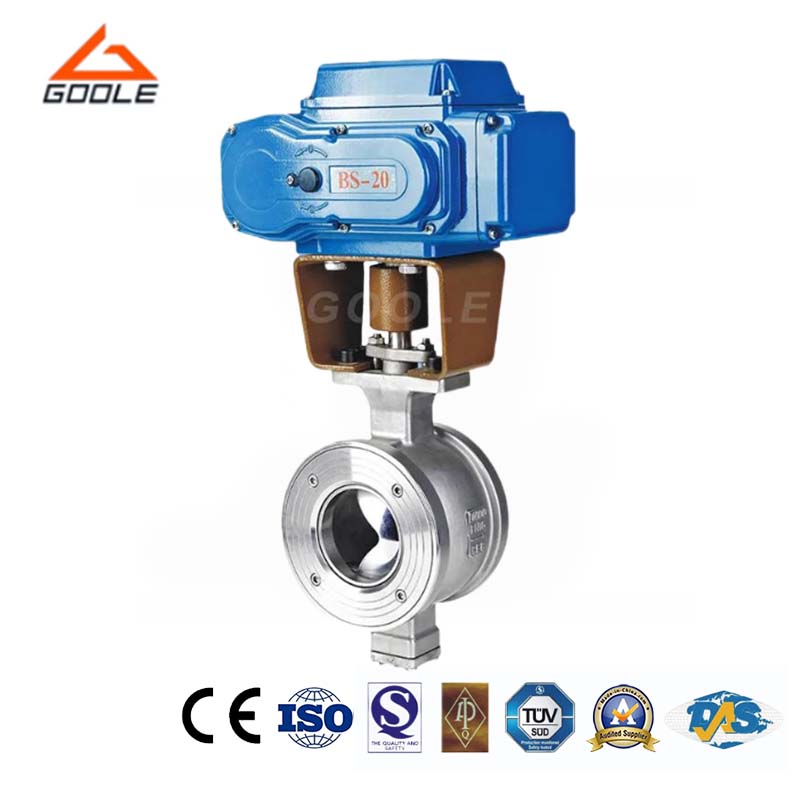

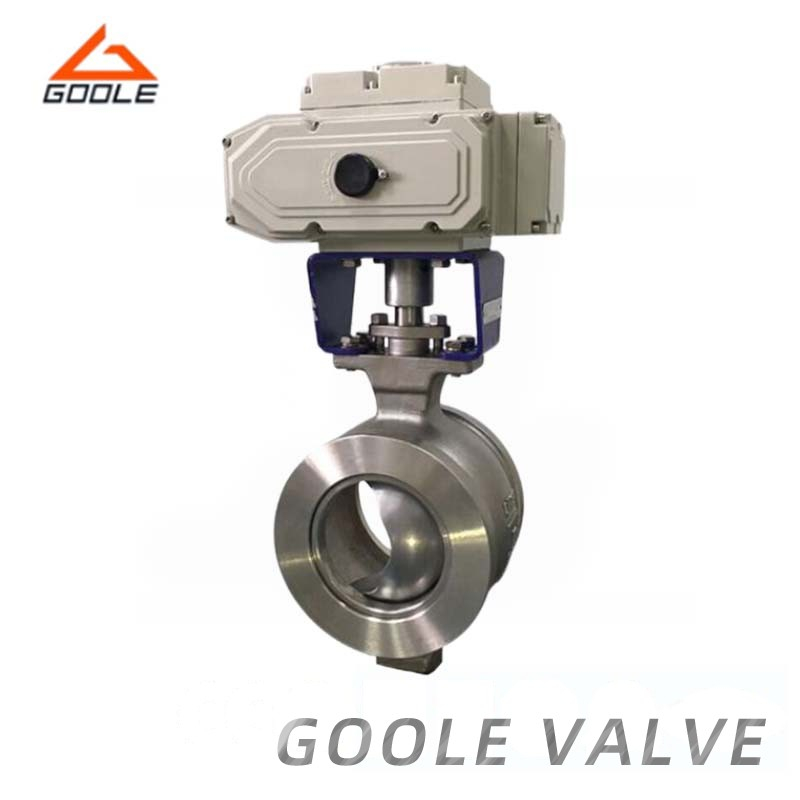

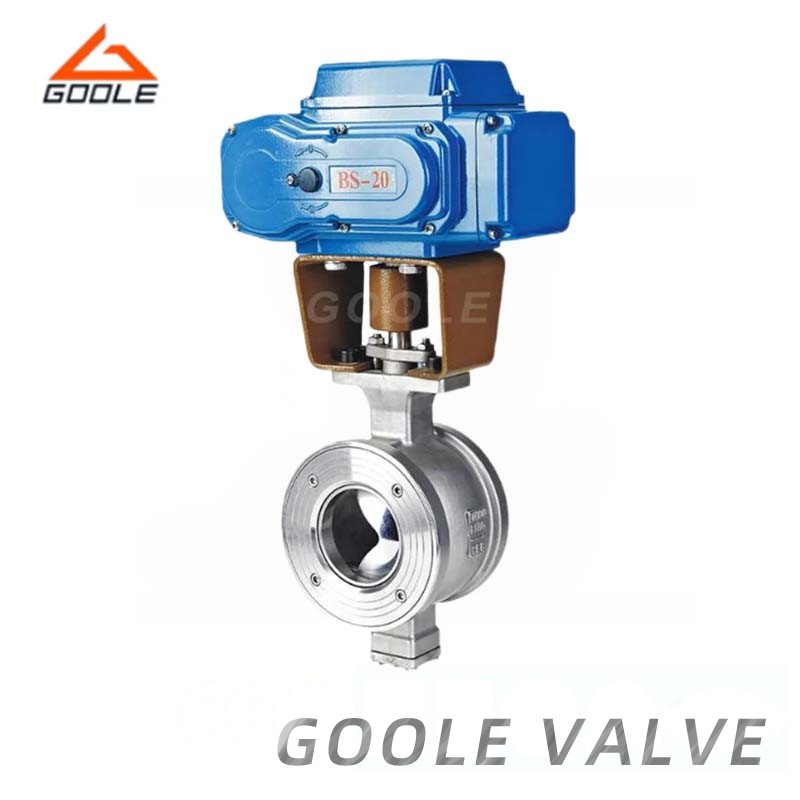

Electric V-shaped regulating ball valve is a ball valve with rotating function, and its core component, the valve core seat, is made of metal material or a sealing combination of metal and PTFE (polytetrafluoroethylene). The design of this ball valve cleverly combines the excellent control characteristics of ball valves and butterfly valves, so it can not only serve as a regulating valve to finely control the flow rate of fluids, but also as a shut-off valve to achieve the opening and closing of fluids, providing great flexibility and control accuracy.
●V Incision Design: V-shaped groove between the sphere and the metal seat, especially suitable for media such as fibers, small solid particles, pulp, etc.
●Small Pressure Loss: When the flow is fully opened, the pressure drop is very small to avoid medium deposition in the chamber.
●Long Service Life: The spring type movable valve seat design avoids faults such as ball core valve seat jamming, ensures sealing, and extends service life.
●Accurate Regulation: This valve has high adjustment accuracy, stable positioning, almost identical flow characteristics, wide adjustment range, and a maximum adjustment ratio of 100:1.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the V Incision design?
The unique V-port design not only optimizes fluid flow but also reduces pressure loss and improves the efficiency of the overall system.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
In many industrial fields, our company's electric V-shaped ball valves have passed extensive testing and application due to their excellent performance and stability. Even in extremely harsh environments, this valve ensures precise operation and meets strict flow control requirements. Its design emphasizes user convenience, making installation, maintenance, and operation simple and efficient. The V-shaped design not only improves fluid flow efficiency, but also reduces pressure loss, thereby enhancing overall system performance. We also promise to provide comprehensive after-sales service and technical support to ensure that any problems that arise during use can be resolved in a timely manner.
