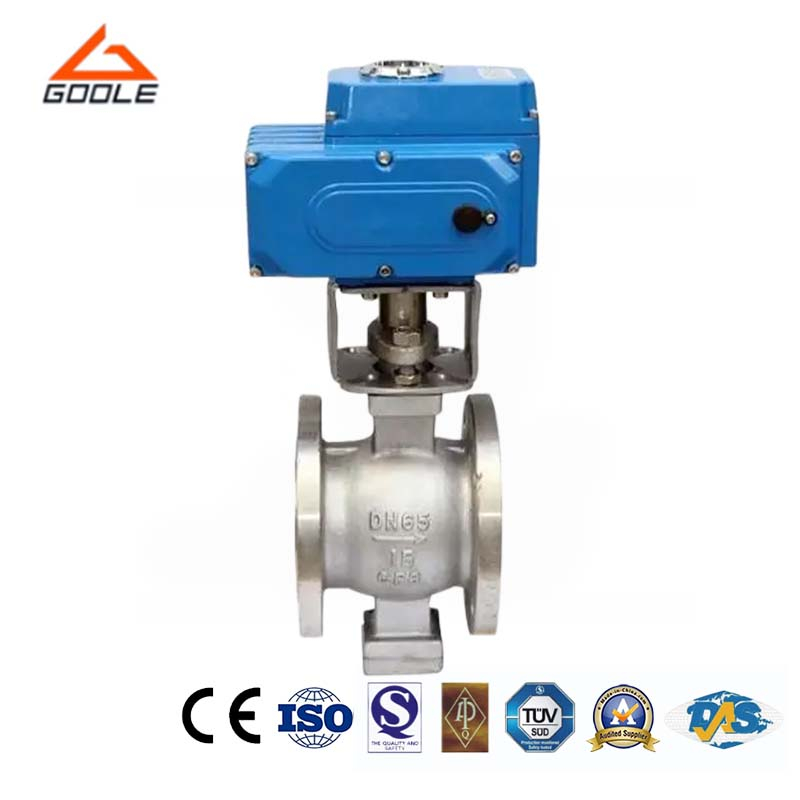

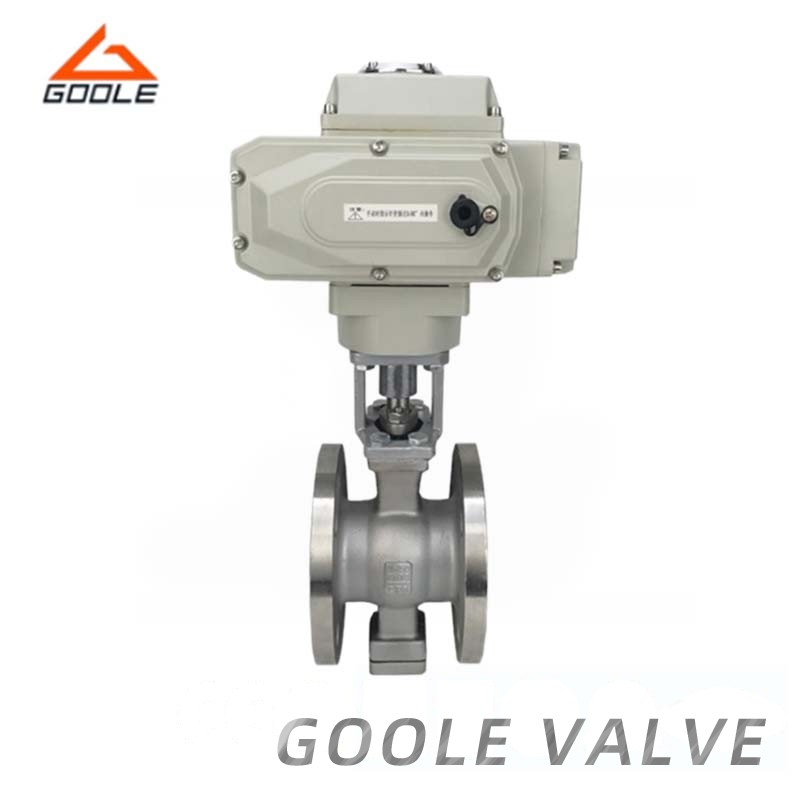

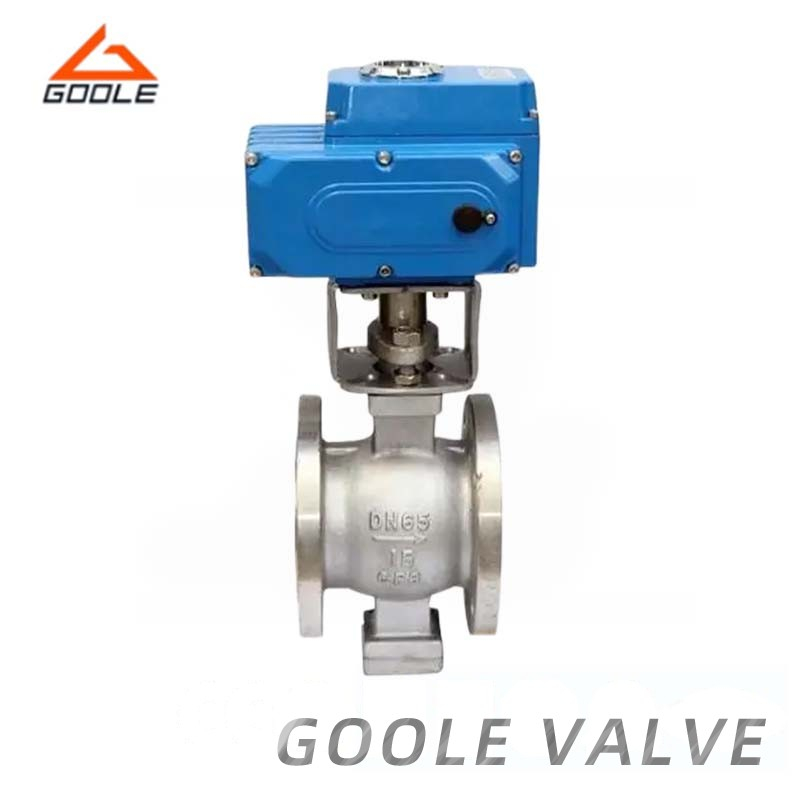

The electric V-type control ball valve is a type of ball valve with a rotating function. Its core component, the valve seat, uses either metal material or a seal combination of metal and PTFE (polytetrafluoroethylene). This ball valve ingeniously combines the excellent control characteristics of both ball valves and butterfly valves. Therefore, it can not only serve as a control valve to finely regulate fluid flow but also function as a shut-off valve to achieve the opening and closing of fluids, offering great flexibility in use and precise control.
●V Incision Design: V-shaped groove between the sphere and the metal seat, especially suitable for fiber, small solid particles, pulp and other media.
●Small Pressure Loss: When the flow is fully open, the pressure drop is small to avoid the deposition of medium in the chamber.
●Long Service Life: Spring-type movable valve seat design, avoid ball core valve seat jamming and other faults, ensure sealing, prolong the service life.
●Accurate Regulation: This valve has high adjustment accuracy, stable positioning, almost the same flow characteristics, wide adjustment range, and the maximum adjustment ratio reaches 100:1.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the V Incision design?
The unique V-port design not only optimizes fluid flow but also reduces pressure loss and improves the efficiency of the overall system.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
In numerous industrial sectors, our company's electric V-type ball valve has passed extensive testing and application due to its outstanding performance and stability. Even in extremely harsh environments, this valve can ensure precise operation, meeting stringent flow control requirements. Its design emphasizes user convenience, making installation, maintenance, and operation simple and efficient. The V-shaped design not only enhances fluid flow efficiency but also reduces pressure loss, thereby improving the overall system performance. We also commit to providing comprehensive after-sales service and technical support to ensure that any issues during use are promptly resolved.
