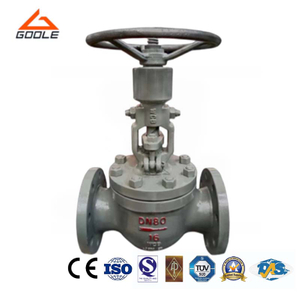

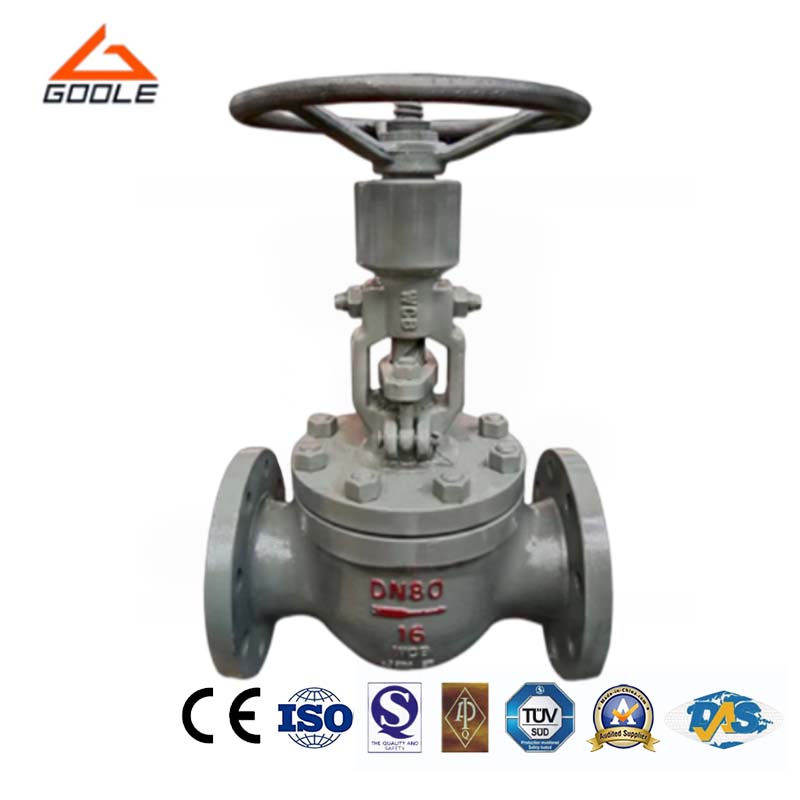

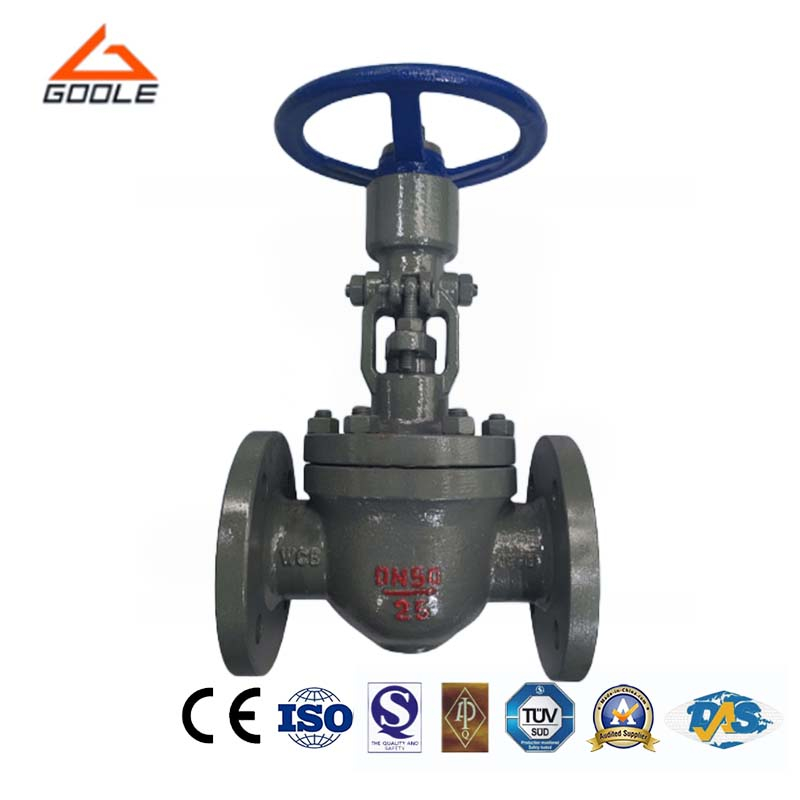

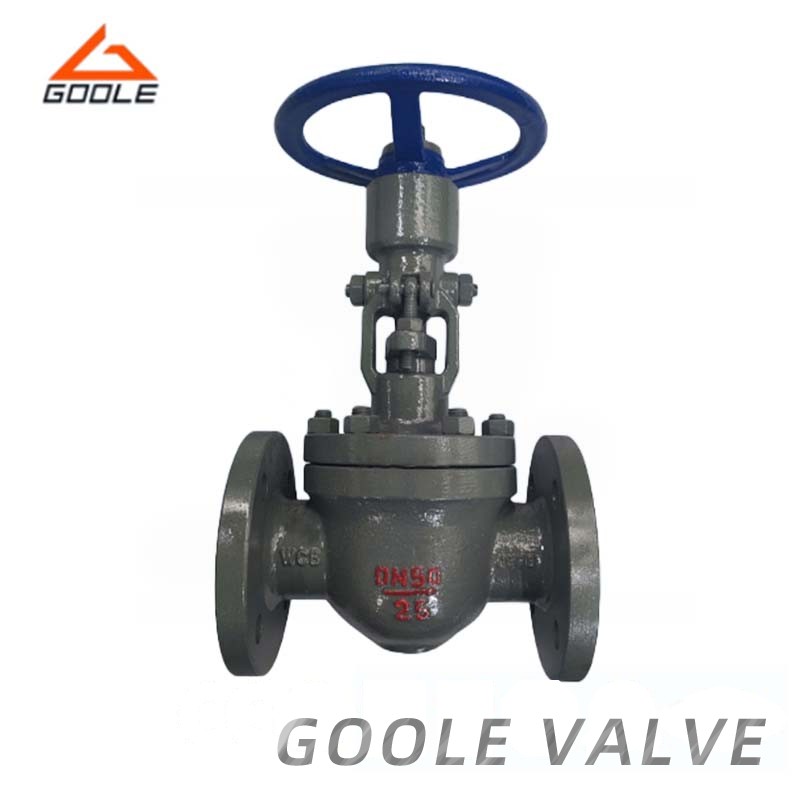

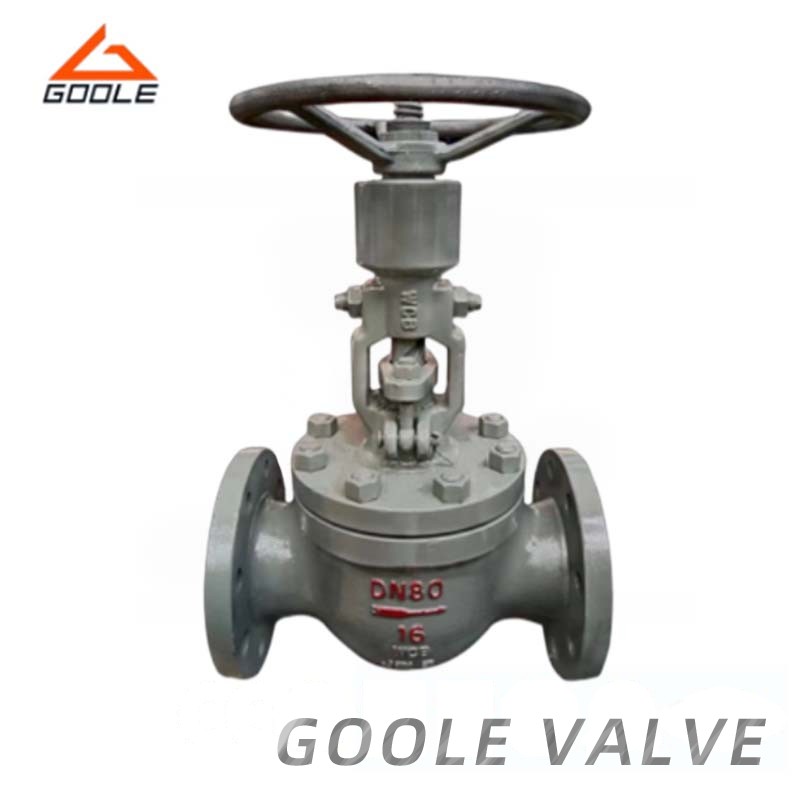

Orbital ball valves control fluid flow by rotating the ball, mainly used to cut off, distribute, and change the direction of medium flow. Its working principle is to open and close the valve through the rotation of the sphere. The design features of track ball valves include frictionless opening and closing, low torque design, and self-cleaning sealing surface function, making track ball valves perform well in various industrial applications.
● Excellent Sealing Performance: Advanced sealing technology and materials are used to ensure good sealing effect in high-pressure and high-temperature environments, effectively preventing leakage.
● Strong Circulation Capacity: With low fluid resistance, it can reduce pressure loss in pipeline systems and improve fluid transport efficiency.
● Easy to Operate: Quickly start and stop, simply rotate 90 degrees to complete the switching action, easy to automatically and remotely control.
NO. | Part name | Material | ||||||
A216 WCB | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M | ||
1 | Body | A216 WCB | A217 WCB | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
2 | Plug | A351 CF8 | A351 CF8 | A351 CF8 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
3 | Gasket | Flexible graphite+stainless steel/PTFE | ||||||
4 | Cover | A216 WCB | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
5 | Bolt | A193 B7 | A193 B16 | A193 B16 | A1293 B8 | A193 B8M | ||
6 | Nut | A194 2H | A194 4 | A194 4 | A194 8 | A194 8M | ||
7 | Packing | Flexible graphite/PTFE | ||||||
8 | Gland | A216 WCB | A216 WC9 | A216 C5 | A351 CF8 | A351 CF8M | ||
9 | Wrench | A216 WCB | A216 WC9 | A216 C5 | A351 CF8 | A351 CF8M | ||
10 | Yoke nut | A439-D2/Cu-Allog | ||||||
11 | Hand wheel | ASTM A536 Gr.60-40-18 A216 WCB | ||||||

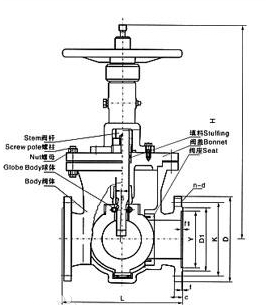

Main Dimensions
| Size | inch | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
L-RF | mm | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 |
H | mm | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 |
W | mm | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 300 | 300 | 340 | 400 | 450 | 450 | 500 | 500 |
Weight | Kg | 9 | 10 | 11 | 17 | 19 | 23 | 25 | 32 | 55 | 82 | 98 | 130 | 178 | 250 | 380 |
| TYPE | ORBIT BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
Q:What is the advantage of the top-entry design?
The design allows for in-line servicing, meaning internal parts can be accessed and replaced without having to remove the valve from the pipeline, significantly reducing maintenance time.
Q:Is this valve suitable for high-demand or critical applications?
Yes, the valve features firesafe design, double block and bleed (DBB) functionality, and self-relieving seats, making it ideal for critical and high-demand applications.
Q:How does the gear-operated mechanism benefit this valve?
The gear-operated mechanism enables precise and easy control of fluid flow, making it suitable for high-pressure systems where consistent operation is essential.

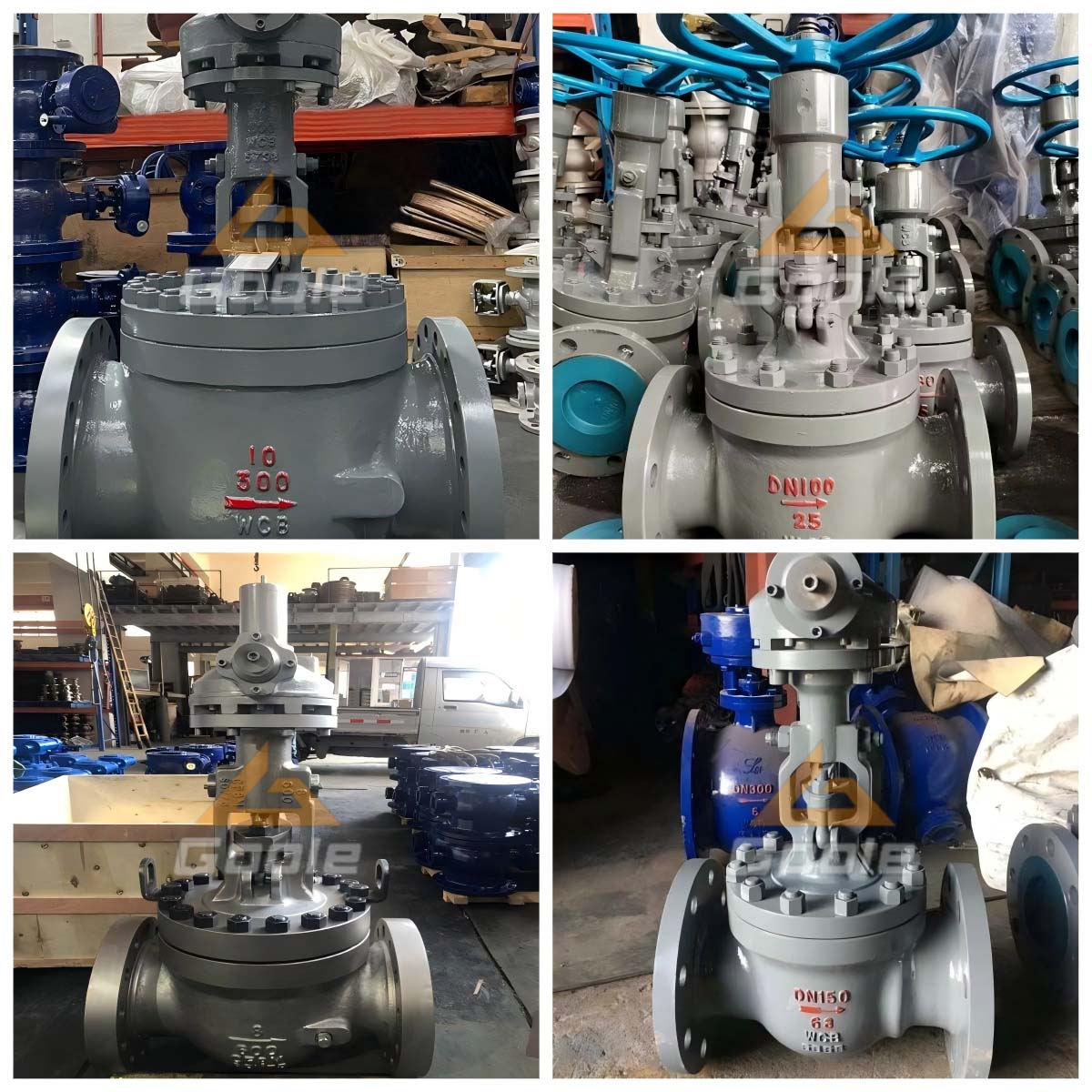

Our orbital ball valves are made of high-quality stainless steel and special alloy materials, ensuring stable operation in high-pressure, high-temperature, and corrosive environments, thereby extending their service life. By adopting advanced manufacturing technology and precision testing equipment, we ensure that each valve achieves optimal sealing performance and fluidity, reduces leakage risks, and improves system efficiency. We offer various specifications and configurations of ball valves to meet the needs of different application scenarios, whether it is industrial production lines or complex fluid control systems, we can find the most suitable solution.
